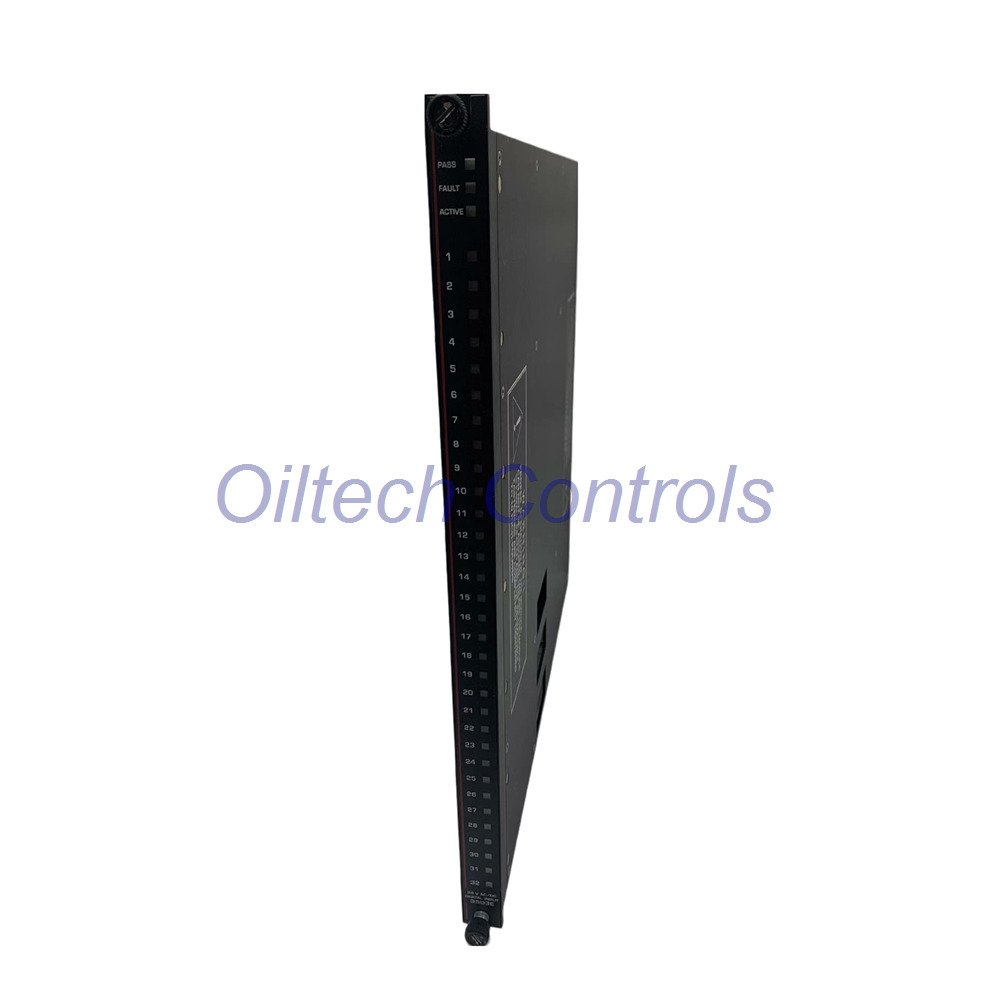

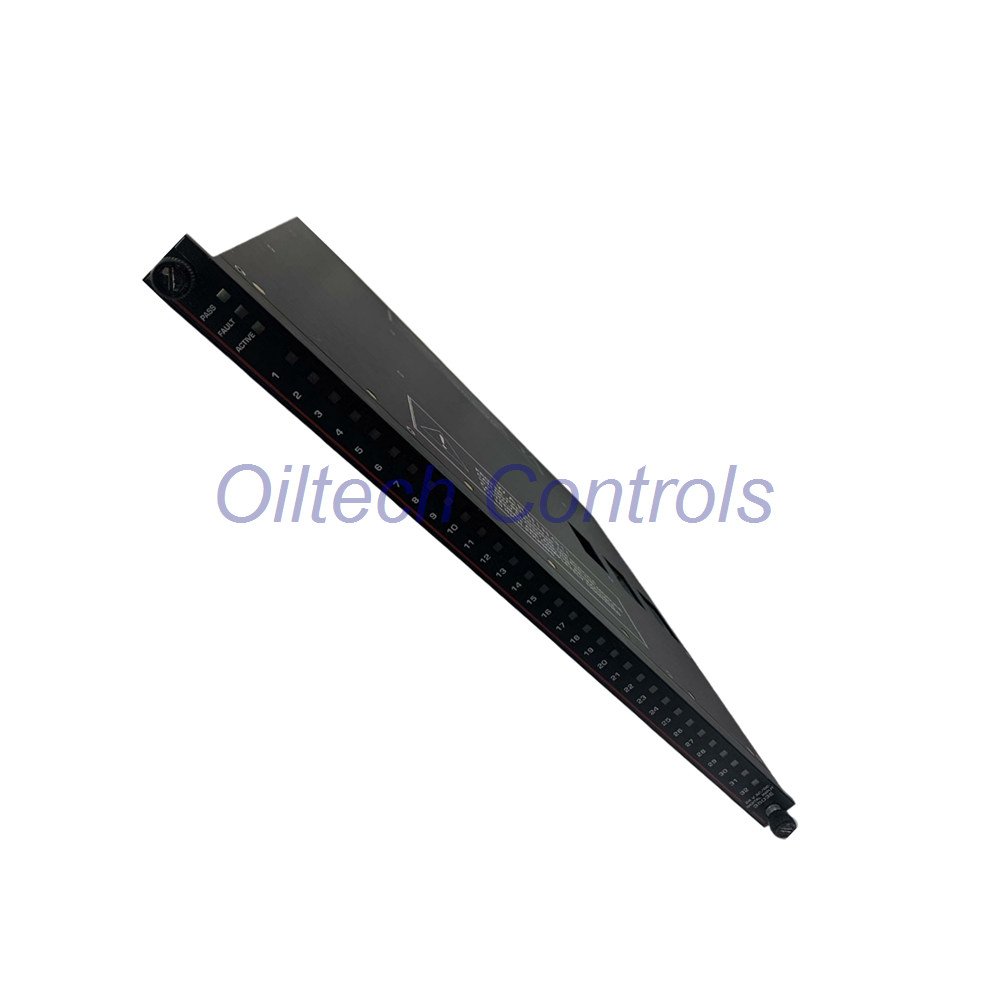

Triconex 3503E TMR Digital Input Module – High Availability Safety System

Oiltech Controls delivers the genuine Triconex 3503E Triple Modular Redundant digital input module to guarantee maximum safety for your critical industrial processes. Engineering teams worldwide trust this 24 VAC/DC module because it eliminates single points of failure through complete triplicated signal routing. Authors at Oiltech Controls verify that each module independently conditions field signals and maintains absolute optical isolation to protect your control infrastructure.

Key Technical Specifications

• Manufacturer: Triconex (Schneider Electric)
• Model Number: 3503E (Also known as Model 3503EN2 / EDI 5909)
• Module Type: Triple Modular Redundant (TMR) with integrated advanced self-test capability
• Input Points: 32 input points, neatly commoned in four distinct groups of 8
• Voltage Range: 20 to 42.5 VAC/VDC recommended input range for optimal field performance
• Frequency Range: DC or 47 to 63 Hz alternative current supply frequencies
• Switching Levels: Off-to-On threshold exceeds 18 VAC/VDC; On-to-Off threshold drops below 6 VAC/VDC
• Nominal Turn-On Current: 6 to 9 mA with a typical hysteresis of 4 VAC/VDC
• Input Delay Time: OFF-to-ON response takes under 8 ms; ON-to-OFF response takes under 15 ms
• Point Isolation: 1,500 VDC electrical isolation provides robust protection between field circuits and backplane
• Nominal Input Impedance: Greater than 1.25 KΩ to ensure precise signal measurement and accuracy
• Field Power Load: 0.5 watts per active point; 1.5 watts maximum at peak field voltage
• Diagnostic Indicators: 1 LED per point for input status; PASS, FAULT, ACTIVE indicators for module status
• Module Color Code: Dark Red mechanical keying identification prevents improper installation inside the chassis slot

Advanced TMR Fault Detection and Operation

• Three isolated input channels independently process all incoming field data to achieve the highest data integrity
• A dedicated microprocessor on each channel scans every input point and compiles data for the main processors
• The main processors vote on the input data just prior to execution to eliminate signal errors
• Internal circuitry runs continuous self-tests to detect dangerous stuck-ON conditions where switches fail to open
• A specialized internal switch closes during tests to force a zero input reading for validation purposes
• The I/O communication processor freezes the last valid data reading while the self-test routine runs
• Comprehensive diagnostics activate the chassis alarm signal immediately when a channel fault occurs on the module
• The module guarantees proper operation during a single fault and tolerates specific multiple fault conditions seamlessly

Installation and System Integration Guide

• Always verify the dark red color code on the chassis slot before inserting the 3503E hardware
• The module requires a separate external termination panel to bridge field wiring with the active backplane
• Mechanical keying slots prevent improper installation into a wrongly configured chassis slot during hot-swap maintenance
• The Triconex backplane supports full hot-spare capability for seamless module replacement without interrupting system production
• Ensure clean field power connections to keep total power consumption below 1.5 watts per active point
• Connect your external termination panel using the original Triconex heavy-duty interface cable for optimal signal ground

Packaging List and Shipping Details

• Your package contains one brand new Triconex 3503E digital input module in original factory casing
• The shipment includes the heavy-duty anti-static protective packaging to prevent electrical component damage during global transport
• Oiltech Controls ships all industrial automation orders via reliable express carriers including FedEx, UPS, and DHL
• We provide tracking numbers immediately after dispatch so your engineering team can monitor the package delivery

Frequently Asked Questions & Procurement Advice

• Question: How does the 3503E module handle a single channel failure during live factory operations?Answer: The module uses triplicated voting logic so two healthy channels override the single faulty channel instantly.
• Question: Can I install this specific module into any open slot inside the Tricon chassis?Answer: No, unique mechanical keying restricts insertion only to slots configured for dark red input modules.
• Question: What is the engineering benefit of the stuck-ON self-test feature in safety environments?Answer: It ensures de-energize-to-trip systems can always read the OFF state correctly during emergency shutdowns.
• Question: Buying Guide: How do I choose between standard digital modules and the 3503E version?Answer: Select the 3503E when your safety integrity level requires mandatory self-testing for stuck-ON circuit faults.
• Question: For immediate pricing, technical drawings, or availability requests, who should our procurement team contact?Answer: Please direct your technical inquiries to info@oiltechcontrols.com or text our support line via +86 158 8020 0923 directly.
