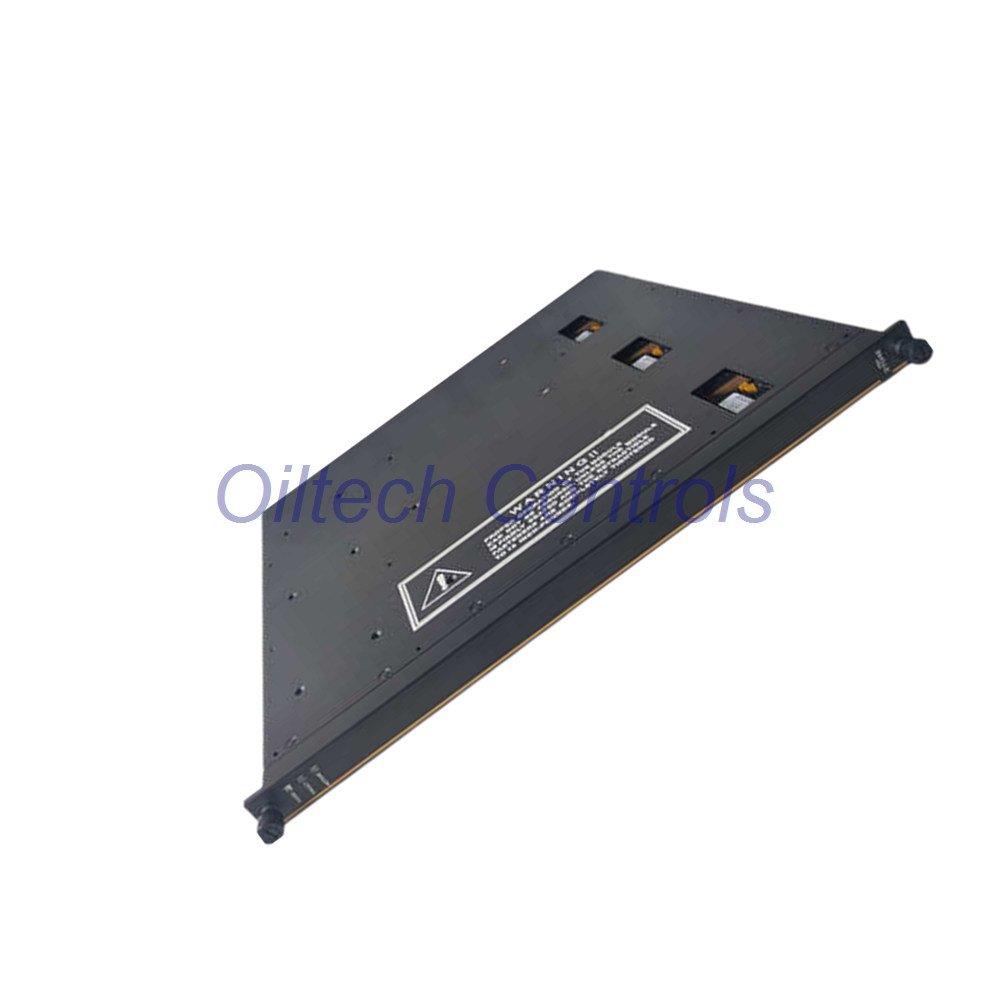

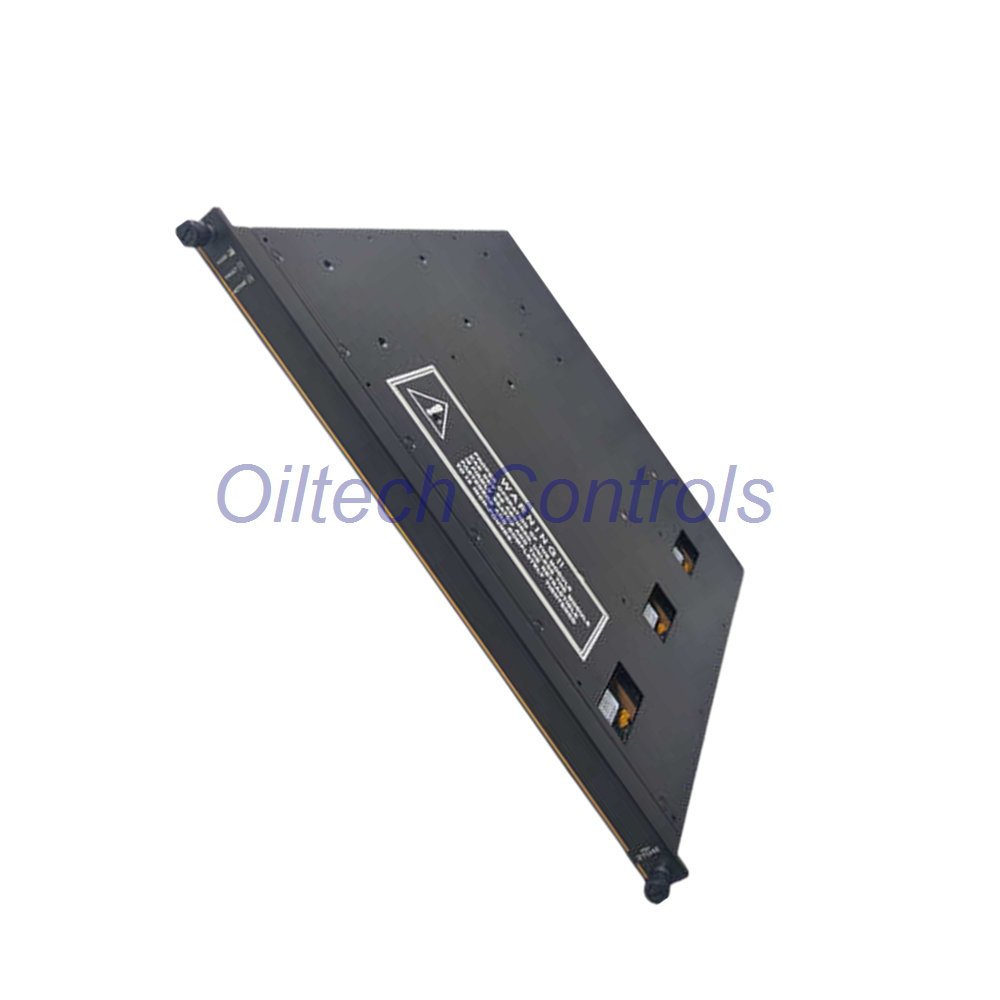

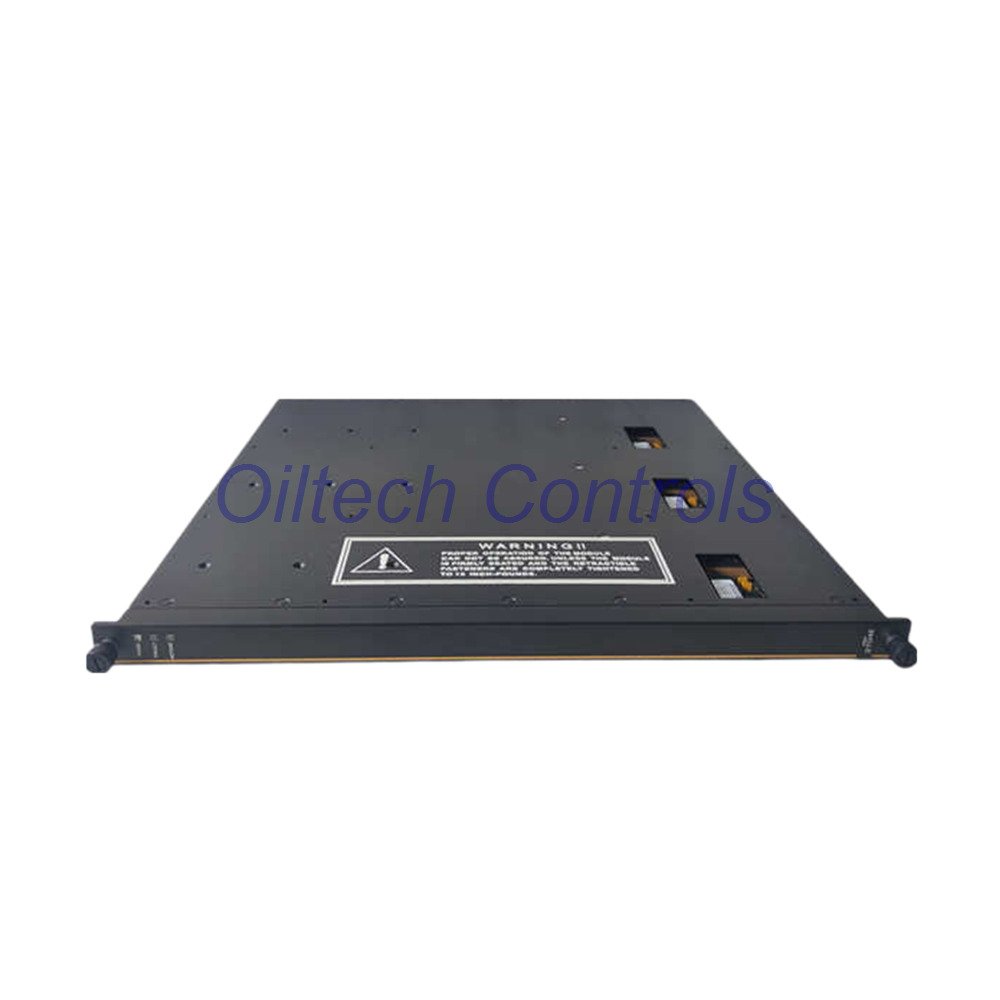

Module Overview – 3704E Triconex TMR Analog Input Module
The 3704E is a high-integrity analog input module designed for Triconex safety systems. It supports multi-channel signal acquisition with stable performance in critical control environments.
Signal Acquisition Capability
- 64 single-ended analog input channels
- Supports voltage ranges: 0–5 V and 0–10 V
- Supports current input: 0–20 mA via external shunt
- Fast input update cycle: 75 ms
- Designed for high-density signal monitoring
Measurement Accuracy & Resolution
- Resolution: 12-bit conversion accuracy
- Accuracy: less than 0.25% of full scale
- Stable performance across 0°C to 60°C
- Ensures reliable data for process control decisions
Electrical Characteristics
- Input resistance: minimum 30 MΩ
- Power-off resistance: typical 30 MΩ
- Leg-to-leg isolation: 200 kΩ typical
- Normal mode rejection optimized for industrial noise
- Frequency rejection: -1 dB at 8 Hz, -12 dB at 60 Hz
Protection & Reliability
- Overrange protection up to 150 VDC or 115 VAC
- Robust design for harsh industrial environments
- TMR architecture ensures fault tolerance
- Diagnostic indicators: PASS, FAULT, ACTIVE
- Color-coded identification for quick maintenance
Configuration Notes
- Voltage mode requires direct signal connection
- Current mode requires external resistor selection
- 250 Ω shunt converts 4–20 mA to 1–5 V
- 500 Ω shunt converts 4–20 mA to 2–10 V
Application Scope
- Safety instrumented systems (SIS)
- Oil and gas process control
- Power generation monitoring systems
- Chemical and petrochemical automation
- Critical plant signal acquisition and validation
Oiltech Controls’s Insight
- The 3704E excels in high-reliability environments
- TMR architecture enhances system fault tolerance
- Suitable for redundant safety PLC configurations
- Ensures stable analog signal processing under load variations
Logistics & Warranty
- Shipping options: FedEx, UPS, DHL
- Dispatch within 24–48 hours
- Secure anti-static packaging
- 12-month warranty included
Contact Information
- Email: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
FAQ – Engineering Practice & Selection
- How to choose between voltage and current input modes?
- Use voltage for direct signals and current for noise-resistant transmission.
- What is a key advantage of TMR architecture?
- It provides redundancy and increases system safety integrity.
- How to improve measurement stability?
- Use shielded cables and proper grounding techniques.
- What is a common integration challenge?
- Incorrect shunt resistor selection affects signal scaling accuracy.
- How to verify module health during operation?
- Check LED indicators and monitor diagnostic status signals.
