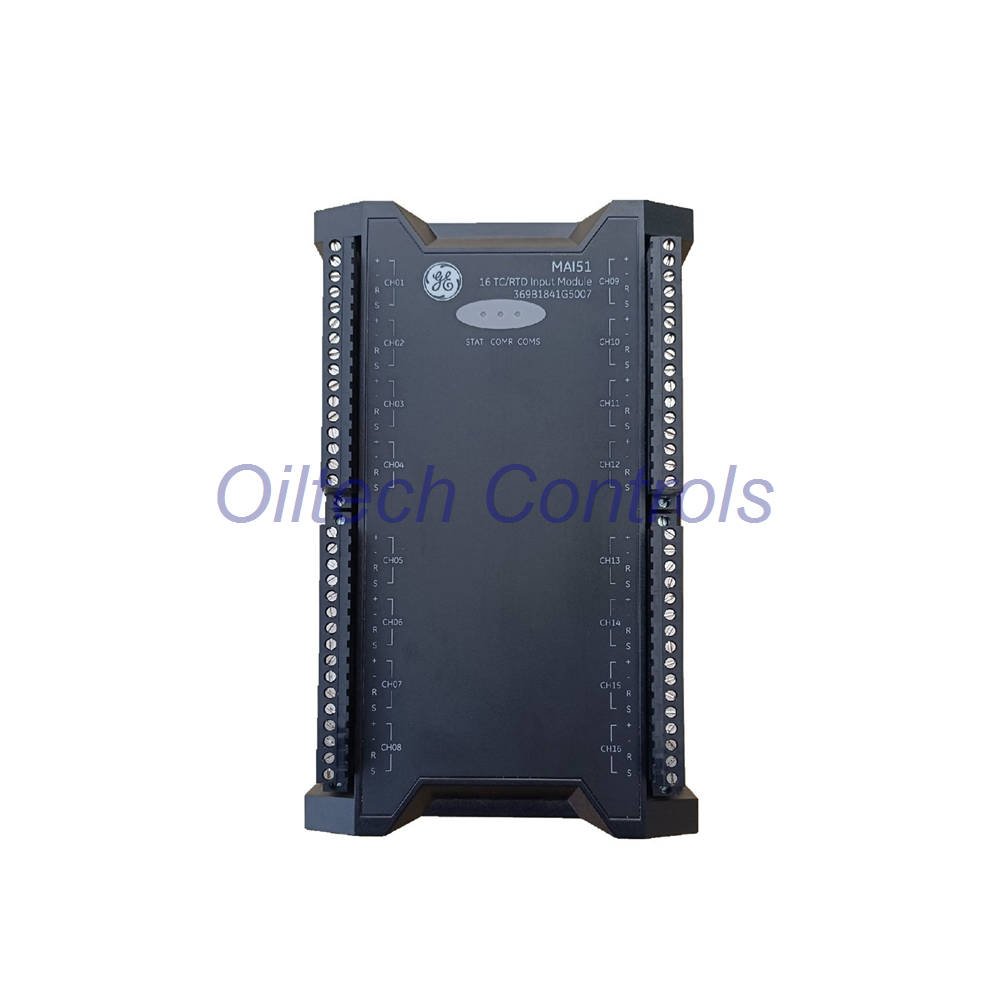

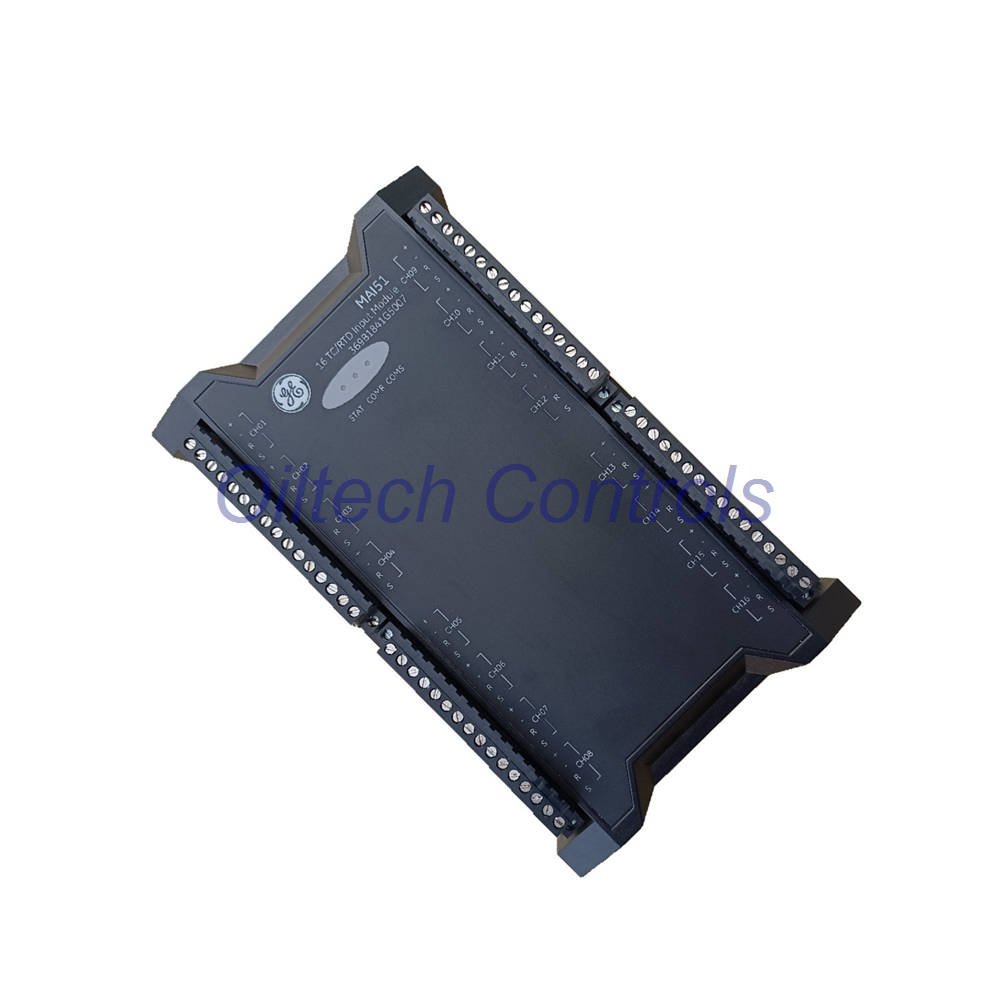

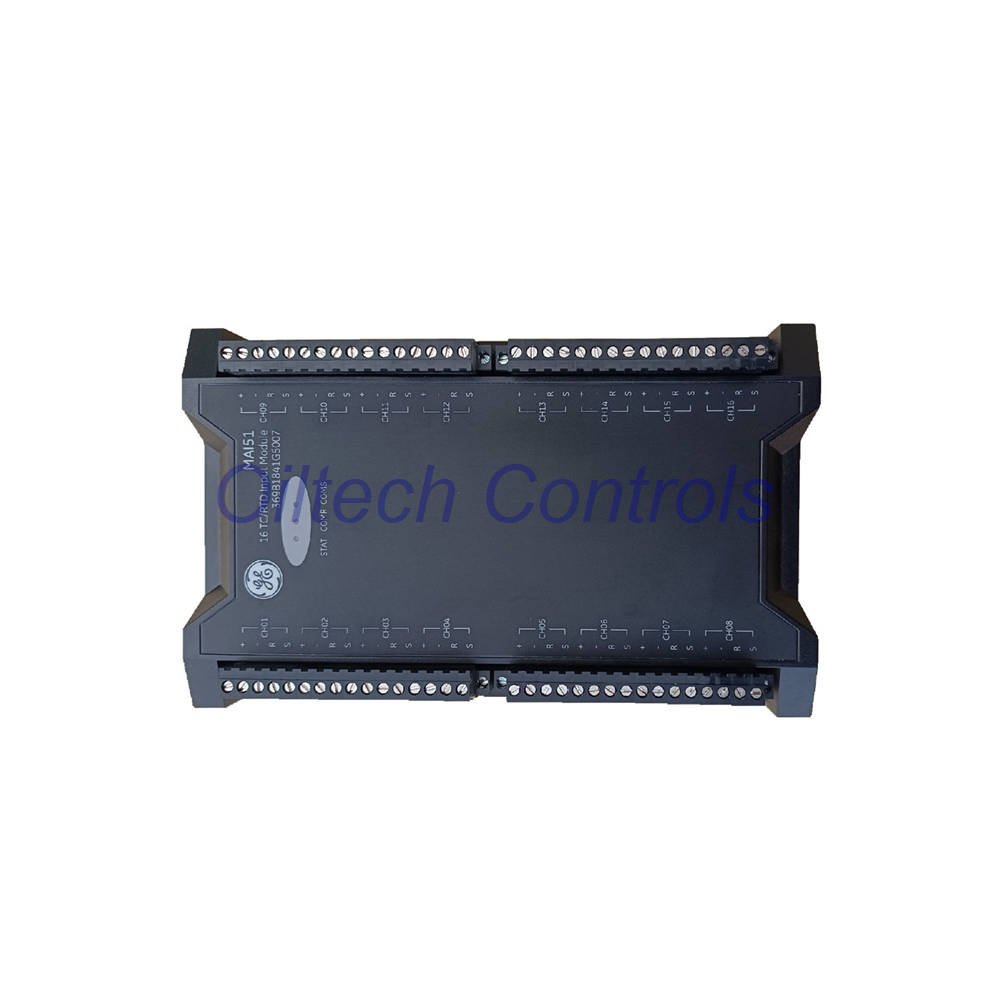

369B1841G5007 GE MAI51 TC/RTD Module | 369B1841G5007 Card

GE 369B1841G5007 Engineering Overview

• The 369B1841G5007 features a 32-bit RISC processor with 16-bit ADC resolution across dual 8-channel acquisition banks.
• Supports multiple RTD curves (Pt10, Pt100, Cu50, Cu100) and TC types (E, J, K, N, R, S, T, B).
• Integrated dual-redundant 24V DC power inputs prevent card shutdown upon primary power feed loss.
• Communication operates over a 1Mbps high-speed redundant intelligent serial bus via DB-9 female connectors.
• Galvanic isolation rated at 1500VAC channel-to-system and 250VAC channel-to-channel protects control system electronics.
• Removable single-row European terminal blocks accept dual 2.5mm² wiring for fast field swap-outs.

Oiltech Controls’s Insight

• In high-noise environments, the GE 369B1841G5007 maintains superior signal integrity with >120dB CMRR and >60dB DMRR.
• Integrated software alarm logic flags ±10% over-range conditions automatically without load on the host processor.
• Solid-state channel grouping holds total thermal measurement error below 0.2% across extended duty cycles.
• Compliance with EN 61326-1 and IEC 61000-4 standards ensures long-term operational stability under heavy electrical noise.

Target Equipment Compatibility

• GE Nexus Series Distributed Control Racks and expansion chassis.
• Turbine exhaust gas temperature (EGT) monitoring panels.
• Boiler drum and steam header multi-point thermal sensing systems.
• Heavy industrial furnace control and large motor bearing RTD monitoring arrays.

Technical Specifications Summary

• Power Supply: Dual 24V DC (21.6-26.4V DC, 1.8W rating), 1:1 hardware redundancy.
• Physical Dimensions: 209mm x 129.5mm x 51mm (H x W x D) with screw mounting structure.
• Operating Temperature & Environment: 0°C to 60°C operating range, 10-90% non-condensing humidity.
• Vibration & Noise Tolerance: 10-500Hz vibration resistant at 10m/s², CFR 47 FCC Part 15 compliant.
• Diagnostic Visuals: Onboard LED indicators for module health, communication status, and fault alarms.

Dispatch & 12-Month Quality Guarantee

• Dispatch time: Immediate dispatch within 24 to 28 hours following order confirmation.
• Global logistics carriers: Express air freight via FedEx, UPS, and DHL.
• Warranty policy: Backed by a full 12-Month Comprehensive Warranty covering all internal component hardware.
• Protection packaging: Shipped inside specialized anti-static ESD foam protection boxes.

Frequently Asked Questions (FAQ)

• Q1: What sensor inputs does the 369B1841G5007 analog input card support?
• A: The 369B1841G5007 natively reads 2-wire/3-wire RTDs (Pt10, Pt100, Cu50, Cu100) and TC types (E, J, K, N, R, S, T, B).
• Q2: Does software judgment alarm trigger on ±10V inputs?
• A: No, over-limit alarm logic operates on temperature sensor inputs; ±10V voltage inputs bypass the software limit alarm function.
• Q3: What engineering steps are necessary when replacing an older MAI51 module?
• A: Unplug the removable European terminal block, swap the hardware unit, and confirm sensor curve selection matches host database scaling.
• Q4: How do I choose between replacing the 369B1841G5007 or inspecting field wiring?
• A: If an entire 8-channel bank shows erratic readings simultaneously, inspect power/grounding; if a single isolated channel fails, replace the 369B1841G5007.
• Q5: What power supply parameters are required for the redundant power terminals?
• A: Provide dual independent 24V DC lines (21.6 to 26.4V DC) with a total module power consumption under 2W.
