Product Overview – Bently Nevada 330730-040-12-00
Model: 330730-040-12-00 | Series: 3300 XL 11 mm Extension Cable

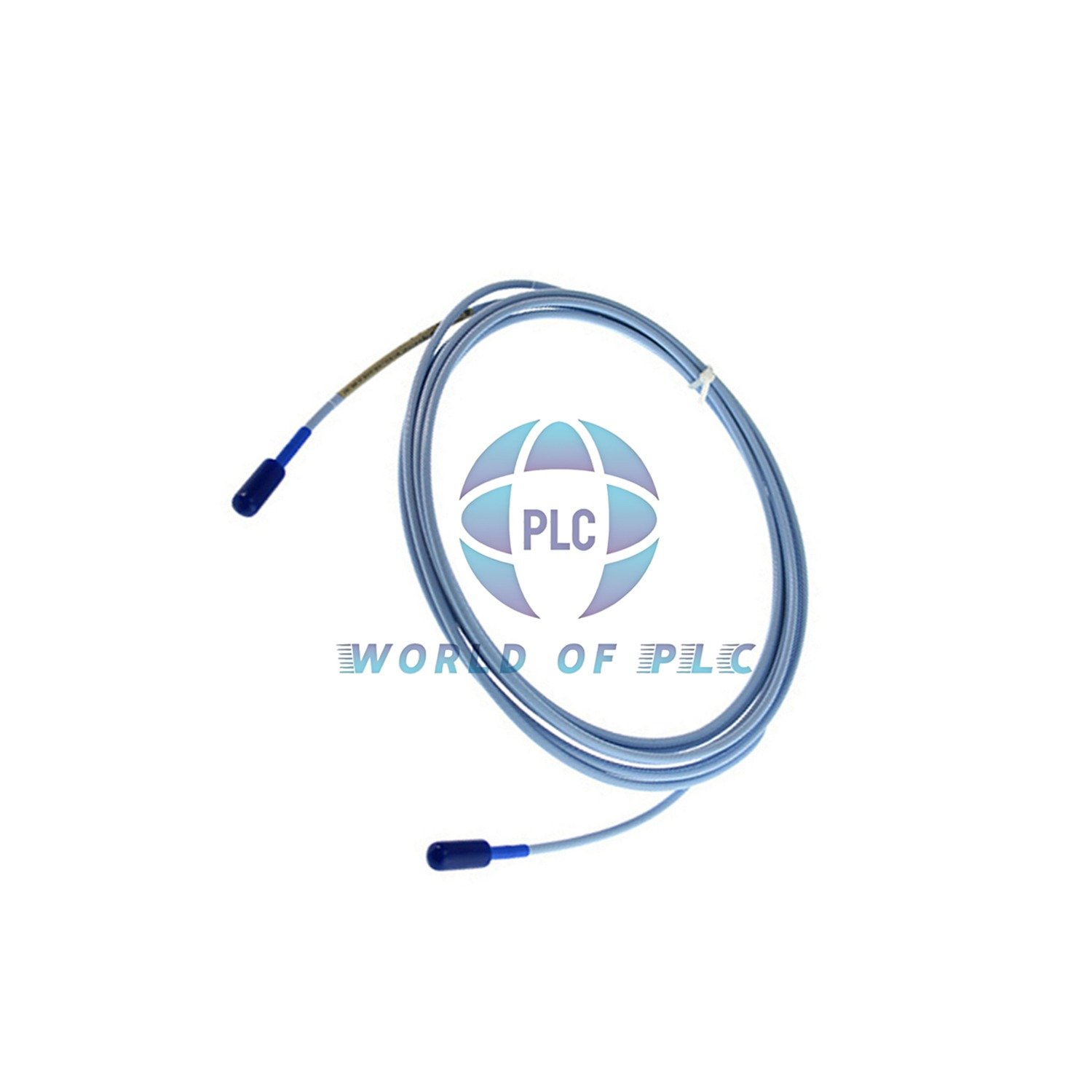

This 4.0 meter FluidLoc extension cable is engineered for 3300 XL proximity probe systems. It prevents oil leakage through the cable interior, ensuring machine integrity in turbine and compressor monitoring. The connector protector adds robust moisture defense, while the FEP outer jacket and SST armor deliver extreme durability.
Designed for harsh industrial environments, this cable operates from -52°C to +177°C. Its low capacitance (69.9 pF/m) and controlled DC resistance preserve signal fidelity over long runs. Ideal for vibration, thrust position, and speed measurements in critical rotating machinery.
Technical Specifications
- Brand: Bently Nevada
- Model: 330730-040-12-00
- Type: 3300 XL 11 mm Extension Cable
- Cable Length: 4.0 meters (13.1 ft) – Option 040
- Connector Option: FluidLoc with connector protector (Option 12)
- Agency Approval: Not required (Option 00)
- Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- DC Resistance (RCORE): 1.0 ± 0.25 Ω
- DC Resistance (RJACKET): 0.3 ± 0.1 Ω
- Operating Temp: -52 °C to +177 °C (-62 °F to +351 °F)
- Storage Temp: -52 °C to +177 °C
- Weight (unarmored): 0.18 kg (0.5 oz/ft)
- Weight (armored): 0.56 kg (1.5 oz/ft)
- Tensile Strength (probe case): 330 N (75 lb)
- Tensile (connector): 270 N (60 lb)
- Connector Material: Gold-plated brass
- Insulation: FEP (fluoroethylene propylene)
- Armor (optional): AISI 302 SST with FEP jacket
Measurement & Performance
- Linear Range: 4.0 mm (160 mils) – from 0.5 to 4.5 mm
- Extended DSL Range: 0.5 to 5.0 mm (20 to 200 mils) – not for zener barriers
- Recommended Gap: 2.5 mm (100 mils)
- Incremental Scale Factor (ISF): 3.94 V/mm (100 mV/mil) ±10%
- Frequency Response: Signal rolloff depends on field wiring length; see graph
- Resolution: System resolution is determined by Proximitor Sensor and monitor
- Interchangeability Error: Included in ISF ±10% tolerance
Installation & Field Wiring
- Field Wire: 0.2 to 1.5 mm² (16 to 24 AWG) – ferrules recommended for 18-23 AWG
- Cable Type: 3-conductor shielded triad
- Max Field Wiring Length: 305 m (1000 ft) between Proximitor and monitor
- Connector Protection: FluidLoc prevents oil wicking; connector protector for humid areas
- Silicone Tape: Provided as an alternative – not recommended in turbine oil exposure
- Locknut: Pre-drilled safety wire holes for secure mounting
Environmental & Durability
- Humidity / Moisture: Connector protector offers additional environmental sealing
- Chemical Resistance: FEP jacket resists oils, solvents, and process fluids
- EMI / RFI Immunity: Triaxial construction with shielded conductors
- Vibration & Shock: Designed for continuous operation in high-vibration rotating equipment
Compatibility & System Integration
- Probe Compatibility: 3300 XL 11 mm Probes
- Proximitor Sensor: 3300 XL Series
- Monitor Compatibility: Bently Nevada 3500, 1900, and other monitoring systems
- System Length: 5 or 9 meters total including extension cable
Diagnostic Capabilities
- Vibration Monitoring: Detect unbalance, misalignment, bearing wear
- Thrust Position: Monitor axial shaft movement and thrust bearing condition
- Speed / RPM: Measure rotational speed with proximity probes
- Eccentricity & Differential Expansion: Suitable for turbine and compressor trains
Certifications & Approvals
- Agency Approval: Option 00 – Not required (standard industrial use)
- Material Compliance: RoHS, REACH compliant (upon request)
- Quality Standard: Manufactured in U.S.A. under ISO 9001
Package Contents
- 1 x 3300 XL 11 mm Extension Cable (4.0 m, FluidLoc, connector protector)
- 1 x Silicone tape (for connector sealing)
- Installation instruction sheet (digital download available)
Warranty & Support
- Warranty: 12 months against manufacturing defects
- Technical Verification: Every unit is tested before shipment
- Shipping: FedEx, UPS, DHL – global express delivery
Typical Applications
- Steam turbines, gas turbines, and centrifugal compressors
- Pumps, fans, blowers, and gearboxes
- Generators and large electric motors
- Overhaul & retrofitting of obsolete monitoring systems
Frequently Asked Questions
- Q: Can I use this cable with older 3300 probes?
A: Yes, it is compatible with 3300 XL series 11 mm probes and Proximitor sensors. - Q: What is FluidLoc?
A: It prevents oil from leaking out of the machine through the cable interior – critical for turbine applications. - Q: Is the connector protector mandatory?
A: Not mandatory but highly recommended for humid or moist environments. - Q: What is the maximum field wiring length?
A: Up to 305 meters (1000 feet) between the Proximitor sensor and monitor. - Q: Can I get armored version?
A: Yes, flexible AISI 302 SST with FEP outer jacket is optional.
