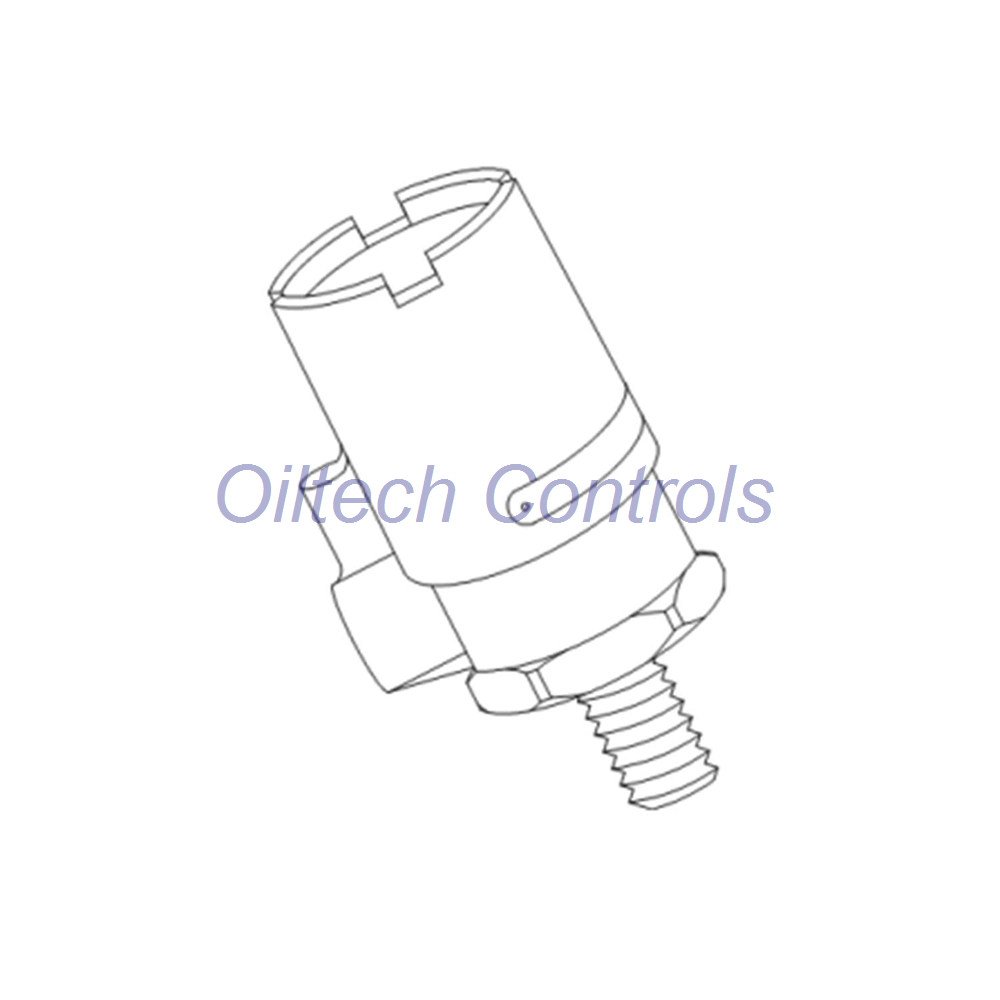

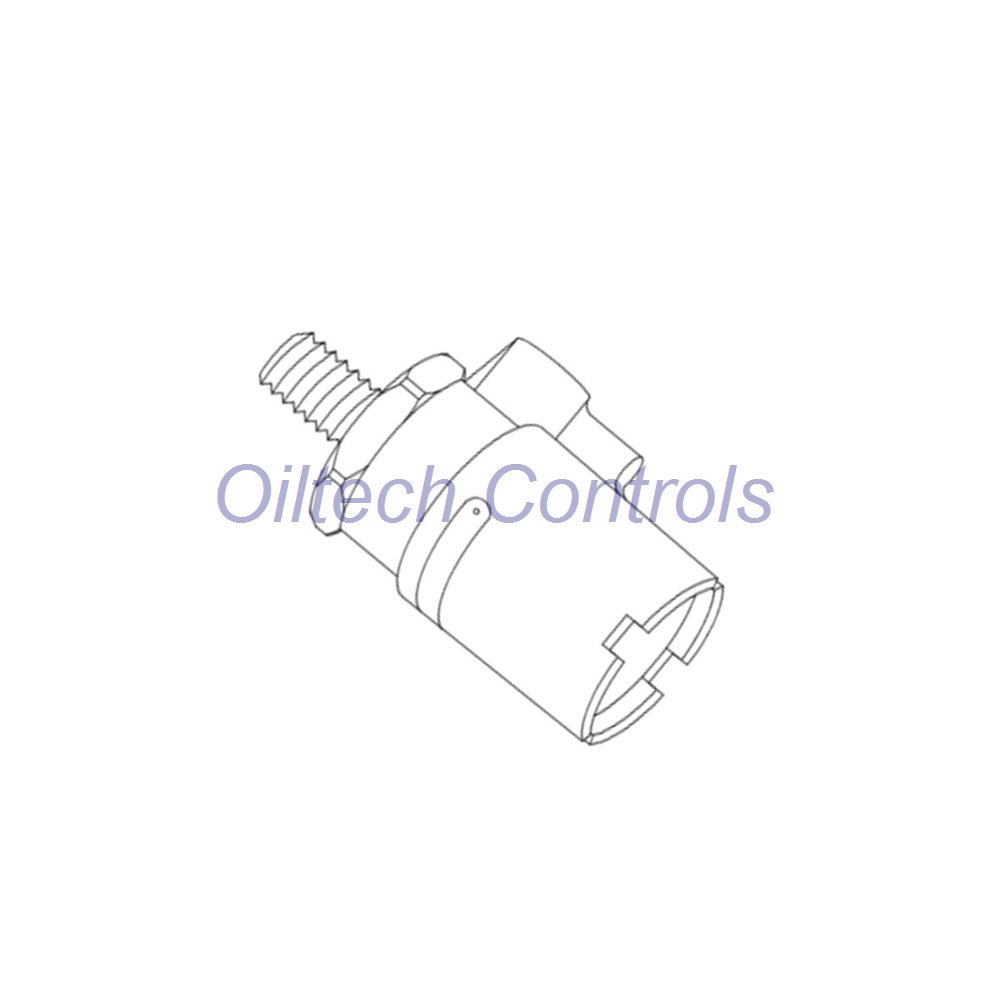

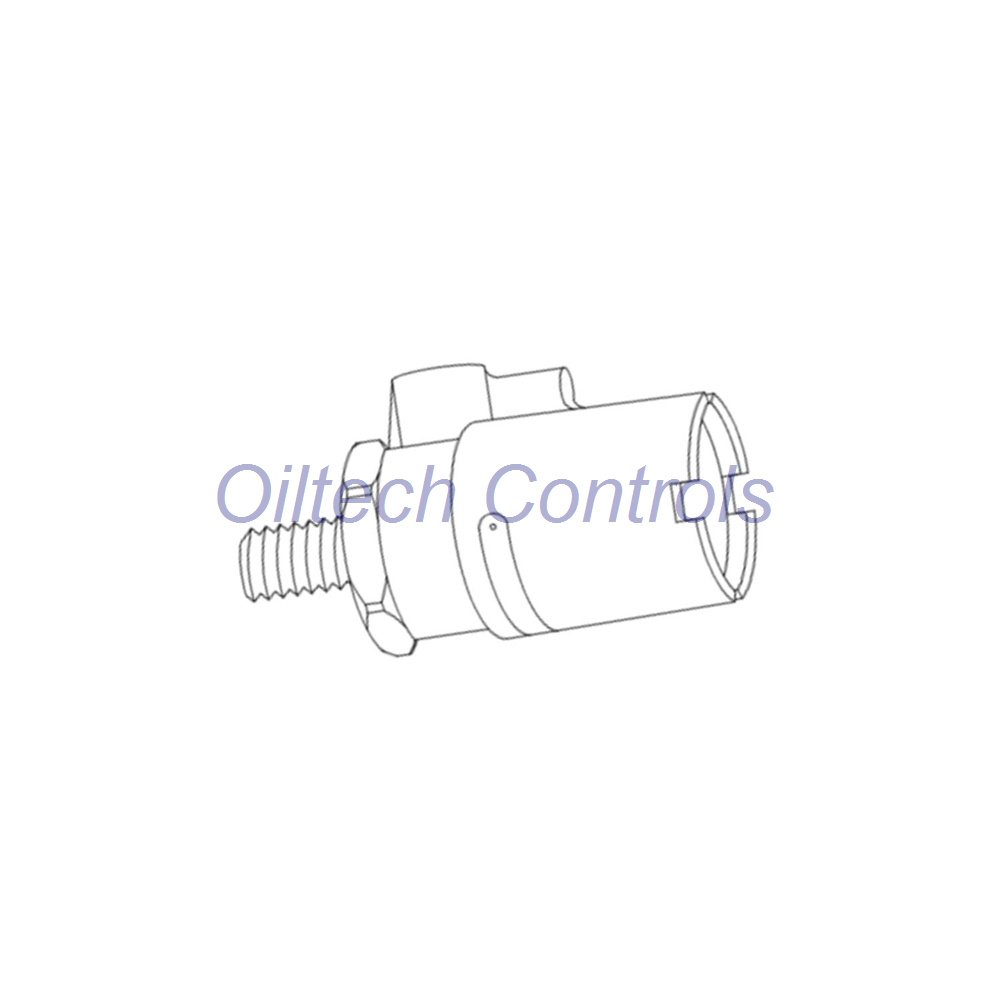

BA42608-01-02 – IP65 Water & Dust‑Resistant Velocity Transducer Housing
Bently Nevada BA42608-01-02 is a rugged enclosure for 9200 or 74712 velocity sensors.
It provides IP65 water and dust resistance, a 5/8‑in 18 UNF‑2B isolator thread, and a top‑mount terminal strip.
Use with ATEX or Multiple‑approved sensors. The unthreaded base (28.5 mm diameter) and 1/2‑in NPT explosion‑proof cable fitting ensure secure installation in harsh environments.
Technical Specifications
| Brand | Bently Nevada |
| Model | BA42608-01-02 |
| Part Number | BA42608-01-02 |
| Mounting Thread | 5/8‑in 18 UNF‑2B (internal), 1/2‑in 20 UNF for 21128/CA21128 |
| Cable Exit | 1/2‑in NPT explosion‑proof fitting |
| Temperature Range | -29°C to +121°C (-20°F to +250°F) |
| Ingress Protection | IP65 (water & dust‑resistant, not submersible) |
| O‑ring Material | Neoprene |
| Weight | 1.6 kg (3.55 lb) without sensor/fittings |
| Compliance | RoHS 2011/65/EU |
Performance & Measurement
- Measurement range: determined by 9200/74712 sensor (housing supports full sensor capability).
- Frequency response: sensor‑dependent; housing introduces no attenuation.
- Sensitivity & linearity: preserved by rigid mounting and isolator thread.
- Resolution: limited only by the velocity sensor itself.
- Environmental tolerance: moisture and corrosion resistant (-29°C to +121°C).
- Noise immunity: grounded metal enclosure reduces EMI/RFI.
Installation & Compatibility
- Mounting: use 5/8‑in 18 UNF‑2B male isolator thread. Base is unthreaded, 28.5 mm diameter.
- Cable fitting: 1/2‑in NPT explosion‑proof gland – fits standard conduits.
- Sensor compatibility: works with Bently Nevada 9200 and 74712 velocity sensors (ATEX/Multiple approvals required).
- Terminal strip: top‑mount design simplifies wiring and maintenance.
- Debugging: accessible terminals allow quick signal verification without disassembly.
Diagnostic Capability & Applications
- Diagnostic use: houses sensors for bearing vibration, shaft displacement, and structural monitoring.
- Typical applications: turbines, compressors, pumps, fans, and rotating machinery in oil & gas, power, and heavy industry.
- Condition monitoring: compatible with Bently Nevada rack‑based monitoring systems.
Certifications & Packaging
- RoHS 2011/65/EU compliant – lead‑free and environmentally safe.
- Factory packaging: new & original in sealed Bently Nevada box.
- Warranty: 12 months from date of shipment.
Shipping & Delivery
We ship via FedEx, UPS, or DHL – worldwide express. Tracking number provided within 24 hours.
Frequently Asked Questions
- Can I use this housing with other sensors? Designed for 9200/74712; other 5/8‑18 UNF sensors may fit but terminal layout may differ.
- Is it submersible? No, IP65 is water‑resistant but not submersible.
- Does it include the velocity sensor? No, housing only – sensor sold separately.
- What approvals does the sensor need? ATEX or Multiple approvals per the product note.
- Is the O‑ring replaceable? Yes, standard Neoprene O‑ring – field replaceable.
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spares.
- Global shipping – fast and tracked.
- Tested industrial surplus and refurbished options available.
- 12‑month warranty on every product.
- Full technical verification before shipment.
- Support for obsolete control systems – we find hard‑to‑get parts.
