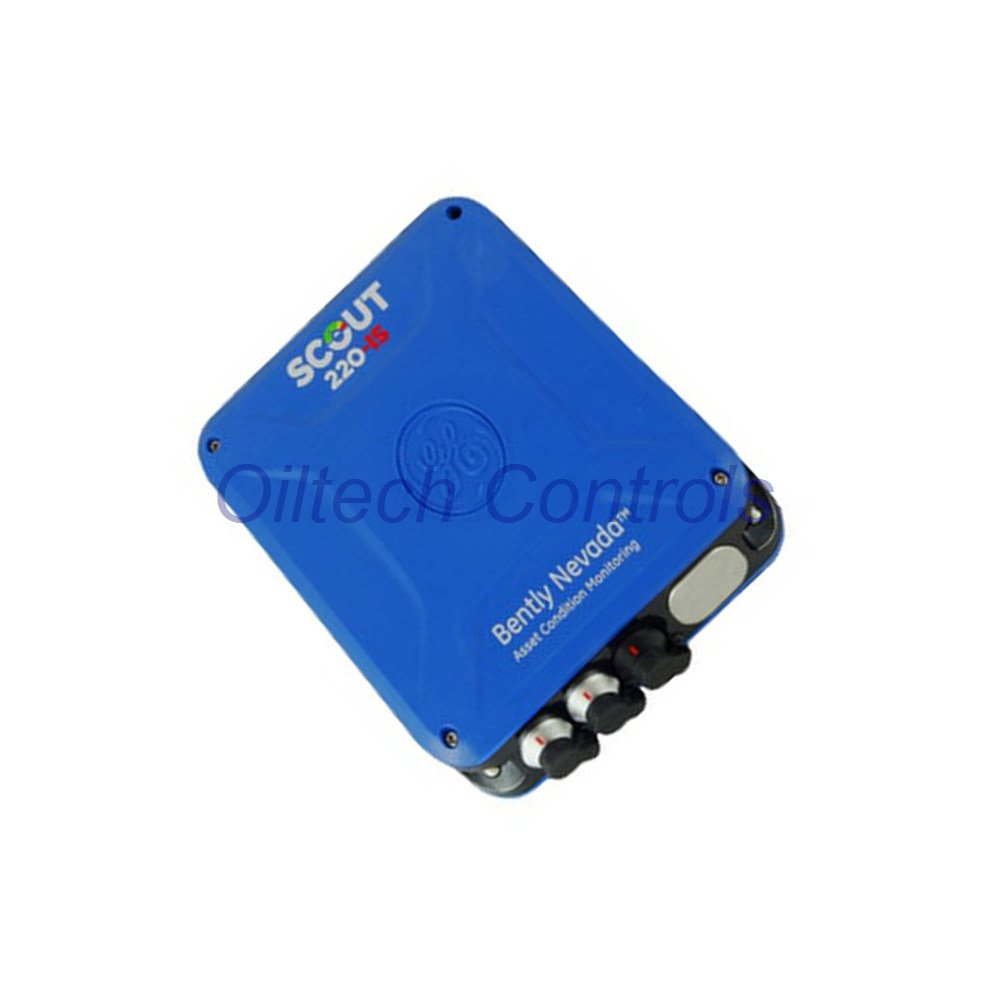

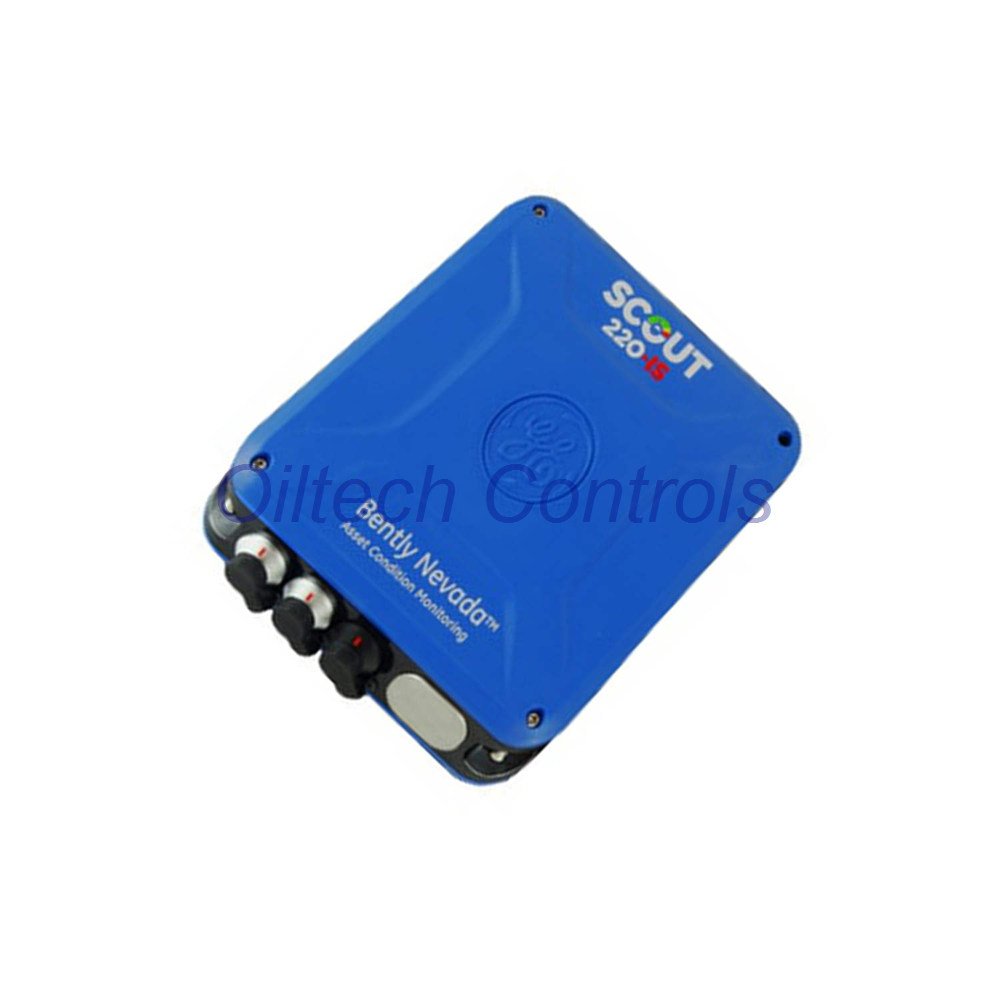

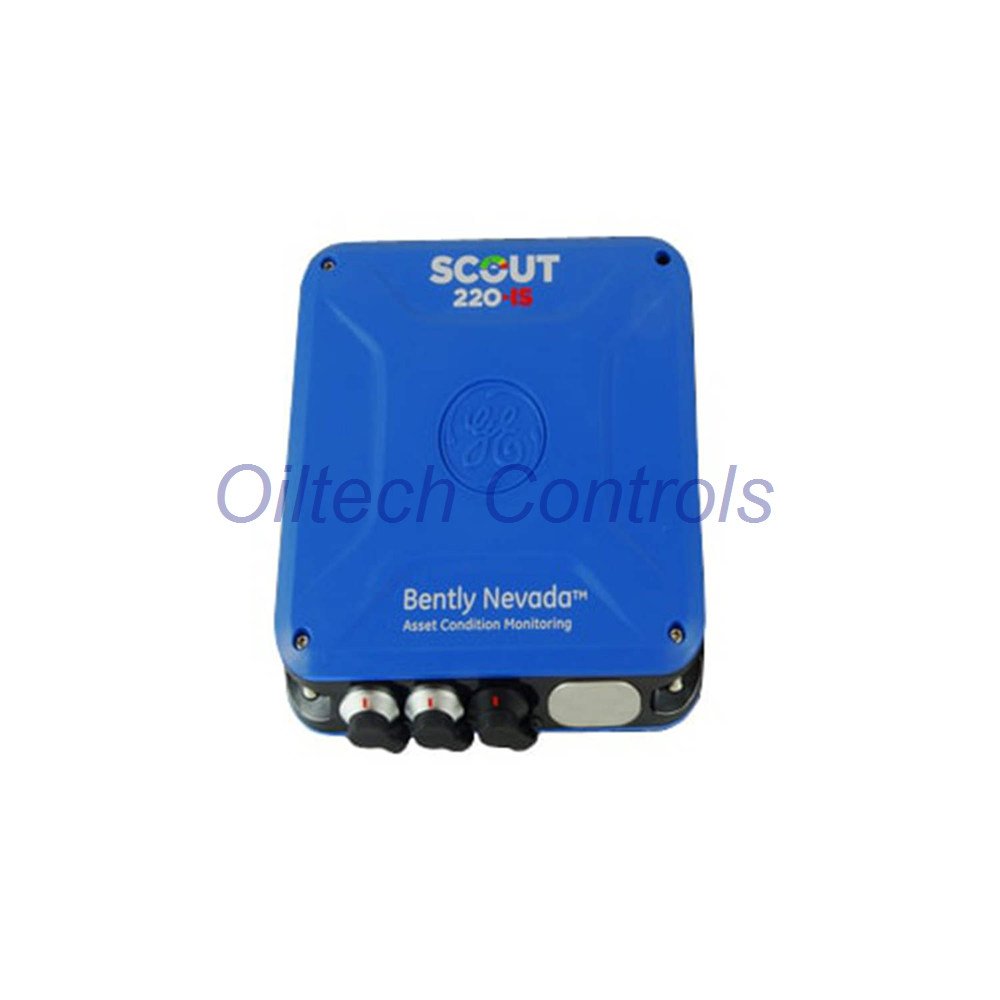

SCOUT220IS-05 Portable Data Collector
Brand: Bently Nevada
Model: SCOUT220IS-05
Series: Scout™ Intrinsically Safe
Type: Portable Data Collector / Vibration Analyzer
Multi-Approval (CSA, IECEx, ATEX) – Certified for Zone 1 / Zone 21 (gas & non-conductive dust) and CSA Class 1 / Div 1. Ideal for hazardous area machinery monitoring.
Rugged & Intrinsically Safe – IP65 sealed, drop-tested (MIL-STD-810F, 1.2 m to concrete), lightweight (680 g) with 10-hour battery life. Five-year warranty.
Key Technical Specifications
| Channels | 2 simultaneous (LEMO) + Tach/Keyphasor |
| ADC | 24-bit |
| Fmax | 80 kHz |
| Spectral Lines | Up to 12,800 |
| Dynamic Range | >95 dB (typical at 400 lines) |
| AC Range | 16 V peak-peak (±8 V, ±80 g) |
| DC Ranges | 0~20 V, -10~10 V, -20~0 V |
| Sensor Excitation | 0 or 2.2 mA (IEPE/ICP), 24 V max |
| Base Accuracy | ±1% of reading (AC) ; ±1% full scale (DC) |
| Frequency Response | ≤0.1 dB (100 Hz~10 kHz) ; ≤3 dB (10~40 kHz) |
| Integral Accuracy | ≤0.1 dB (10~100 Hz) for velocity |
| Balancing | 2 planes, 2 sensors, 3~12,000 RPM |
| Operating Temp | -20°C to +60°C (max +50°C in Ex area) |
| Storage | -20°C~+60°C (1 month) ; 35°C / 85% RH (long) |
| Battery | 7.4 V / 3920 mAh Li-ion, 10 h run, 3 h charge |
| Protection | IP65, drop-tested, breakaway straps/cables |
Advanced Diagnostic Capabilities
- Cross-channel spectrum – Coherence & FRF (1 reference + 3 channels)
- Modal Impact Testing – CH1 hammer, up to 3 response channels (≤10 kHz)
- Balancing – 2-plane, trial weight removal, auto-recalculation
- UFF Export – FRF data export for Modal/ODS software
- Sensor compatibility – Accel, velocity, displacement, voltage (AC/DC)
- On-route recording – 4-channel simultaneous (SCOUT240IS)
Communication & Software
- Bluetooth – BT 4.0 Classic (s/n ≤101599) ; BT 5.0 BLE (s/n ≥101600)
- OS Support – Android 5.1~16 ; iOS 13~17.1.1 (BT 5.0 required)
- S1 Collector App – Languages: EN, CN, FI, DE, JA, RU, ES, TR
- Data upload – Direct to System 1 for detailed analysis
Installation, Commissioning & Maintenance
- Installation – Handheld, no fixed mounting. Connect LEMO sensors (CH1, CH2, Tach).
- Commissioning – Self-diagnostic sensor detection (bias, short/open warning).
- Maintenance – Factory battery replacement only. IP65 resistant to water/dust.
- Calibration – Built-in reference for bias voltage check. No field calibration required.
Compatibility & Certification
- Approvals – ATEX Zone 1/21, IECEx, CSA Class 1 Div 1 (Multi-Approval option 05).
- Sensor Input – IEPE/ICP, accelerometer, velocity, displacement, voltage.
- System Compatibility – System 1™ software, Modal analysis (UFF export).
- Integration – Works with existing Modicon Quantum PLC environments (data acquisition).
Package Contents
- SCOUT220IS-05 Data Collector (with multi-approval)
- 2x LEMO cables for CH1 & CH2
- 1x Tach/Keyphasor LEMO cable
- Shoulder strap with safety breakaway
- Sensor keepers and carrying strap
- External power pack (12 V DC, 3 A)
- Quick start guide (digital)
Warranty & Logistics
- 12-month warranty (standard; 5-year hardware warranty from Bently Nevada).
- Shipping – FedEx, UPS, DHL (global express).
- Tracking and insured delivery included.
Typical Applications
- Hazardous area vibration monitoring (oil & gas, chemical, mining).
- On-route data collection for predictive maintenance.
- Modal analysis, impact testing, and balancing of rotating machinery.
- Pumps, motors, compressors, turbines, fans, gearboxes.
FAQ – Frequently Asked Questions
- Is SCOUT220IS-05 compatible with System 1? Yes, data uploads directly to System 1 for advanced analysis.
- Can I use it in Zone 1 / Div 1? Yes, ATEX, IECEx and CSA approvals cover gas and dust environments.
- How do I charge? External 12 V DC power pack, 3 hours for full charge.
- Does it support triaxial sensors? Yes (SCOUT240IS variant with breakout cable).
- What is the battery life? 10 hours typical on-route collection.
- Is the battery user-replaceable? No, factory replacement only.
- What languages are supported? Chinese, English, Finnish, German, Japanese, Russian, Spanish, Turkish.
