Product Description

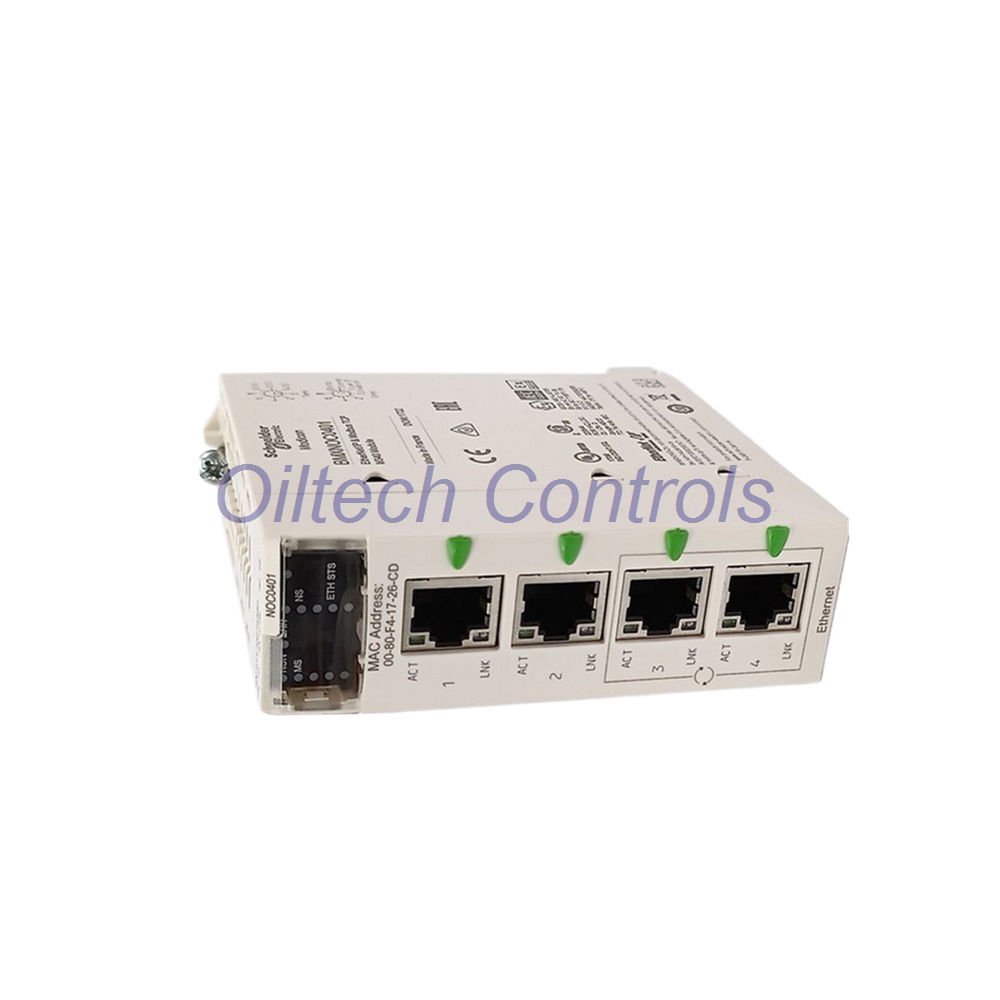

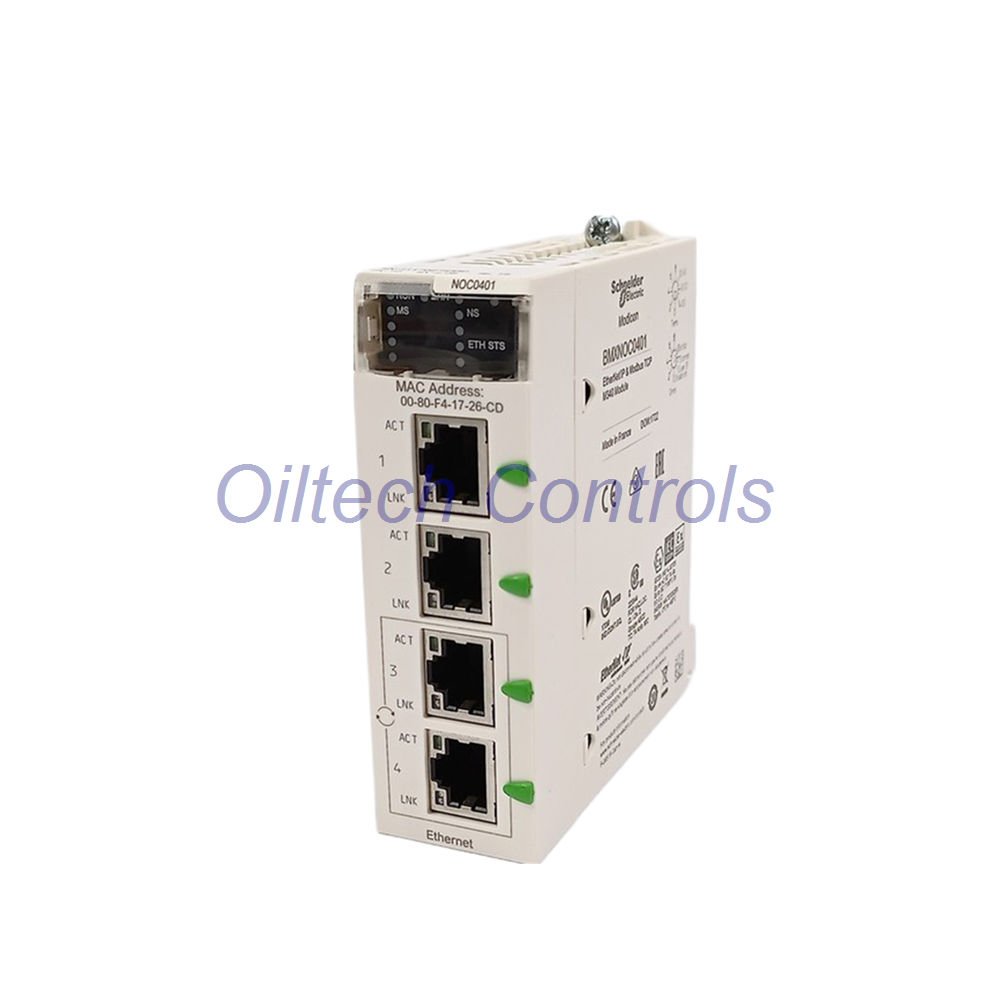

The BMXNOC0401 is a high-performance Ethernet communication module. It belongs to the Modicon M340 automation platform. This module provides seamless connectivity for your industrial control network. It features four integrated RJ45 ports with auto-negotiation capabilities.
Oiltech Controls’s Insight
- The BMXNOC0401 serves as a network bridge for complex automation tasks.
- It supports EtherNet/IP and Modbus/TCP protocols at the same time.
- The embedded four-port switch eliminates the need for external network switches.
- Rapid Spanning Tree Protocol ensures redundant and highly reliable network rings.
- Bandwidth management prevents packet storms from slowing down control cycles.
- The module processes high-speed I/O scanning and messaging tasks effortlessly.
Technical Specifications
- Brand: Schneider Electric
- Model Number: BMXNOC0401
- Product Range: Modicon M340
- Port Types: Four RJ45 10/100 Megabits per second copper ports
- Protocol Support: EtherNet/IP and Modbus/TCP master and slave
- Network Class: Transparent Ready B30 class
- Current Draw: 555 milliamperes at 3.3 Volts DC
- Power Supply: Built-in distribution from the backplane rack
- Module Size: Standard single-slot format
- Operating Temperature: 32 to 140 degrees Fahrenheit (0 to 60 degrees Celsius)
- Safety Rating: IP20 finger-safe design
Device Compatibility
- This module works with all Schneider Modicon M340 CPU racks.
- It communicates directly with Modicon X80 remote I/O drops.
- It connects with Altivar variable frequency drives and Lexium motion controllers.
- The switch integrates with Magelis HMI panels and SCADA host computers.
- It pairs with any standard third-party EtherNet/IP or Modbus/TCP field devices.
Diagnostics and Network Management
- Local LEDs show run, error, network status, and module status.
- Port mirroring allows technicians to analyze packet traffic with network tools.
- Simple Network Management Protocol enables remote IT administration of the switch.
- The Fast Device Replacement server restores configurations to replaced hardware automatically.
- Internal diagnostics are accessible via the integrated web server.
Shipping and Warranty Terms
- We dispatch your order within 24 to 28 hours of purchase.
- Worldwide priority shipping via FedEx, UPS, and DHL Express.
- Every package includes a full 12-Month Warranty Coverage.
- The item ships in factory-sealed, static-shielded packaging.
Frequently Asked Questions (FAQ)
Q: Can the BMXNOC0401 handle both EtherNet/IP and Modbus/TCP concurrently?
A: Yes, this communication processor handles both protocols simultaneously without losing message frames.
Q: What is the benefit of the integrated Fast Device Replacement server?
A: It stores parameters and downloads them automatically when you replace a failed field device.
Q: Do I need an external power supply for this network card?
A: No, the backplane rack supplies all necessary power to the module directly.
Q: Can I configure the four RJ45 ports to act as independent networks?
A: No, they function as a unified, managed four-port switch on a single network interface.
Q: What is the easiest way to inspect packet traffic for errors on this module?
A: You can enable the port mirroring function to send traffic to a network analysis tool.
