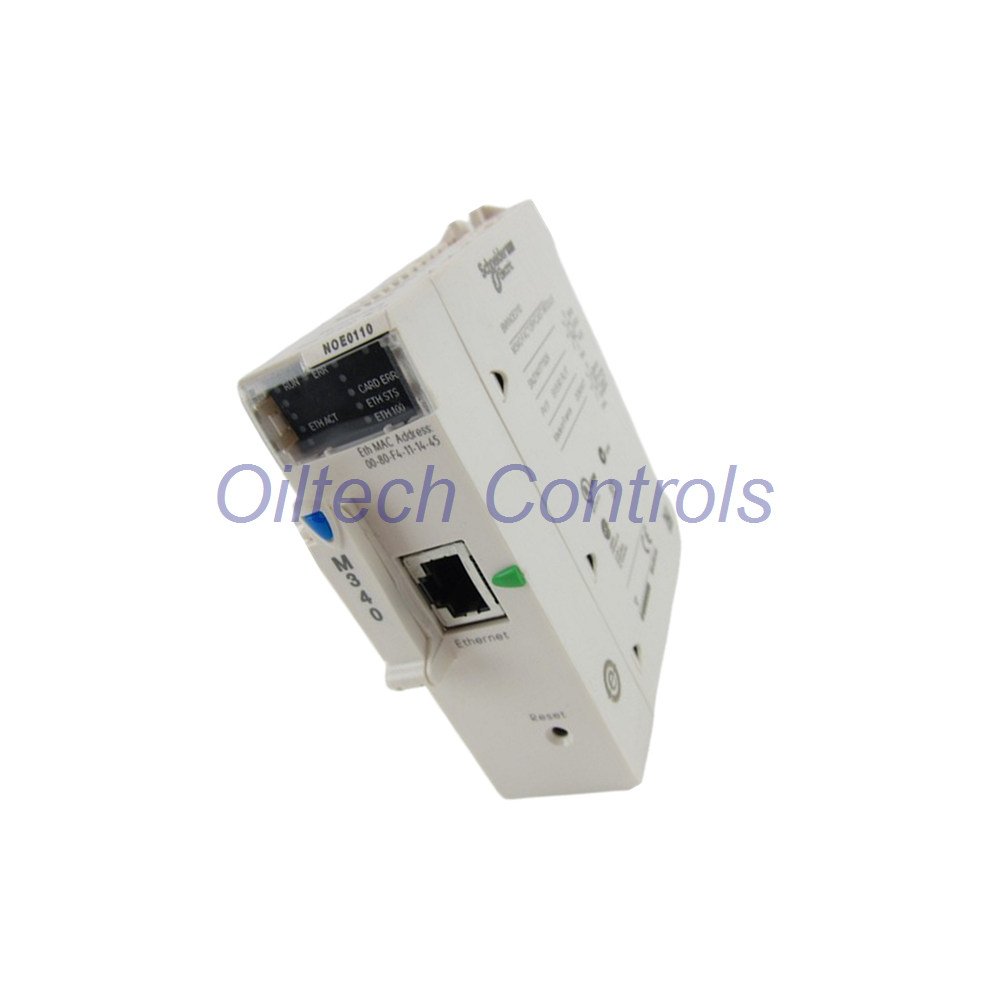

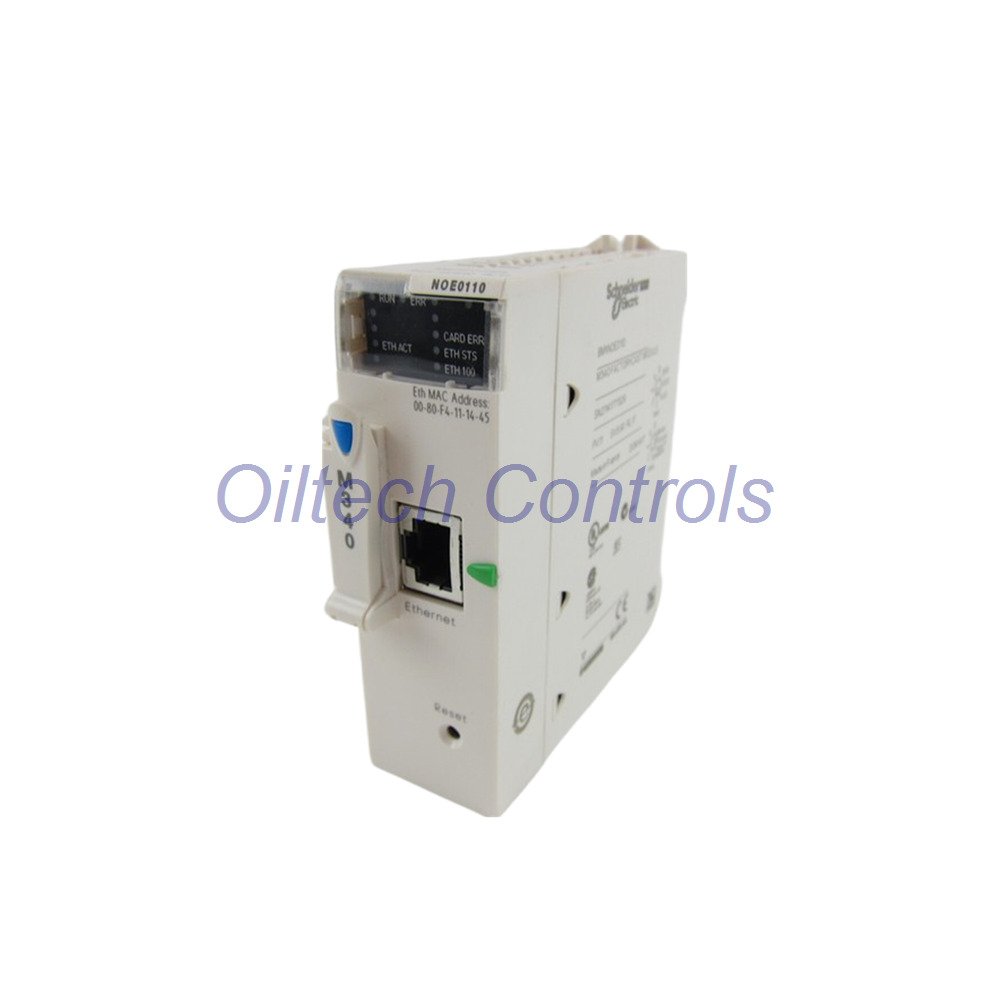

Schneider Electric BMXNOE0110 Ethernet Module
The Schneider Electric BMXNOE0110 is a high-performance Ethernet network module for industrial automation.
This robust unit integrates perfectly with the Modicon M340 automation platform.
It provides reliable and fast data transmission over plant-wide industrial networks.
The module comes with a 16 MB flash memory card for secure data storage.
An internal 16 MB RAM handles complex communication tasks without delays.
Engineers benefit from the Transparent Ready class C30 communication capabilities.
Get the complete technical installation guide and catalog here: Download the BMXNOE0110 Manual and Datasheet.
For urgent price quotes and fast response, please reach out directly:
Email: info@oiltechcontrols.com
WhatsApp: +86 158 8020 0923
Technical Data
| Parameter | Specification Details |
|---|---|
| Brand | Schneider Electric |
| Model | BMXNOE0110 |
| Series | Modicon M340 |
| Interface Port | 1 x RJ45 (10/100 Mbit/s) |
| Memory Capacity | 16 MB Internal RAM / 16 MB Flash (BMXRWSC016M) |
| Current Draw | 90 mA at 24 V DC |
| Operating Temp | 32 to 140 °F (0 to 60 °C) |
| Humidity Range | 10% to 95% (non-condensing) |
| Protection Degree | IP20 |
| Compliance | CE, LVD (2014/35/EU), EMC (2014/30/EU) |
Core Communication & Diagnostics
- Fast Device Replacement: The built-in FDR server automates configuration restorations during replacement.
- Integrated Web Server: Users can store custom diagnostic web pages directly in the module memory.
- Advanced Data Scanning: The module processes heavy Modbus TCP traffic efficiently.
- Real-time Diagnostics: Six bright LED indicators signal communication, CPU, and memory card errors instantly.
- Physical Reset Option: A front push-button allows safe cold restarts in the field.
- Network Management: SNMP agent integration provides robust IT and OT alignment.
Logistics, Installation & Support
- Fast Global Delivery: We ship worldwide using reliable express couriers like FedEx, UPS, and DHL.
- Comprehensive Warranty: Every purchase includes an industry-leading 12-month quality warranty.
- Easy Installation: The module mounts directly on standard rack slots without tools.
- Protective Coating: TC protective treatment prevents damage from humid environments.
- Package List: Includes one module, a memory card, and physical installation documentation.
Typical Application Scenarios
- Factory automation networks linking control systems to plant SCADA systems.
- Water and wastewater processing plants requiring secure remote monitoring.
- High-speed conveyor systems and packaging line control.
Frequently Asked Questions
Q: Does the module package include a memory card?
A: Yes, it includes the 16 MB BMXRWSC016M memory card.
Q: How do I recover from a minor system lockup?
A: Press the physical RESET push-button on the front panel.
Q: What is the maximum operating humidity?
A: It operates up to 95 percent relative humidity without condensing.
