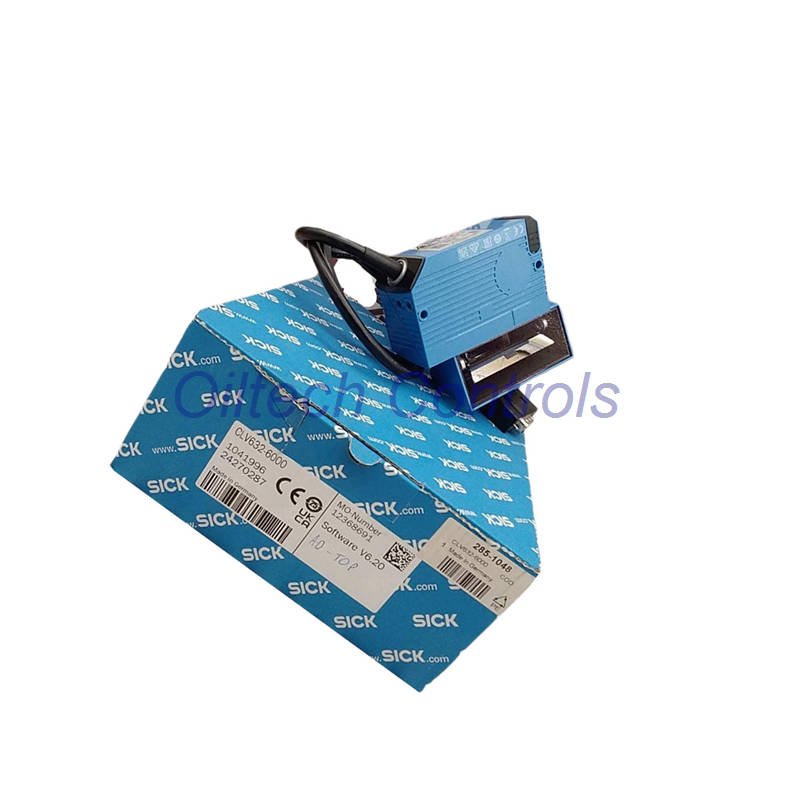

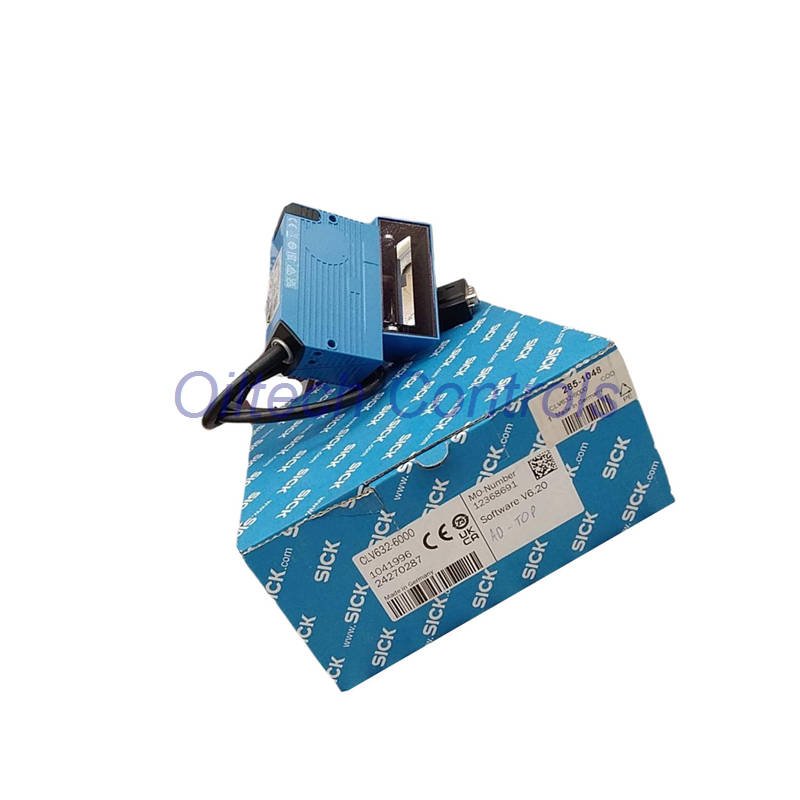

CLV632-6000 Industrial Barcode Scanner Overview
The CLV632-6000 from the SICK CLV63X series is a short-range industrial barcode scanner.
It is designed for stable 1D code reading on fast and compact automation lines.
Key Product Advantages
- High-speed reading for conveyor systems
- Short-range focus for precise detection
- Robust aluminum housing for industrial use
- Clear red laser for easy alignment
- Stable output for PLC and network control
Optical & Scanning Performance
- Reading distance: 45 mm to 245 mm
- Scanning frequency: up to 1,200 Hz
- Code resolution: 0.2 mm to 0.5 mm
- Oscillating mirror with adjustable angle
- Supports single and multi-code reading
Electrical & Mechanical Data
- Supply voltage: 18–30 VDC
- Power consumption: approx. 6 W
- Protection class: IP65
- Housing material: aluminum die cast
- Weight: approx. 420 g with cable
Communication & Interfaces
- PROFINET single-port and dual-port
- EtherCAT via external fieldbus module
- RS-232 / RS-422 / RS-485 serial interface
- CAN, CANopen network support
- PROFIBUS DP via optional module
Environmental & Reliability
- Operating temperature: 0 °C to +40 °C
- Storage temperature: –20 °C to +70 °C
- Ambient light resistance: up to 2,000 lx
- MTBF: approx. 100,000 hours
- Industrial EMC and vibration compliant
Warranty & Shipping
- Warranty period: 12 months
- Shipping options: FedEx, UPS, DHL
- Secure export-grade packaging
- Worldwide delivery support
Professional FAQ & Buying Guide
- Is CLV632-6000 suitable for high-speed conveyors?
Yes. The high scan rate ensures stable reading at fast line speeds. - Can it read low-quality barcodes?
Best results are achieved with good print contrast above 60%. - Is PROFINET integration difficult?
No. Setup is simple using SOPAS ET configuration software. - How do I choose short-range vs long-range models?
Short-range models work best when space is limited and codes are close. - What routine maintenance is required?
Only lens cleaning and cable inspection during regular checks.
