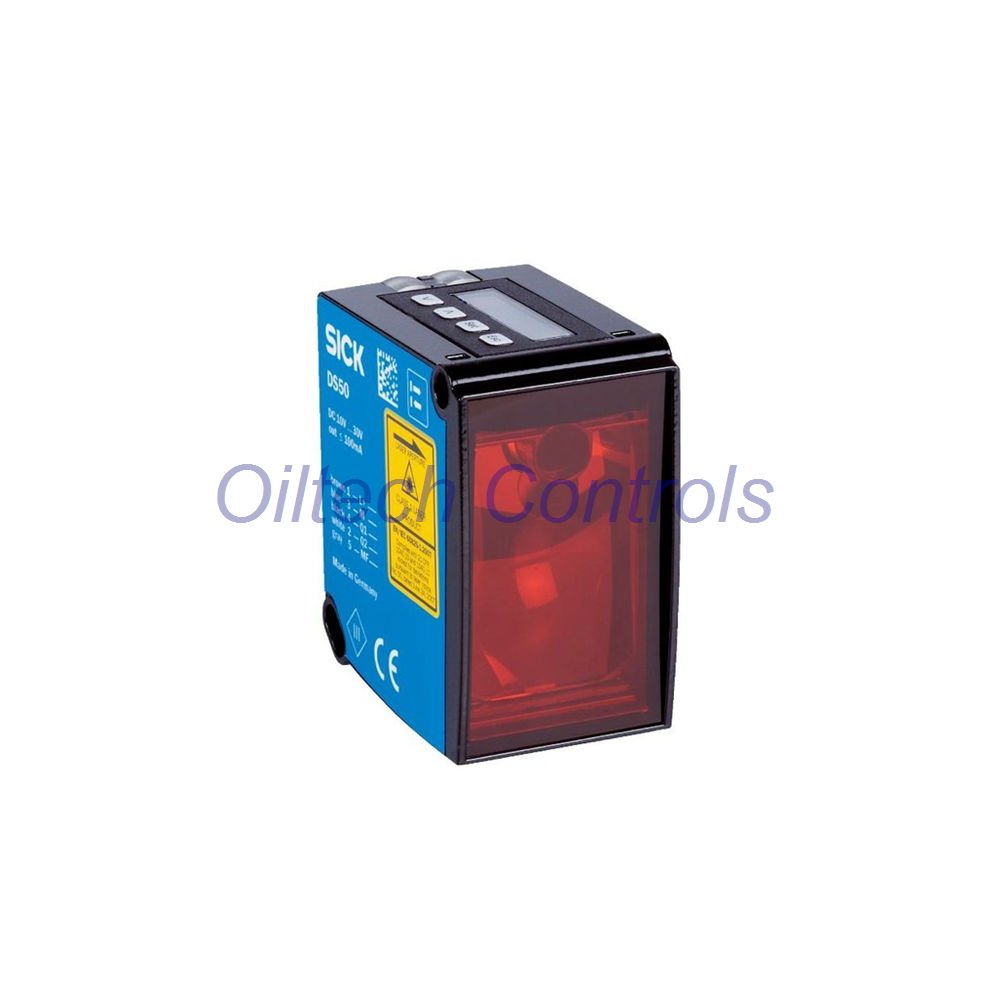

DL50-N1123 SICK Dx50 Retro-Reflective Distance Sensor
Brand: SICK · Model: DL50-N1123 · Series: Dx50 DL50 Standard
Part Number: 1047401
The DL50-N1123 measures up to 50 m on Diamond Grade reflective tape. It uses HDDM™ optical time-of-flight. The DL50-N1123 delivers ± 7 mm accuracy. The zinc die-cast housing survives heavy-duty automation. A 4–20 mA current output feeds long cable runs. The LC display and menu buttons simplify setup. This sensor fits standard Dx50 mounting brackets. It runs on DC 10–30 V with reverse-polarity protection.
Technical Data
- Brand: SICK
- Model: DL50-N1123
- Series: Dx50 DL50 Standard
- Part Number: 1047401
- Range: 200 mm … 50,000 mm on Diamond Grade tape
- Light Source: 658 nm red laser, Class 1 eye-safe
- Response Time: Fast 15 ms / Slow 30 ms
- Repeatability: ≥ 2 mm
- Accuracy: ± 7 mm
- Outputs: 1x NPN (≤ 100 mA), 1x 4–20 mA (≤ 300 Ω, 16-bit), MF input
- Supply: DC 10–30 V, reverse-polarity protected
- Power: ≤ 2.1 W without load
- Connection: M12, 5-pin male
- Operating Temp: -30 °C … +65 °C
- Extended Temp: +80 °C with 2 cooling plates, +140 °C with plates and filter
- Storage Temp: -40 °C … +75 °C
- Protection: IP65 (EN 60529)
- Dimensions: 36.1 x 62.7 x 57.7 mm
- Housing: Zinc die-cast ZNAL4CU1, PMMA window
- Weight: Approx. 200 g
Key Features
- Retro-reflective measurement up to 50 m
- HDDM™ for high repeatability
- 4–20 mA current output for long cables
- LC display with menu buttons
- Rugged zinc die-cast housing
- Cooling plate option for +80 °C
Best Fit Equipment
- Overhead cranes and gantry systems
- Storage and retrieval machines
- Port and container handling
- Steel and metal processing lines
- Obsolete Dx50 retrofit projects
- Long-range position feedback on PLCs
Installation Notes
- Mount with two M5 screws on a flat surface
- Align beam to Diamond Grade reflective tape
- Keep the PMMA window clean and dry
- Use M12 5-pin cable, shield if long runs
- Respect DC 10–30 V supply limits
- Avoid direct sunlight on the reflector
Commissioning and Maintenance
- Set response time via menu: fast 15 ms or slow 30 ms
- Select NPN or 4–20 mA output mode
- Use MF input for trigger or teach-in
- Clean window with soft cloth, no solvents
- Check connector seal for IP65
- Add cooling plates for ambient above +65 °C
Compatibility and Diagnostics
- Works with standard M12 5-pin cables
- Fits many SICK Dx50 mounting brackets
- LC display shows live distance and status
- LEDs indicate power and output state
- 4–20 mA gives real-time distance feedback
- MF input supports external test triggers
Certifications
- IEC 60825-1:2014 Laser Class 1
- EN 60825-1:2014 Eye-safe
- EN 60529 IP65
Package Contents
- 1x DL50-N1123 sensor
- 1x M12 5-pin connector
- 1x quick start guide
- Mounting bracket not included
Warranty and Shipping
- 12-month warranty on every unit
- 24–28 hour dispatch for in-stock items
- Shipping via FedEx, UPS, DHL
- Each sensor tested before packing
- Tracking number provided
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spare parts
- Worldwide shipment support
- Tested surplus and refurbished options
- 12-month warranty on all products
- Technical check before every shipment
- Help with obsolete control systems
Oiltech Controls Review
Engineers choose Oiltech Controls for hard-to-find SICK sensors. We test each DL50-N1123 before dispatch. Our team verifies pinout, output type, and firmware. We ship fast via FedEx, UPS, or DHL. Need a replacement for a discontinued Dx50? We can help. Email info@oiltechcontrols.com or message +86 158 8020 0923 on WhatsApp.
Oiltech Controls’s Insight
The DL50-N1123 suits long-range retro-reflective jobs. Use Diamond Grade tape for full 50 m. For outdoor cranes, add the protection filter. For foundries, add two cooling plates. The 4–20 mA output beats voltage on long cables. Check reflector alignment first if readings drift. Keep spare tape on site.
FAQ
Q: Does the DL50-N1123 work without reflective tape?
A: No. It needs Diamond Grade tape for full 50 m range. Without tape, range drops sharply.
Q: Can I use it outdoors in direct sun?
A: Yes, but add the protection filter. Direct sun on the reflector can reduce stability.
Q: What cable length is safe for 4–20 mA?
A: The 4–20 mA output drives long cables. Stay under 300 Ω loop resistance for best results.
Q: How do I replace an obsolete Dx50 sensor?
A: Check the connector pinout first. The DL50-N1123 uses M12 5-pin. Many old Dx50 brackets fit directly.
Q: Which output should I pick for a PLC?
A: Use 4–20 mA for long runs. Use NPN for short runs or simple switching. The MF input adds trigger control.
