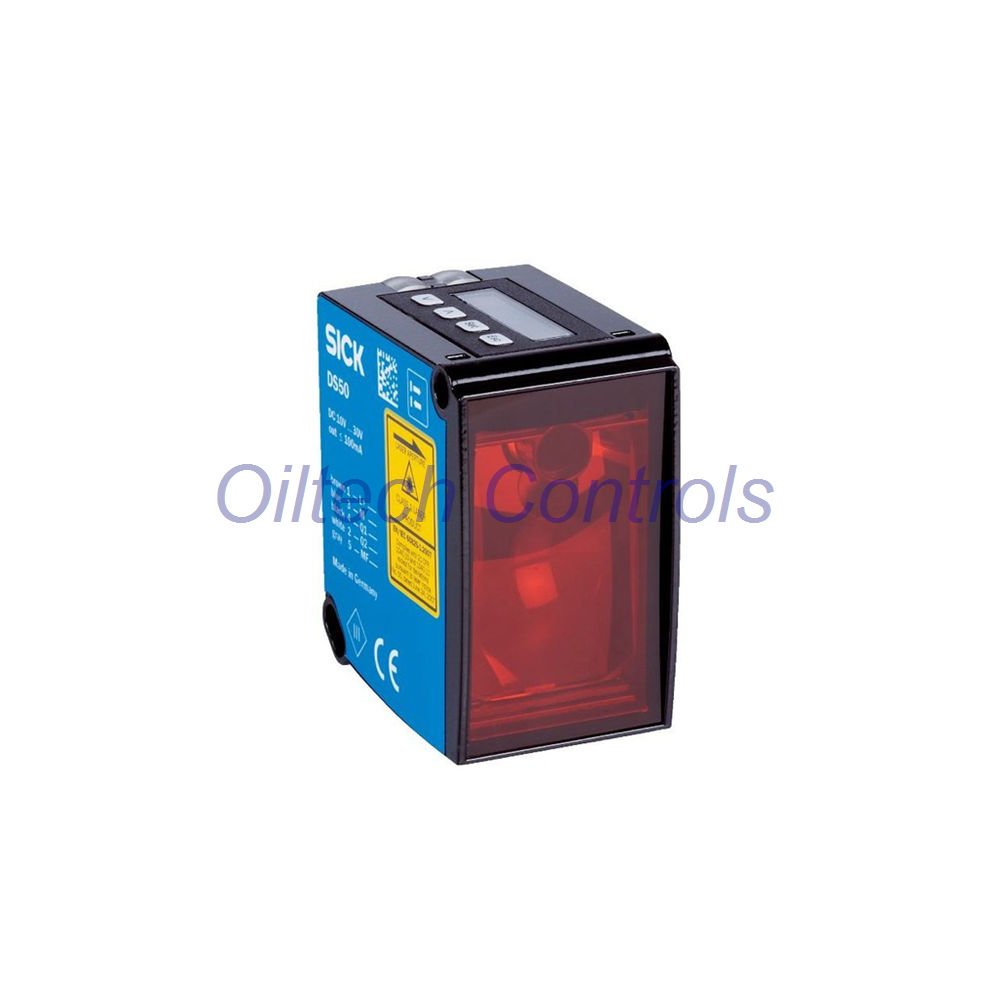

DL50-P1123 SICK Dx50 Retro-Reflective Laser Distance Sensor
DL50-P1123 is a SICK Dx50 series retro-reflective laser distance sensor. It uses HDDM optical time-of-flight technology. This sensor measures up to 50 m on Diamond Grade reflective tape. Accuracy is ± 7 mm. Repeatability is ≥ 2 mm. It is built for heavy-duty industrial automation. The Class 1 laser is eye-safe. It needs no extra safety measures.
Technical Data
- Brand: SICK
- Model: DL50-P1123
- Series: Dx50 DL50 Standard
- Part Number: 1047361
- Principle: HDDM Optical Time-of-Flight
- Range: 200 mm to 50,000 mm on Diamond Grade tape
- Light Source: Red laser 658 nm, Class 1 eye-safe
- Response Time: Fast 15 ms / Slow 30 ms
- Repeatability: ≥ 2 mm
- Accuracy: ± 7 mm
- Digital Output: 1x PNP (≤ 100 mA)
- Analog Output: 1x 4 mA to 20 mA (≤ 300 Ω, 16-bit)
- Input: Multifunctional input (MF)
- Supply Voltage: DC 10 V to 30 V, reverse-polarity protected
- Power Consumption: ≤ 2.1 W
- Connection: M12, 5-pin male connector
- Temperature: -30 °C to +65 °C
With 2 cooling plates: -30 °C to +80 °C
With 2 cooling plates and filter: -30 °C to +140 °C - Storage Temperature: -40 °C to +75 °C
- Protection: IP65 (EN 60529)
- Housing: Zinc die-cast ZNAL4CU1
- Window: Acrylic glass PMMA
- Size: 36.1 mm x 62.7 mm x 57.7 mm
- Weight: Approx. 200 g
Oiltech Controls’s Insight
- The DL50-P1123 targets long-range jobs. It reads Diamond Grade tape at up to 50 m.
- Class 1 laser means no eye protection. This saves time on site.
- The 4 mA to 20 mA current loop resists noise over long cables. This suits plant floor wiring.
- HDDM optics hold steady under ambient light. Readings stay stable in bright halls.
- Zinc die-cast body handles vibration and impact. It fits crane, rail, and logistics gear.
Oiltech Controls Review
- We test each unit before shipment. Outputs and optics are checked.
- Surplus and refurbished options cut cost for legacy lines.
- Units ship in 24 to 28 hours. Tracking follows dispatch.
- FedEx, UPS, and DHL cover most regions.
- Every order carries a 12-month warranty.
Best Fit Equipment
- Overhead cranes and hoist positioning
- Automated storage and retrieval systems
- Rail car and conveyor distance control
- Steel and mining process lines
- Obsolete SICK Dx50 replacement slots
Installation Notes
- Mount the sensor on a rigid bracket. Keep the beam square to the tape.
- Use the M12 5-pin connector. Check pinout before power up.
- Keep supply within DC 10 V to 30 V. Protect against short circuits.
- Add cooling plates above +65 °C. Add a filter above +80 °C.
- Clean the PMMA window with a soft cloth.
Commissioning and Care
- Use the LC display and menu buttons for setup.
- Pick fast 15 ms or slow 30 ms response by task.
- Scale the 4 mA to 20 mA output during startup.
- Check readings against a known target. Confirm repeatability.
- Inspect the window and connector each service cycle.
Compatibility
- Works with common 24 V DC industrial supplies.
- PNP output matches many PLC and relay inputs.
- Current loop fits long cable runs and noisy panels.
- MF input supports external trigger and teach-in.
- Drops into many Dx50 mounting points.
Certifications
- IEC 60825-1:2014 Laser Class 1
- EN 60825-1:2014 Laser Class 1
- EN 60529 IP65
Package Contents
- 1x SICK DL50-P1123 sensor
- 1x quick start guide
- 1x declaration of conformity
- Protective shipping box
Warranty and Delivery
- 12-month warranty on every unit
- Ships in 24 to 28 hours
- FedEx, UPS, and DHL options
- Tracking number after dispatch
- Technical check before packing
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spare parts
- Global shipment support
- Tested surplus and refurbished choices
- 12-month warranty
- Technical verification before shipment
- Help for obsolete control systems
FAQ
Q: Does the DL50-P1123 need a reflector?
A: Yes. It works with Diamond Grade reflective tape. This gives the full 50 m range. For natural objects, choose a diffuse model instead.
Q: Is the laser safe for open areas?
A: Yes. It is Class 1 eye-safe. No extra guards or goggles are needed. This speeds up installation and service.
Q: Can it run on 12 V?
A: Yes. The supply range is DC 10 V to 30 V. It is reverse-polarity protected. Avoid short circuits above 8 A.
Q: How do I pick between the PNP and analog output?
A: Use PNP for simple on/off triggers. Use 4 mA to 20 mA for continuous distance data. Many users wire both.
Q: What if my old Dx50 unit is discontinued?
A: The DL50-P1123 fits many legacy mounts. Send us your old part number. We check pinout, range, and output type before you buy.
