DT50-N2113 SICK Dx50 Distance Sensor

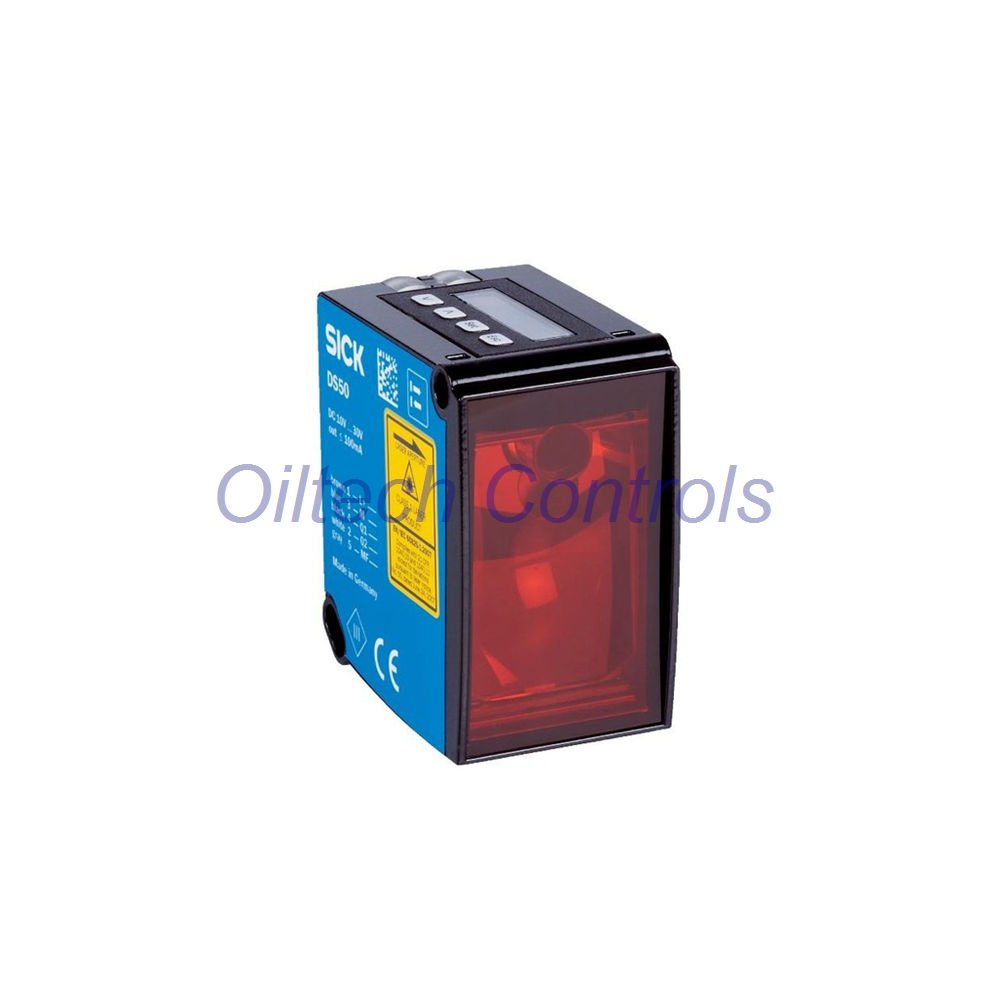

DT50-N2113 from SICK is a rugged optical time-of-flight sensor in the Dx50 series. It measures natural objects up to 20 m with ±7 mm accuracy and ≥1 mm repeatability. The HDDM™ principle gives stable readings under ambient light. A zinc die-cast housing and IP65 rating make it fit for heavy industrial use. The DT50 Hi sub-series adds a clear LC display and simple menu buttons for fast setup.
Technical Specifications
| Brand | SICK |
| Model | DT50-N2113 |
| Series | Dx50 / Dx50 DT50 Hi |
| Part Number | 1047398 |
| Measurement Principle | HDDMâ„¢ Optical Time-of-Flight |
| Measuring Range | 200 mm … 20,000 mm (90% remission) 200 mm … 10,000 mm (18%) 200 mm … 5,000 mm (6%) |
| Light Source | Visible red laser, 658 nm, Class 2, <1 mW average |
| Laser Class | Class 2 (IEC 60825-1:2014, EN 60825-1:2014) |
| Response Time | Fast: 15 ms / Medium: 30 ms / Slow: 80 ms |
| Repeatability | ≥ 1 mm |
| Accuracy | Typ. ± 7 mm |
| Resolution | 16-bit analog output |
| Linearity | Typical ±7 mm over full range |
| Frequency Response | Up to 66 Hz (fast mode) |
| Sensitivity | Stable on 6% … 90% remission surfaces |
| Digital Output | 1x NPN, ≤ 100 mA |
| Analog Output | 1x current 4 … 20 mA, ≤ 300 Ω, 16-bit |
| Multifunctional Input | MF input for external control |
| Supply Voltage | DC 10 V … 30 V, reverse-polarity protected |
| Power Consumption | ≤ 2.1 W without external load |
| Electrical Connection | M12 male connector, 5-pin |
| Operating Temperature | -30 °C … +65 °C With 2 cooling plates: -30 °C … +80 °C With 2 cooling plates + filter: -30 °C … +140 °C (Uv ≤ 24 V) |
| Storage Temperature | -40 °C … +75 °C |
| Enclosure Rating | IP65 (EN 60529) |
| Dimensions (W x H x D) | 36.1 mm x 62.7 mm x 57.7 mm |
| Housing Material | Zinc die-cast ZNAL4CU1, PMMA optical window |
| Weight | Approx. 200 g |
| Certification | IEC 60825-1:2014, EN 60825-1:2014, EN 60529 |
Installation Guide
- Mount the DT50-N2113 on a stable bracket. Use M12 5-pin connector for wiring.
- Keep the optical window clean. Avoid direct sunlight or strong ambient light.
- For high-temperature areas, add 2 cooling plates to reach +80 °C.
- Use the LC display and menu buttons to set response time and output mode.
- Connect the 4 … 20 mA analog output to a PLC or controller with ≤ 300 Ω load.
Commissioning and Maintenance
- Power on with DC 10 V … 30 V. The display shows distance and status.
- Select Fast, Medium, or Slow averaging for your application.
- Clean the PMMA window with a soft, lint-free cloth. Do not use solvents.
- Check the NPN output and MF input wiring for correct logic.
- No routine calibration needed. The HDDMâ„¢ principle keeps long-term stability.
Compatibility Notes
- Works with standard M12 5-pin cordsets and industrial power supplies.
- Analog 4 … 20 mA output fits most PLC analog input cards.
- NPN digital output can drive relays, counters, or PLC digital inputs.
- MF input accepts external trigger or teach signals.
- Compatible with SICK mounting brackets and cooling plates for the Dx50 family.
Diagnostic Capabilities
- LC display shows live distance, signal quality, and error codes.
- LED indicators for power, output status, and laser warning.
- Short-circuit and reverse-polarity protection on supply lines.
- Output current limited to ≤ 100 mA for safe operation.
Typical Applications
- Positioning of cranes, lifts, and automated guided vehicles.
- Distance control in steel, wood, and paper processing.
- Collision avoidance on mobile machinery.
- Level measurement in silos and hoppers.
- Object detection on conveyors with 20 m range.
