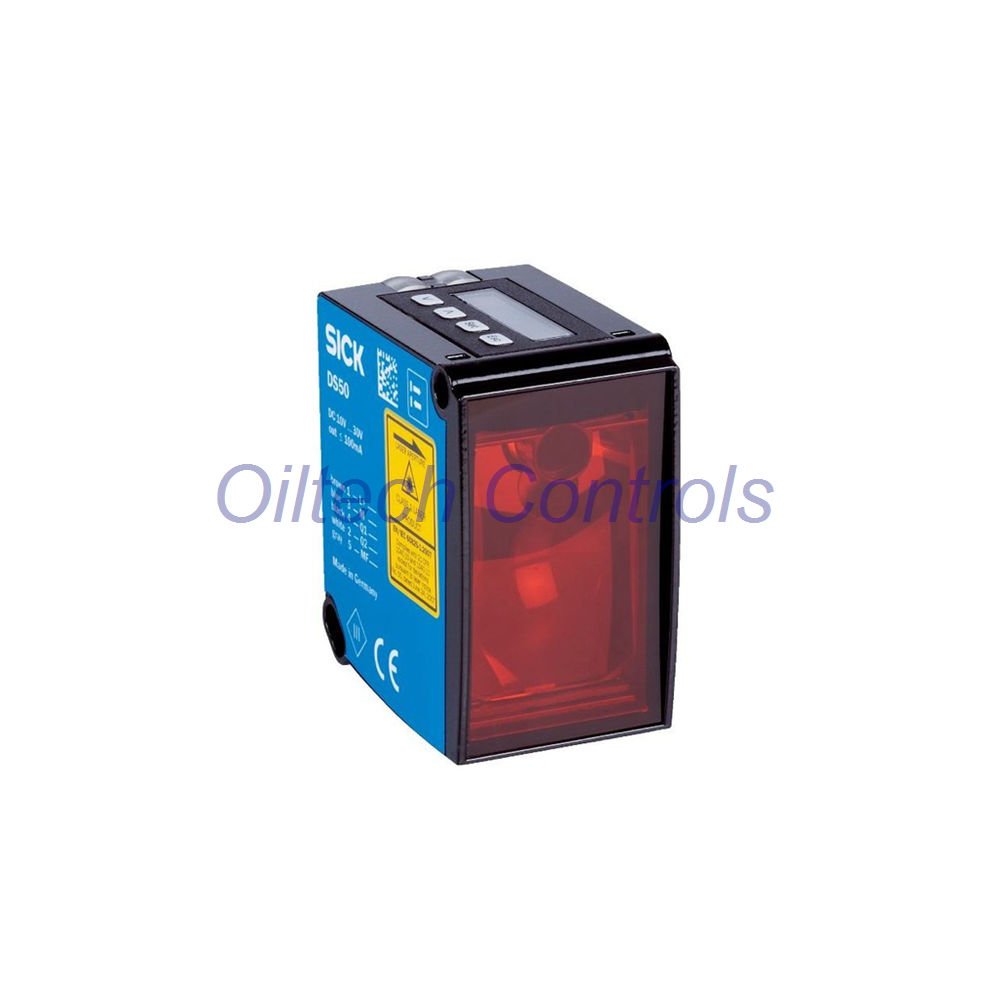

DS50-P1112 SICK Dx50 HDDM Switching Sensor 10 m Dual PNP

DS50-P1112 SICK Dx50 Dual PNP HDDM Switching Sensor

The SICK DS50-P1112 is a switching distance sensor from the Dx50 DS50 Switching family. It uses HDDM™ optical time-of-flight to detect natural targets up to 10 m. Two PNP outputs, Q1 and Q2, give independent switching points. Adjustable hysteresis from 1 mm to 9,999 mm blocks false triggers on rough surfaces. Fast 10 ms response and 50 Hz switching frequency fit high-speed conveyor and sorting lines.

Technical Data

• Brand: SICK
• Model: DS50-P1112
• Series: Dx50 / DS50 Switching
• Part Number: 1047402
• Principle: HDDM™ optical time-of-flight
• Range: 200 mm to 10,000 mm at 90% remission
• Range: 200 mm to 6,000 mm at 18% remission
• Range: 200 mm to 4,000 mm at 6% remission
• Light Source: Visible red laser, 658 nm
• Laser Class: Class 2 per IEC 60825-1:2014
• Optical Power: Average < 1 mW, pulse peak 180 mW, 5 ns
• Response Time: Fast 10 ms / Slow 50 ms
• Repeatability: ≥ 2.5 mm
• Hysteresis: Adjustable, 1 mm to 9,999 mm
• Switching Frequency: Up to 50 Hz
• Digital Outputs: 2x PNP, Q1 and Q2, ≤ 100 mA
• Protection: Short-circuit protected outputs
• Input: Multifunctional input (MF)
• Supply: DC 10 V to 30 V, reverse-polarity protected
• Power: ≤ 2.1 W without external load
• Connection: M12, 5-pin male
• Operating Temperature: -30 °C to +65 °C
• Extended Temperature: -30 °C to +80 °C with 2 cooling plates
• Extended Temperature: -30 °C to +140 °C with cooling plates and protection filter
• Storage Temperature: -40 °C to +75 °C
• Protection Rating: IP65 per EN 60529
• Dimensions: 36.1 mm x 62.7 mm x 57.7 mm
• Housing: Zinc die-cast ZNAL4CU1, PMMA window
• Weight: Approx. 200 g

Oiltech Controls Review

• The DS50-P1112 replaces mechanical limit switches on conveyors.
• Dual PNP outputs handle two zones with one sensor.
• 10 ms response catches fast-moving packages and pallets.
• Adjustable hysteresis stops chattering on vibrating belts.
• The LC display shows live distance for quick threshold setup.
• Zinc housing survives dust, splash, and impact in IP65 areas.

Oiltech Controls’s Insight

• Set Q1 as a presence trigger and Q2 as a jam or overflow alarm.
• Widen hysteresis on shiny or dark targets to reduce false trips.
• Use Fast 10 ms only when needed; Slow 50 ms improves stability.
• Check PLC input type: this model sources PNP current.
• For NPN panels, select the DT50-N1113 instead.
• Cooling plates and protection filter extend use near ovens and furnaces.

Suitable Equipment

• High-speed conveyor and sortation systems
• Palletizing and packaging machines
• Crane and gantry anti-collision systems
• Automated storage and retrieval systems
• Steel and heavy material handling lines
• Automotive body shop fixtures
• Logistics portal and gate monitoring

Installation Notes

• Mount on a rigid bracket to prevent vibration drift.
• Align the laser axis square to the target.
• Wire the M12 5-pin connector per the pin diagram.
• Keep supply within DC 10 V to 30 V.
• Add cooling plates above +65 °C ambient.
• Add protection filter for extreme heat and dirt.
• Verify IP65 seal after mounting.

Commissioning and Maintenance

• Set switching points Q1 and Q2 with the LC display.
• Adjust hysteresis to match target surface and vibration.
• Pick Fast 10 ms for fast lines, Slow 50 ms for noisy targets.
• Clean the PMMA window with a soft, lint-free cloth.
• Inspect M12 pins for moisture and damage.
• Recheck alignment after impact or service.

Compatibility

• PNP outputs work with sinking PLC input cards.
• MF input supports external teach or trigger functions.
• M12 5-pin connector matches common sensor cables.
• Fits SICK mounting brackets and cooling accessories.
• Oiltech Controls verifies signal compatibility for legacy panels.
• Two outputs reduce wiring and spare part count.

Certifications

• Class 2 laser per IEC 60825-1:2014
• Class 2 laser per EN 60825-1:2014
• IP65 per EN 60529
• CE conformity for industrial use

Packing List

• 1x SICK DS50-P1112 sensor
• 1x documentation as supplied
• Protective transport packaging

Warranty and Dispatch

• 12-month warranty from Oiltech Controls.
• Dispatch within 24 to 28 hours after order confirmation.
• Shipping by FedEx, UPS, and DHL.
• Technical verification before shipment.
• Tracking details shared after dispatch.

FAQ

Q: Can I use Q1 and Q2 for two separate conveyor zones?

A: Yes. Each PNP output has its own switching point. Set Q1 for zone A and Q2 for zone B. This cuts sensor count and wiring. Confirm total current stays under 100 mA per output.

Q: How do I stop false switching on a vibrating belt?

A: Increase switching hysteresis. Start around 50 mm to 100 mm. Raise it until chatter stops. Also use Slow 50 ms response. Check bracket rigidity before changing settings.

Q: What is the real switching frequency I can expect?

A: Up to 50 Hz with Fast 10 ms response. Real speed depends on target size, remission, and hysteresis. Test on the actual line before final commissioning.

Q: Should I choose DS50-P1112 or DT50-P1123 for my line?

A: Choose DS50-P1112 for on/off switching with two PNP outputs. Choose DT50-P1123 for analog 4–20 mA distance feedback. If you need both switching and analog, use the DT50-P1123 and a separate switch input.

Q: What should I check on a refurbished or surplus DS50-P1112?

A: Verify both PNP outputs, test hysteresis settings, check the PMMA window, and inspect M12 pins. Oiltech Controls tests each unit and gives a 12-month warranty. Ask for the test record if downtime is critical.
