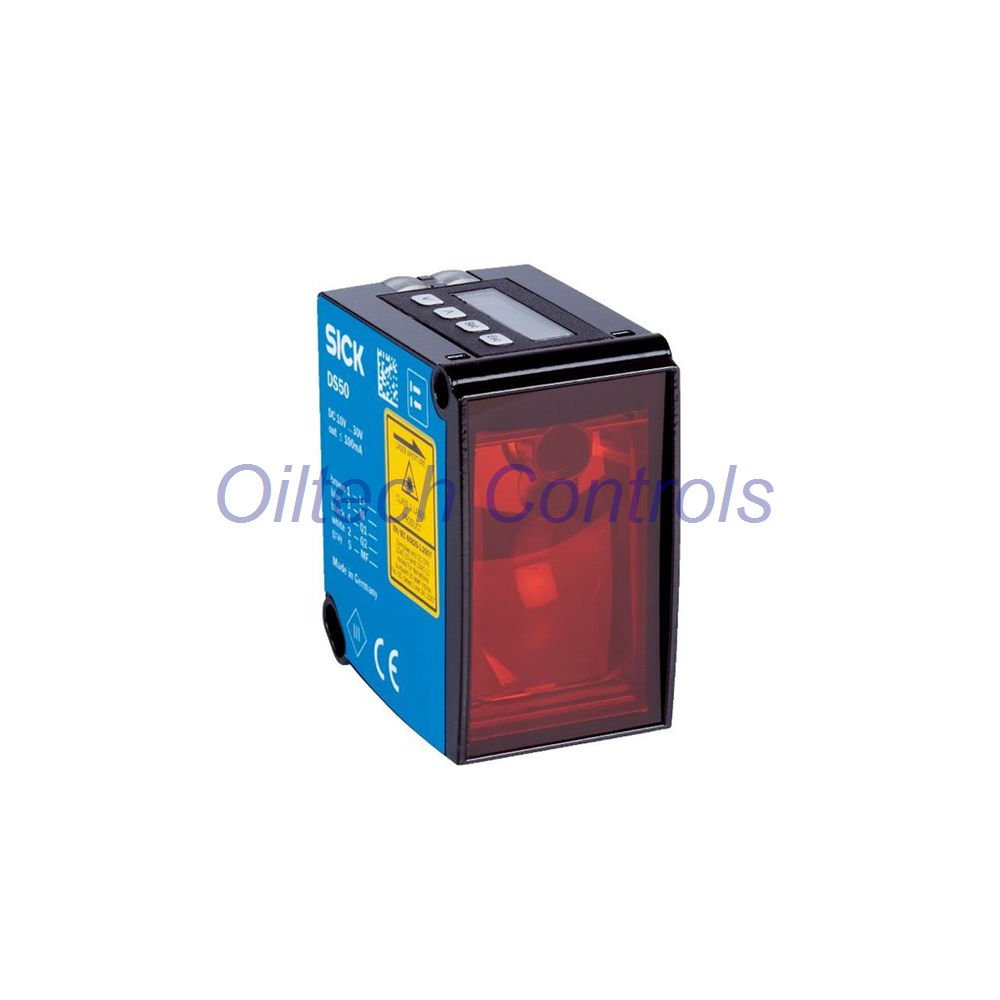

DS50-N1122 SICK Dx50 Switching Sensor Dual NPN 10m HDDM IP65

DS50-N1122 SICK Dx50 Switching Distance Sensor

DS50-N1122 from SICK is a dual-switching optical time-of-flight sensor. It detects natural objects up to 10 m with adjustable thresholds. The Dx50 DS50 Switching family uses HDDM™ technology for stable performance under ambient light. Two NPN outputs give flexible control for industrial automation.

Core Technical Data

• Brand: SICK
• Model: DS50-N1122
• Series: Dx50 DS50 Switching
• Part Number: 1047406
• Range: 200 mm to 10,000 mm (90% remission)
• Light Source: Red laser 658 nm, Class 1 eye-safe
• Response Time: Fast 10 ms / Slow 50 ms
• Repeatability: ≥ 2.5 mm
• Switching Hysteresis: 1 mm to 9,999 mm, adjustable
• Switching Frequency: Up to 50 Hz
• Outputs: 2x NPN (Q1, Q2), ≤ 100 mA, short-circuit protected
• Input: Multifunctional input (MF)
• Supply Voltage: DC 10 V to 30 V, reverse-polarity protected
• Power Consumption: ≤ 2.1 W without load
• Connection: M12 male, 5-pin

Environmental and Mechanical Ratings

• Operating Temperature: -30 °C to +65 °C
• Extended Range: -30 °C to +80 °C with 2 cooling plates
• Extreme Range: -30 °C to +140 °C with 2 cooling plates and filter
• Storage Temperature: -40 °C to +75 °C
• Protection: IP65 (EN 60529)
• Housing: Zinc die-cast (ZNAL4CU1), PMMA window
• Dimensions: 36.1 mm x 62.7 mm x 57.7 mm
• Weight: Approx. 200 g
• Certification: IEC 60825-1:2014, EN 60825-1:2014

Oiltech Controls Review and Insight

• This sensor suits high-speed sorting and position checks.
• Dual NPN outputs simplify PLC integration.
• Adjustable hysteresis reduces false triggers.
• HDDM™ handles strong ambient light well.
• Rugged zinc housing fits heavy-duty lines.

Best Fit Equipment

• Automated assembly and robotic cells.
• Packaging and material handling conveyors.
• Cold storage doors and position monitors.
• Overhead cranes and collision avoidance.
• Textile, wood, and metal processing lines.

Installation and Setup Notes

• Mount with clear line of sight to the target.
• Use M12 5-pin cable for power and outputs.
• Set switching thresholds via LC display and buttons.
• Keep supply voltage within 10 V to 30 V DC.
• Add cooling plates for ambient above 65 °C.

Why Buy From Oiltech Controls?

• 15+ years sourcing industrial automation spare parts.
• Worldwide shipping through trusted carriers.
• Tested surplus and refurbished units on request.
• 12-month warranty on all products.
• Pre-shipment technical check on every order.
• Lifetime support for obsolete control systems.

FAQ

Q: Can this sensor replace a reflector-based unit?

A: Yes. It detects natural objects directly up to 10 m. No reflector needed.

Q: How do I choose between fast and slow response?

A: Use fast (10 ms) for high-speed sorting. Use slow (50 ms) for stable readings on moving targets.

Q: What cable do I need for the 5-pin M12 connector?

A: Use a standard 5-pin M12 A-coded cable. Match pinout to NPN outputs and supply voltage.

Q: Does it work in cold storage?

A: Yes. Standard range starts at -30 °C. No heater is built in, but cooling plates extend high-temp use.

Q: How do I set the switching hysteresis?

A: Use the LC display and menu buttons. Range is 1 mm to 9,999 mm. Adjust to reduce false switching.
