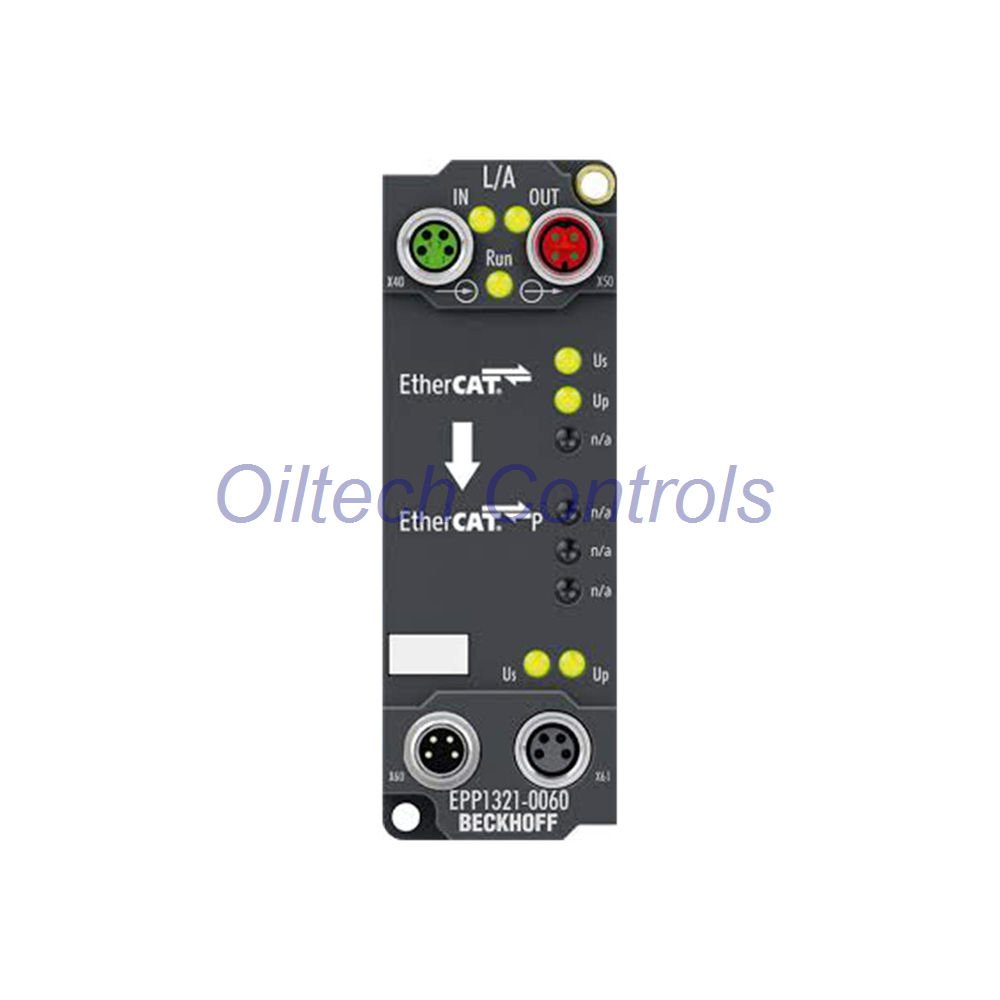

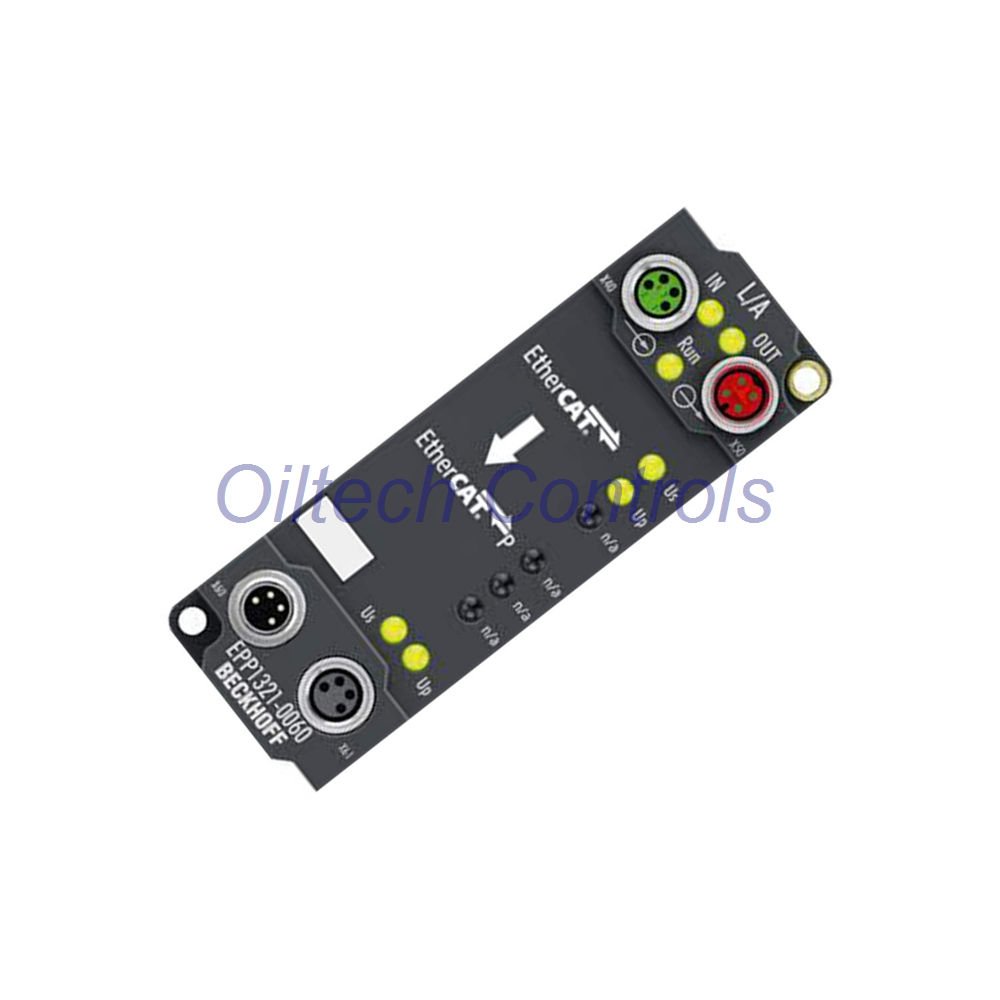

EPP1321-0060 Beckhoff EtherCAT to EtherCAT P Supply Module IP67

EPP1321-0060 Beckhoff EtherCAT to EtherCAT P Supply Module IP67

The EPP1321-0060 is a 1-channel supply module from Beckhoff. It converts EtherCAT to EtherCAT P. The IP 67 housing suits harsh plant floors. Each US and UP rail carries up to 3 A. That current feeds many sensors and actuators on one segment. For long or branched machines, add a voltage refresh point. Use the EPP1332-0001 junction for US or UP feed-in anywhere. For simple branches, the EPP1342-0001 works without refresh. Status LEDs show EtherCAT, US, and UP at a glance.

Technical Data

• Brand: Beckhoff
• Model: EPP1321-0060
• Function: EtherCAT to EtherCAT P converter
• Channels: IN 1 x EtherCAT, OUT 1 x EtherCAT P
• Nominal voltage: 24 V DC (-15 %/+20 %)
• Feed-in current: max. 3 A per US and UP
• Current rating per port: max. 3 A per US and UP
• Current draw from US: typ. 100 mA
• Power feed: 1 x M8 male socket, 4-pin
• Downstream: 1 x M8 female socket, 4-pin
• Bus interface: M8 socket, shielded, screw type, EtherCAT-P-coded
• Protocol: EtherCAT / EtherCAT P
• Data rate: 100 Mbit/s
• Weight: approx. 90 g
• Operating temp: -25 to +60 °C
• Storage temp: -40 to +85 °C
• Vibration/shock: EN 60068-2-6 / EN 60068-2-27
• EMC: EN 61000-6-2 / EN 61000-6-4
• Protection class: IP 65 / 66 / 67 per EN 60529
• Installation position: variable
• Approvals: CE, UL in preparation

Oiltech Controls Insight

• Clean way to extend EtherCAT P into IP 67 zones
• 3 A per rail handles dense sensor clusters
• M8 4-pin power ports keep wiring simple
• No distributed clocks, so it stays a pure infrastructure box
• Status LEDs cut troubleshooting time on the floor
• Pairs well with EPP1332-0001 for long runs
• Good fit for modular machine builds

Suitable Equipment

• EtherCAT P I/O modules in IP 67
• Distributed sensor and actuator banks
• Modular conveyor and handling lines
• Robotic cells with remote I/O
• Packaging machines with long cable runs
• Washdown areas needing IP 66/67

Accessories

• ZK700x-010x-0xxx cables for EtherCAT P: power and data in one cable
• ZK1090-3xxx-xxxx cables for EtherCAT signal in and out
• ZK2020-3xxx-xxxx cables for M8 power supply

Why Buy From Oiltech Controls?

• Over 15 years sourcing industrial automation spares
• We ship worldwide with FedEx, UPS, and DHL
• Surplus and refurbished units pass full testing
• Every order carries a 12-month warranty
• We verify specs and firmware before dispatch
• We support legacy and obsolete control systems

Shipping and Warranty

• Dispatch within 24 to 28 hours
• FedEx, UPS, DHL options at checkout
• 12-month warranty on defects
• Warranty starts on delivery date
• Contact us to start a claim

Professional FAQ

Q: When do I need the EPP1332-0001 instead of this module?

A: Use the EPP1332-0001 when voltage drops over a long segment. It refreshes US or UP at any point. The EPP1321-0060 only converts EtherCAT to EtherCAT P. It does not boost voltage. Check your voltage at the last box before deciding.

Q: Can I feed both US and UP from one M8 connector?

A: The 4-pin M8 socket carries US and UP. It also handles the feed-in for both rails. You can forward both downstream. Keep total load under 3 A per rail. Balance loads across segments to avoid trips.

Q: What cable do I use for the EtherCAT P output?

A: Use Beckhoff ZK700x-010x-0xxx EtherCAT P cables. They combine power and data in one jacket. The M8 socket is EtherCAT-P-coded. Do not use standard EtherCAT cable on the P side. Wrong cable gives link errors or no power.

Q: Does this module need a separate 24 V supply?

A: Yes. Feed 24 V DC into the 4-pin M8 male socket. The module draws about 100 mA from US. It then passes up to 3 A per rail to downstream boxes. Size your supply for the full segment load, not just this module.

Q: Is IP 67 enough for washdown areas?

A: IP 67 handles temporary immersion and hose spray. It suits most food and beverage zones. For high-pressure washdown, check IP 69K ratings on the full chain. Every connector must match the same IP level. One open M8 port breaks the rating.
