Product Overview

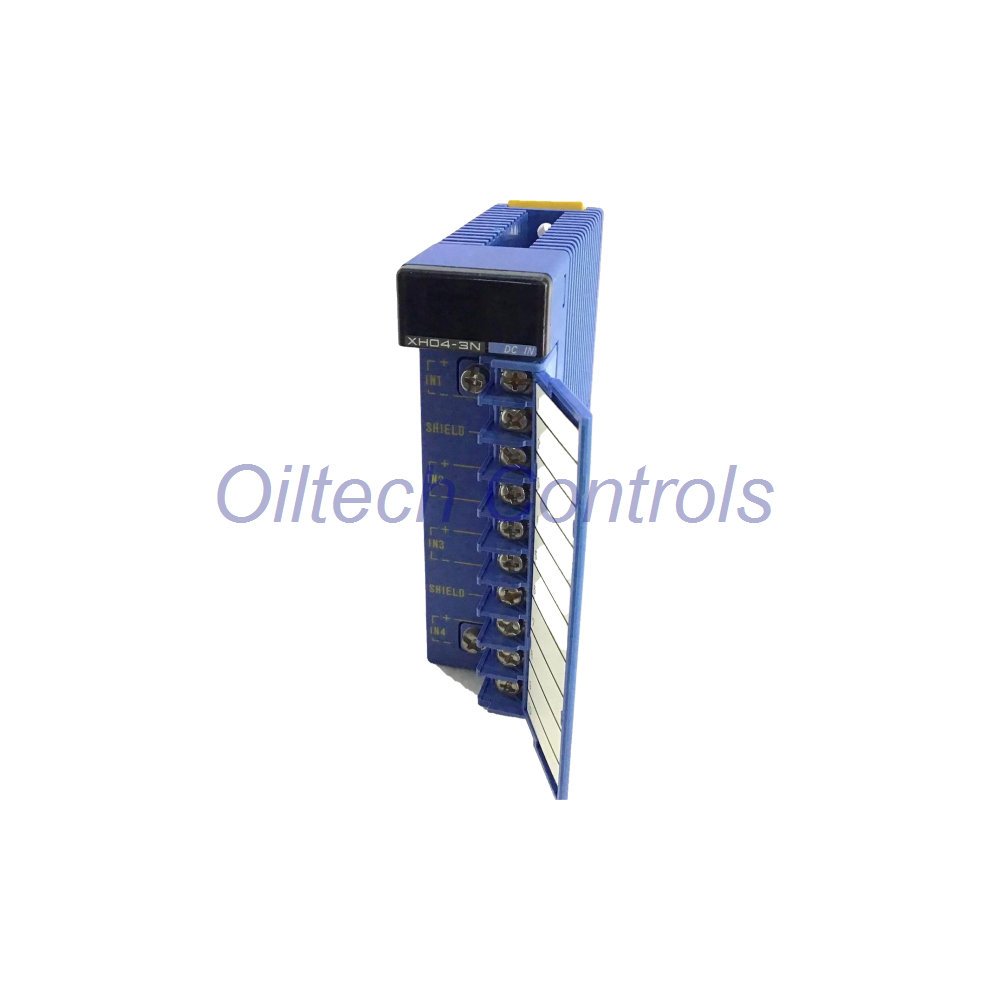

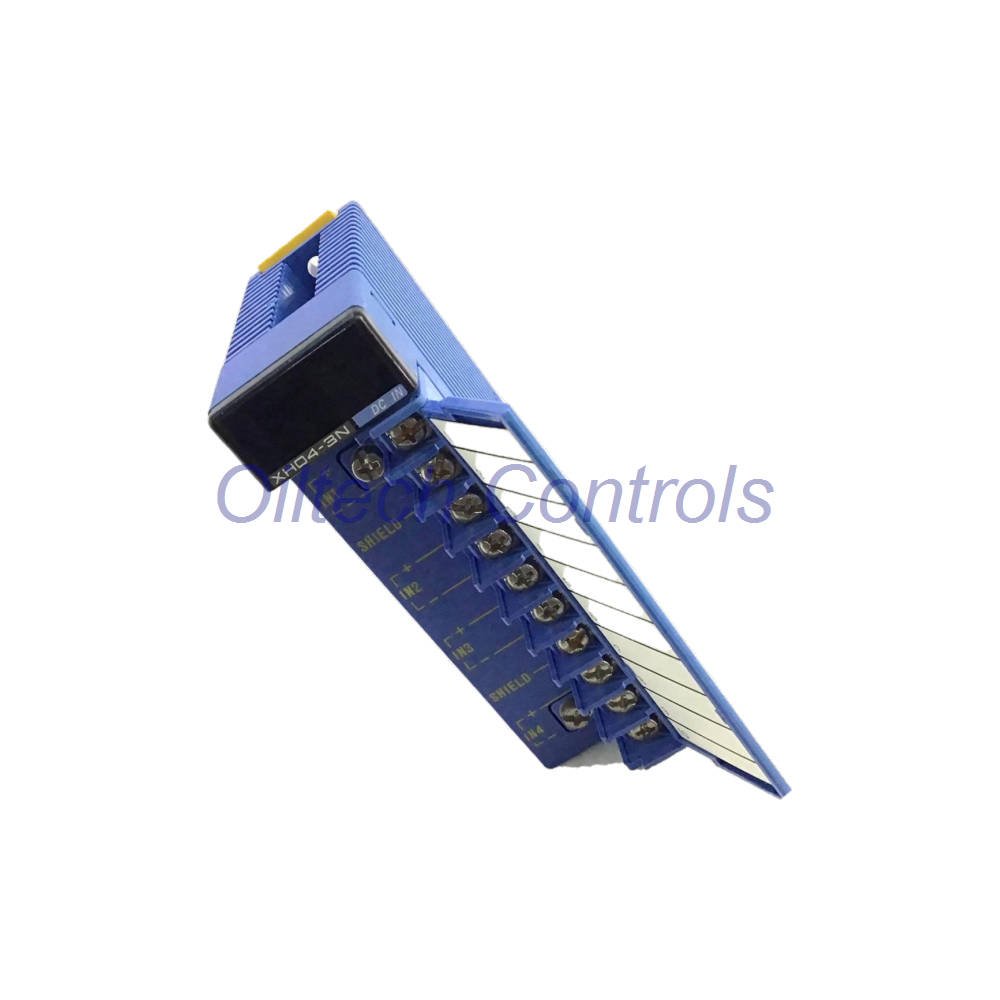

The Yokogawa F3XH04-3N is a high-speed pulse input module for the FA-M3 series. It has 4 independent input channels. It captures short pulses that are faster than the PLC scan period. The minimum pulse width is only 50 µs. This module suits high-speed sensing with photo-micro switches and fast sensors.
Each channel is photocoupler isolated. The four inputs are fully independent. You can connect different signal systems on one module. The terminal block includes terminals for shielded cables. This helps reject noise in harsh panels.
The module supports pulse capture and interrupt features. You select them by DIP switches. Note: pulse capture and interrupt cannot run at the same time. It works with any FA-M3 CPU module. There is no CPU type restriction.
Need a quote? Email info@oiltechcontrols.com or chat on WhatsApp +86 158 8020 0923.
Technical Specifications
| Brand | Yokogawa |
| Model | F3XH04-3N |
| Series | FA-M3 |
| Module Type | Pulse Input Module, High-Speed |
| Input Type | DC voltage |
| Number of Inputs | 4 channels |
| Common System | 4 independent inputs |
| Isolation | Photocoupler isolation |
| Rated Input Voltage | 24 V DC |
| Operating Voltage Range | 20.4 to 26.4 V DC |
| Rated Input Current | 11.2 mA per point at 24 V DC |
| Input Impedance | 2.1 KΩ |
| ON Condition | 16.0 V DC min, 7.2 mA min |
| OFF Condition | 6.0 V DC max, 2.5 mA max |
| Response Time OFF to ON | 50 µs max |
| Response Time ON to OFF | 50 µs max |
| Minimum Pulse Width | 50 µs |
| Input Hold Time | 512 µs after OFF to ON detection |
| Current Consumption | 30 mA at 5 V DC |
| Pulse Capture | Select by DIP switch |
| Interrupt | Select by DIP switch, set per point in WideField3 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 75 °C |
| Humidity | 10 to 90% RH, non-condensing |
| Atmosphere | No corrosive gas, no flammable gas, no heavy dust |
| Noise Immunity | Photocoupler isolation plus shielded cable terminals |
| Terminal Block | 10-point, M3.5 screw |
| Wire Size | 0.33 to 0.82 mm2 |
| Crimping Torque | 0.8 N·m (8 kgf·cm) |
| Weight | 130 g |
Note: Pulse capture and interrupt are not available at the same time.
Installation Guide
- Mount the module in a clean, dry panel.
- Keep the ambient temperature between 0 and 55 °C.
- Use shielded cables for pulse signals.
- Land shields on the terminal block shield terminals.
- Use wire of 0.33 to 0.82 mm2.
- Tighten screws to 0.8 N·m. Do not overtighten.
- Keep signal wires away from motor and drive cables.
- Check input polarity and voltage before power-on.
Setup and Maintenance
- Set pulse capture or interrupt mode by DIP switch.
- Set interrupt points in WideField3.
- Confirm ON level is at least 16.0 V DC.
- Confirm OFF level is at most 6.0 V DC.
- Use a scope to check pulse width above 50 µs.
- Clean terminals only when power is off.
- Recheck torque after long service.
Compatibility
The F3XH04-3N fits the Yokogawa FA-M3 platform. It works with all FA-M3 CPU modules. There is no CPU type limit. It drops into existing FA-M3 racks. This makes it a good choice for legacy line upgrades and obsolete control systems.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment by FedEx, UPS, and DHL.
- Tested surplus and refurbished options in stock.
- 12-month warranty on every module.
- Technical check before shipment on each unit.
- Legacy and obsolete system support for long-life plants.
Typical Applications
- High-speed photo-micro switch sensing
- Encoder and counter pulse pickup
- Short-pulse event capture on fast machines
- Position and speed feedback on legacy FA-M3 lines
- Interrupt-driven fast logic in packaging and assembly cells
Diagnostics
Short pulses may be missed if the ON time is under 50 µs. Check input current stays at 7.2 mA or more in ON state. Leakage above 2.5 mA may hold an input in OFF state errors. Use the input hold time of 512 µs to confirm capture events. Confirm DIP switch mode before you trust an interrupt. A scope on the terminal block is the fastest fault finder.
Certifications
This listing covers the Yokogawa F3XH04-3N module. Compliance papers follow the original Yokogawa factory release for the FA-M3 line. Ask our team for current documents with your order.
Packing List
- 1 x Yokogawa F3XH04-3N module
- 1 x protective carton with anti-static bag
- 1 x packing slip
- 1 x warranty card (12 months)
Shipping and Warranty
We ship worldwide by FedEx, UPS, and DHL. Every module carries a 12-month warranty. We test each unit before it leaves our warehouse. Send your model list to info@oiltechcontrols.com or WhatsApp +86 158 8020 0923 for stock and lead time.
FAQ
Q: Can I use pulse capture and interrupt together?
No. Only one mode runs at a time.
Q: What is the shortest pulse it can catch?
50 µs minimum pulse width.
Q: Does it need a special CPU?
No. It works with all FA-M3 CPU modules.
Q: How many channels does it have?
4 independent channels, each isolated.
Q: What is the input voltage?
24 V DC rated, 20.4 to 26.4 V DC range.
Q: Do you ship worldwide?
Yes. FedEx, UPS, and DHL are our main carriers.
Q: What warranty do I get?
12 months from delivery.
