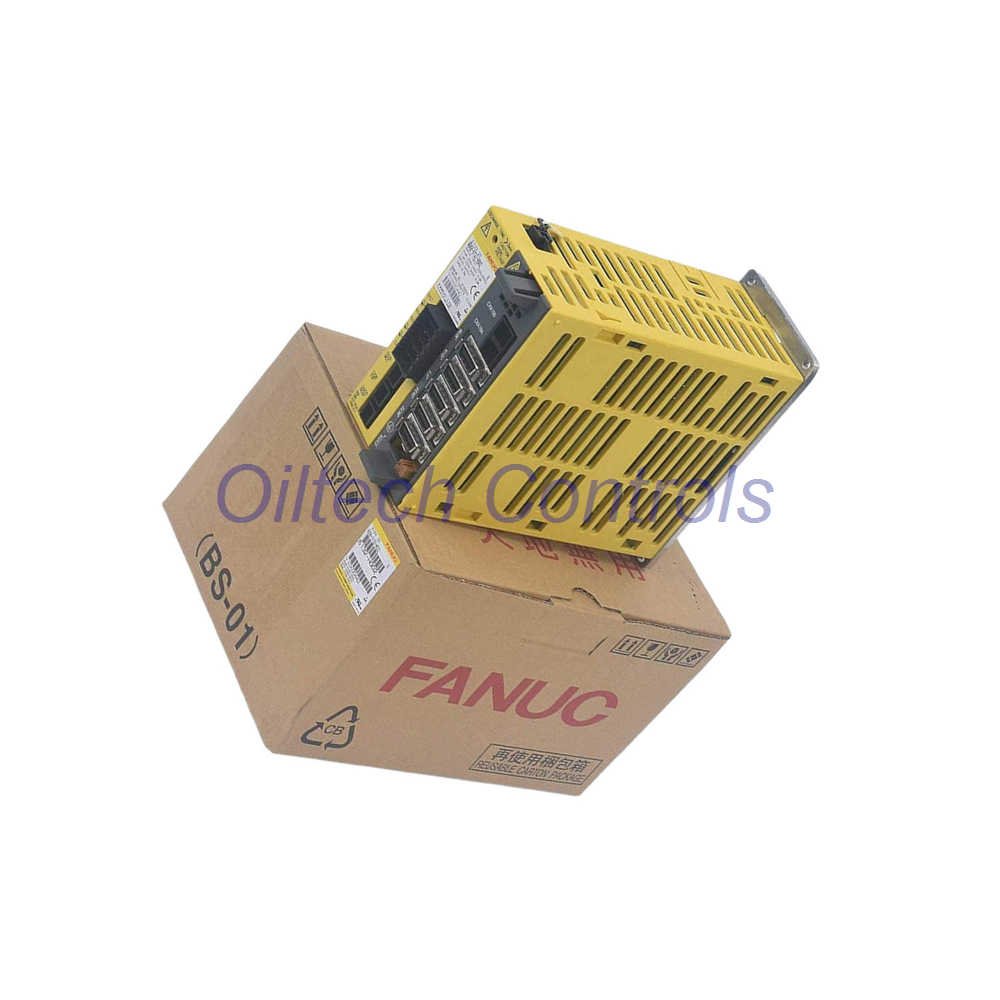

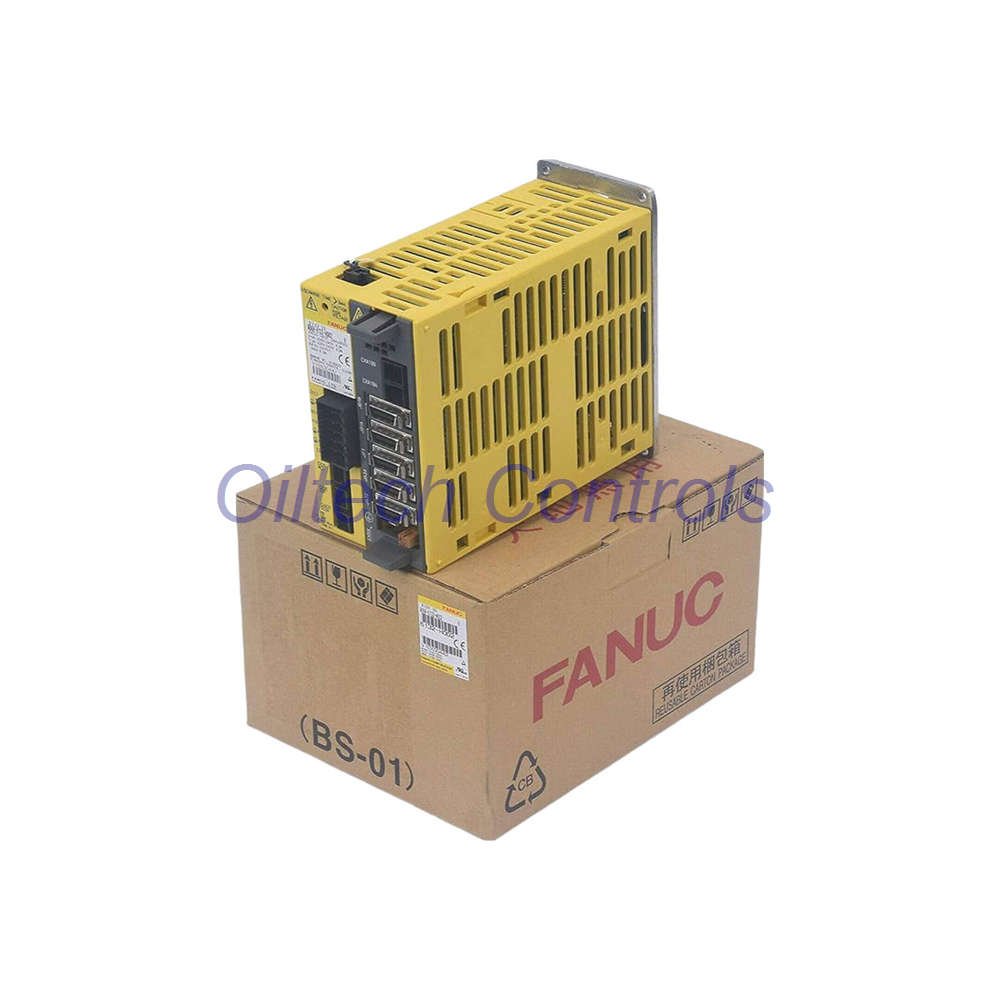

A06B-6132-H002 FANUC Servo Amplifier Module – 6.8 A, 200 V Class
The A06B-6132-H002 from FANUC is a servo amplifier module built for precise motion control. It delivers a rated output current of 6.8 A. The unit works in temperatures from 0 to 55°C. It handles demanding industrial tasks with stable performance.
This module belongs to the A06B product line. It supports 1-phase and 3-phase input. The 200 V class design fits many automation systems. Engineers choose it for reliable axis control and long service life.
Technical Specifications
| Brand | FANUC |
| Model | A06B-6132-H002 |
| Series | A06B |
| Product Type | Servo Amplifier Module |
| Rated Output Current | 6.8 A |
| Voltage Class | 200 V |
| Rated Input Voltage | 200 to 240 VAC |
| Input Frequency | 50/60 Hz |
| Voltage Phases | 3 phase and 1 phase |
| Input Current Rating | 8.0 A |
| Max. Output Voltage | 240 VAC |
| Ambient Operating Temperature | 0 to 55°C |
| Ambient Storage Temperature | -20 to 60°C |
| Humidity | 90% RH or below, no condensation |
| Operational Vibration | Below 0.5G |
| Weight | 7.00 lbs (3.18 kg) |
Key Performance Data
- Measurement Range: 200 to 240 VAC input, 240 VAC max output
- Frequency Response: 50/60 Hz input compatible
- Sensitivity: Stable 6.8 A output for precise motion
- Linearity: Smooth current control across full range
- Resolution: Fine axis command response
- Temperature Range: 0 to 55°C operating, -20 to 60°C storage
- Environmental Resistance: 90% RH, vibration below 0.5G
- Noise Immunity: Designed for industrial EMI environments
Installation Guide
Mount the A06B-6132-H002 in a clean, dry cabinet. Keep airflow clear around the unit. Use 1-phase or 3-phase wiring per your system. Tighten terminals to FANUC specs. Connect the ground line first. Check input voltage before power-on. The 200 V class rating must match your supply. Avoid condensing humidity. Keep vibration below 0.5G.
Setup and Maintenance Convenience
- Front-accessible terminals speed up wiring
- Clear label shows model A06B-6132-H002
- LED indicators help with quick status checks
- Modular shape fits standard FANUC racks
- Routine cleaning needs no special tools
- Replace fans and filters with common parts
Compatibility Notes
This FANUC servo amplifier works with many A06B series systems. It supports 1-phase and 3-phase input. The 200 to 240 VAC range fits global industrial power. It pairs with FANUC controls and motors that use the A06B-6132-H002 interface. Always confirm drive and motor match before installation.
Certifications and Compliance
The unit follows standard FANUC quality rules. It meets common industrial safety and EMC norms. Contact us for specific certificate copies. The A06B-6132-H002 is built for reliable factory use.
Package Contents
- 1 x A06B-6132-H002 Servo Amplifier Module
- 1 x Protective shipping box
- 1 x Basic terminal label set
Warranty and Shipping
All units come with a 12-month warranty. We ship by FedEx, UPS, and DHL. Tracking goes to your email. Packing uses strong foam and anti-static wrap. We test each module before dispatch.
Typical Applications
- CNC machining centers
- Industrial robots
- Packaging lines
- Material handling systems
- Automated assembly cells
- Obsolete control system upgrades
Diagnostic Capabilities
The A06B-6132-H002 offers basic fault feedback. LEDs show power and alarm states. The drive reports overcurrent, overvoltage, and overheating. Technicians can read codes through the host controller. This helps reduce downtime. Use FANUC diagnostic tools for deeper checks.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support with FedEx, UPS, DHL
- Tested industrial surplus and refurbished options
- 12-month warranty on every module
- Technical verification before shipment
- Support for obsolete control systems
Contact us for inquiries: info@oiltechcontrols.com or +86 158 8020 0923 (WhatsApp).
FAQ
Q: What is the output current of the A06B-6132-H002?
A: The rated output current is 6.8 A.
Q: What input voltage does this module accept?
A: It accepts 200 to 240 VAC at 50/60 Hz.
Q: Can it run on single-phase power?
A: Yes. It supports 1-phase and 3-phase connections.
Q: What is the operating temperature range?
A: It runs from 0 to 55°C. Storage is -20 to 60°C.
Q: Does it come with a warranty?
A: Yes. It includes a 12-month warranty.
Q: How fast is shipping?
A: We ship by FedEx, UPS, or DHL. Delivery time depends on your location.
Q: Is the A06B-6132-H002 new or refurbished?
A: We offer tested surplus and refurbished options. Contact us for current stock details.
