Product Overview

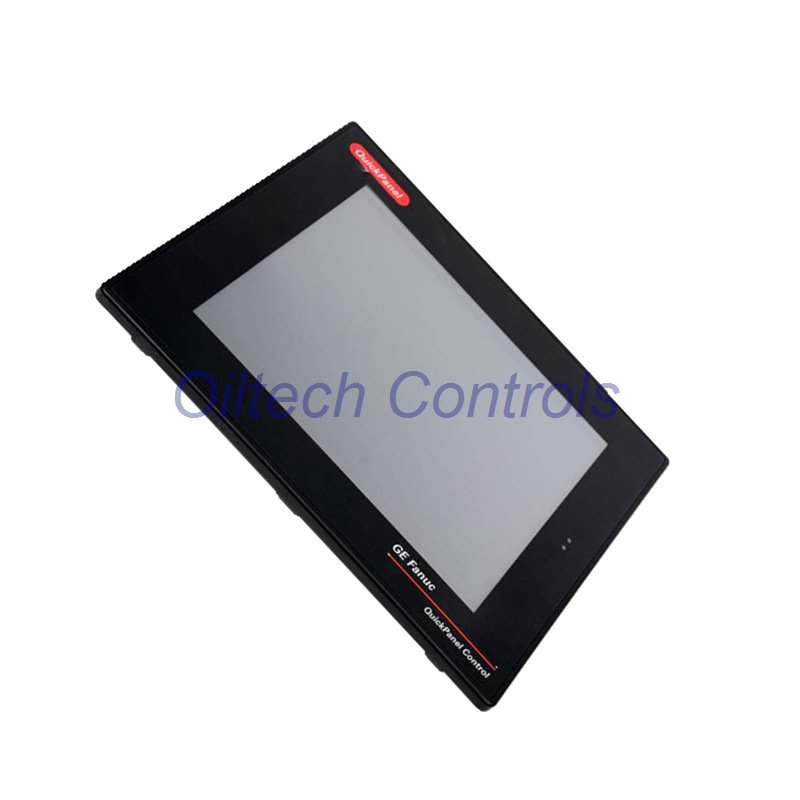

The GE Fanuc Emerson IC754CSF15CTD QuickPanel is a 15 inch color HMI designed for clear machine control and operator interaction.
Key Highlights
- Large 15 inch TFT color display.
- Touchscreen input for fast operation.
- Modern black industrial design.
- Built for factory floor use.
Display & User Interface
- Display size: 15 inches.
- Full color TFT screen.
- Adjustable brightness settings.
- Clear graphics in bright areas.
Control & Input System
- Resistive touchscreen input.
- Supports glove operation.
- Fast response to user commands.
- Designed for daily use.
Communication Capability
- RS232 serial communication.
- RS485 multi-drop networking.
- Compatible with industrial controllers.
- Uses HMI-CAB-C120 cable.
System & Memory
- Internal memory: 64 MB.
- Stores project and runtime data.
- Flash memory saves configuration.
- Built-in data protection features.
Operating Platform
- Microsoft Windows Compact 7 OS.
- Supports Proficy View Machine Edition.
- Stable software and hardware integration.
Power & Electrical Data
- Input power: 12 or 24 VDC.
- Wide voltage tolerance.
- Reliable operation in control panels.
Mechanical Specifications
- Dimensions: 16 x 14 x 8 inches.
- Net weight: 6.63 lbs.
- Shipping weight: 10 lbs.
- Panel mount design.
Typical Applications
- Manufacturing production lines.
- Packaging machines.
- Process automation systems.
- Energy and utility panels.
Product Advantages
- Easy machine visualization.
- Flexible communication options.
- Low learning curve for operators.
- Proven QuickPanel reliability.
Warranty & Shipping
- 12 month warranty provided.
- Carefully tested before shipment.
- Worldwide shipping via FedEx.
- UPS and DHL delivery available.
Professional FAQ
- Is this HMI suitable for older PLC systems?
- Yes. RS232 and RS485 support legacy devices.
- Can this panel handle continuous operation?
- Yes. It is designed for 24 hour use.
- Is the touchscreen reliable in dusty areas?
- Yes. The resistive screen suits industrial sites.
- How should I choose screen size?
- Choose 15 inches for clear data viewing.
- Is software included with the unit?
- Software is licensed separately.
