GL-VM12LN Keyence Safety Light Curtain GL-VM12LN NPN Body Guard

GL-VM12LN Keyence Safety Light Curtain

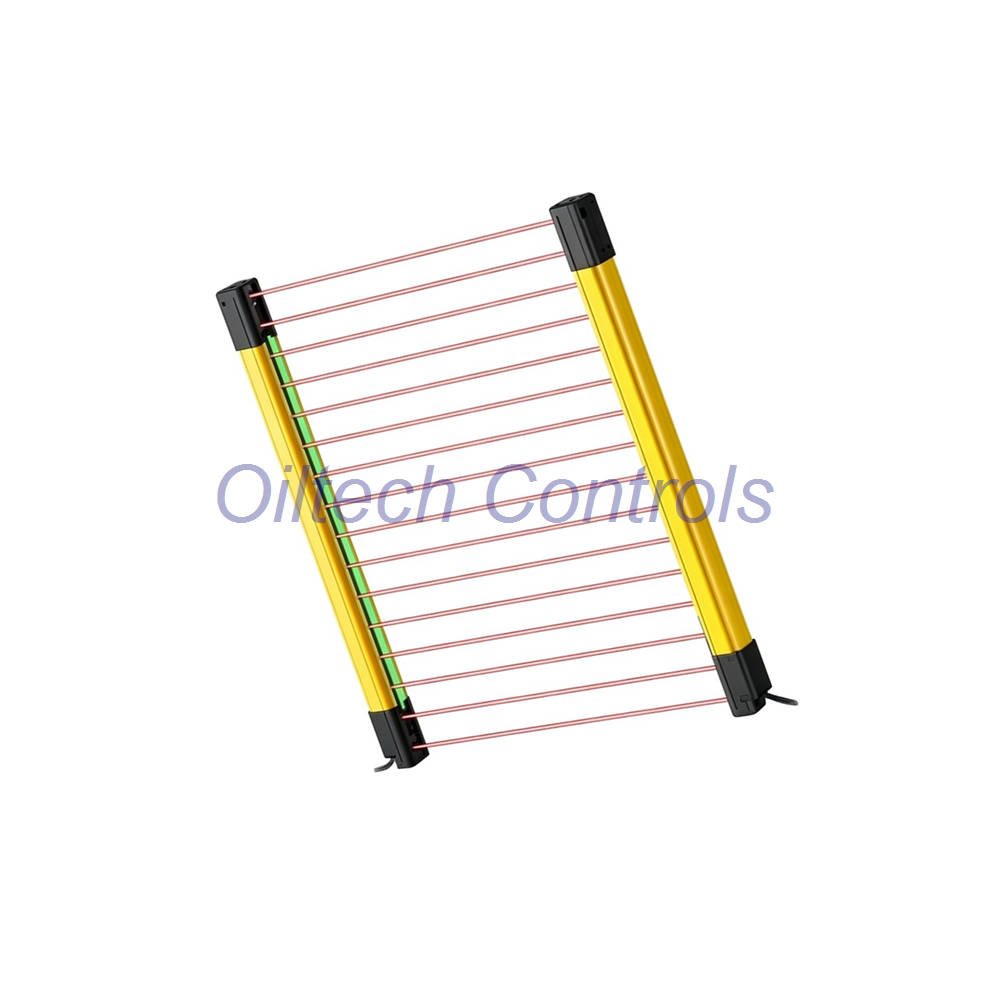

GL-VM12LN is a Keyence GL-V series Type 4 safety light curtain. It uses body protection logic with 12 beam axes. A transmitter and receiver pair build the detection field. Optical synchronization removes the sync cable. The metal case stays compact at 480 mm overall. This unit suits openings where full-body entry must be blocked.

Main Technical Data

• Model: GL-VM12LN
• Brand: Keyence
• Series: GL-V series
• Type: Type 4 ESPE / AOPD set
• Protection: Body protection
• Beam axes: 12
• Beam spacing: 40 mm
• Detectable object: ø45 mm
• Detection height: 440 mm
• Total length: 480 mm
• Range: 0.3 to 15 m
• Response time: max. 4.3 ms
• Output: NPN transistor x2

Optical Behavior

• Infrared LED at 850 nm
• Exempt Group per IEC62471
• Angular aperture up to ±2.5° at 3 m or above
• ON state when all 12 beams arrive
• Optical sync, no dedicated line
• Crosstalk control for up to 2 units

Electrical Specs

• 24 VDC, -20/+25%, ripple 10% or less, Class 2
• Load current max. 150 mA
• ON residual voltage up to 2.5 V at 5 m
• OFF voltage up to 2.0 V at 5 m
• Leakage current up to 0.8 mA
• Load capacity 0.8 µF
• Wiring resistance up to 2.5 Ω
• Input short-circuit current approx. 3 mA
• Transmitter draw max. 77 mA
• Receiver draw max. 90 mA
• Reverse-connection, short-circuit and surge protection

Environment and Build

• Operating range -30 to +55 °C, no freezing
• Storage range -30 to +70 °C, no freezing
• Humidity up to 95 % RH, no condensation
• Ambient light 3,000 lux lamp; 20,000 lux sun
• Rating IP65/IP67 per IEC60529
• Overvoltage category II
• Vibration 5 to 150 Hz, 1G, 10 cycles X/Y/Z
• Shock 15 G, 6 ms, 100 times X/Y/Z
• Body aluminum alloy
• Case PPS GF40%
• Cover polycarbonate and SUS304
• Weight 320 g each unit

Standards and Approvals

• IEC61496-1/-2 Type 4 ESPE / AOPD
• EN ISO13849-1 Category 4, PL e
• IEC61508 SIL3
• UL60947-1 / CSA C22.2 No.60947-1
• UL1998
• EMC: IEC/EN61496-1, EN55011 Class A, FCC Part15B Class A, ICES-003 Class A

Where It Fits

• Small machine entry points
• Body access gates on conveyors
• Compact robot cells
• Pallet transfer openings
• Light-duty press guards
• Automated door and shutter zones
• Low-profile assembly stations

Mounting Guide

• Set transmitter and receiver face to face
• Hold angular tilt within ±2.5° at 3 m or above
• Work inside the 0.3 to 15 m range
• Use 40 mm spacing for body protection
• Feed 24 VDC Class 2 with correct polarity
• Set switches for two-unit series use

Commissioning and Care

• Check OSSD state before machine start
• Match 4.3 ms response to stop distance
• Wipe the cover with a soft cloth
• Skip abrasive cleaners and solvents
• Inspect cable, plug and gasket after service
• Run periodic guard function tests

Diagnostic Signals

• Indicator reports power and output state
• ON state confirms all beams received
• 4.3 ms response aids fast stop checks
• Short-circuit protection cuts downtime
• Surge and reverse-connection protection guard the wiring

Oiltech Controls Review

• Compact 480 mm body fits tight openings
• 12 beams give simple body-level blocking
• NPN output matches sinking PLC inputs
• Light weight eases single-person mounting
• Low current draw suits shared 24 V rails
• Solid pick for legacy GL-V retrofits

Oiltech Controls Insight

• Body protection models cut nuisance trips
• 40 mm spacing ignores small debris
• Optical sync saves wiring time
• Series link limits optical crosstalk
• Keep a spare transmitter and receiver on site

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spare parts
• Global shipment support
• Tested surplus and refurbished options
• 12-month warranty
• Technical verification before dispatch
• Support for obsolete control systems
• Quick quotes for urgent line stops

Shipping and Warranty

• Dispatch in 24 to 28 hours
• FedEx, UPS and DHL service
• 12-month warranty terms
• Industrial-grade packing

Package List

• 1 x Keyence GL-VM12LN transmitter
• 1 x Keyence GL-VM12LN receiver
• Standard mounting parts as supplied
• Documentation as supplied

FAQ

Q: Is GL-VM12LN a good fit for finger protection?

A: No. It uses 40 mm beam spacing for body protection. The smallest object it sees is ø45 mm. Pick a 10 mm spacing model for finger-level guarding.

Q: My PLC card sinks current. Will GL-VM12LN work?

A: Yes. GL-VM12LN uses NPN output. That suits sinking inputs. If your card sources current, choose the PNP version instead.

Q: Can I mount two GL-VM12LN pairs close together?

A: Yes. Use the series connection and switch setting. This limits optical crosstalk. Keep both pairs aligned and spaced per the manual.

Q: What should I verify on a surplus GL-VM12LN?

A: Ask for a response time record and lens photos. Check the cable and plug state. Confirm the transmitter and receiver serial numbers match.

Q: How do I size the guard for a 500 mm opening?

A: The 480 mm total length covers 440 mm of detection height. Add brackets for the extra gap. Also confirm the stop distance against the 4.3 ms response.
