Product Overview

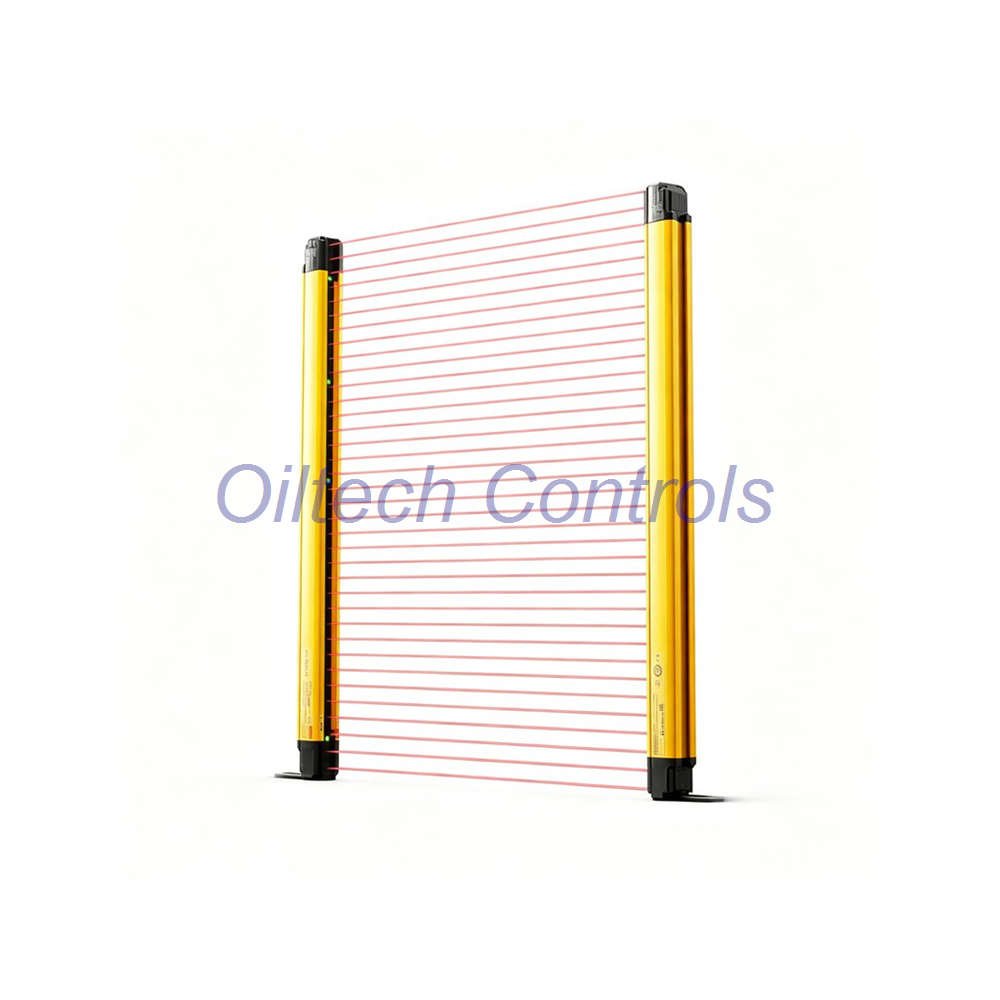

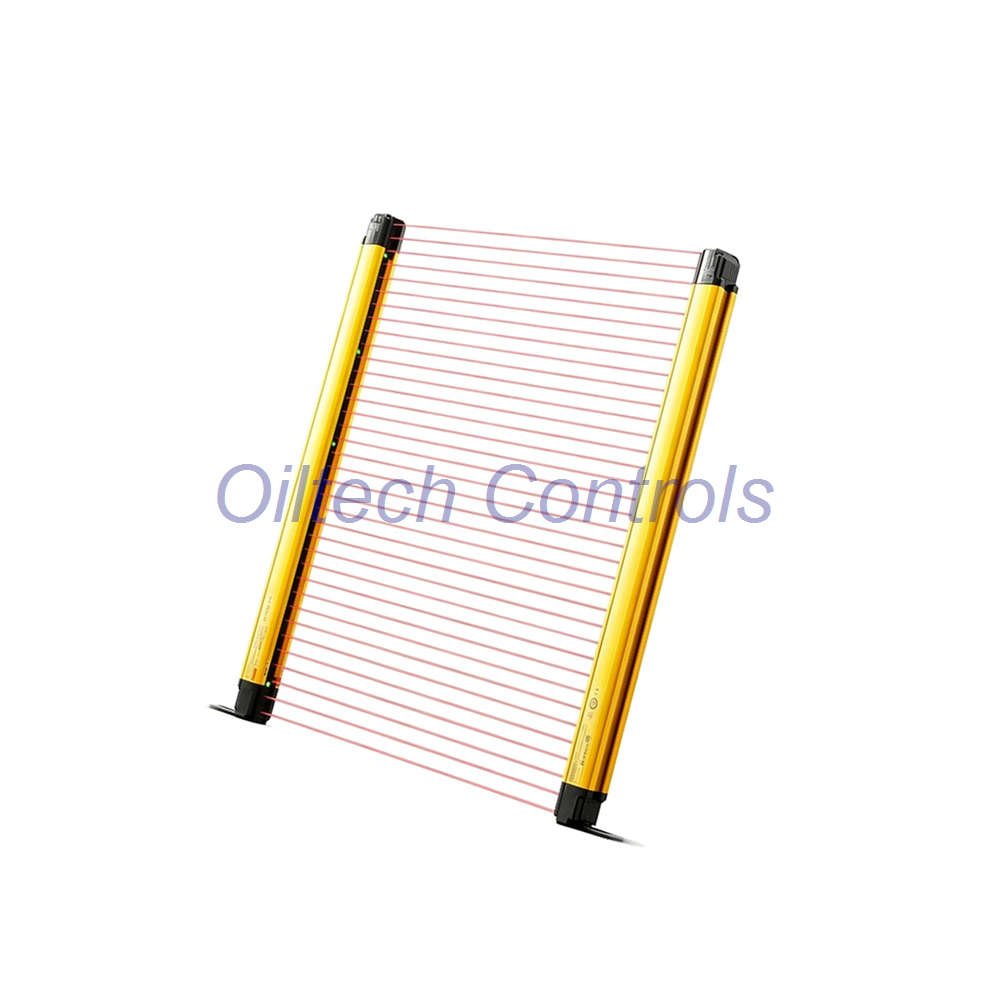

Model GL-VM16HN is a compact Type 4 safety light curtain from Keyence, GL-V series. It provides hand protection with 16 beam axes. The metal housing is small and robust. It uses infrared LED at 850 nm. The system includes a transmitter and receiver set. It works with optical synchronization. Detection is ON when all beams are received. It is ideal for industrial automation and machine safeguarding.
Key Technical Data
| Brand | Keyence |
| Model | GL-VM16HN |
| Series | GL-V series |
| Type | Type 4 ESPE / AOPD |
| Protection | Hand protection |
| Beam axes | 16 |
| Detection height | 300 mm |
| Beam spacing | 20 mm |
| Min. object size | ø25 mm |
| Total length | 320 mm |
| Detecting distance | 0.3 to 15 m |
| Response time | Max. 4.5 ms (OSSD, ON→OFF) |
| Light source | Infrared LED 850 nm, Exempt Group |
| Synchronization | Optical |
| Angular aperture | Up to ±2.5° at 3 m or above |
| Output | NPN transistor x2 (OSSD) |
| Supply voltage | 24 VDC -20/+25%, Class 2 |
| Current consumption | Transmitter max. 69 mA; Receiver max. 80 mA |
| Max. load current | 150 mA or less |
| Residual voltage | ON: ≤2.5 V; OFF: ≤2.0 V (5 m cable) |
| Leakage current | ≤0.8 mA |
| Protection circuit | Reverse connection, short-circuit, surge |
| Interference prevention | Up to 2 units by series connection |
Environmental & Mechanical
- Operating temperature: -30 to +55 °C (no freezing)
- Storage temperature: -30 to +70 °C (no freezing)
- Relative humidity: Up to 95 % RH, no condensation
- Ambient light: Incandescent 3,000 lux max; Sunlight 20,000 lux max
- Protection rating: IP65 / IP67 (IEC60529)
- Overvoltage category: II
- Vibration resistance: 5 to 150 Hz, 1G, 10 cycles X/Y/Z
- Shock resistance: 15 G, 6 ms, 100 times X/Y/Z
- Material: Aluminum alloy main unit; PPS (GF40%) case; Polycarbonate / SUS304 front cover
- Weight: Transmitter 220 g; Receiver 220 g
Installation Guide
Mount the transmitter and receiver facing each other. Keep the distance between 0.3 m and 15 m. Align the units for optical synchronization. Use the metal housing for stable mounting. Connect the 24 VDC supply. Wire the NPN OSSD outputs to your safety circuit. Check the ON status when all beams are received. For series connection, up to 2 units can be used. Set the switch to prevent interference.
Setup & Maintenance
No special tools are needed for setup. The optical synchronization simplifies wiring. The indicator shows power and output status. Clean the front cover with a soft cloth. Do not use solvents. Check the beam alignment after shock or vibration. Regular inspection helps keep the safety function. The response time is fast at max. 4.5 ms. The unit has reverse-connection and short-circuit protection.
Compatibility Notes
GL-VM16HN works with standard 24 VDC industrial power. It supports NPN output devices. It can connect to safety relays and PLCs. The series connection allows up to 2 units. No built-in communication ports or protocols. No expansion for communication. It fits Keyence GL-V series brackets and accessories. This model is active and in production.
Certifications
- IEC61496-1/-2 (Type 4 ESPE/AOPD)
- EN ISO13849-1 (Category 4, PL e)
- IEC61508 (SIL3)
- UL60947-1 / CSA C22.2 No.60947-1
- UL1998
- EMC: IEC/EN61496-1, EN55011 Class A, FCC Part15B Class A, ICES-003 Class A
Package Contents & Warranty
- 1 x Transmitter
- 1 x Receiver
- Instruction sheet (if included)
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
Typical Applications
- Hand protection on press machines
- Robotic cell guarding
- Packaging lines
- Automated assembly stations
- Material handling equipment
Diagnostic Capabilities
The receiver has an indicator for power and output. The OSSD output turns OFF when a beam is blocked. The response time is max. 4.5 ms. The unit has surge and short-circuit protection. No built-in communication port. Diagnostics rely on the output signal and indicator.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support
- Tested surplus and refurbished options
- 12-month warranty
- Technical verification before shipment
- Support for obsolete control systems
Inquiries: info@oiltechcontrols.com or +86 158 8020 0923 (WhatsApp)
FAQ
Q: What is the detection height?
A: 300 mm.
Q: What is the response time?
A: Max. 4.5 ms.
Q: What is the output type?
A: NPN transistor x2 (OSSD).
Q: Can I connect two units?
A: Yes, up to 2 units by series connection.
Q: What is the warranty?
A: 12 months.
