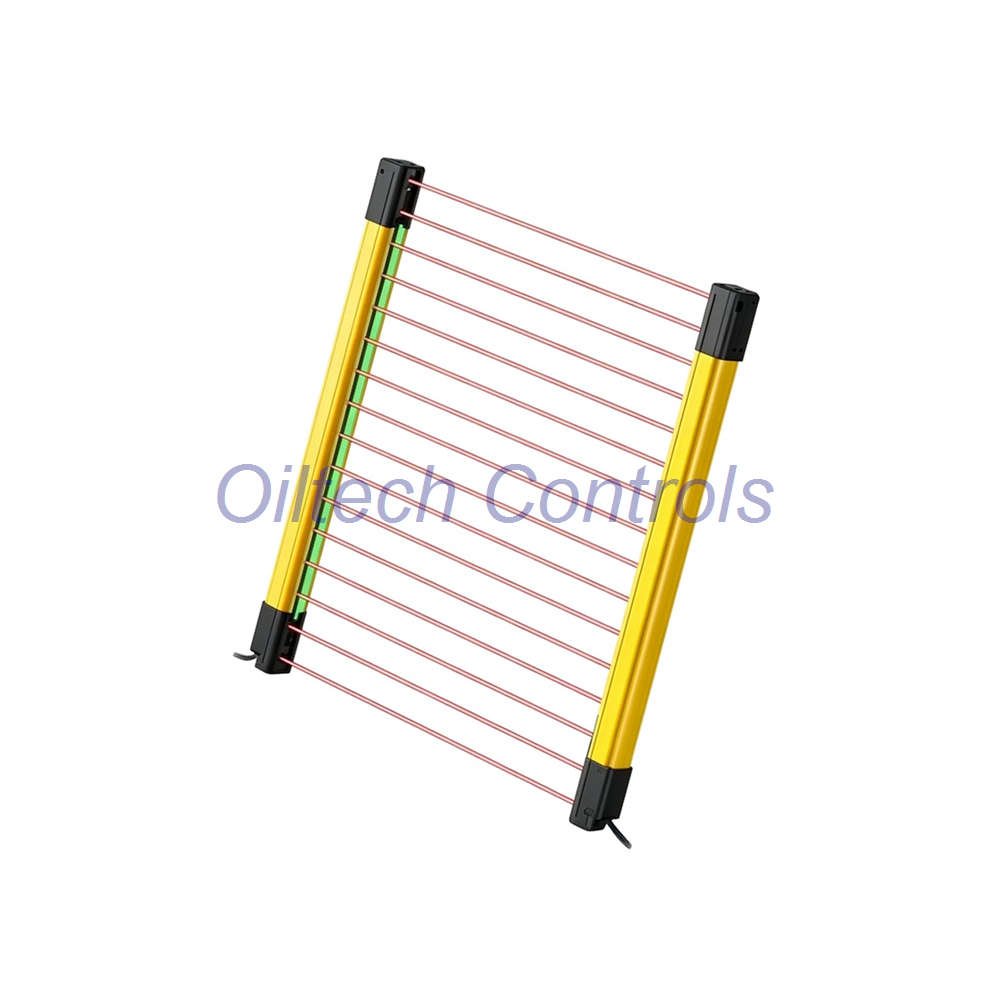

GL-VM36HN Keyence Safety Light Curtain – Type 4 Hand Protection, 36 Beams
The GL-VM36HN belongs to the Keyence GL-V series. It is a compact metal Type 4 safety light curtain. This model uses 36 beam axes for hand protection. It detects objects as small as ø25 mm. The detection height is 700 mm. The total length is 720 mm. It works with optical synchronization. No separate sync wires are needed. The NPN output suits many industrial controllers. This unit is active and in production.
Technical Specifications
| Brand | Keyence |
| Model | GL-VM36HN |
| Series | GL-V series |
| Module Type | Safety light curtain, Type 4 ESPE / AOPD |
| Protection Type | Hand protection |
| Number of Beam Axes | 36 |
| Beam Axis Spacing | 20 mm |
| Detection Height | 700 mm |
| Total Length | 720 mm |
| Minimum Detectable Object | ø25 mm |
| Detecting Distance | 0.3 to 15 m |
| Response Time | Max. 5.3 ms (OSSD, channel 0, ON to OFF) |
| Light Source | Infrared LED, 850 nm, Exempt Group (IEC62471) |
| Effective Angular Aperture | Up to ±2.5° at 3 m or above |
| Synchronization | Optical synchronization |
| Detection Mode | ON when all beam axes are received |
| Interference Prevention | Up to 2 units by series connection and switch setting |
| Supply Voltage | 24 VDC -20/+25%, ripple 10% or less, Class 2 |
| Maximum Load Current | 150 mA or less |
| Residual Voltage (ON) | Up to 2.5 V (5 m cable) |
| OFF Voltage | Up to 2.0 V (5 m cable) |
| Leakage Current | Up to 0.8 mA |
| Max. Load Capacity | 0.8 µF |
| Load Wiring Resistance | Up to 2.5 Ω |
| Input Short-Circuit Current | Approx. 3 mA |
| Control Output (OSSD) | Transistor output x2, NPN |
| Current Consumption | Transmitter max. 99 mA; Receiver max. 110 mA (OSSD output current not included) |
| Protection Circuit | Supply reverse-connection, per-output short-circuit and surge protection |
| Built-in Ports | None |
| Protocols | None |
| Communication Expansion | None |
Environmental Tolerance
- Operating Temperature: -30 to +55 °C, no freezing
- Storage Temperature: -30 to +70 °C, no freezing
- Relative Humidity: Up to 95 % RH, no condensation
- Ambient Light: Incandescent lamp 3,000 lux or less; sunlight 20,000 lux or less
- Protection Rating: IP65 / IP67 (IEC60529)
- Overvoltage Category: II
- Vibration Resistance: 5 to 150 Hz, 1G, 10 cycles each in X/Y/Z
- Shock Resistance: 15 G, 6 ms pulses, 100 times each in X/Y/Z
Physical Data
| Material | Main unit aluminum alloy; upper/lower case PPS (GF40%); front cover polycarbonate, SUS304 |
| Dimensions (H×W×D) | Not available |
| Weight | Transmitter 480 g; Receiver 480 g |
| Lifecycle | Active; official Keyence production status confirmed via product/spec page (Last verified: 2026-09) |
Installation Guide
- Mount the transmitter and receiver facing each other.
- Keep the detecting distance between 0.3 m and 15 m.
- Use optical synchronization. No sync line is required.
- Align both units within the effective angular aperture.
- Use series connection for up to 2 units.
- Set the interference prevention switch correctly.
- Connect the 24 VDC Class 2 supply.
- Wire the NPN OSSD outputs to the safety circuit.
- Check the IP65/IP67 seal after installation.
Setup and Maintenance Convenience
- Optical synchronization cuts wiring time.
- The metal housing resists impact and vibration.
- The IP65/IP67 rating allows washdown cleaning.
- Indicator LEDs show power and output status.
- Reverse-connection and short-circuit protection reduce damage risk.
- No moving parts inside. This lowers wear.
- Keep the front cover clean for stable detection.
Compatibility Notes
- Works with Keyence GL-V series accessories.
- Uses standard 24 VDC industrial power.
- NPN output fits many PLC and safety relay inputs.
- No built-in communication port or protocol.
- External safety relays may be required for some systems.
- Series connection supports up to 2 units.
Certifications
- IEC61496-1 / -2 Type 4 ESPE / AOPD
- EN ISO13849-1 Category 4, PL e
- IEC61508 SIL3
- UL60947-1 / CSA C22.2 No.60947-1
- UL1998
- EMC: IEC/EN61496-1, EN55011 Class A, FCC Part15B Class A, ICES-003 Class A
Typical Applications
- Hand protection at press and stamping machines
- Robotic cell entry guarding
- Packaging line operator safety
- Assembly station point-of-operation guarding
- Material handling equipment protection
- Automated production cells with frequent access
Diagnostic Capability
- Indicator LEDs show power and output state.
- ON mode confirms all 36 beam axes are received.
- Output turns OFF when any beam is blocked.
- Reverse-connection protection prevents wiring damage.
- Per-output short-circuit protection limits fault impact.
- Surge protection supports stable operation.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support
- Tested industrial surplus and refurbished options
- 12-month warranty
- Technical verification before shipment
- Support for obsolete control systems
Package List and Warranty
- 1 x GL-VM36HN Transmitter
- 1 x GL-VM36HN Receiver
- 1 x Installation manual
- 12-month warranty
- Shipping by FedEx, UPS, or DHL
- Tracking number provided after dispatch
FAQ
- Q: What is the minimum detectable object?
A: The minimum detectable object is ø25 mm. - Q: What is the detecting distance?
A: The detecting distance is 0.3 to 15 m. - Q: How many beam axes does it have?
A: It has 36 beam axes. - Q: What output type does it use?
A: It uses NPN transistor output x2. - Q: Does it need a separate sync wire?
A: No. It uses optical synchronization. - Q: What is the warranty?
A: The warranty is 12 months. - Q: How do you ship?
A: We ship by FedEx, UPS, or DHL.
