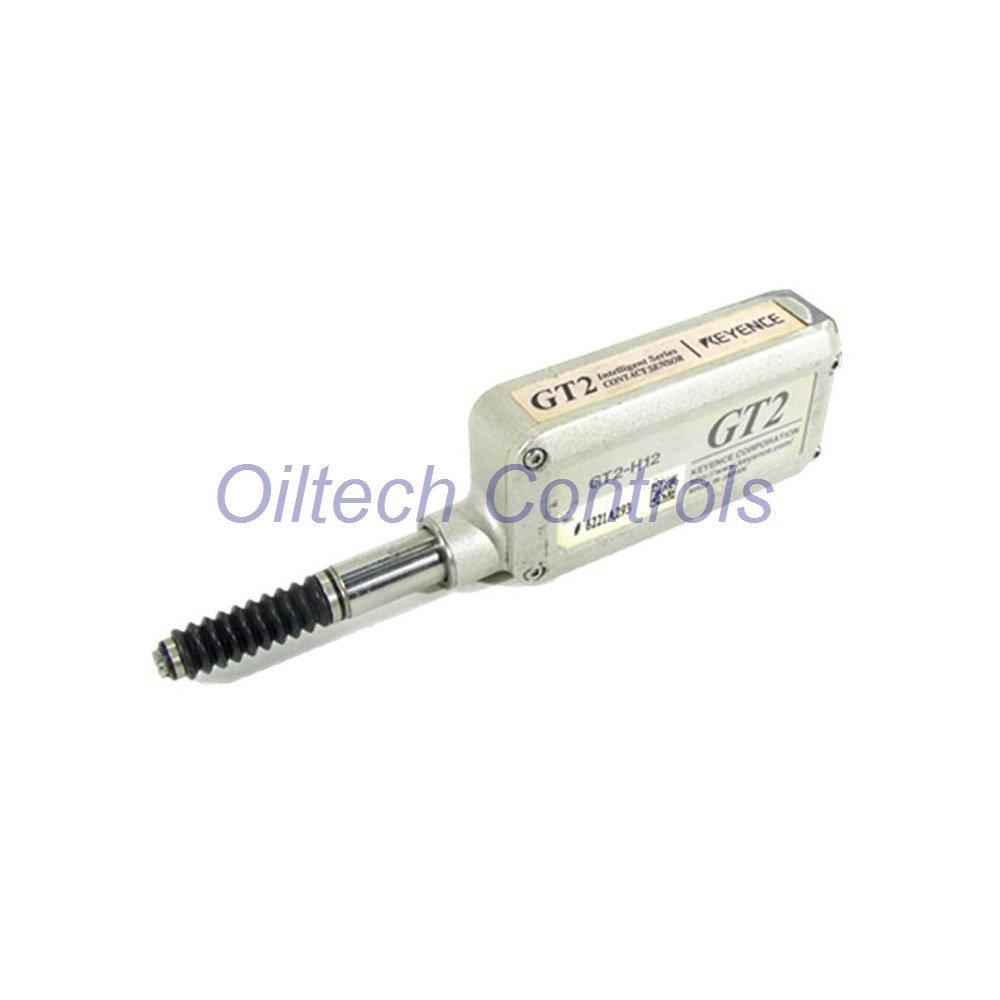

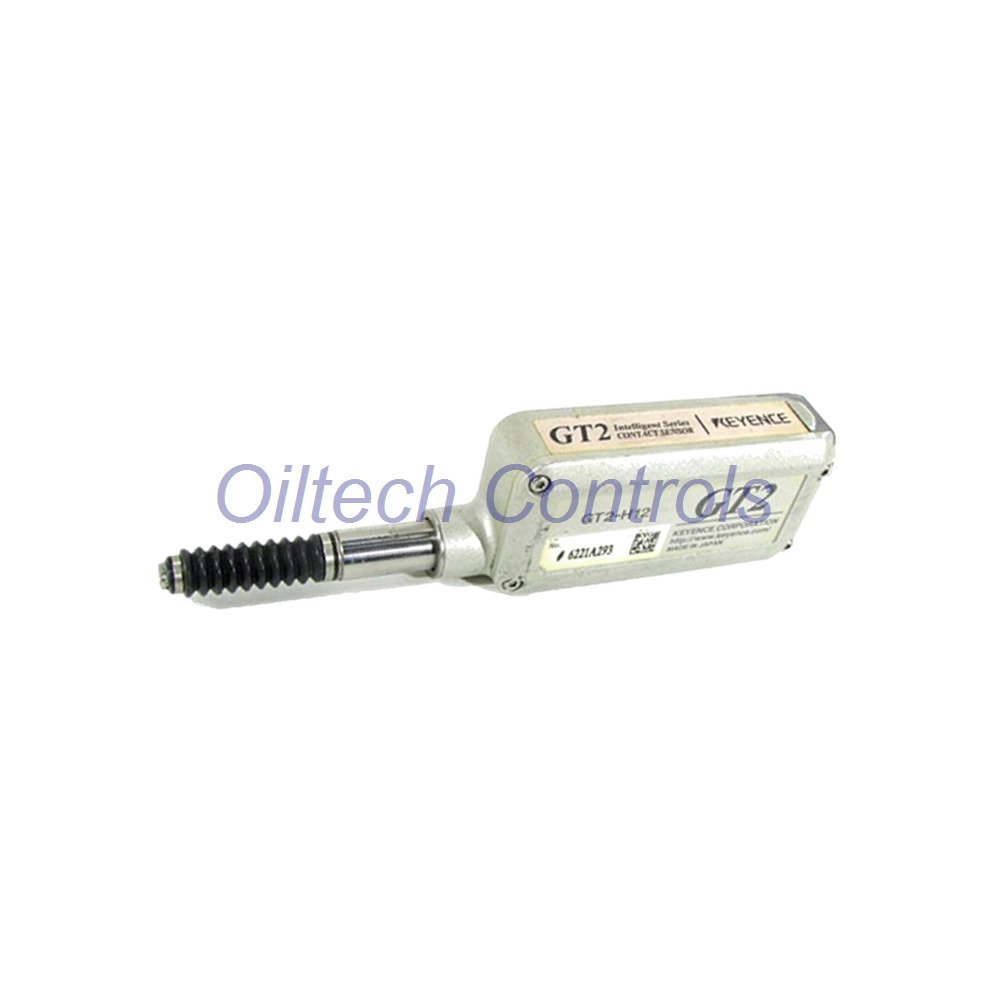

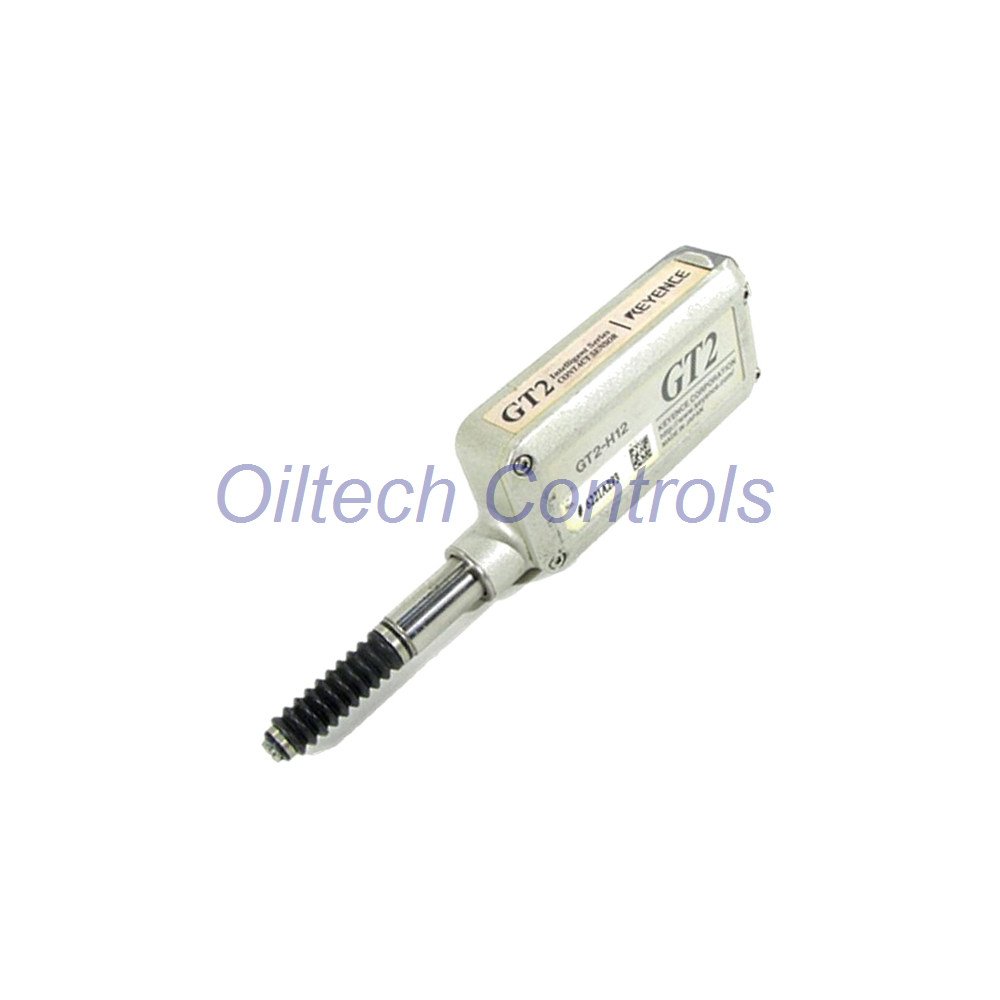

Keyence GT2-H12KL High-Accuracy Digital Contact Sensor Head
Brand: Keyence
Model: GT2-H12KL
Series: GT2 series
The GT2-H12KL is a box-type digital contact sensor head. It uses the Scale Shot System. This system is absolute. It has no tracking error. The stroke is 12 mm. Resolution is 0.1 µm. Indicated accuracy is 1 µm (p-p). It is a low-stress, high-precision sensor. It connects to a GT2 amplifier via M8 connector.
Technical Specifications
| Brand | Keyence |
| Model | GT2-H12KL |
| Series | GT2 series |
| Module Type | Digital contact sensor head |
| Detection System | Scale Shot System, absolute |
| Measuring Range | 12 mm |
| Resolution | 0.1 µm |
| Indicated Accuracy | 1 µm (p-p) |
| Frequency Response | 4 Hz at 20 °C (mechanical response) |
| Sensitivity | 0.1 µm resolution enables fine detection |
| Linearity | 1 µm (p-p) indicated accuracy |
| Measuring Force (Down) | 0.4 N |
| Measuring Force (Side) | 0.3 N |
| Measuring Force (Up) | 0.2 N |
| Sampling Cycle | 1 ms |
| Operation Indicator | 2-colour LED (red, green) |
| Supply Voltage | Not available (powered by GT2 amplifier) |
| Power Consumption | Not available |
| Output Type | Not available (connects to GT2 amplifier) |
| Built-in Ports | None |
| Protocols | None |
| Communication Expansion | None |
| Operating Temperature | -10 to +55 °C (no freezing) |
| Storage Temperature | Not available |
| Relative Humidity | 35 to 85 % RH (no condensation) |
| Protection Rating | Not available |
| Dimensions (H×W×D) | Not available |
| Weight | Approx. 95 g (not including cable) |
| Lifecycle | Active |
| Certification | Official Keyence production status confirmed |
| Warranty | 12 months |
Installation Guide
- Mount the sensor head in downward, side, or upward position.
- Downward mounting gives 0.4 N measuring force.
- Side mounting gives 0.3 N measuring force.
- Upward mounting gives 0.2 N measuring force.
- Connect to GT2 amplifier using M8 connector.
- Keep operating temperature between -10 and +55 °C.
- Avoid freezing and condensation.
Debugging and Maintenance Convenience
- 2-colour LED shows red or green operation status.
- Absolute system means no tracking error after power loss.
- 1 ms sampling cycle supports fast inspection.
- 4 Hz mechanical response suits low-speed precision tasks.
- No built-in ports reduce setup complexity.
- M8 connector allows quick amplifier connection.
Compatibility Notes
- Works only with GT2 series amplifiers.
- No standalone communication protocol.
- No built-in output; amplifier handles signal output.
- Powered by the GT2 amplifier, not direct power.
- M8 connector is the standard interface.
Typical Application Scenarios
- High-accuracy dimensional inspection.
- Thin film or sheet thickness measurement.
- Small part presence and position check.
- Low-stress contact gauging for fragile parts.
- Automated assembly verification.
- R&D lab measurement tasks.
Diagnostic Capabilities
- LED indicator shows sensor operation state.
- Absolute system detects position without tracking error.
- Amplifier provides signal diagnostics.
- 1 ms sampling helps catch fast events.
- No built-in self-diagnostic port.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support.
- Tested industrial surplus and refurbished options.
- 12-month warranty on eligible products.
- Technical verification before shipment.
- Support for obsolete control systems.
Shipping and Packaging
- Shipping via FedEx, UPS, and DHL.
- Packaging includes sensor head and M8 connector.
- Weight approx. 95 g without cable.
- Contact us for cable and amplifier options.
FAQ
Q: Does this sensor work without a GT2 amplifier?
A: No. It needs a GT2 series amplifier.
Q: What is the resolution?
A: 0.1 µm.
Q: What is the measuring range?
A: 12 mm.
Q: What is the warranty?
A: 12 months.
Q: How fast is the sampling cycle?
A: 1 ms.
Q: What is the mechanical response?
A: 4 Hz at 20 °C.
Q: Which couriers do you use?
A: FedEx, UPS, and DHL.
Q: How can I contact you?
A: Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
