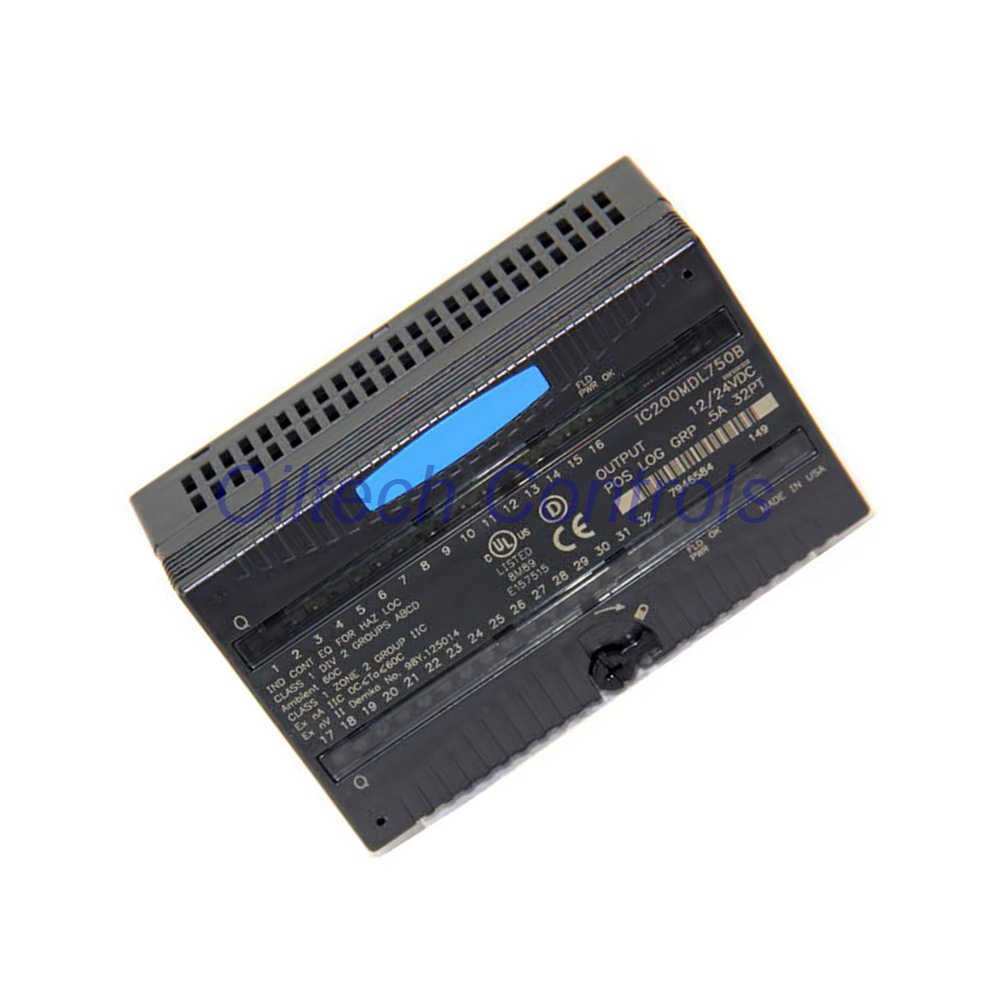

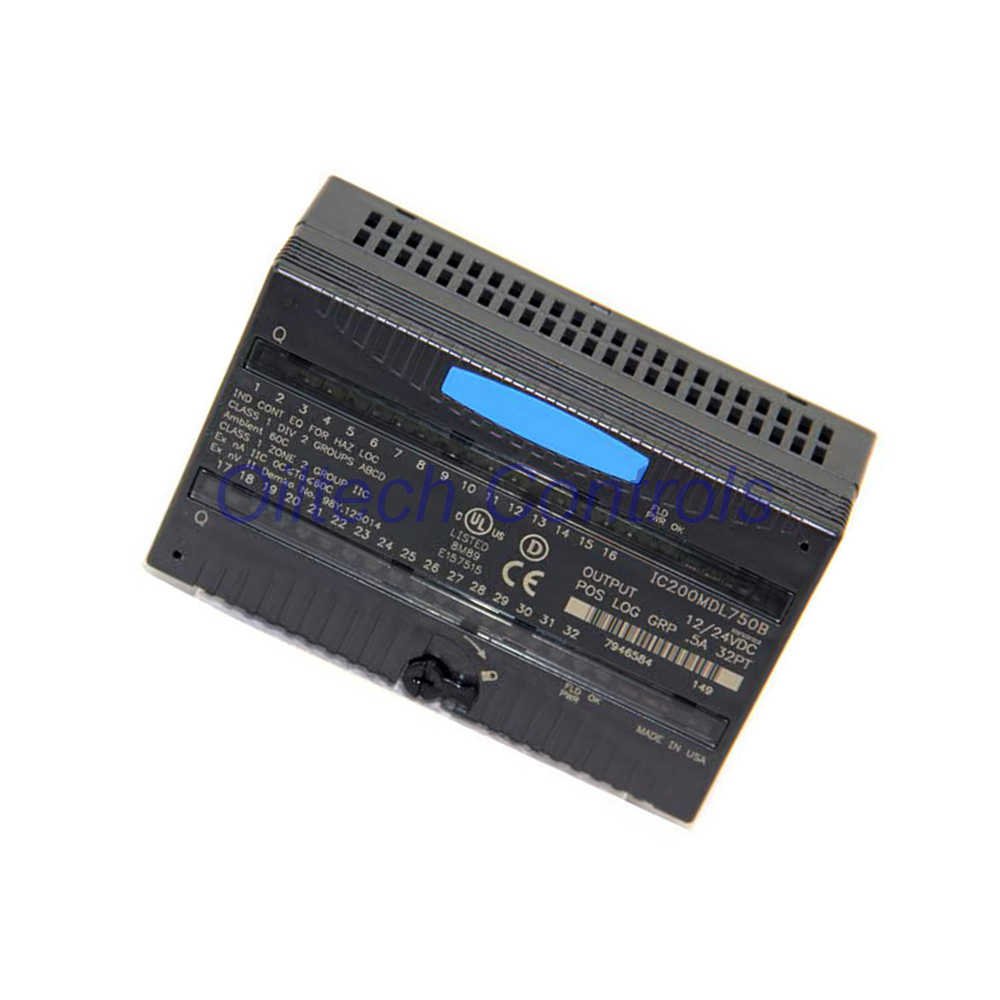

IC200MDL750 – VersaMax 32-Point Discrete Output Module
Product Overview
The IC200MDL750 is a high-density digital output module from the VersaMax I/O series. It provides 32 discrete output channels in two isolated groups of 16 channels each. This module drives 12/24 VDC loads such as solenoids, relay coils, and pilot lamps. It supports positive logic wiring and offers fast response times. Designed for distributed I/O architectures, it mounts on a standard 35 mm DIN rail.
Key Features
• 32 output channels, 2 groups of 16
• Nominal output voltage: 12/24 VDC (range 10.2–30 VDC)
• Output current: 0.5 A per point
• Inrush current: 2.0 A max for 100 ms
• Response time: ON 0.2 ms, OFF 1.0 ms (max)
• Individual channel LEDs + OK and FLD PWR indicators
• Class I Division 2 hazardous location certified
• Backplane current draw: 90 mA max
• Operating temperature: 0 to 30 °C (derating applies)
Technical Specifications
| Brand | GE Fanuc / Emerson Automation (former GE IP) |
| Model | IC200MDL750 |
| Series | VersaMax I/O |
| Type | Discrete Output Module |
| Channels | 32 (2 groups of 16) |
| Output Voltage Range | +10.2 to +30 VDC (nominal 12/24 VDC) |
| Current per Point | 0.5 A (min), 2.0 A inrush max |
| Response Time (ON/OFF) | 0.2 ms / 1.0 ms (max) |
| Backplane Current | 90 mA max |
| Isolation | 250 VAC continuous, 1500 VAC for 1 min |
| Mounting | DIN rail (35 mm), horizontal or vertical |
| Dimensions (W x H x D) | 50 x 110 x 66.8 mm (excl. carrier) |
| Weight | 0.90 kg |
| Temperature Range | 0 to 30 °C (derating above 30 °C) |
| Environmental | Class I Division 2 (hazardous locations) |
Installation & Mounting Guide
DIN Rail Mounting – Use a standard 35 mm DIN rail. The module requires a carrier base (sold separately) for wiring terminations. Mount in horizontal or vertical orientation. Allow adequate clearance for airflow and cable routing.
Wiring – Positive logic configuration: each group has DC+ and DC– terminals. Use external suppression circuits for inductive loads. Ensure field power supply is 10.2–30 VDC.
Thermal Derating – Maintain ambient temperature between 0 and 30 °C. Operating more than 16 points simultaneously may require derating – refer to the user manual for detailed curves.
Diagnostics & LED Indicators
Per-channel LEDs – Each output has an individual green LED that lights when the output is active (field power present).
OK LED – Indicates backplane power is present and the module is communicating with the controller.
FLD PWR LED – Confirms that external field supply voltage is applied.
Diagnostic capability – The module reports group-level faults and short-circuit conditions via the backplane. Use the controller’s I/O scan to monitor status.
Compatibility & System Integration
The IC200MDL750 is fully compatible with the Modicon Quantum series and other VersaMax controllers. It works seamlessly in distributed I/O networks. Supports positive logic only. Use with 12/24 VDC rated devices.
Certifications & Approvals
• Class I Division 2 (hazardous locations) – UL/cUL listed
• CE marked for European compliance
• RoHS compliant
• Isolation rating: 250 VAC continuous, 1500 VAC for 1 min
Package Contents
1 x IC200MDL750 output module
1 x user manual (downloadable)
Note: Carrier base and wiring terminals are ordered separately.
Warranty & Shipping
12-month warranty – covers manufacturing defects and operational failures under normal use. Technical verification performed before shipment.
Shipping carriers – FedEx, UPS, DHL – global express delivery available. Tracking provided.
Typical Applications
• Actuating solenoid valves in packaging lines
• Controlling relay coils in motor control centers
• Driving pilot lamps and annunciators
• Discrete on/off control in material handling systems
• Retrofit and upgrade of legacy GE PLC systems
Frequently Asked Questions (FAQ)
Q: Can I use this module with 5 VDC loads?
A: No – the output range is 10.2–30 VDC (nominal 12/24 VDC).
Q: What is the maximum inrush current per point?
A: 2.0 A for up to 100 ms. Continuous current is 0.5 A.
Q: Is this module compatible with the old Series 90-30?
A: No – it is designed for the VersaMax I/O platform, not Series 90-30.
Q: Does it come with internal fuses?
A: No – use external fusing per group as per application requirements.
Q: Can I mount it vertically?
A: Yes – the carrier base supports both horizontal and vertical DIN rail mounting.
Why Buy From Oiltech Controls?
• 15+ years of experience in industrial automation spare parts
• Global shipment support with FedEx, UPS, DHL
• Tested surplus and refurbished options available
• 12-month warranty on all products
• Technical verification before shipment ensures reliability
• Expertise in obsolete control systems – find legacy parts easily
