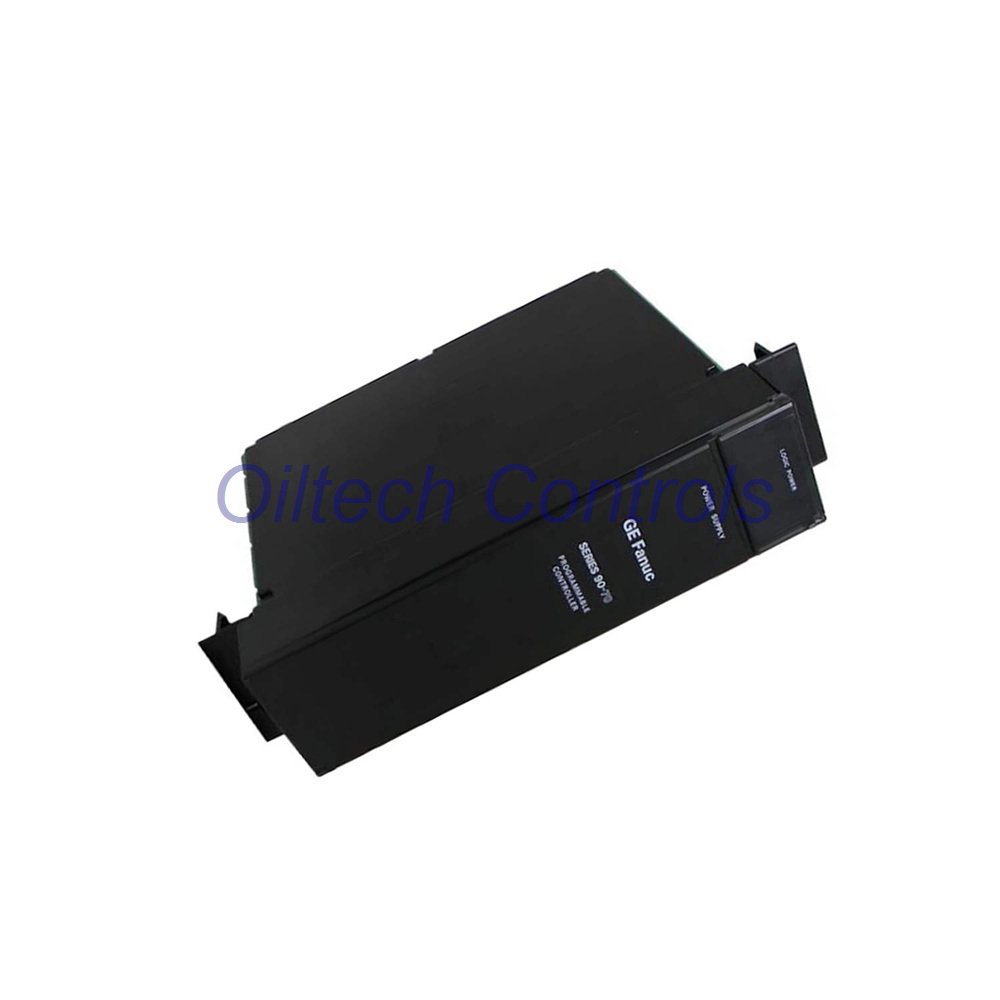

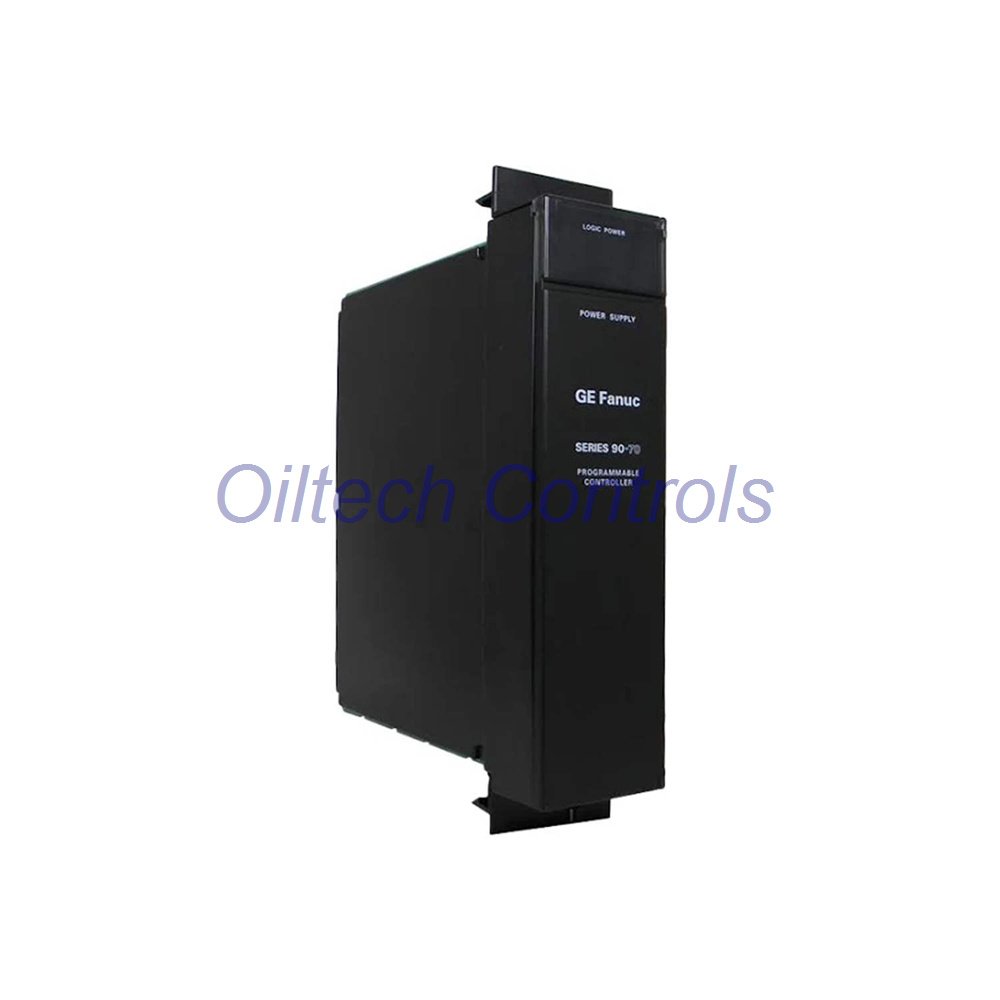

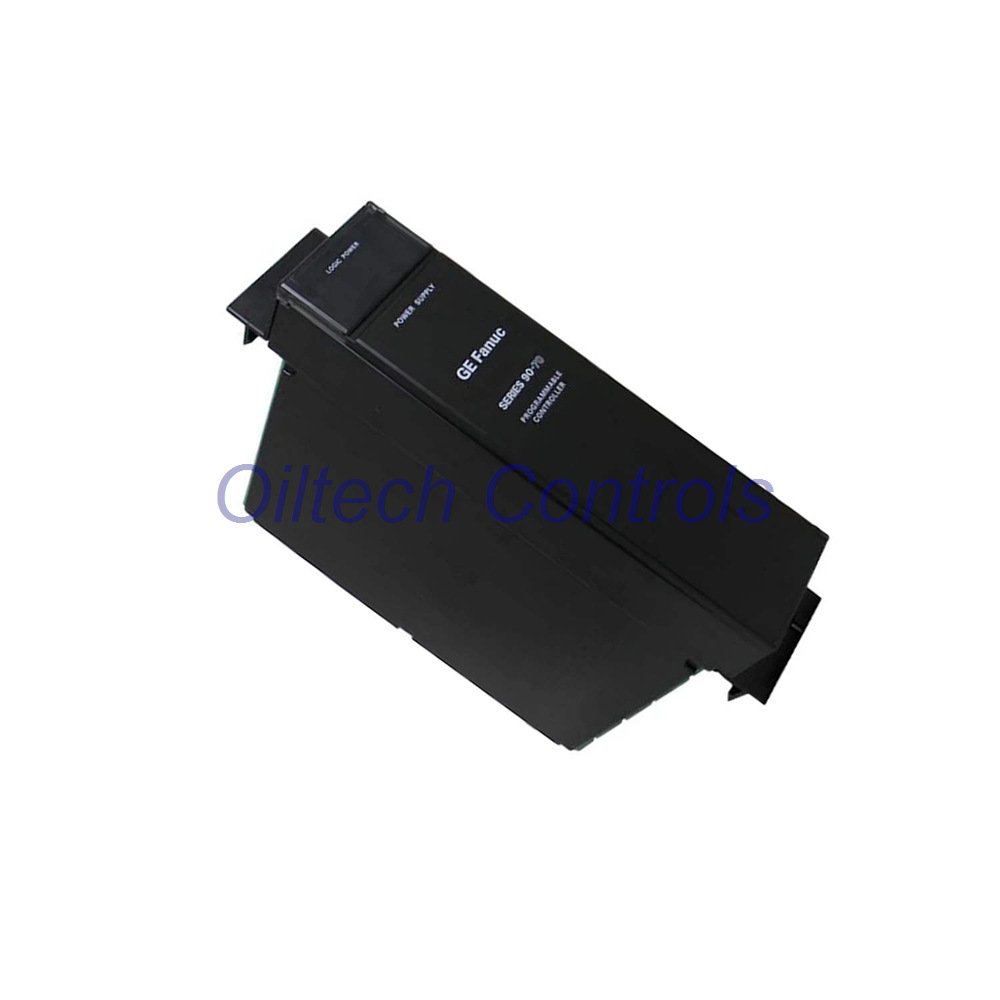

IC697PWR710 Power Supply Module
GE Fanuc Series 90-70 | Emerson Automation | PLC Backplane Power
Description
The IC697PWR710 is a PLC power supply module for the Series 90-70 platform. It mounts on the leftmost slot of any standard baseplate. This unit converts 90–264 VAC or 100–150 VDC into a regulated 5.1 VDC output. It provides up to 56 Watts of backplane power to energize modules in the same rack. Active power factor correction (>0.95) reduces wiring and breaker sizing. Integral overvoltage (6.2 V) and overcurrent (12 A) protection safeguard the system. The module supports VME standard C.1 and includes a 21 ms ride‑through time.
Technical Data
| Brand | GE Fanuc (Emerson Automation) |
| Model | IC697PWR710 |
| Series | Series 90‑70 |
| Input Voltage | 90‑264 VAC, 47‑63 Hz or 100‑150 VDC |
| Output Power (max) | 56 W |
| Nominal Output | 5.1 VDC (range 4.90 – 5.25 VDC) up to 11 A |
| Overvoltage Limit | 6.2 V (electronic clamp) |
| Overcurrent Limit | 12 A (electronic current limit) |
| Ride‑through Time | 21 ms minimum from AC loss |
| Power Factor | >0.95 |
| Mounting | Leftmost slot of standard IC697 rack or VME integrator rack |
| VME Standard | C.1 compatible |
| Protection Type | Fuses + electronic OVP / OCP |
| Status | Discontinued / Obsolete (fully supported) |
Installation & Wiring
- Install only in the leftmost slot of the baseplate.
- Ground terminal: use AWG #12 (3.3 mm²) copper wire, 75°C rating.
- Tighten ground connection to 12 in‑lb (1.3 N·m) torque.
- Connect GND to rack GND, then to functional earth.
- Power supply door opens from the left corner.
Diagnostics & Protection
- Electronic overvoltage clamp at 6.2 V prevents fuse opening.
- Overcurrent limit at 12 A – output drops, fuse stays intact.
- Ride‑through 21 ms ensures stable operation during dips.
- Active PFC reduces harmonic distortion.
- Dual rack support – 5 V only for second rack.
Compatibility & Extensions
- Series 90‑70 baseplates (all standard racks)
- VME integrator racks (C.1 standard)
- Power extension cable: IC697CBL700 / IC697CBL713
- Works with Modicon Quantum systems via backplane
- Supports dual rack configuration (power budget dependent)
Typical Applications
- PLC backplane power in industrial automation
- Process control systems (DCS integration)
- Power for I/O, communication, and CPU modules
- Retrofit of legacy GE Fanuc 90‑70 systems
- VME‑based data acquisition racks
Why Buy From Oiltech Controls?
- Over 15 years in industrial automation spare parts
- Global shipment support – FedEx, UPS, DHL
- Tested surplus and refurbished options
- 12‑month warranty on all modules
- Technical verification before every shipment
- Expert support for obsolete control systems
Contact: info@oiltechcontrols.com | +86 158 8020 0923 (WhatsApp)
FAQ – Quick Answers
- Can it run on 125 VDC? Yes, input range 100‑150 VDC covers 125 VDC.
- What happens if load exceeds 11 A? Overcurrent limit activates (12 A), voltage drops but fuse remains closed.
- Is this module still manufactured? It is discontinued, but we offer tested surplus stock.
- Does it support dual racks? Yes, if total power stays within 56 W (second rack uses 5 V only).
- Which cable fits? Use IC697CBL700 or IC697CBL713 extension cable.
Package includes: IC697PWR710 module, ground terminal screw, quick‑start guide (digital). Warranty: 12 months against defects.
