IC200MDL635 GE Fanuc Versamax PLC Input Module – 16 Points 48VDC

GE Fanuc IC200MDL635 – Versamax Input Module

IC200MDL635 is a 16-point discrete input module from the GE Fanuc Versamax series.
It operates at 48 Volts DC nominal.
This module supports both positive and negative logic.
Inputs are arranged in 2 isolated groups of 8 points each.
It is designed for reliable field device connection in industrial PLC systems.

The module provides group-to-group isolation and optical logic isolation.
It does not require external power or thermal derating.
Response time is fast at 0.5 ms for both on and off transitions.
The IC200MDL635 is built for harsh environments and continuous operation.

Technical Specifications

• Brand: GE Fanuc
• Model: IC200MDL635
• Series: Versamax
• Type: Discrete Input Module
• Number of Inputs: 16 (2 groups x 8 points)
• Nominal Voltage: 48 VDC
• Operating Voltage Range: 0 to 60 VDC
• Input Current (typical): 1.7 mA @ 48V, 2.1 mA @ 60V
• Response Time (On/Off): 0.5 ms each
• Isolation: Group-to-group, optical logic, and frame ground – 250V AC continuous, 1500V for 1 min
• Positive & Negative Logic: Supported
• Temperature Range: 0°C to 60°C (operating)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% (non-condensing)
• Noise Immunity: Built-in filtering for industrial environments
• Diagnostic Capability: LED indicators per point for status

Installation & Maintenance

• Mounting: Directly onto Versamax base or carrier.
• Wiring: Use shielded cables for field wiring. Connect commons per group.
• Maintenance: No routine calibration needed. Visual LED check for fault finding.
• Diagnostics: Individual input status LEDs simplify troubleshooting.
• Compatibility: Works with all Versamax CPUs and power supplies.

Certifications & Compliance

• UL Recognized (UL 508)
• CE Marked (EN 61131-2)
• RoHS Compliant
• Class I, Division 2 (Hazardous locations)
• Marine approved (ABS, DNV) – upon request

Typical Applications

• Discrete sensor monitoring (proximity, limit switches)
• Conveyor and material handling systems
• Packaging machinery control
• Automated assembly lines
• PLC retrofit and upgrade projects

Why Buy From Oiltech Controls?

• Over 15 years of expertise in industrial automation parts.
• Global shipping via FedEx, UPS, DHL – fast and tracked.
• All parts are tested before shipment (surplus or refurbished).
• 12-month warranty for peace of mind.
• Technical verification ensures compatibility with your system.
• Support for obsolete systems, including Modicon Quantum.

Packaging & Warranty

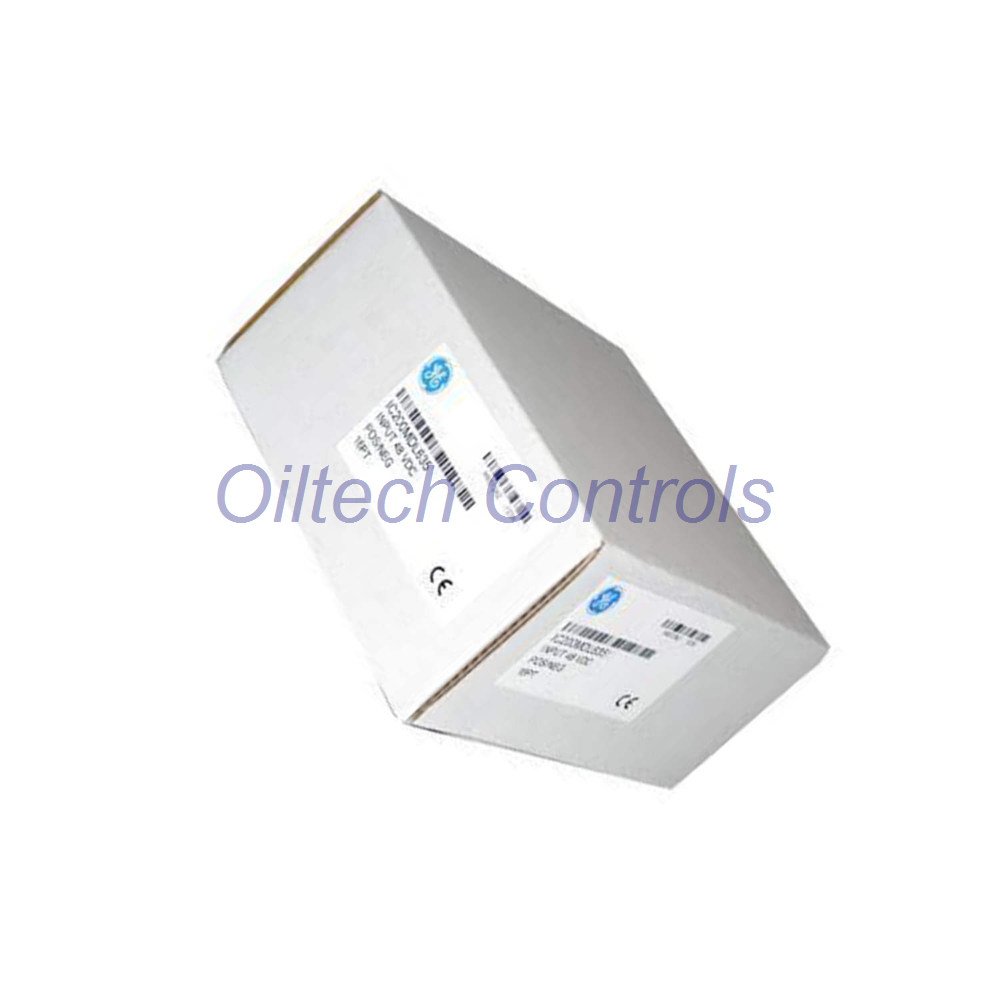

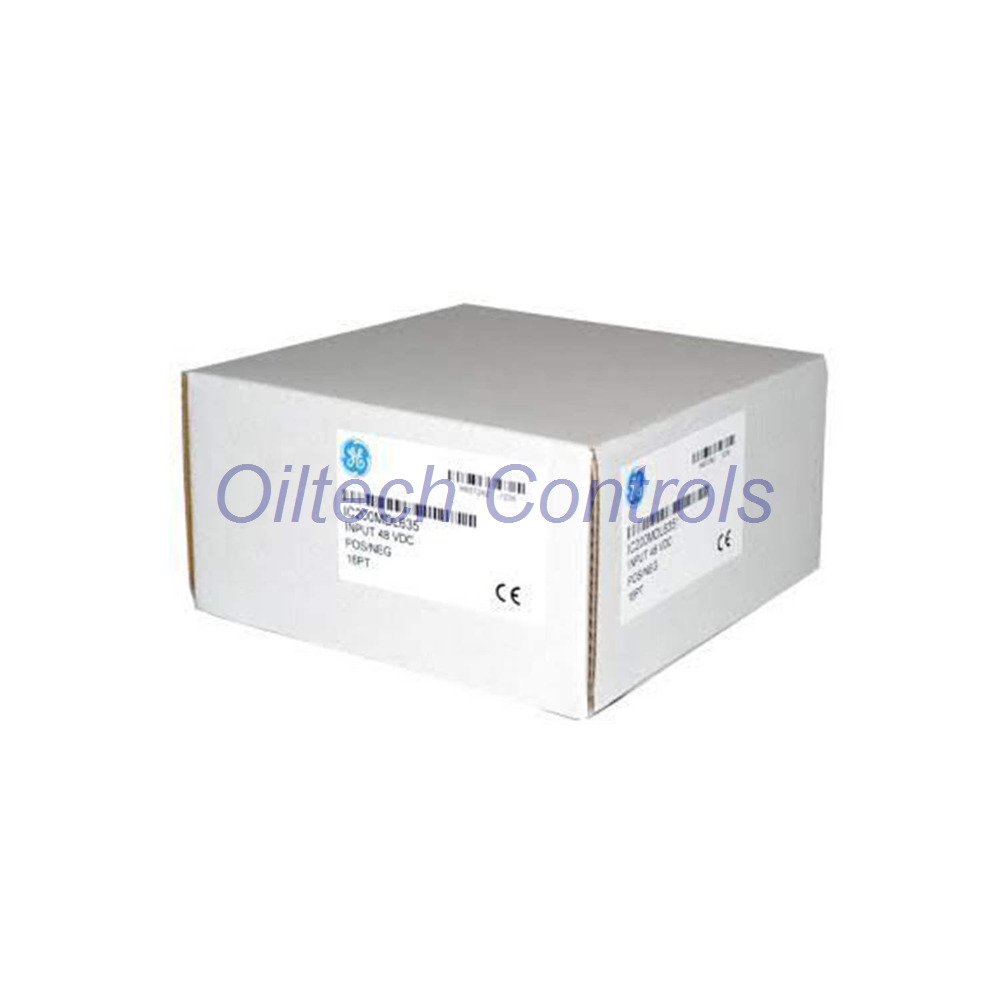

• Package includes: 1 x IC200MDL635 module, user manual (digital).
• Warranty: 12 months from invoice date.
• Shipping carriers: FedEx, UPS, DHL (express worldwide).
• Modules are packed in anti-static ESD-safe packaging.

Frequently Asked Questions

• Q: Is this module compatible with Series 90-30?
  A: No, it is for the Versamax series only.
• Q: Does it support sinking or sourcing inputs?
  A: Yes, both positive and negative logic are supported.
• Q: What is the response time?
  A: 0.5 ms for both on and off transitions.
• Q: Can I use it in a 24V DC system?
  A: Yes, it operates from 0 to 60 VDC, including 24V.
• Q: Is thermal derating required?
  A: No, the module does not need derating.
