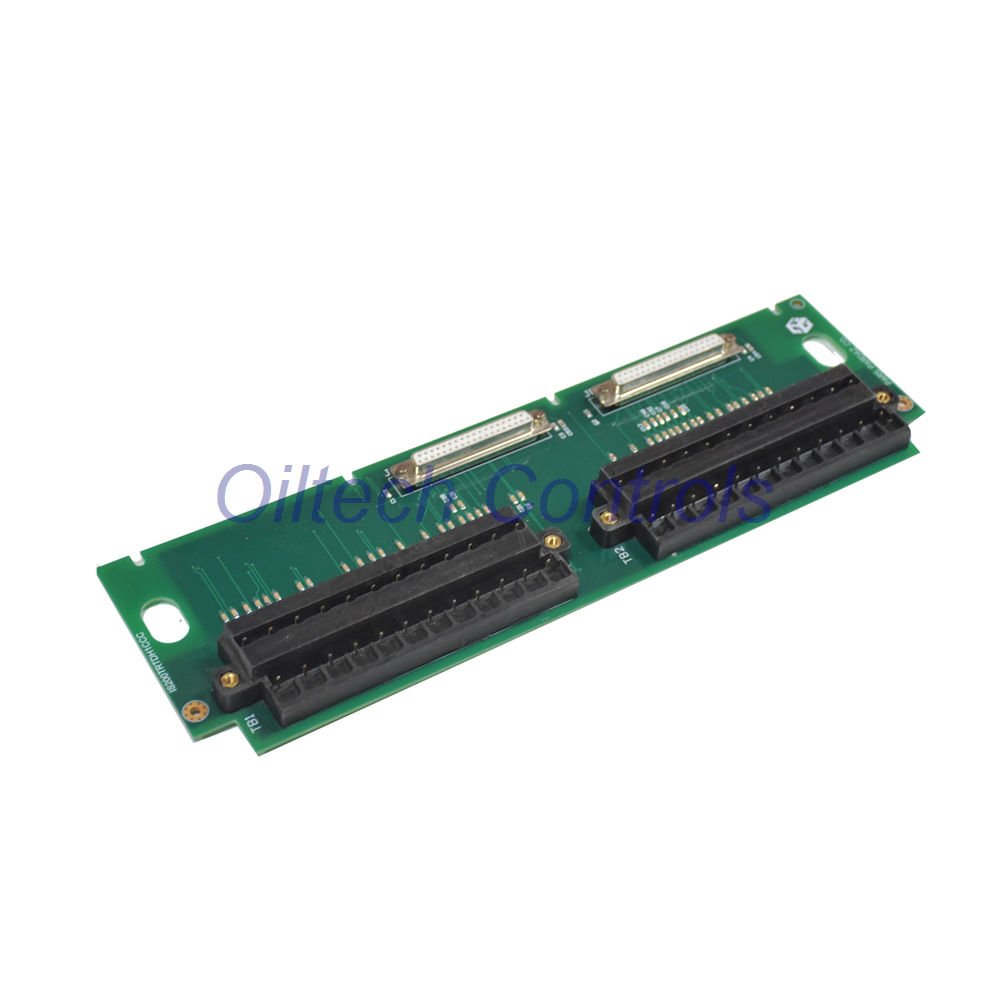

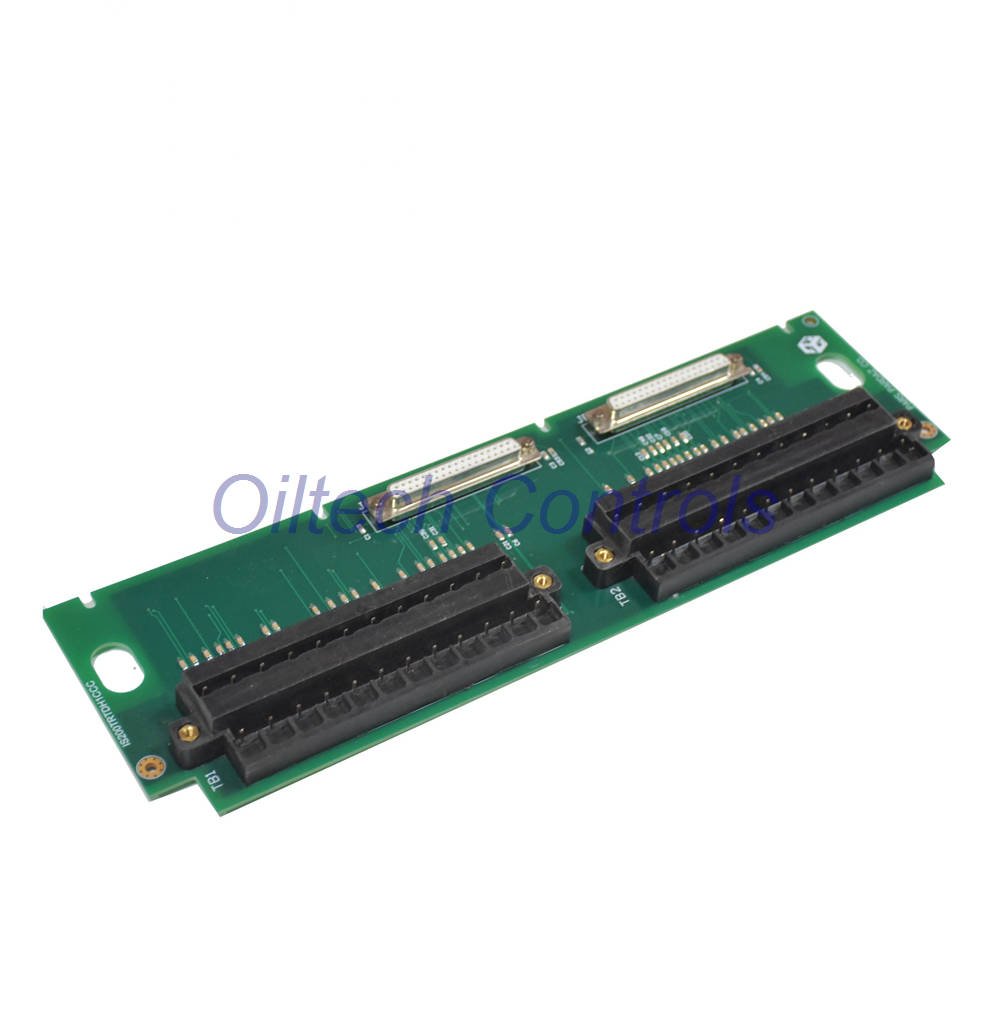

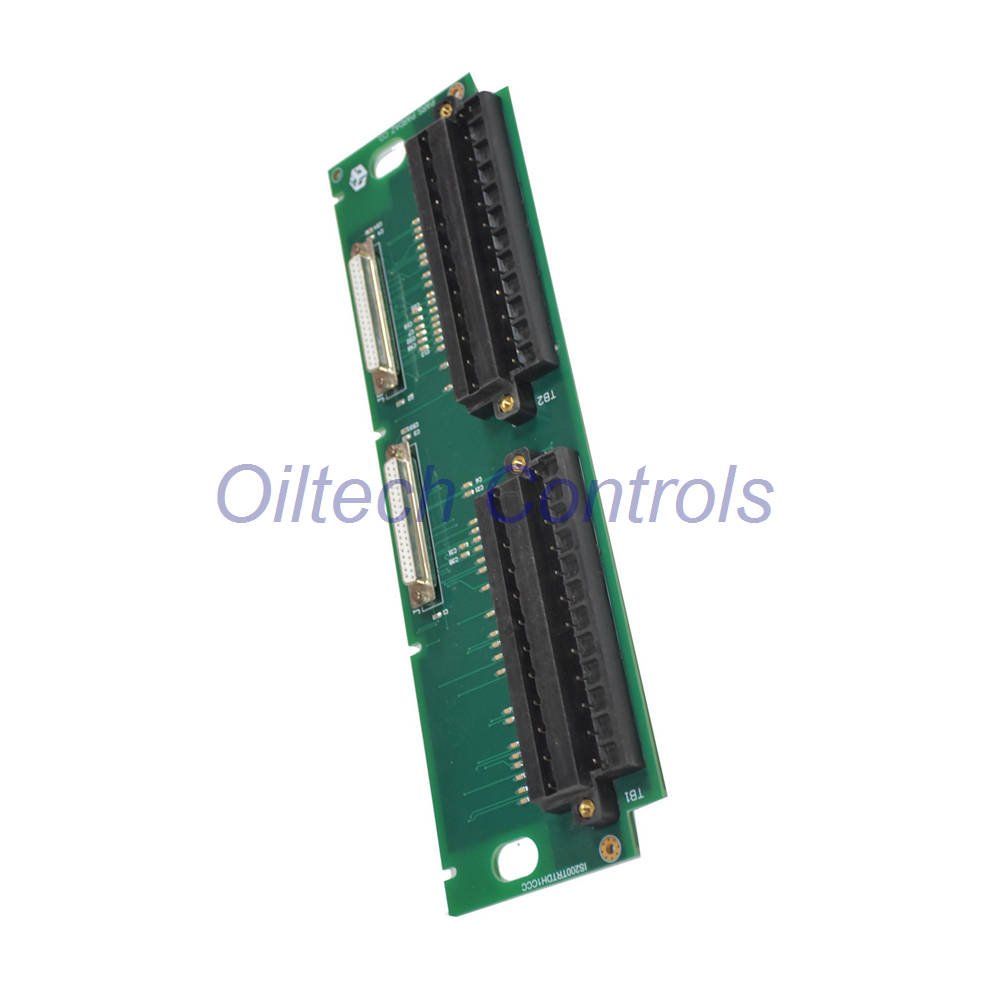

IS200TRTDH1CCC RTD Terminal Board – GE Mark VI
General Electric RTD terminal board for Mark VI control systems. Supports 16 three-wire RTD inputs with advanced noise suppression. Part of the Mark VI series.
- Part Number: IS200TRTDH1CCC
- Brand: General Electric
- Series: Mark VI
- Country of Origin: USA
Technical Overview
- Channels: 8 channels per terminal board.
- RTD Types: Supports 10, 100, 200 ohm platinum; 10 ohm copper; 120 ohm nickel.
- Voltage Span: 0.3532 to 4.054 V – wide dynamic range.
- Max Lead Resistance: 15 ohms (including cable resistance).
- Temperature Range: -30 to +65 °C.
- Technology: Surface mount for reliable performance.
- Noise Suppression: Built-in circuitry protects against surges and high-frequency noise.
Functional Highlights
- Communication: Interfaces with I/O processors to convert analog RTD inputs to digital temperature values.
- Simplex Board (TRTDH1C): Features two DC-type connectors for VRTD (Voltage RTD) inputs.
- Versatility: Also available in TMR (TRTDH1B) and quick-scan (TRTDH2D) variants.
- Grounding: Shield terminal strip adjacent to each terminal block for effective grounding and EMI protection.
Installation & Wiring
- Terminal Blocks: Two barrier-type blocks with 24 terminals each.
- Wire Size: Accepts up to #12 AWG.
- Mounting: Each block secured with two screws for stable connection.
- Shield Strips: Located left of each block for organized grounding.
- Cable: Use shielded cables to maintain signal integrity.
Fault Detection & Diagnostics
- Hardware Limits: High/low limit checks at hardware level.
- Software Limits: Additional high/low limit checks for redundancy.
- ID Chip Monitoring: Detects failed ID chips for quick troubleshooting.
- Out-of-Range Alerts: Triggers responses for abnormal conditions.
Compatibility & Variants
- TRTDH1B: TMR variant with six DC-type connectors for three VRTD boards.
- TRTDH1C: Simplex, two DC-type connectors for VRTD (this model).
- TRTDH1D: Simplex with two PRTD normal scan connectors.
- TRTDH2D: Simplex with two PRTD quick-scan connectors.
- System: Fully compatible with GE Mark VI control systems.
Oiltech Controls’s Insight
- This RTD board excels in turbine and generator temperature monitoring.
- Noise suppression ensures stable readings in high-EMI environments.
- Choose TRTDH1C for simplex VRTD applications – cost-effective and reliable.
- For redundant systems, consider TRTDH1B (TMR) or TRTDH2D (quick-scan).
- Always verify cable resistance stays below 15 ohms for accuracy.
Suitable Equipment
- GE Mark VI turbine control systems.
- Gas and steam turbine temperature monitoring.
- Generator stator and bearing RTD inputs.
- Industrial process heating/cooling loops.
- Power plant auxiliary systems.
Professional FAQ
- Q: What is the maximum cable length for RTD inputs?
A: Keep total lead + cable resistance under 15 ohms. Use heavy gauge wire for longer runs. - Q: Can I mix different RTD types on one board?
A: No. Each board supports one RTD type per configuration. Choose the correct variant for your sensor. - Q: How do I verify the board’s health during maintenance?
A: Check fault LEDs and run software diagnostic tests. Monitor ID chip status for early warnings. - Q: What is the difference between TRTDH1C and TRTDH1D?
A: TRTDH1C uses DC-type VRTD connectors; TRTDH1D uses PRTD normal scan connectors. Select based on your RTD type. - Q: Is this board compatible with older Mark V systems?
A: No. It is specifically designed for Mark VI. Use appropriate interface if retrofitting.
