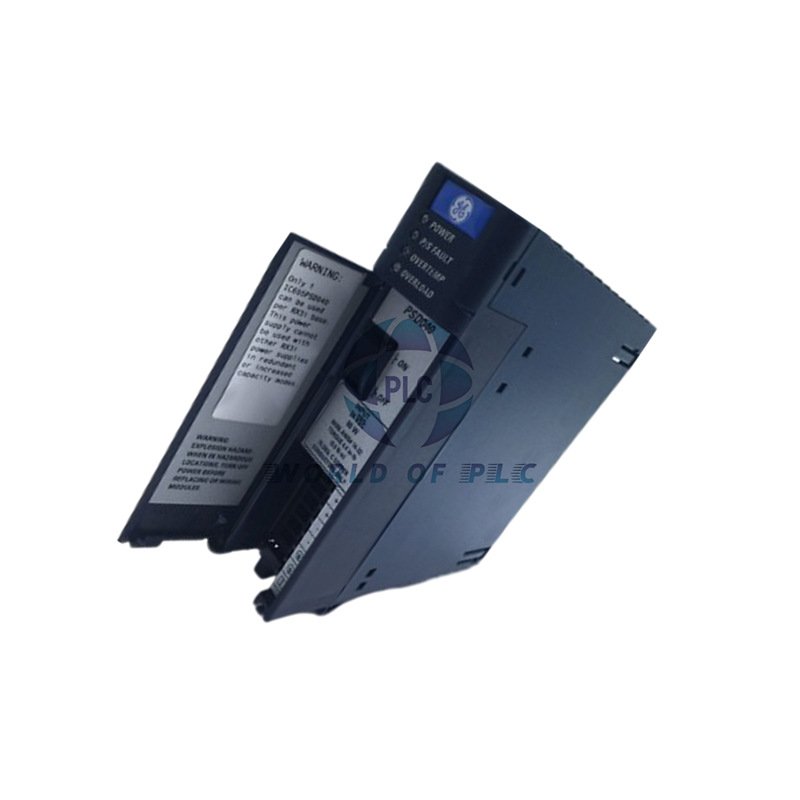

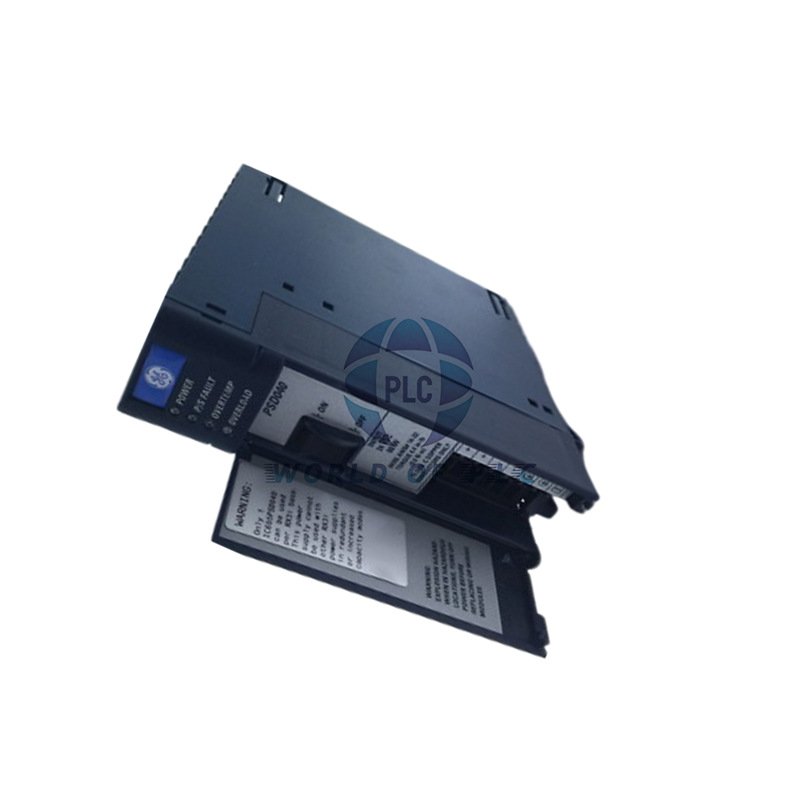

Reliable Power for Your RX3i System: Emerson IC695PSD040
Power your PACSystems RX3i with the dependable IC695PSD040 power supply module. This essential component delivers stable power to your entire control system.
- Multiple Output Voltages – Provides 5.1V, 3.3V, and 24V DC power
- Wide Input Range – Operates from 12V to 30V DC input
- High Capacity – 40W total output power for your modules
- Easy Monitoring – Clear LED indicators for status and faults
Technical Specifications
Brand: Emerson (formerly GE Fanuc)
Model: IC695PSD040
Series: PACSystems RX3i
Module Type: Power Supply
Input Voltage: 18-30V DC (start), 12-30V DC (run)
Maximum Input: 60 Watts at full load
Total Output: 40 Watts maximum
Output Voltages: 5.1V DC, 3.3V DC, 24V DC
Output Current: 6A @ 5.1V, 9A @ 3.3V
Ride-Through: 10ms power hold-up
Inrush Current: 4A for 100ms maximum
Efficiency: High-efficiency design
Ripple: 50mV maximum
Installation: Slot 0 in universal backplane
Wire Size: 14-18 AWG recommended
Operating Temp: 0°C to 60°C
LED Indicators: Power, Fault, Overtemp, Overload
Features: On/Off switch, terminal block wiring
Power Distribution
The IC695PSD040 delivers clean, stable power to all RX3i modules in your rack. It ensures reliable operation even with input voltage variations.
Installation & Compatibility
Installs in Slot 0 of RX3i universal backplanes. Works with all PACSystems RX3i modules. Perfect for industrial control applications.
Safety Features
Includes comprehensive protection with fault indicators for overload, overtemperature, and power supply issues. Easy to monitor and maintain.
Frequently Asked Questions
Where does this power supply install in the rack?
It must be installed in Slot 0 of the RX3i universal backplane for proper operation.
Can I use two power supplies for redundancy?
No, the IC695PSD040 does not support redundant power supply configurations.
What is the ride-through time feature?
It maintains output for 10ms during input power fluctuations, preventing system resets.
How many modules can this power supply support?
It provides 40W total – check power requirements of all modules in your configuration.
What do the LED indicators show?
They display power status, faults, overtemperature conditions, and overload situations.
Package Contents
• IC695PSD040 Power Supply Module
• Installation Manual
• Mounting Hardware
Warranty & Shipping
12-month product warranty. Fast worldwide shipping via FedEx, UPS, DHL.
Compatible Backplanes
Works with: IC695CHS007 7-Slot Backplane | IC695CHS012 12-Slot Backplane
