Product Description

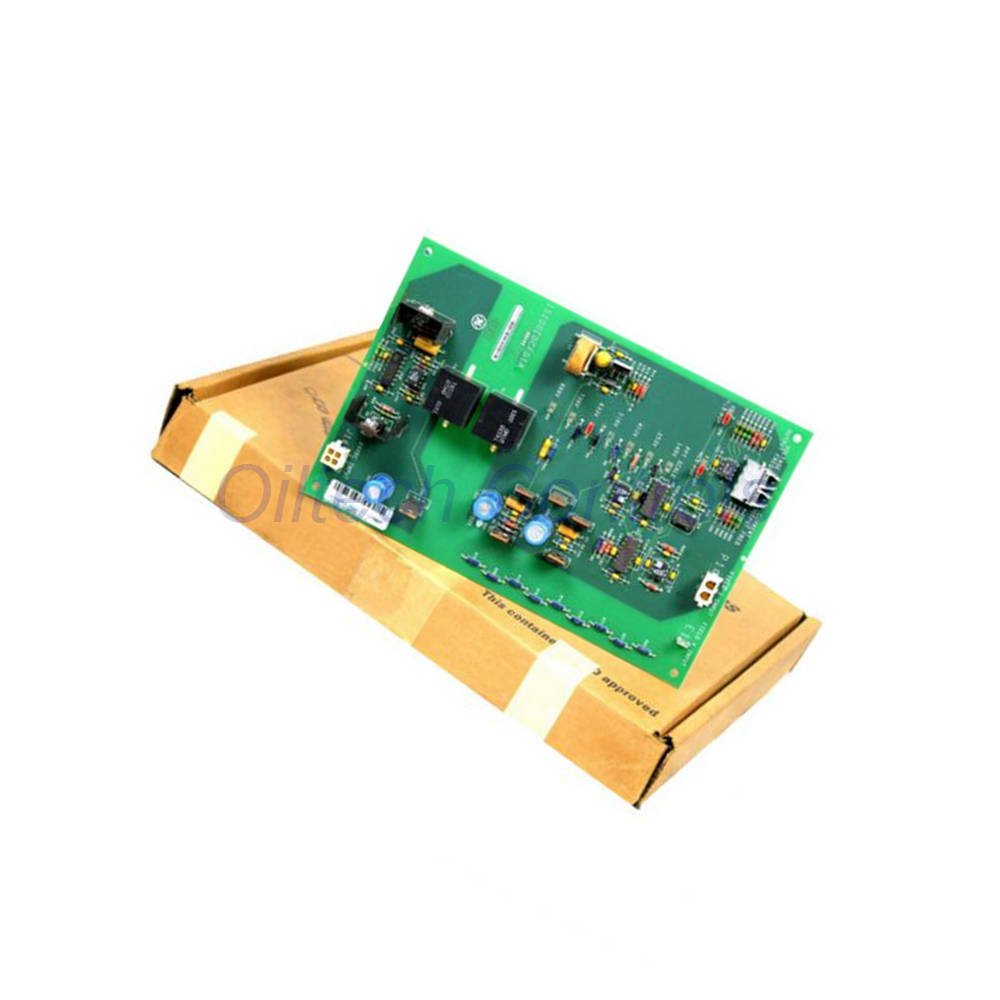

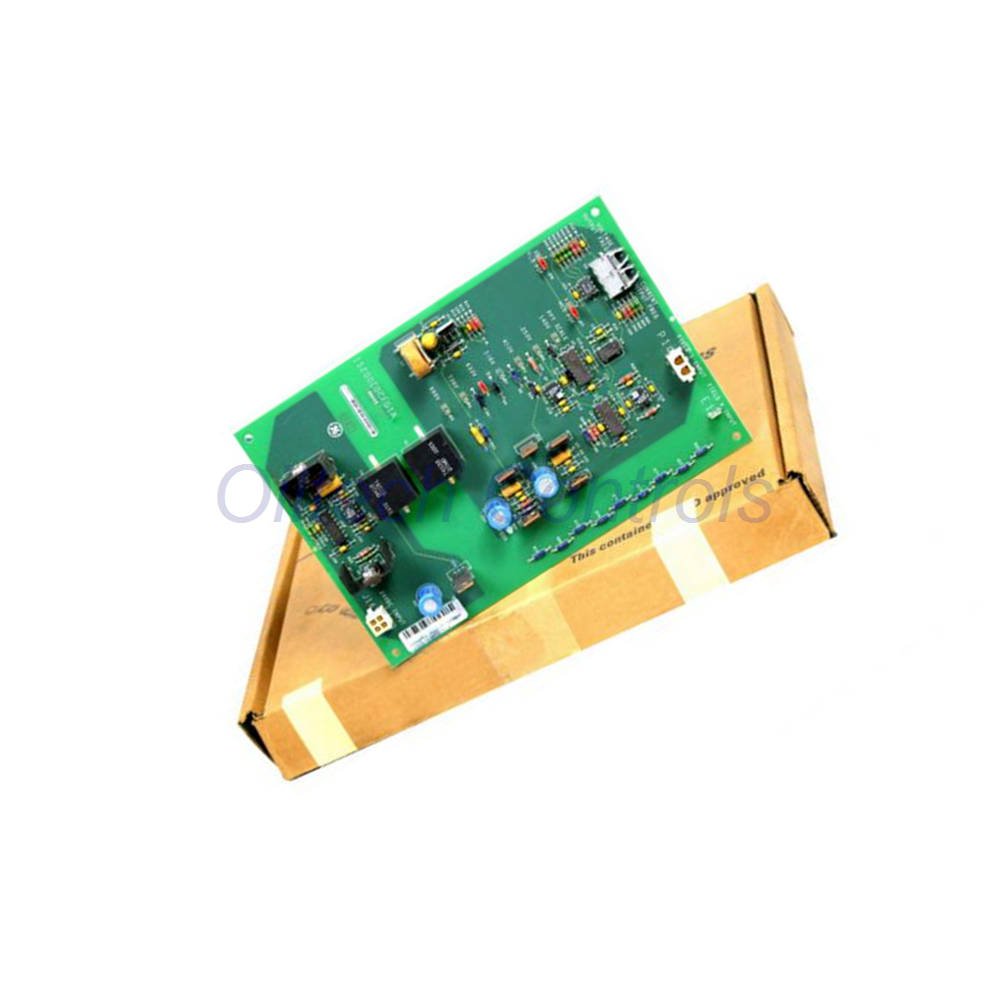

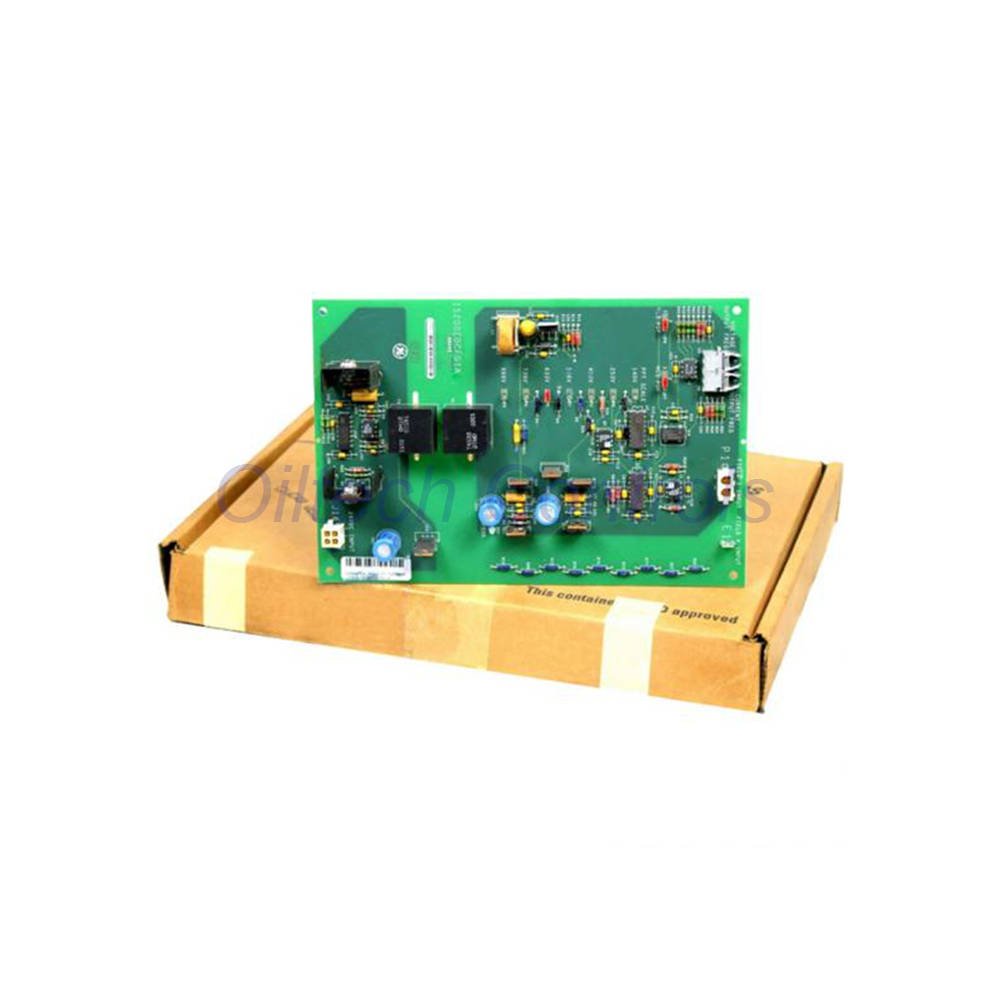

IS200EDCFG1A is an advanced Exciter DC Feedback Board from General Electric.
This board belongs to the EX2100 Excitation Control Series.
It measures field current and field voltage at the SCR bridge.
The module transfers feedback signals through high-speed fiber-optic communication.
High noise immunity improves system stability in harsh industrial environments.
The board supports accurate excitation monitoring for turbine and generator systems.
It works with the EISB board inside the excitation control cabinet.
The compact hardware design supports reliable long-term operation.
Key Features
- Real-time field voltage feedback
- Precise field current monitoring
- Fiber-optic isolated communication
- Fast signal transmission
- Strong anti-interference capability
- Industrial-grade temperature resistance
- Stable ±24 VDC external power input
- Built-in power status LED indication
- Suitable for turbine excitation systems
Technical Specifications
- Brand: General Electric
- Model: IS200EDCFG1A
- Series: EX2100
- Product Type: Exciter DC Feedback Board
- Board Type: Input/Output Terminal Board
- Functional Acronym: EDCF
- External Power Supply: ±24 VDC
- Generated Internal Voltages: +15 VDC, -15 VDC, +5 VDC
- Operating Temperature: -30°C to +65°C
- Country of Origin: USA
- Availability: In Stock
- Repair Time: 3-7 Working Days
- Manual: GEI-100464A
- Hardware Version: Form A
- Backward Compatibility: Not Backward Compatible
- Communication Method: Fiber-Optic
- Fiber Type: Plastic Fiber or Hard-Clad Silica Fiber
- Plastic Fiber Distance: Up to 10 meters
- Silica Fiber Distance: Up to 90 meters
- Minimum Cable Bend Radius: 1.5 inches
- Current Signal Input: DC Shunt Signal
- Maximum Shunt Signal: 500 mV
- Voltage Feedback Method: Differential Amplifier
- Oscillator Type: Voltage Controlled Oscillator
- LED Indicator: Green PSOK Power LED
- Noise Resistance: High EMI Immunity
- Isolation Method: Optical Isolation
- Environmental Resistance: Industrial Grade
Field Voltage Feedback Function
The board supports seven selectable voltage scaling settings.
It monitors the bridge negative terminal and shunt positive terminal.
Scaled signals enter a differential amplifier circuit.
The amplifier controls the voltage-controlled oscillator.
Stable voltage feedback improves excitation accuracy.
Field Current Feedback Function
The module measures field current through a DC shunt.
The shunt creates a low-level voltage signal.
Maximum input signal reaches 500 mV.
The amplifier converts the signal into a -5V to +5V output.
The design supports stable current monitoring under load changes.
Installation Guide
- Disconnect all power before installation
- Install the board inside a dry control cabinet
- Connect ±24 VDC power through connector J16
- Connect shunt signals through connector P1
- Connect field voltage input through terminal E1
- Use approved fiber-optic cables only
- Check cable bend radius during routing
- Verify PSOK LED after power-up
Commissioning and Maintenance
- Supports fast startup verification
- PSOK LED simplifies power diagnostics
- Fiber communication reduces electrical interference issues
- Low-maintenance industrial design
- Easy signal testing through standard terminals
- Supports quick replacement during shutdown periods
Compatibility Information
- Compatible with GE EX2100 excitation systems
- Designed for use with EISB control boards
- Suitable for SCR bridge monitoring applications
- Supports turbine and generator excitation control systems
Diagnostic Capability
- Power supply condition monitoring
- Field voltage signal verification
- Field current feedback monitoring
- Fiber-optic communication integrity checking
- Fast fault identification through LED indication
Typical Application Scenarios
- Steam turbine excitation systems
- Gas turbine generator control
- Power plant excitation cabinets
- Industrial generator regulation systems
- SCR bridge monitoring systems
- High-noise electrical environments
Certification and Quality
- Industrial quality manufacturing standard
- Designed for critical power applications
- High reliability electronic components
- Factory tested before shipment
Packing List
- 1 × IS200EDCFG1A Exciter DC Feedback Board
- 1 × Protective anti-static package
- 1 × Product inspection confirmation
- 1 × User support information
Warranty Information
12-Month Warranty is included with the product.
All units receive inspection before shipment.
Technical support is available during the warranty period.
Shipping Information
- Worldwide shipping available
- Courier partners: FedEx, UPS, DHL
- Safe industrial export packaging
- Fast delivery for stock items
Download Manual
Please contact our technical team to request the latest manual and installation documents.
- Email: info@oiltechcontrols.com
- WhatsApp: +86 158 8020 0923
FAQ
Q: What does the IS200EDCFG1A board measure?
A: It measures field voltage and field current at the SCR bridge.
Q: Which systems use this module?
A: It is used in GE EX2100 excitation control systems.
Q: What communication method does this board use?
A: The board uses fiber-optic communication.
Q: Does this module support long-distance fiber connection?
A: Yes. Hard-clad silica fiber supports up to 90 meters.
Q: What power supply does the board require?
A: The board requires an external ±24 VDC power source.
Q: Is technical support available?
A: Yes. Technical support is available before and after purchase.
