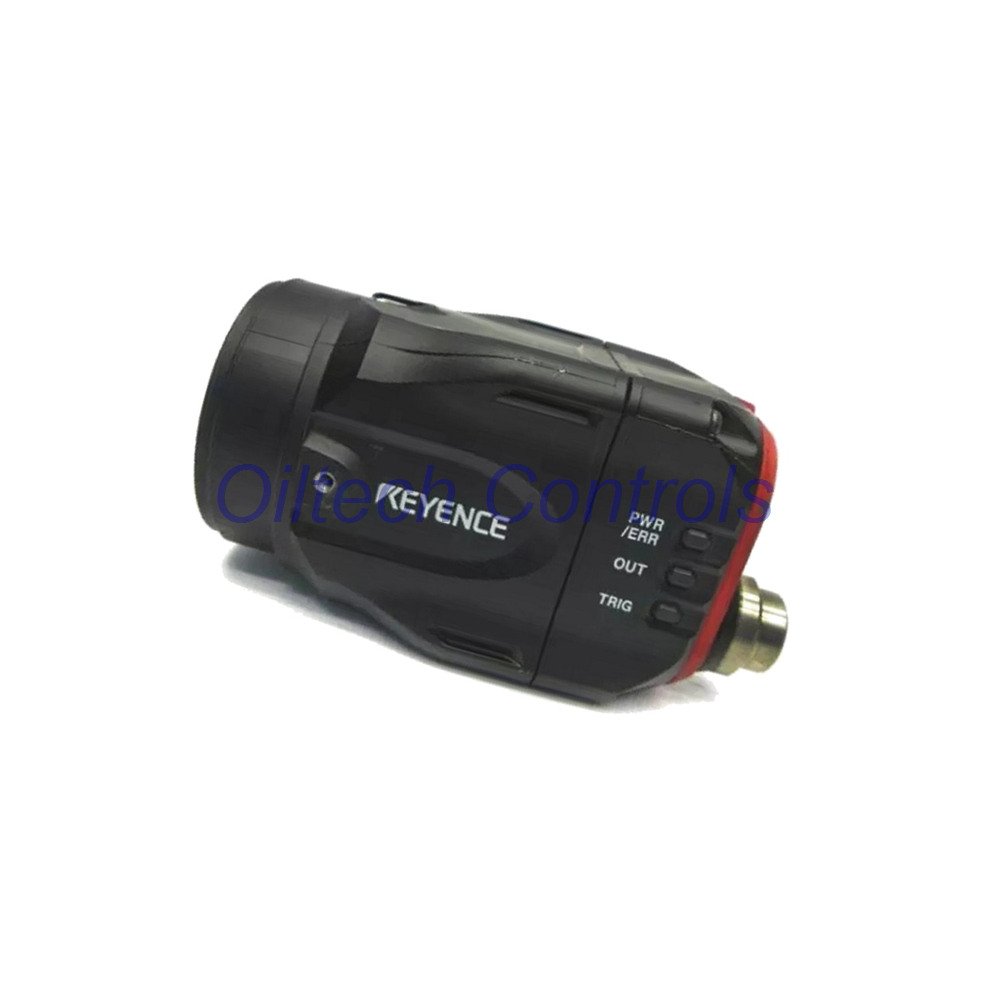

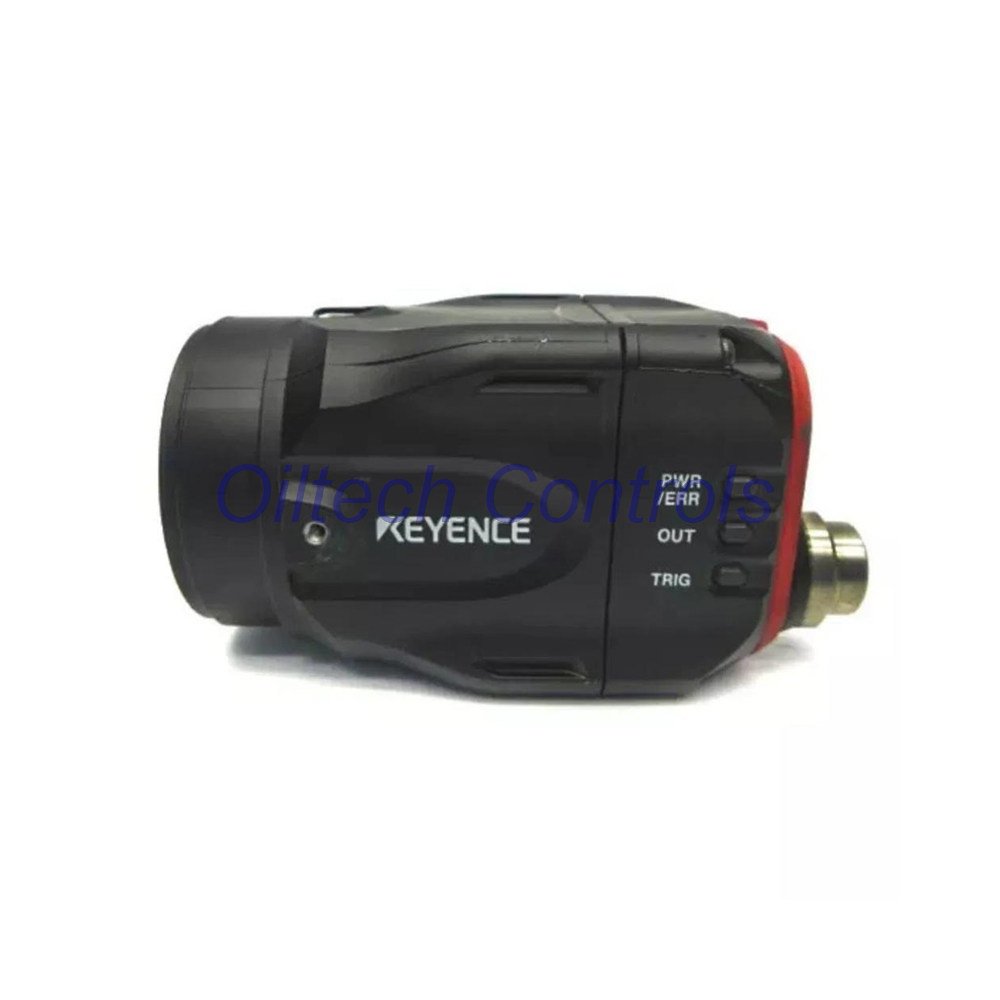

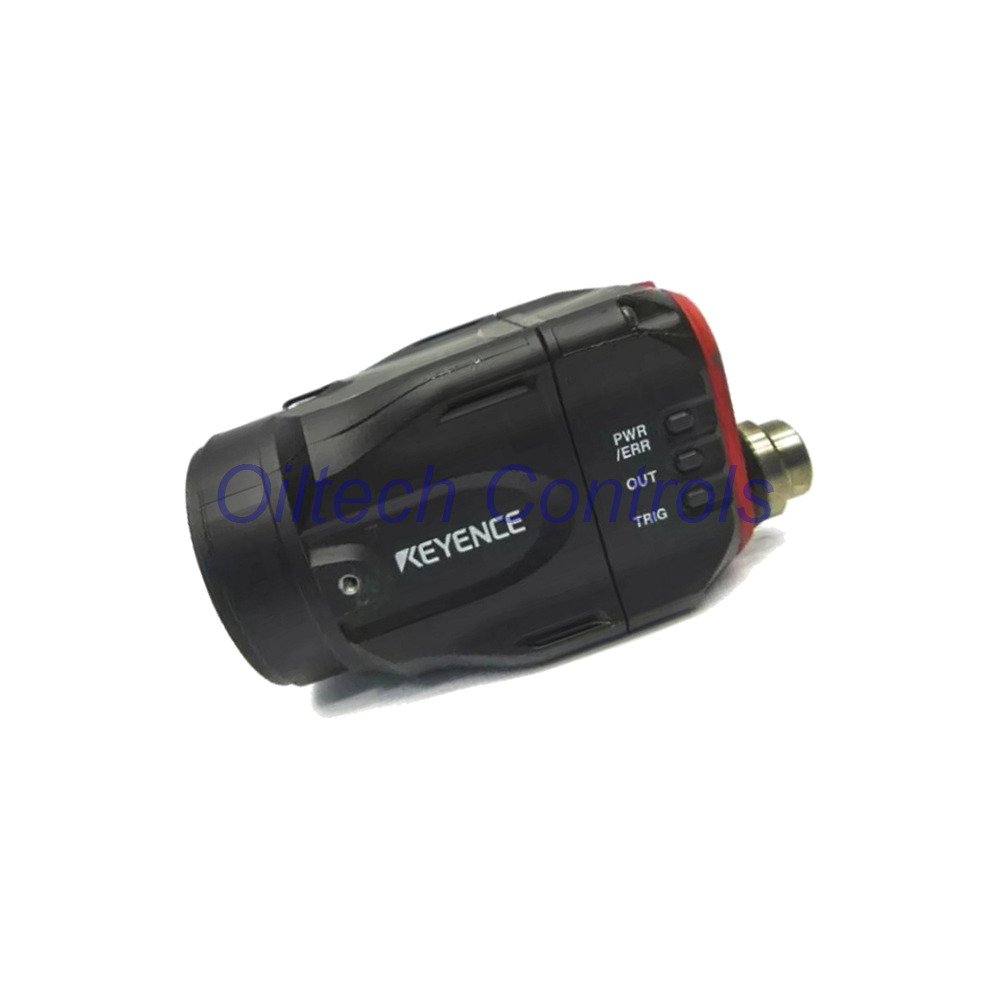

Keyence IV-500MA Integrated Vision Sensor
Keyence IV-500MA is a monochrome integrated vision sensor from the IV Series. It offers auto focus and a standard distance range. The sensor is built for industrial inspection tasks. It combines a camera, light, and controller in one unit. This design saves space and simplifies wiring.
The IV-500MA uses a 1/3 inch monochrome CMOS sensor. It captures 752 x 480 pixel images. The built-in red LED provides pulse or DC lighting. You can switch lighting modes as needed. The unit supports up to 16 detection tools and 1 position adjustment tool. It stores 32 programs for flexible changeovers.
Keyence designed this sensor for reliable presence, shape, and color area checks. It works well in automotive, electronics, and packaging lines. The IP67 rating protects it from dust and water. The aluminum die-cast case adds durability. This sensor is active in production as of 2026.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Keyence |
| Model | IV-500MA |
| Series | IV Series |
| Type | Integrated vision sensor, standard distance, monochrome |
| Focus | Auto focus |
| Installed distance | 50 to 500 mm |
| Field of view | 50 mm distance: 25 x 18 mm 500 mm distance: 210 x 157 mm |
| Image sensor | 1/3 inch monochrome CMOS, 752 x 480 pixels |
| Illumination | Red LED, pulse or DC switchable |
| Tools | Shape detection, color area, area, position adjustment |
| Tool count | 16 detection tools + 1 position tool |
| Programs | 32 |
| Supply voltage | 24 VDC +/-10% (including ripple) |
| Power draw | 0.6 A or less |
| Outputs | 4 (OUT1 to OUT4), open collector, NPN/PNP switchable, N.O./N.C. switchable, max 26.4 V 50 mA |
| Inputs | 6 (IN1 to IN6) |
| Built-in port | M12 4-pin (100BASE-TX/10BASE-T) |
| Protocols | FTP client, EtherNet/IP, PROFINET |
| Temperature range | 0 to +50°C (no freezing) |
| Humidity | 35 to 85% RH (no condensation) |
| Protection | IP67 (except with OP-87436/OP-87437 polar filter) |
| Vibration resistance | 10 to 55 Hz, 1.5 mm double amplitude, 2 hours per axis |
| Shock resistance | 500 m/s², 3 times in 6 directions |
| Material | Aluminum die-cast case, NBR packing, acrylic front, POM adapter |
| Weight | Approx. 270 g |
| Lifecycle | Active (verified 2026-09) |
Installation Guide
- Mount the IV-500MA with the POM adapter. Use M4 screws.
- Keep the sensor within 50 to 500 mm from the target.
- Connect the M12 4-pin cable for Ethernet. Use shielded cable for noisy areas.
- Wire the 24 VDC power supply. Check polarity before power on.
- Set NPN or PNP output mode. Match your PLC input type.
- Use the auto focus function to sharpen the image.
- Run a test program to confirm detection stability.
Debugging and Maintenance
The Keyence IV-500MA supports easy tool setup. You can adjust area, shape, and color tools. Use the position adjustment tool for part misalignment. The 32 programs let you switch between products fast. Clean the front acrylic cover with a soft cloth. Do not use solvents. Check the red LED for output. Use the M12 port for live monitoring. Regular checks keep the sensor running.
Compatibility Notes
- Works with EtherNet/IP and PROFINET networks.
- FTP client for image logging.
- No communication expansion module.
- Optional polar filter OP-87436/OP-87437 changes IP67 rating.
- Dome attachment IV-D10 affects vibration and shock specs.
- Compatible with Keyence IV Series cables and mounting brackets.
Certifications
This sensor meets Keyence quality standards. It carries the IP67 protection rating. The unit complies with industrial EMC norms. For specific certification documents, contact us. We verify every unit before shipment.
Package List
- 1 x Keyence IV-500MA sensor
- 1 x Mounting adapter (POM)
- 1 x Instruction sheet
- 12-month warranty card
Warranty and Shipping
All products come with a 12-month warranty. We ship by FedEx, UPS, and DHL. Tracking is provided. We pack with care for safe transport.
Typical Applications
- Presence and absence checks on assembly lines.
- Shape verification for stamped or molded parts.
- Color area detection for label and cap inspection.
- Position adjustment for robotic pick and place.
- Quality gate for automotive and electronics.
Diagnostic Capability
The IV-500MA provides live image feedback. You can check tool match scores. The sensor shows output status via LEDs. Use the Ethernet port for remote monitoring. The 32 programs store different inspection recipes. This helps with fast fault finding.
FAQ
Q: What is the focus type?
A: Auto focus.
Q: How many detection tools does it have?
A: 16 detection tools and 1 position tool.
Q: What is the power requirement?
A: 24 VDC +/-10%, 0.6 A or less.
Q: Does it support PROFINET?
A: Yes, built-in PROFINET and EtherNet/IP.
Q: What is the warranty?
A: 12 months.
Q: How do you ship?
A: FedEx, UPS, or DHL.
Q: Is the sensor still active?
A: Yes, production confirmed as of 2026-09.
