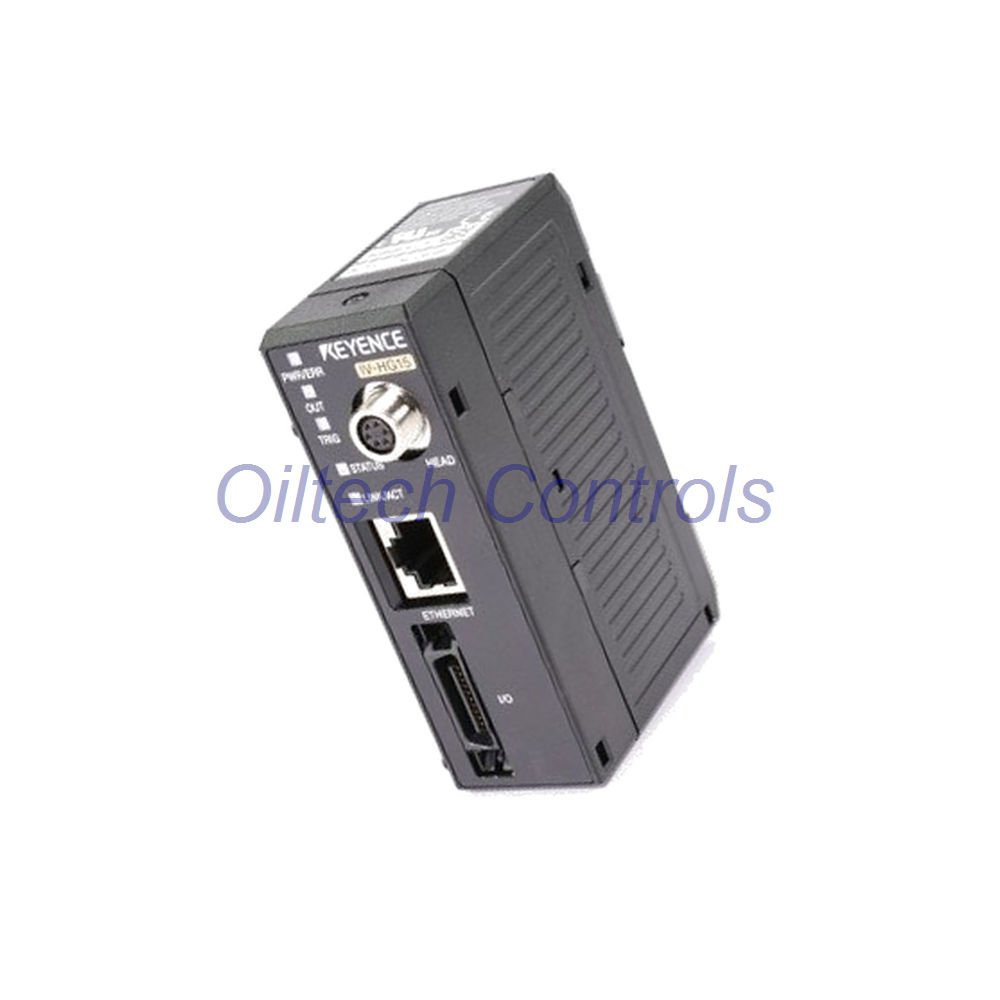

IV-HG15 Keyence IV Series Sensor Amplifier Expansion Unit
IV-HG15 is a Keyence IV Series sensor amplifier expansion unit. This module adds advanced vision inspection to the IV-HG series. It supports shape detection, color area, area, edge pixels, width/height, diameter, edge presence, pitch, position adjustment, high speed position adjustment, and OCR. As a result, it fits industrial automation lines that need fast, stable inspection.
Because this expansion unit connects to the main unit for power, no separate supply is needed. In addition, it offers 32 programs and 16 detection tools plus 1 position adjustment tool. It also has EtherNet/IP, PROFINET, and FTP client communication. Meanwhile, the RJ-45 8-pin connector supports 100BASE-TX and 10BASE-T.
Oiltech Controls supplies tested industrial surplus and refurbished options. Moreover, we verify each unit before shipment. This helps you keep obsolete control systems running. Therefore, contact us at info@oiltechcontrols.com or +86 158 8020 0923.
Technical Specifications
| Brand | Keyence |
| Model | IV-HG15 |
| Series | IV Series |
| Module Type | Sensor amplifier, expansion unit |
| Detection Tools | 16 tools |
| Position Adjustment Tools | 1 tool |
| Programs | 32 programs |
| Supply Voltage | 24 VDC +/-10%, supplied from main unit |
| Power Consumption | Supplied from main unit |
| Output Type | Open collector, NPN/PNP switchable, N.O./N.C. switchable |
| Output Rating | 26.4 V, 50 mA maximum |
| Inputs | 6 inputs (IN1 to IN6) |
| Outputs | 8 outputs (OUT1 to OUT8) |
| Built-in Port | RJ-45 8-pin (100BASE-TX/10BASE-T) |
| Protocols | FTP client, EtherNet/IP, PROFINET |
| Communication Expansion | None |
| Operating Temperature | 0 to +50°C, no freezing |
| Relative Humidity | 35 to 85% RH, no condensation |
| Protection Rating | Not available |
| Material | Polycarbonate main unit case |
| Weight | Approx. 150 g |
| Dimensions | Not available |
Installation Guide
Mount the IV-HG15 near the main unit. Keep the unit dry and cool. Then connect the 24 VDC supply from the main unit. After that, use the RJ-45 8-pin port for network access. Before wiring, set NPN or PNP output mode. Also set N.O. or N.C. output mode as needed.
Keep input and output cables away from high voltage lines. This reduces electrical noise. In addition, use the 6 inputs and 8 outputs for trigger, handshake, and result signals.
Setup and Maintenance Convenience
- 32 programs allow fast product changeover.
- 16 detection tools cover many inspection tasks.
- Position adjustment tool helps align parts.
- OCR supports character reading.
- EtherNet/IP and PROFINET simplify PLC integration.
- FTP client helps transfer image or result files.
Clean the unit with a dry cloth. Also check connectors and cables often. Moreover, verify output signals during scheduled maintenance. Because the unit weighs only approx. 150 g, it fits tight spaces.
Compatibility Notes
The IV-HG15 works as an expansion unit for the Keyence IV-HG series. It receives power from the main unit. Furthermore, it supports EtherNet/IP, PROFINET, and FTP client. However, it does not support communication expansion. Also, it is not a standalone sensor amplifier. Therefore, use it with a compatible IV-HG main unit.
Certifications and Compliance
Certification details are not listed in the current source data. Please confirm specific approval needs before purchase. In addition, Oiltech Controls can check available documents for your project. Contact info@oiltechcontrols.com for support.
Packing List and Warranty
- 1x Keyence IV-HG15 sensor amplifier expansion unit
- 12-month warranty
- Technical verification before shipment
- Protective packing for global transport
We ship by FedEx, UPS, and DHL. Tracking is provided after dispatch. Moreover, warranty covers functional defects under normal use. However, it does not cover physical damage or improper wiring.
Typical Applications
- Presence and absence checks
- Shape and edge inspection
- Color area detection
- Width, height, and diameter measurement
- Pitch and position checks
- OCR reading on labels or parts
- High speed position adjustment
These tasks suit electronics, automotive, packaging, and general factory automation. In addition, the 32 programs help handle mixed production lines.
Diagnostic Capability
The unit supports inspection result output through 8 outputs. It also supports trigger and control through 6 inputs. Furthermore, network protocols help send data to PLCs and systems. Because FTP client supports file transfer for records, engineers can find faults faster.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support
- Tested industrial surplus and refurbished options
- 12-month warranty
- Technical verification before shipment
- Support for obsolete control systems
We help you source hard-to-find parts. Also, we check compatibility before shipping. Send your request to info@oiltechcontrols.com. Or chat with us on +86 158 8020 0923.
FAQ
Q: What is the IV-HG15?
A: It is a Keyence IV Series sensor amplifier expansion unit.
Q: Does it work alone?
A: No. It needs a compatible IV-HG main unit.
Q: What tools does it support?
A: It supports shape, color area, area, edge, width/height, diameter, pitch, OCR, and more.
Q: How many programs does it have?
A: It has 32 programs.
Q: What communication does it support?
A: It supports EtherNet/IP, PROFINET, and FTP client.
Q: What is the warranty?
A: It includes a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: Is the IV-HG15 active?
A: Yes. Keyence production status is active as of 2026-09.
Contact Oiltech Controls
Email: info@oiltechcontrols.com
WhatsApp: +86 158 8020 0923
