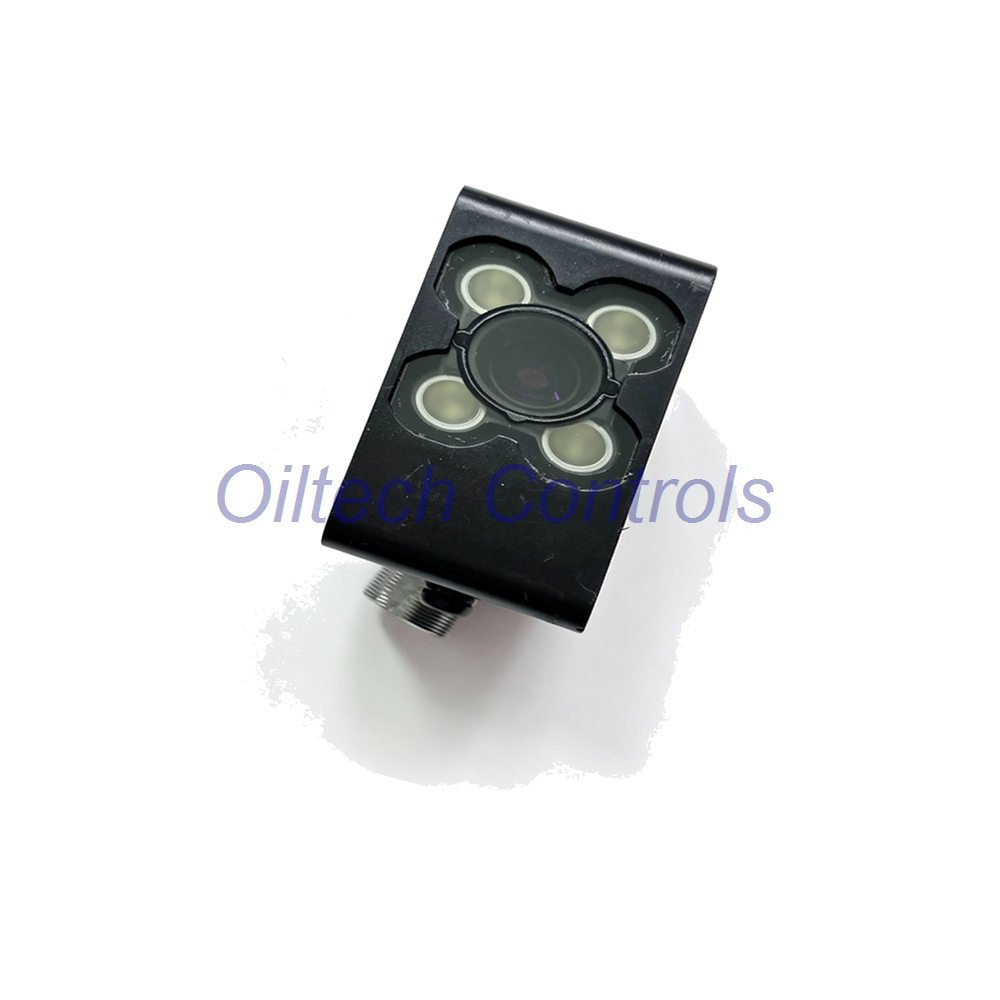

IV-HG150MA Keyence IV Series Narrow View Monochrome Sensor Head
IV-HG150MA is a compact sensor head from the Keyence IV Series. It works with the IV-HG10 or IV-HG15 amplifier. This model uses a narrow field of view and a monochrome image sensor. It suits small part inspection, position checks, and presence detection.
The head installs at 40 to 150 mm. The view size changes with distance. At 40 mm, the view is 8 x 6 mm. At 150 mm, the view is 32 x 24 mm. Auto focus and fast exposure help stable imaging on production lines.
Keyence designed this head for tight spaces. It connects to the amplifier by a dedicated cable. All outputs and communication run through the amplifier. This keeps the head small and easy to mount.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support
- Tested industrial surplus and refurbished options
- 12-month warranty on eligible items
- Technical verification before shipment
- Support for obsolete control systems
Questions? Email info@oiltechcontrols.com or message us on WhatsApp at +86 158 8020 0923.
Technical Data
| Item | Specification |
|---|---|
| Brand | Keyence |
| Model | IV-HG150MA |
| Series | IV Series |
| Module Type | Sensor head, narrow view, monochrome |
| Measuring Range | 40 to 150 mm installed distance |
| Field of View | 8 x 6 mm at 40 mm; 32 x 24 mm at 150 mm |
| Image Sensor | 1/3 inch monochrome CMOS, 752 x 480 pixels |
| Focus | Auto |
| Exposure Time | 1/20 to 1/50,000 |
| Illumination | White LED |
| Lighting Method | Pulse or DC, switchable |
| Frequency Response | Depends on amplifier settings |
| Sensitivity | Set through connected amplifier |
| Linearity | Not specified by manufacturer |
| Resolution | 752 x 480 pixels |
| Temperature Range | 0 to +50°C, no freezing |
| Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP67, except with polarized filter attached |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm, 2 hours per axis |
| Shock Resistance | 500 m/s², 3 times per direction |
| Supply Voltage | Supplied by connected amplifier |
| Power Consumption | Not available |
| Output Type | Outputs via amplifier |
| Built-in Ports | None; connects to amplifier by dedicated cable |
| Protocols | None; communication via amplifier |
| Material | Zinc die-cast case, acrylic front cover, TPU indicator cover |
| Weight | Approx. 75 g |
| Dimensions | Not available |
Installation Guide
- Mount the IV-HG150MA near the target area.
- Keep the installed distance between 40 and 150 mm.
- Use the dedicated cable to connect the IV-HG10 or IV-HG15 amplifier.
- Adjust the head angle for a clear view.
- Use auto focus to sharpen the image.
- Confirm the view size at your chosen distance.
- Avoid strong vibration and direct shock.
Setup and Maintenance
- Auto focus cuts setup time.
- Exposure adjusts from 1/20 to 1/50,000.
- Pulse or DC lighting fits different motion speeds.
- IP67 housing resists dust and water.
- Clean the front cover with a soft cloth.
- Check the cable and mounting regularly.
- Do not use a polarized filter if IP67 is needed.
- Do not use dome attachments IV-GD05 or IV-GD10 if vibration or shock ratings are required.
Compatibility Notes
- Works with IV-HG10 and IV-HG15 amplifiers.
- No direct communication port on the head.
- All outputs and protocols run through the amplifier.
- Polarized filters OP-87899, OP-87900, OP-87901, and OP-87902 affect IP67.
- Dome attachments IV-GD05 and IV-GD10 affect vibration and shock ratings.
Typical Applications
- Small part presence checks
- Position and alignment checks
- Assembly verification
- Label and mark inspection
- Edge and shape detection
- Inline quality checks
Diagnostic Capabilities
- Stable monochrome imaging
- Fast exposure for moving parts
- Auto focus for sharp images
- White LED lighting for clear contrast
- Amplifier-based monitoring and setup
- Narrow view for small target areas
Certifications and Packaging
- Official Keyence production status confirmed.
- Lifecycle status: Active.
- Last verified: 2026-09.
- Packaging list: sensor head and basic packing.
- Cable and amplifier are not included unless stated.
- 12-month warranty on eligible items.
- Shipping by FedEx, UPS, or DHL.
FAQ
Q: What amplifier works with the IV-HG150MA?
A: It works with the IV-HG10 and IV-HG15.
Q: What is the installed distance?
A: The range is 40 to 150 mm.
Q: What is the view size?
A: It is 8 x 6 mm at 40 mm and 32 x 24 mm at 150 mm.
Q: Does the head have a communication port?
A: No. Communication runs through the amplifier.
Q: What is the protection rating?
A: It is IP67, except when a polarized filter is mounted.
Q: What is the warranty?
A: Eligible items include a 12-month warranty.
Q: How do you ship?
A: We ship by FedEx, UPS, or DHL.
Q: How do I contact Oiltech Controls?
A: Email info@oiltechcontrols.com or WhatsApp +86 158 8020 0923.
