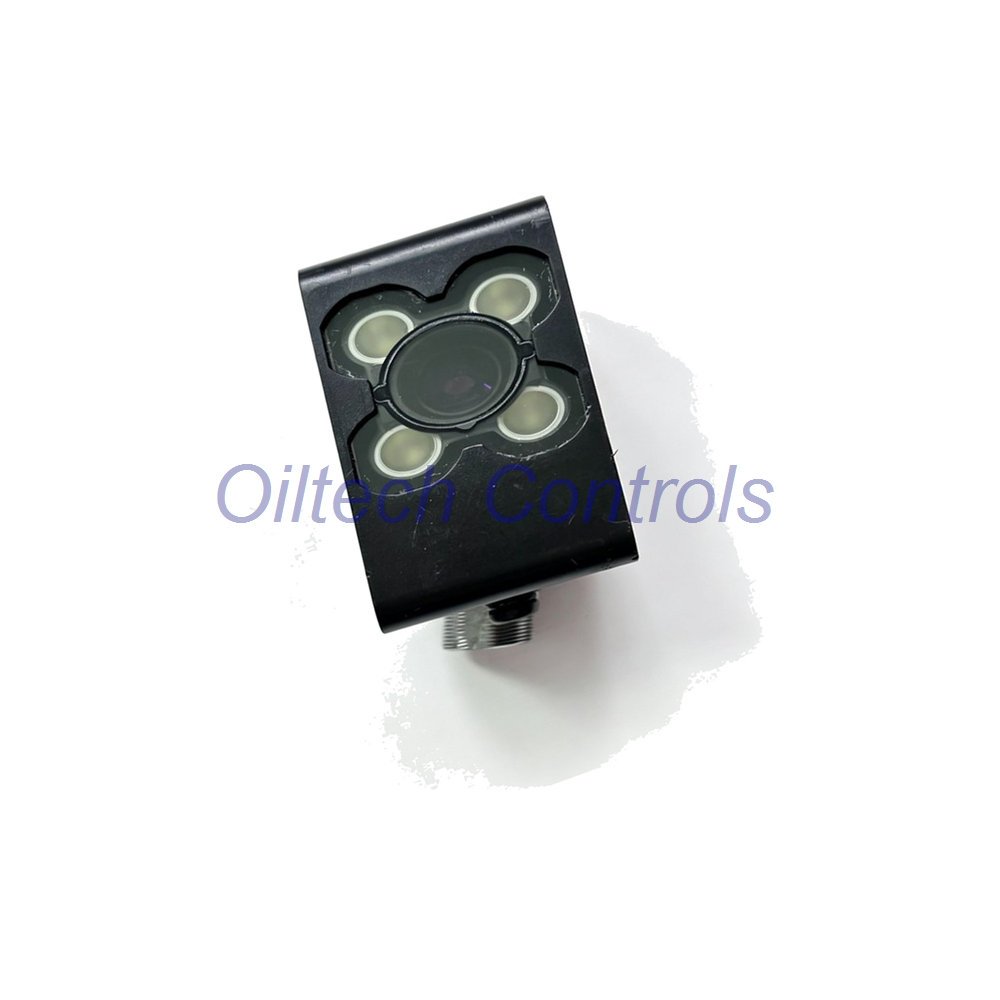

IV-HG500MA Keyence IV Series Monochrome Sensor Head
IV-HG500MA is a compact monochrome sensor head from the Keyence IV Series. It pairs with the IV-HG10 or IV-HG15 amplifier. The head uses a 1/3 inch monochrome CMOS sensor. It delivers 752 x 480 pixels for stable image capture.
This standard field of view model covers 20 to 500 mm install distance. The view ranges from 10 x 7.5 mm up to 200 x 150 mm. Auto focus and white LED lighting simplify setup. Pulse and DC lighting modes add flexibility for moving or static targets.
The IV-HG500MA connects to the amplifier by dedicated cable. Power and output signals pass through the amplifier. This keeps the head small and easy to mount in tight cells. The IP67 rating supports harsh factory floors.
Technical Specifications
| Brand | Keyence |
| Model | IV-HG500MA |
| Series | IV Series |
| Module Type | Sensor head, standard model |
| Sensor | 1/3 inch monochrome CMOS |
| Resolution | 752 (H) x 480 (V) pixels |
| Install Distance | 20 to 500 mm |
| Field of View | 20 mm: 10 x 7.5 mm 500 mm: 200 x 150 mm |
| Focus | Auto |
| Exposure Time | 1/10 to 1/50,000 |
| Lighting | White LED |
| Lighting Mode | Pulse / DC switchable |
| Supply Voltage | From connected amplifier |
| Built-in Ports | None, uses dedicated cable |
| Protocols | None, expansion via amplifier |
| Operating Temperature | 0 to +50°C, no freezing |
| Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP67, except with filter OP-87899/OP-87900/OP-87901/OP-87902 |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm, 2 hours X/Y/Z, except with dome IV-GD05/IV-GD10 |
| Shock Resistance | 500 m/s², 3 times, 6 directions, except with dome IV-GD05/IV-GD10 |
| Material | Zinc die-cast case, acrylic front cover, TPU indicator cover |
| Weight | Approx. 75 g |
| Lifecycle | Active, official Keyence status confirmed 2026-09 |
Installation Guide
- Mount the IV-HG500MA at 20 to 500 mm from the target.
- Keep the front cover clean. Dust or oil can blur the image.
- Use the dedicated cable to link the head to the IV-HG10 or IV-HG15 amplifier.
- Set the working distance first. Then let auto focus lock the image.
- Choose pulse lighting for fast motion. Choose DC lighting for steady targets.
- Do not mount a polarized filter or dome attachment if IP67 and shock data must hold.
Setup and Maintenance
- Auto focus cuts setup time on new lines.
- Exposure control from 1/10 to 1/50,000 handles bright and dark parts.
- White LED lighting removes the need for extra external lamps in many cells.
- Check the front cover during planned maintenance. Replace worn covers early.
- Keep the cable route away from high-current motors and drives.
- Confirm the amplifier firmware supports the head before commissioning.
Compatibility Notes
- Works with Keyence IV-HG10 and IV-HG15 amplifiers.
- Power, output, and communication come from the amplifier.
- No built-in fieldbus port. Network options depend on the amplifier.
- Polarized filter options: OP-87899, OP-87900, OP-87901, OP-87902.
- Dome attachments: IV-GD05 and IV-GD10.
- These options change the IP67 and shock ratings. Check the datasheet before use.
Certifications and Packaging
- Official Keyence production status: Active.
- Protection rating: IP67 under standard mounting.
- Packaging list: IV-HG500MA sensor head, dedicated cable, quick guide.
- Warranty: 12 months from Oiltech Controls Limited.
- Shipping: FedEx, UPS, DHL worldwide.
- Each unit is tested and verified before dispatch.
Typical Applications
- Presence and absence checks on small parts.
- Position and orientation checks in assembly cells.
- Label, mark, and print inspection.
- Edge and gap detection on metal or plastic parts.
- Inline inspection where space is tight.
- Retrofit of older vision stations with IV Series hardware.
Diagnostic Capabilities
- Live image view through the connected amplifier.
- Exposure and focus checks during setup.
- Lighting mode tests for motion or static targets.
- Stable image capture for repeatable pass/fail checks.
- Quick fault tracing by swapping head, cable, or amplifier.
- Visual inspection of the front cover and LED output.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts.
- Global shipment support through FedEx, UPS, and DHL.
- Tested industrial surplus and refurbished options available.
- 12-month warranty on every eligible unit.
- Technical verification before shipment on all orders.
- Support for obsolete control systems and hard-to-find modules.
FAQ
Q: What amplifier works with the IV-HG500MA?
A: It works with the IV-HG10 and IV-HG15 amplifiers.
Q: What is the install distance?
A: The range is 20 to 500 mm.
Q: What field of view does it cover?
A: At 20 mm it covers 10 x 7.5 mm. At 500 mm it covers 200 x 150 mm.
Q: Is the head IP67 rated?
A: Yes, IP67 under standard mounting. Some attachments change this rating.
Q: Does it need a separate power supply?
A: No. The connected amplifier supplies power.
Q: What is the warranty?
A: 12 months from Oiltech Controls Limited.
Q: How do you ship?
A: We ship by FedEx, UPS, and DHL.
Q: How can I contact you?
A: Email info@oiltechcontrols.com or message us on WhatsApp at +86 158 8020 0923.
