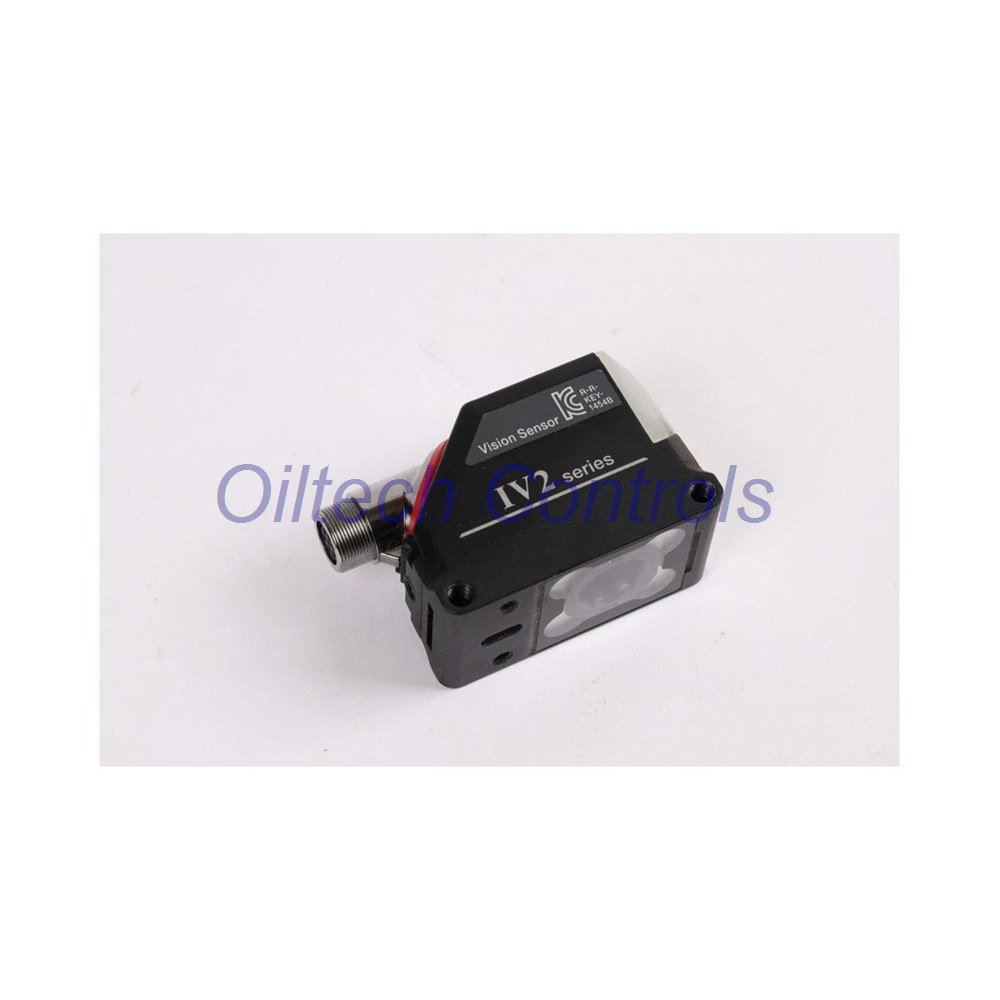

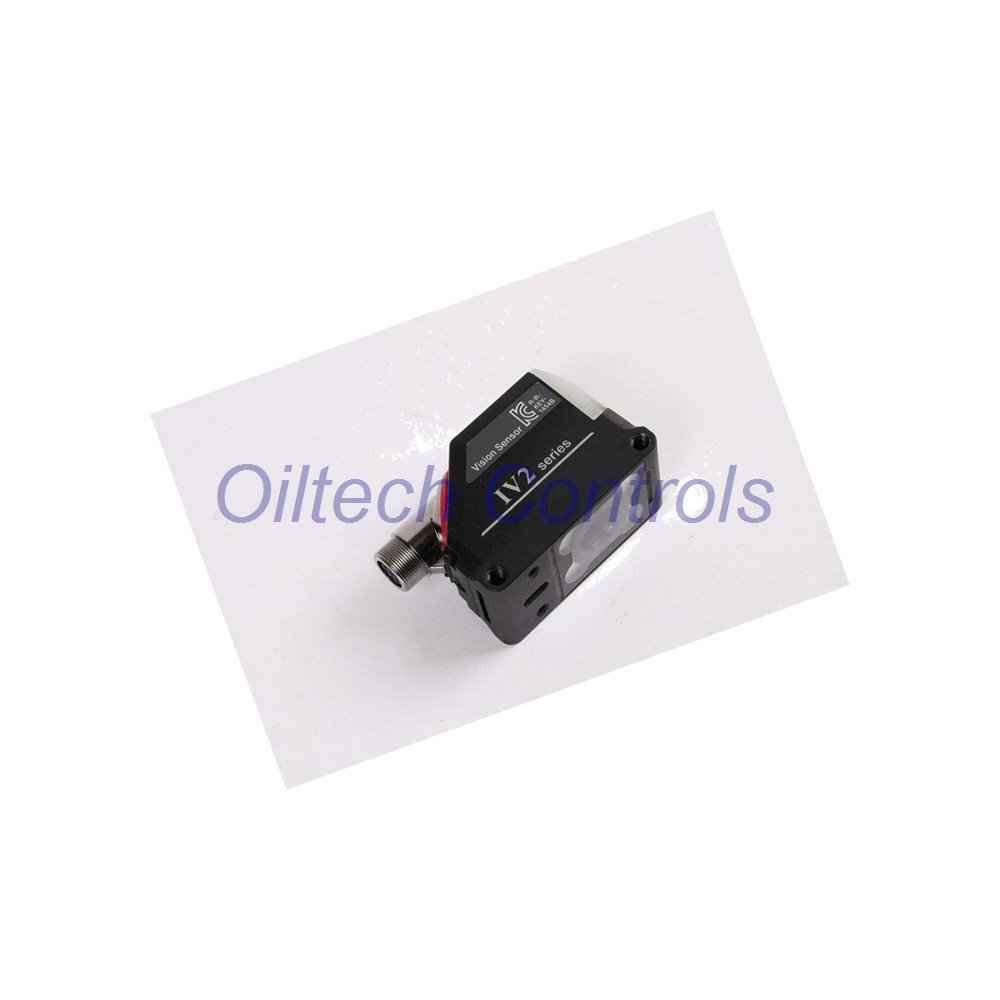

IV2-G600MA Wide Field Sensor Head for Keyence IV2 Series
The IV2-G600MA is a monochrome sensor head for the Keyence IV2 Series. It pairs with the IV2-G30 or IV2-G30F amplifier. This wide field model covers short and long working distances. It uses infrared pulse lighting and a 1/3 inch CMOS imager. Auto focus and fast exposure help you set up quickly on the line. The IP67 housing suits harsh factory floors. Oiltech Controls supplies this unit with tested quality and global shipping.
Why Buy From Oiltech Controls?
- 15+ years in industrial automation spare parts
- Global shipment support for hard to find items
- Tested surplus and refurbished options available
- 12 month warranty on every order
- Technical check before dispatch
- Support for obsolete control systems
Questions? Email info@oiltechcontrols.com or chat on +86 158 8020 0923.
Technical Specifications
| Brand | Keyence |
| Model | IV2-G600MA |
| Series | IV2 Series |
| Module Type | Sensor head, wide field of view, monochrome |
| Reference Distance | 40 to 600 mm |
| Field of View | 40 mm: 42 x 31 mm; 600 mm: 550 x 412 mm |
| Image Sensor | 1/3 inch monochrome CMOS, 752 x 480 pixels |
| Focus | Auto |
| Exposure Time | 1/50 to 1/50000 |
| Lighting | Infrared LED, pulse lighting |
| Supply Voltage | From connected amplifier |
| Built in Ports | None; links to IV2-G30/G30F via dedicated cable |
| Protocols | None; expansion via amplifier |
| Output Type | Outputs via amplifier |
| Operating Temperature | 0 to +50°C, no freezing |
| Relative Humidity | 35 to 85% RH, no condensation |
| Protection Rating | IP67 except with certain filters or lens attachments |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm, 2 hours each axis |
| Shock Resistance | 500 m/s², 6 times each direction |
| Material | Zinc die cast case, acrylic front cover, TPU indicator cover |
| Weight | Approx. 75 g |
| Lifecycle | Active; Keyence production status confirmed |
Installation Guide
- Mount the head at 40 to 600 mm from the target.
- Keep the front cover clean and free of glare.
- Connect to the IV2-G30 or IV2-G30F amplifier with the dedicated cable.
- Use the bracket to set a stable angle.
- Avoid strong vibration and direct shock.
- Check IP67 seals after mounting filters or lenses.
Setup and Maintenance
- Auto focus cuts setup time.
- Fast exposure supports moving parts.
- Pulse infrared light reduces ambient light effects.
- Wipe the front cover with a soft cloth.
- Inspect the cable and connector each shift.
- Replace damaged seals to keep IP67 protection.
Compatibility
- Works with IV2-G30 and IV2-G30F amplifiers.
- No direct network port; use the amplifier for communication.
- Optional filters and lenses may limit IP67.
- Dome attachments may reduce vibration and shock ratings.
Certifications and Packaging
- Keyence official production status confirmed.
- Protection rating: IP67 under stated conditions.
- Package: sensor head, dedicated cable, mounting hardware, manual.
- Warranty: 12 months.
- Shipping: FedEx, UPS, DHL.
Typical Applications
- Presence and position checks on conveyors.
- Part orientation on assembly lines.
- Label and mark detection.
- Small part counting in packaging.
- Inline inspection in harsh plants.
Diagnostic Capability
- Live image view through the amplifier.
- Exposure and focus feedback for fast tuning.
- Stable detection with infrared pulse lighting.
- Quick fault tracing via amplifier status.
FAQ
Q: Does the IV2-G600MA work alone?
A: No. It needs an IV2-G30 or IV2-G30F amplifier.
Q: What is the working distance?
A: 40 to 600 mm.
Q: Is it waterproof?
A: Yes, IP67 under standard conditions.
Q: What is the warranty?
A: 12 months.
Q: How fast is shipping?
A: We ship by FedEx, UPS, or DHL.
Contact info@oiltechcontrols.com or +86 158 8020 0923 for stock and lead time.
