KEB 09F5B1B-2B0A F5 Axis Drive – High-Performance 16 kHz Switching

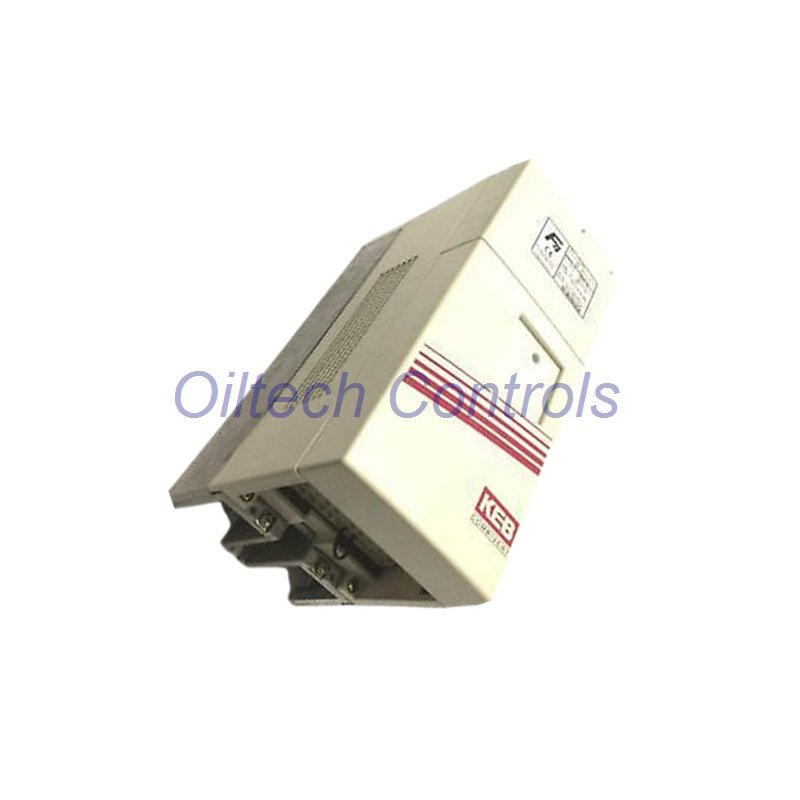

KEB 09F5B1B-2B0A F5 Combivert Axis Drive Overview

KEB introduces the 09F5B1B-2B0A from the F5 Combivert Axis Drive Series, delivering 1.5 kW power and high-performance motion control. This drive ensures precise motor operation, energy-efficient performance, and reliable industrial automation.

• Manufacturer: KEB Automation
• Series: F5 Combivert Axis Drive
• Model: 09F5B1B-2B0A
• Application: Medium-load motion control in industrial automation

Technical Specifications

• Power Rating: 1.5 kW – balanced for efficiency and medium-scale automation
• Nominal Current: 7 A – ensures stable operation under normal load
• Maximum Current: 15.1 A – supports short overloads without compromise
• Switching Frequency: 16 kHz – enables smooth, precise motor regulation
• Protection Features: Short-circuit and earth fault monitoring – protects drive and system
• Enclosure Rating: IP20 – shields against solid objects larger than 12.5 mm
• Operating Temperature: -10°C to 45°C – suitable for diverse industrial environments
• Storage Temperature: -25°C to 70°C – durable for transport and storage
• EMC Compliance: Category C1 – reduces electromagnetic interference in sensitive areas

Installation Guide

• Mount the 09F5B1B-2B0A in a well-ventilated area to ensure heat dissipation
• Ensure IP20-rated environment compliance
• Connect power supply following manufacturer instructions
• Verify short-circuit and earth fault monitoring before operation
• Use appropriate motion control cables for high-frequency operation

Package Contents

• 1 × KEB 09F5B1B-2B0A Axis Drive
• 1 × Installation manual
• 1 × Connection accessories kit
• 1 × Warranty card
• Shipping via FedEx, UPS, DHL

FAQ

• Q: What is the switching frequency of the KEB 09F5B1B-2B0A?
  A: It operates at 16 kHz for precise motor control.
• Q: Can it handle brief overloads?
  A: Yes, it supports a maximum current of 15.1 A during short overload conditions.
• Q: What protection features does this drive offer?
  A: The drive monitors short circuits and earth faults to prevent damage.
• Q: What is the operating temperature range?
  A: It works between -10°C and 45°C for reliable industrial performance.
• Q: What shipping methods are available?
  A: FedEx, UPS, and DHL are available for fast delivery.
