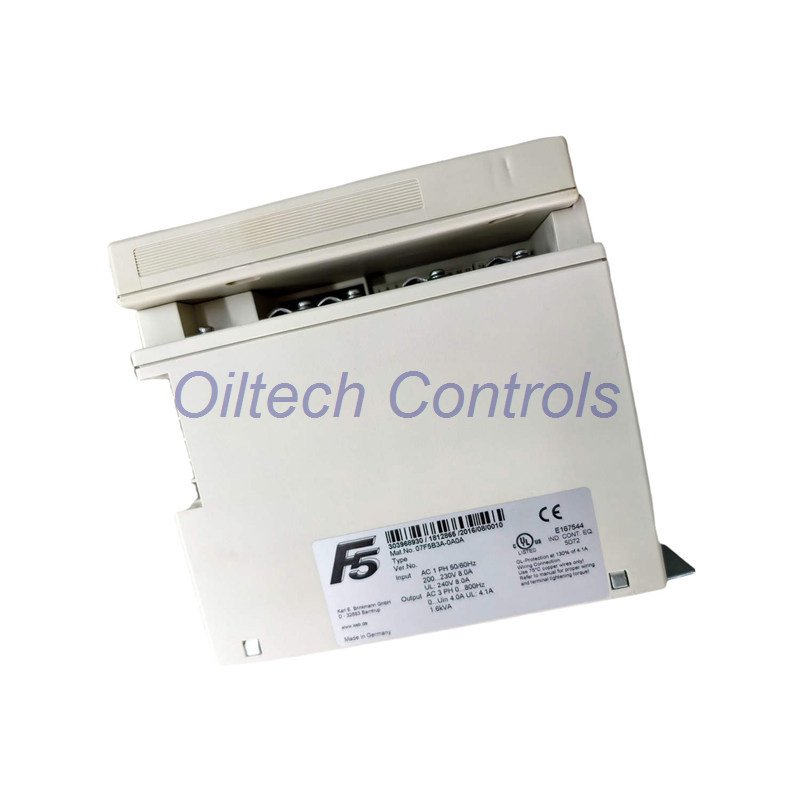

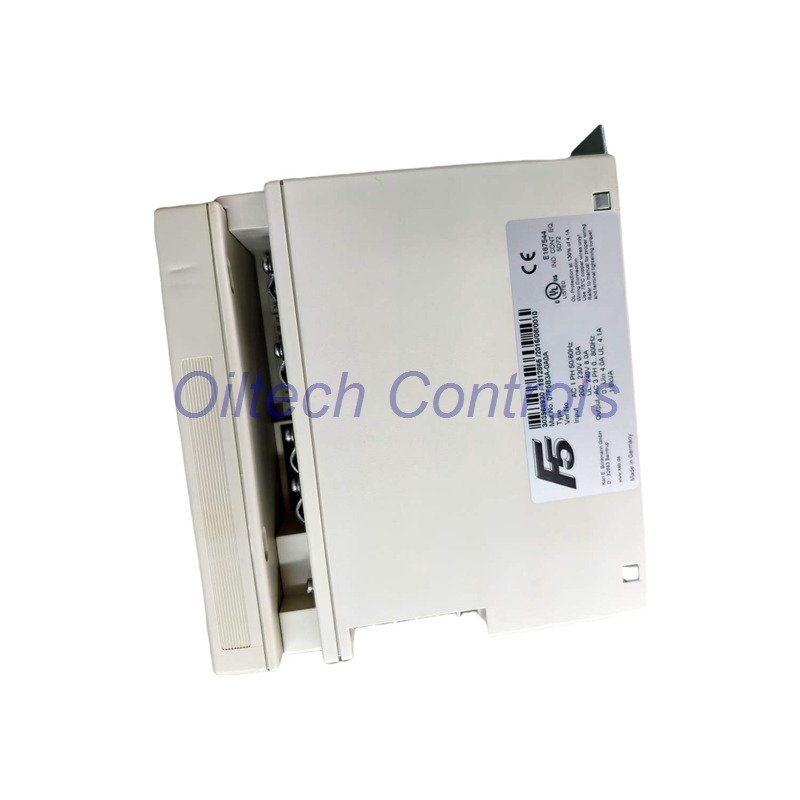

KEB 14F5C1D-380A Key Summary
- Model: 14F5C1D-380A
- Series: KEB F5 Combivert Axis Drive
- Power Rating: 7.5 kW for heavy systems
- Voltage Range: 400 V (305-500 V)
- 3-phase drive for industrial loads
- Input Current: 16.5 A normal work
- Max Current: 35.6 A peak support
- Temperature: -10 to 45 °C operating
- 12-month warranty included
Performance and Operating Window
- 400 VAC rated supply for strong torque
- 11 kVA capacity at full demand
- 0-800 Hz output range for wide control
- 2 kHz switching for flexible tuning
- 50/60 Hz input for global systems
- Frequency adjust for machine upgrade
Control and Interface Functions
- Programmable digital inputs: 8 channels
- Analog output: 2 × 0 to ±10 V
- Earth fault monitoring installed
- Short circuit monitoring active
- EMC class C1 for low-noise areas
- Standards: EN 61800-2, EN 61800-5-1
Extra Technical Parameters
- Storage Temperature: -25 to 70 °C
- 400 VAC 23.1 A at input load
- 16.5 A at 0-400 VAC output zone
- 8 ms feedback update time
- Basic cooling through rear airflow
- Sensor ready for closed-loop plans
System Advantages and Selling Points
- Stable power for high duty machines
- Low noise output for plant safety
- Fast tuning reduces setup time
- Wide voltage window for more systems
- Strong EMC for sensitive equipment
Shipping, Warranty, and Package
- Ships by FedEx, UPS, DHL
- 1 × KEB 14F5C1D-380A unit
- 1 × Basic connection sheet
- 1 × Setup terminal pack
- Warranty: 12 months support
FAQ
- Q: Can the 14F5C1D-380A run 3-phase heavy motors?A: Yes, it handles 7.5 kW loads.
- Q: Is 2 kHz switching stable for speed control?A: Yes, it stays stable with tuned settings.
- Q: Does the voltage window support 305-500 V sites?A: Yes, it accepts that full range.
- Q: Can I use sensors for feedback control?A: Yes, closed-loop work is possible.
- Q: Is the drive ready for EMC regulated plants?A: Yes, it meets EN 61800 EMC rules.
