Keyence SK-H050 Electrostatic Sensor | Charge, Temp, Humidity Meter

Product Introduction

SK-H050 from Keyence is a hand-held electrostatic sensor. It measures charge potential, temperature, and humidity. The SK-H series suits industrial static control. This unit offers two charge modes: high-precision and wide-range. It helps you find static problems fast. Use it for spot checks and maintenance.

Key specs include ±2 kV high-precision mode and ±50 kV wide-range mode. The sensor also reads 0 to +40 °C and 10 to 85 % RH. It runs on two AA batteries for 8 hours. A Class 1 laser aids alignment. The SK-H050 is active and in production. Last verified: 2026-09.

Technical Specifications

Brand: Keyence
Model: SK-H050
Series: SK-H series
Product type: Hand-held electrostatic sensor

• Charge potential – High-precision mode: Distance 25 mm, Range ±2 kV, Accuracy ±10 V
• Charge potential – Wide-range mode: Distance 100 mm, Range ±50 kV, Accuracy ±100 V
• Display resolution (charge): 0–999 V: 1 V; 1.00–9.99 kV: 0.01 kV; ≥10.0 kV: 0.1 kV
• Sampling cycle (charge): Approx. 1.4 ms
• Temperature measurement: Range 0 to +40 °C, Accuracy ±1 °C, Resolution 0.1 °C
• Humidity measurement: Range 10 to 85 % RH, Accuracy ±5 % RH, Resolution 1 % RH
• Charge monitor function: Not available (requires SK-H055)
• Laser class: Class 1 (IEC 60825-1:2014, FDA CDRH Part 1040.10)
• Built-in ports: USB 2.0 Full Speed
• Protocols: USB
• Communication expansion: None
• Supply voltage: 2 AA alkaline dry-cell batteries
• Operating time: 8 hours (charge potential mode)
• Operating temperature: 0 to +40 °C (No freezing or condensation)
• Relative humidity: 10 to 85 % RH (No condensation; 10 to 60 % RH for SK-H055)
• Protection rating: Not available
• Dimensions (H×W×D): Not available
• Weight: Approx. 240 g
• Material: PC-ABS, PC, SUS
• Lifecycle: Active; official Keyence production status confirmed (Last verified: 2026-09)

Installation Guide

Installation is simple. Insert two AA batteries. Press the power button. Select high-precision or wide-range mode. For charge measurement, keep the sensor at the correct distance. Use 25 mm for high-precision. Use 100 mm for wide-range. The Class 1 laser helps you aim. No extra tools are needed. For temperature and humidity, just point and read.

Setup and Maintenance

Setup takes minutes. Turn on the unit. Choose your mode. The display shows charge, temperature, and humidity. Calibration is not user-adjustable. Clean the lens with a soft cloth. Do not use solvents. Replace batteries when the display dims. Store in a dry place. The SK-H050 needs no regular service. It is designed for daily industrial use.

Compatibility Notes

The SK-H050 works as a stand-alone unit. It has a USB 2.0 Full Speed port. You can connect it to a PC for data logging. It does not support external communication expansion. The charge monitor function is not built in. For that feature, you need the SK-H055 model. The sensor is compatible with standard AA alkaline batteries.

Certifications

This product holds a Class 1 Laser rating. It meets IEC 60825-1:2014 and FDA CDRH Part 1040.10. These certifications ensure safe operation in industrial settings. The SK-H050 follows Keyence quality standards. It is an active product with full production support.

Package Contents

• SK-H050 hand-held electrostatic sensor (1 unit)
• Two AA alkaline dry-cell batteries
• Quick start guide
• Protective carrying case

Warranty and Shipping

Oiltech Controls offers a 12-month warranty on this product. We ship via FedEx, UPS, and DHL. Every unit is tested before shipment. We provide global shipment support. You get technical verification before dispatch. We also support obsolete control systems. Choose us for tested industrial surplus and refurbished options.

Typical Applications

• Static charge checks on production lines
• Electronics assembly ESD audits
• Plastic film and sheet manufacturing
• Printing and packaging static control
• Cleanroom environment monitoring
• HVAC and humidity spot checks

Diagnostic Capabilities

The SK-H050 finds static hotspots fast. It shows charge polarity and magnitude. The 1.4 ms sampling cycle catches rapid changes. Use high-precision mode for small parts. Use wide-range mode for large surfaces. Temperature and humidity readings help you link static to environment. This speeds up root cause analysis.

Why Buy From Oiltech Controls?

• 15+ years in industrial automation spare parts
• Global shipment support with FedEx, UPS, DHL
• Tested industrial surplus and refurbished options
• 12-month warranty on every order
• Technical verification before shipment
• Support for obsolete control systems

FAQ

Q: Does the SK-H050 measure charge monitor function?
A: No. That function needs the SK-H055 model.

Q: What is the charge accuracy?
A: ±10 V in high-precision mode and ±100 V in wide-range mode.

Q: How long do batteries last?
A: About 8 hours in charge potential mode.

Q: Can I use it outdoors?
A: It works from 0 to +40 °C and 10 to 85 % RH. Avoid condensation.

Q: What is the warranty?
A: 12 months from Oiltech Controls.

Q: How do you ship?
A: We use FedEx, UPS, and DHL.

Contact Information

Inquiries: info@oiltechcontrols.com
Phone/WhatsApp: +86 158 8020 0923

Copyright © 2026 Oiltech Controls Limited. All rights reserved.
Original Source: https://www.oiltechcontrols.com/
All rights reserved.

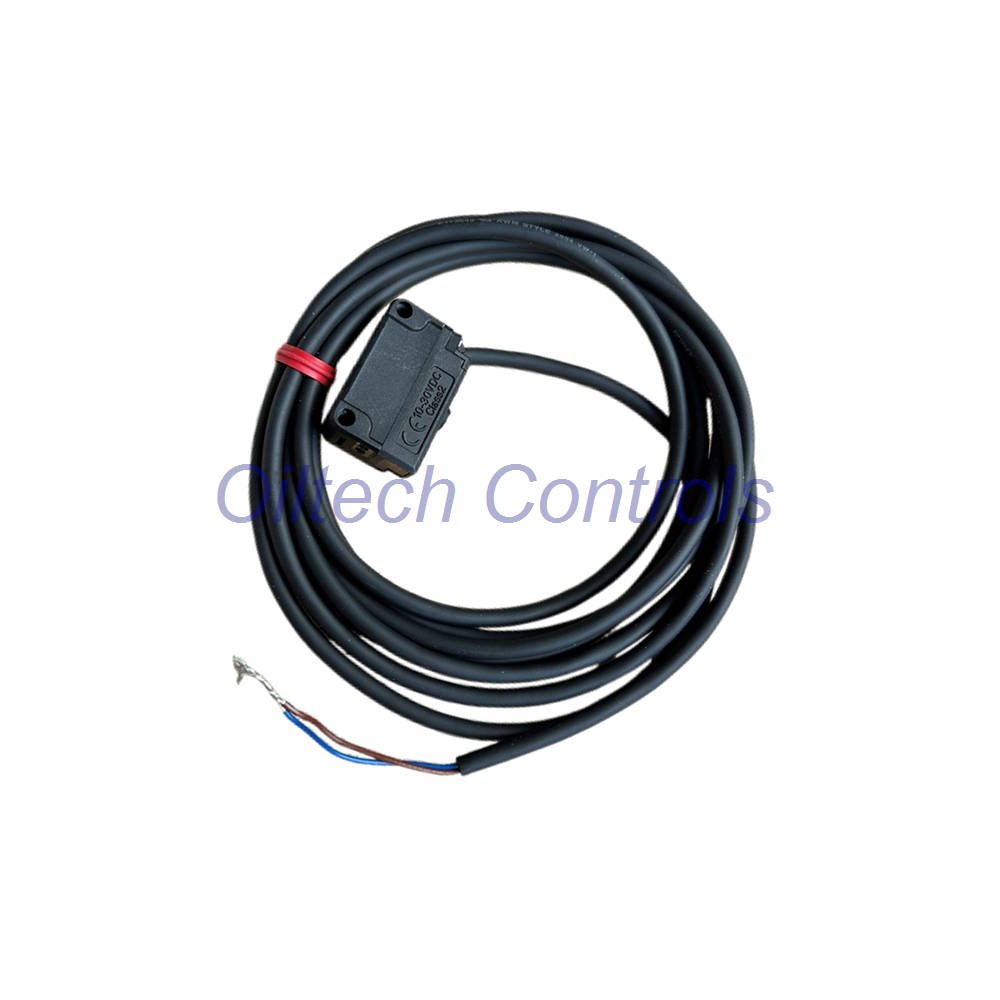

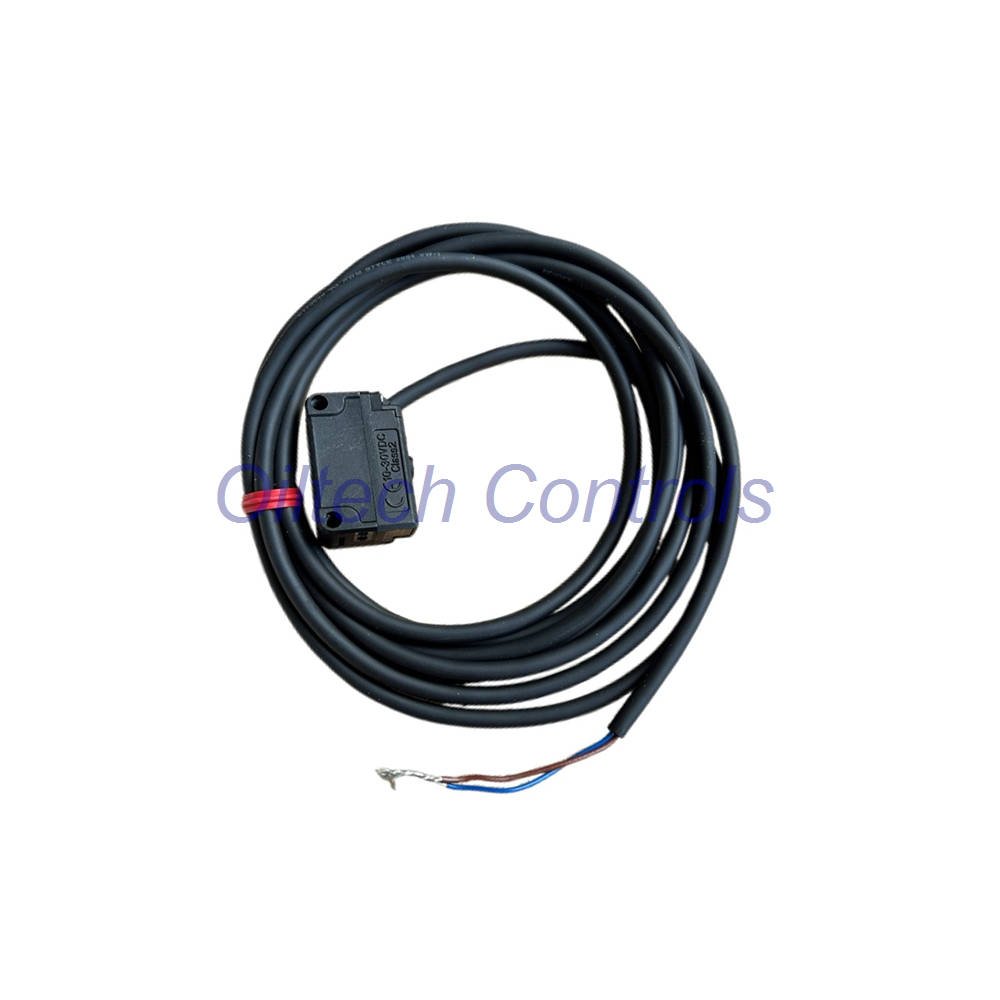

e PZ-G series. It uses a narrow view reflective design. This cuts background interference on short range targets. The rectangular housing fits tight machine frames. Detection reaches 200 mm. The red LED spot stays about 5 mm at 100 mm. A PNP open collector output drives most sinking PLC cards. The PZ-G101CP uses an M8 connector, so cable routing stays clean and service stays fast.

Specification Snapshot

• Brand: Keyence
• Model: PZ-G101CP
• Series: PZ-G series
• Sensor Type: Diffuse reflective, narrow view
• Shape: Rectangular
• Detecting Distance: 200 mm maximum (7.87 in)
• Light Source: Red LED
• Response Time: 500 µs maximum

Optics and Adjustment

• Spot diameter approx. 5 mm at 100 mm.
• Sensitivity adjustment by 1-turn trimmer, 230 degrees.
• Operation mode selectable: LIGHT-ON or DARK-ON.
• Output LED: orange.
• Stable operation LED: green.
• Lens cover material: polyarylate (PAR).

Electrical and Output Data

• Supply voltage: 10 to 30 VDC nominal, ripple (P-P) 10%.
• Current consumption: 34 mA or less.
• Output type: PNP open collector.
• Control output: 30 V maximum, 100 mA maximum, residual voltage 1 V maximum.
• Cable connection: M8 connector.
• Protection: reversed polarity, overcurrent, surge absorber.
• Interference suppression up to 2 units, via polarization filters or automatic different frequency.
• No built-in ports, no protocols, no communication expansion.

Environment and Mechanical Ratings

• Operating temperature: -20 to +55 °C, no freezing.
• Relative humidity: 35 to 85 % RH, no condensation.
• Protection: IEC IP67 / NEMA 4A, 6, 12 / DIN IP69K.
• Ambient light: incandescent 5,000 lux max, sunlight 20,000 lux max.
• Vibration: 10 to 55 Hz, double amplitude 1.5 mm, 2 hours per X, Y, Z axis.
• Shock: 1,000 m/s², 6 times per X, Y, Z axis.
• Housing: glass-fiber reinforced PBT.
• Weight: approx. 10 g.
• Mounting torque: 0.5 N·m maximum on mounting hole part.

Best Fit Equipment

• Assembly cells checking small part presence.
• Packaging lines reading labels and caps.
• Electronic feeders detecting chip and tray position.
• Machine tools needing compact side mounting.
• Washdown areas that demand IP69K.
• Legacy PZ-G panels needing drop-in spares.

Oiltech Controls Review

• The narrow view keeps background metal from tripping the output.
• 200 mm range covers most short stroke fixture checks.
• The M8 connector speeds swap-outs during downtime.
• PNP output matches common sourcing PLC inputs.
• Confirm cable part number, since cable is not included.

Why Buy From Oiltech Controls?

• More than 15 years in industrial automation spare parts.
• Worldwide shipment support for urgent line stops.
• Tested industrial surplus and refurbished choices.
• 12-month warranty on every order.
• Technical verification before dispatch.
• Support for obsolete control systems.

Shipping, Warranty and Contact

• 12-month warranty included.
• Dispatch within 24 to 28 hours.
• Shipping by FedEx, UPS, or DHL.
• Email: info@oiltechcontrols.com
• WhatsApp: +86 158 8020 0923

FAQ

Q: What makes the PZ-G101CP different from a standard diffuse sensor?

A: It uses a narrow view optical design. This limits background reflection and improves short range stability.

Q: Does the PZ-G101CP include a cable?

A: No. It uses an M8 connector. Order the cable separately to match your panel run.

Q: What output type does it provide?

A: It provides a PNP open collector output. Check that your PLC input card sinks current.

Q: How far can it detect a matte white target?

A: Up to 200 mm. Dark or glossy targets reduce this range, so test on site.

Q: Can I mount two units side by side?

A: Yes. Up to 2 units with polarization filters or the automatic different frequency function.

Q: What mounting torque is safe?

A: 0.5 N·m maximum on the mounting hole part. Higher torque can crack the housing.
