MC07B0220-503-4-00 SEW MOVITRAC 07B 22kW Inverter with Keypad

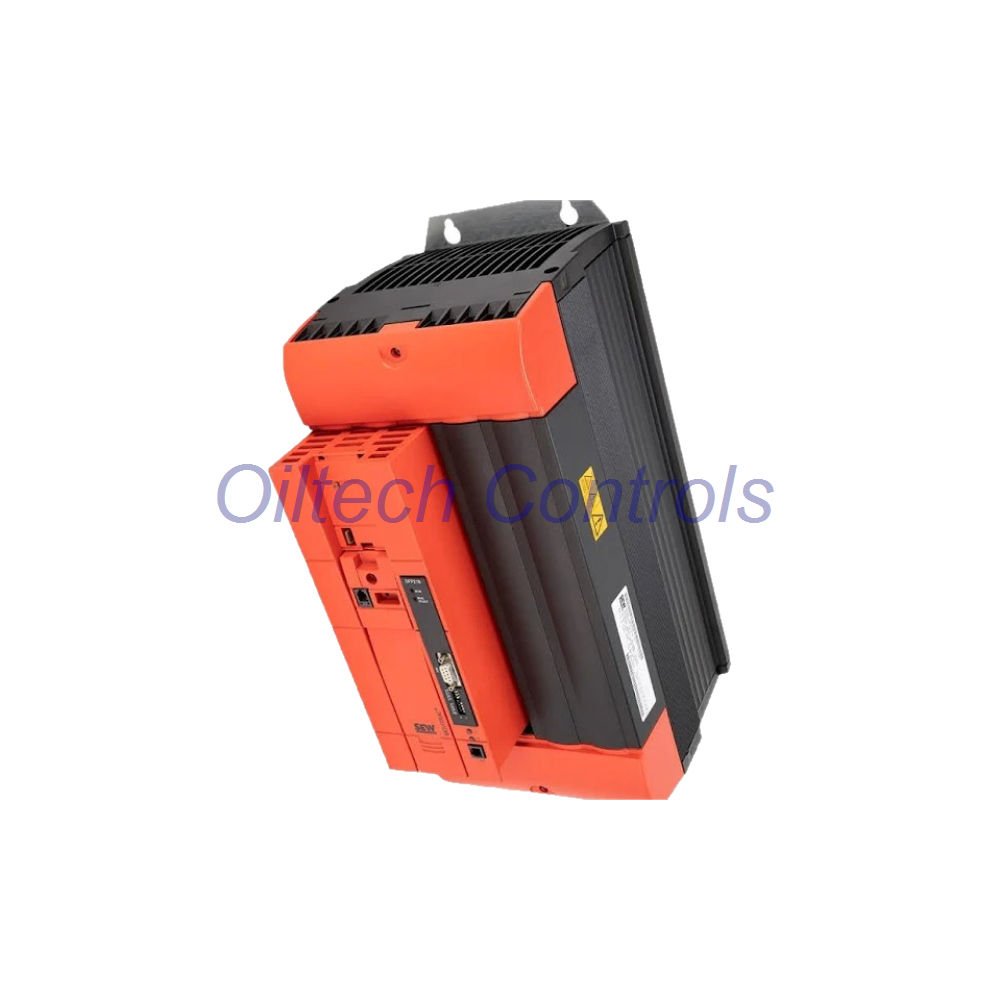

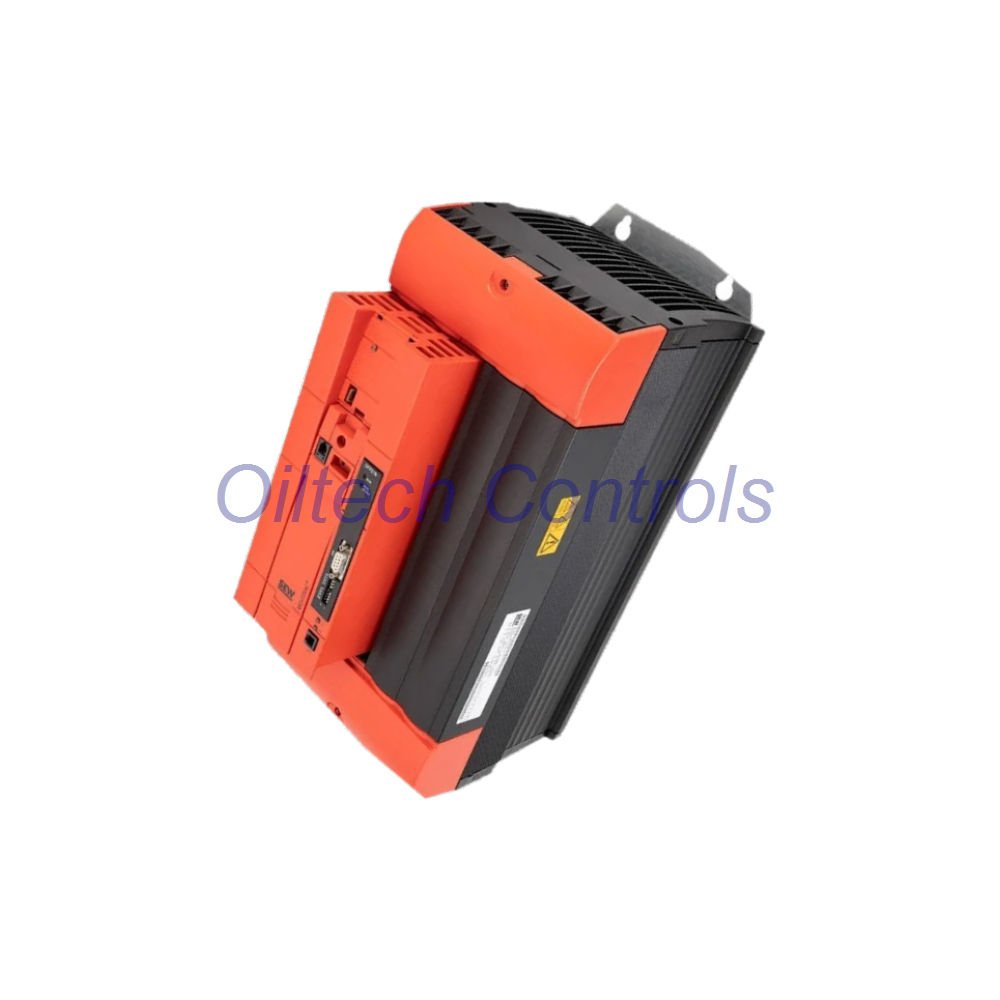

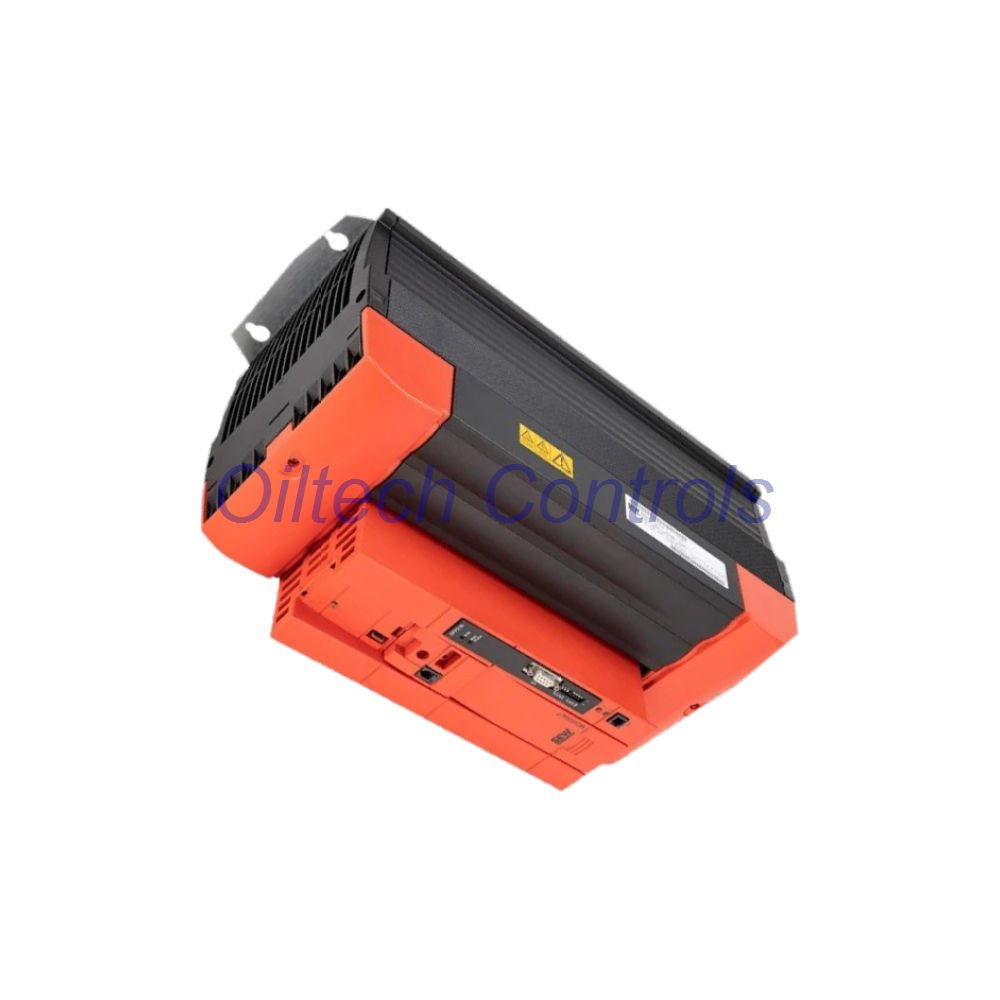

MC07B0220-503-4-00 SEW MOVITRAC® 07B — 22 kW Heavy-Duty Inverter

The MC07B0220-503-4-00 is a SEW MOVITRAC® 07B frequency inverter for 22 kW (30 HP) motors. It runs on 400 V three-phase supply. Rated output current reaches 46 A. Size 3 housing handles higher thermal loads. A built-in brake chopper supports 4Q operation. The FBG11B keypad comes included for fast parameter setup. No integrated suppression filter is fitted. This unit suits retrofit and panel-build projects where external EMC filtering is already planned. Engineers pick the MC07B0220-503-4-00 for reliable torque at full load and simple commissioning with the FBG11B keypad.

Technical Data

• Brand: SEW
• Model: MC07B0220-503-4-00
• Series: MOVITRAC® 07B
• Supply: 380–500 VAC, 3-phase, 50/60 Hz
• Motor power: 22 kW / 30 HP
• Output current: 46 A
• Size: 3
• Brake chopper: integrated, 4Q operation
• Suppression: not included (external filter required for C2)
• Keypad: FBG11B included
• Ambient temperature: -10 °C to +50 °C with derating
• Protection: IP20
• Anti-interference: relies on external EMC filter

Commissioning and Keypad Use

• Plug in the FBG11B keypad for parameter access.
• Set motor data from the nameplate before first run.
• Use the keypad to check DC link voltage and output current.
• Save user parameter sets for repeat builds.
• Confirm motor rotation direction at low speed first.

Installation Notes

• Mount vertically with free airflow above and below.
• Keep motor cables short or use shielded cable.
• Add an external EMC filter to meet C2 limits.
• Tighten power terminals to the torque in the manual.
• Connect brake resistor to the chopper terminals if needed.

Diagnostics and Fault Handling

• Keypad shows fault codes for overcurrent and overvoltage.
• Overtemperature trips are logged in the fault memory.
• Monitor DC link voltage to spot regen energy issues.
• Use the brake chopper to manage braking energy.
• Check output current against the 46 A rating.

Which Equipment Fits This Drive

• Conveyors and belt systems with 22 kW motors.
• Centrifugal pumps and fans for flow control.
• Mixers and agitators in process plants.
• Extruders and rolling equipment.
• Material handling and warehouse machinery.

Compatibility and Certification

• Works with standard three-phase induction motors.
• Accepts SEW brake resistors and fieldbus option cards.
• CE marked, UL and cUL listed, RoHS compliant.
• Size 3 housing matches MOVITRAC 07B panel layouts.

Oiltech Controls’s Insight

• Plan external EMC filtering early. This unit has no built-in suppression.
• The FBG11B keypad speeds setup on site.
• Size 3 units benefit from clean, cool cabinet air.
• Check motor insulation class for long cable runs.
• Stock brake resistors before commissioning.

Oiltech Controls Review

• Solid choice for 22 kW retrofits with existing filters.
• Keypad inclusion cuts commissioning time.
• Brake chopper saves external parts cost.
• Good fit for panel builders and MRO teams.
• Ask us for tested surplus units to save budget.

Why Buy From Oiltech Controls?

• More than 15 years supplying industrial automation spare parts.
• Worldwide shipping support and export paperwork help.
• Tested industrial surplus and refurbished drives available.
• 12-month warranty on every sale.
• Technical checks and verification before dispatch.
• Support for obsolete control systems and legacy panels.

Warranty, Dispatch, and Shipping

• 12-month warranty covers defects in normal use.
• Orders dispatch within 24–28 hours.
• Shipment via FedEx, UPS, or DHL with tracking.
• Packed for safe transport of heavy size 3 units.

What’s in the Box

• 1x MC07B0220-503-4-00 inverter
• 1x FBG11B keypad
• Installation leaflet and terminal labels

FAQ

Q: Does this drive include an EMC filter?

A: No. The MC07B0220-503-4-00 ships without suppression. Add an external filter for C2 compliance.

Q: Can I run the drive without the FBG11B keypad?

A: You can, but setup is harder. Use the keypad for parameter entry and fault reading.

Q: How do I pick a brake resistor for this 22 kW unit?

A: Match resistance and duty cycle to your braking load. Ask us and we will help size it.

Q: Is a used or refurbished MC07B0220-503-4-00 a good buy?

A: Often yes. We test each unit before shipment. The 12-month warranty lowers risk.

Q: What should I check before ordering this inverter?

A: Confirm motor current, panel space for size 3, and whether your cabinet already has filtering.
