FSC11B SEW-Eurodrive MOVITRAC B Interface Module 18207162

SEW-Eurodrive FSC11B | Connectivity Module for MOVITRAC B Drives

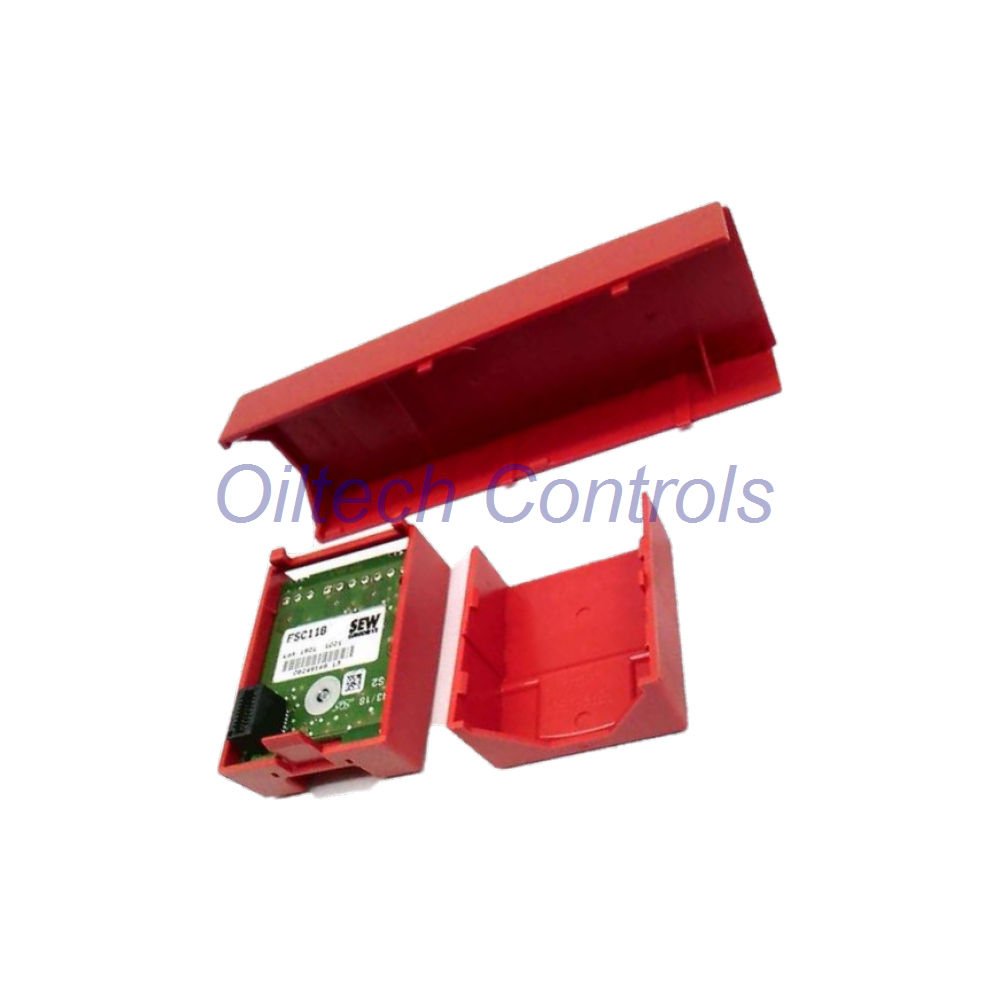

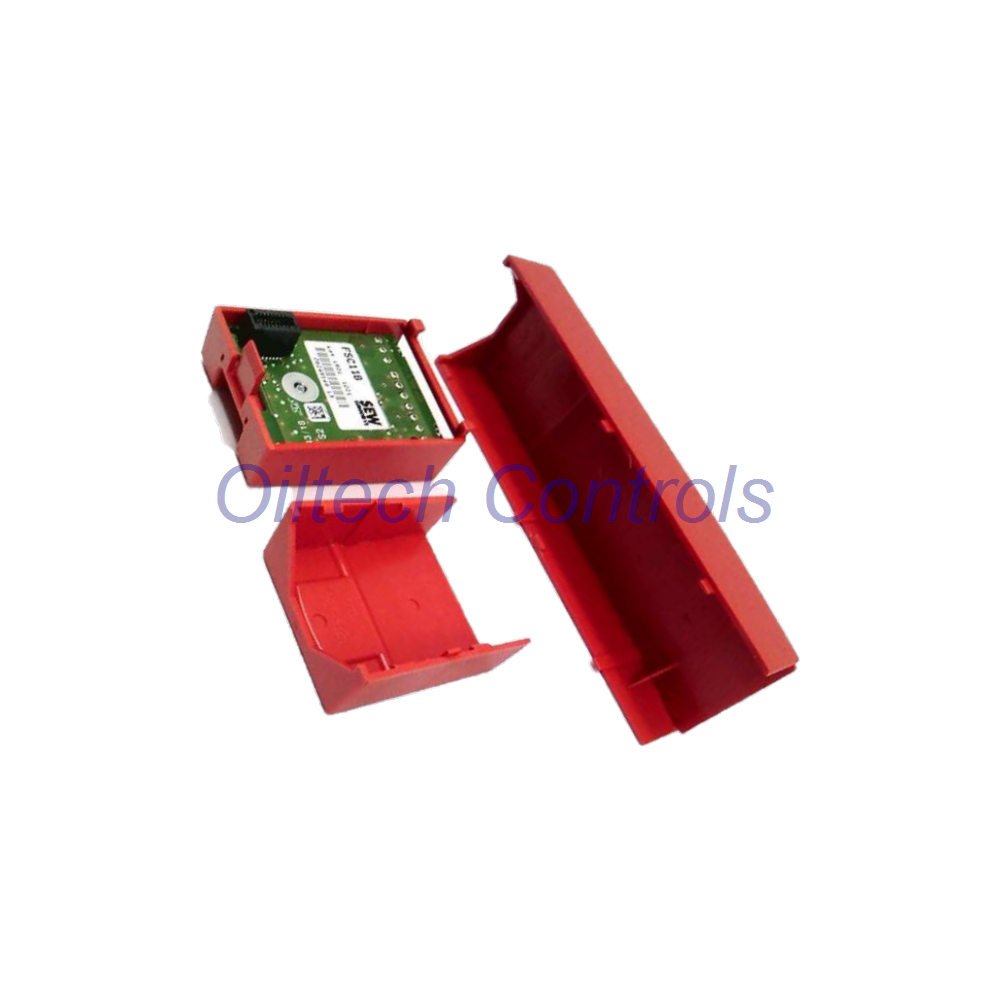

The SEW-Eurodrive FSC11B adds serial and bus communication to MOVITRAC B frequency inverters. It provides an RS-485 port and a CAN-based system bus (SBus). The card also carries an X44 service interface on an RJ10 connector. Part number 18207162. It plugs directly onto the drive and saves panel space.

Interface Layout

• X45 RS-485: ST11 (RS-485+), ST12 (RS-485−), GND reference.
• X46 SBus: SC11/SC12 high/low, SC21/SC22 high/low, GND, 24VIO auxiliary supply.
• X44 service: RJ10 port for setup and diagnostics.
• Termination: 120 Ω resistor, enabled by DIP switch.

Bus Limits and Environmental Data

• RS-485 cable: up to 200 m.
• SBus at 125 kBaud: 320 m.
• SBus at 250 kBaud: 160 m.
• SBus at 500 kBaud: 80 m.
• SBus at 1000 kBaud: 40 m.
• Operating temperature: −10 °C to +60 °C.
• Protection class: IP20.
• Mounting: direct fit on MOVITRAC B drives.

Series Engineering Notes

• SBus supports MOVILINK and CANopen protocols.
• RS-485 links drives to PLCs and PCs.
• The 24VIO pin allows external supply for bus segments.
• DIP termination removes the need for external resistors.
• Service port X44 speeds up parameter checks.

Compatible Equipment

• MOVITRAC B frequency inverters
• SEW drive networks using SBus
• Panels with PLC-based RS-485 control
• Multi-drive CANopen systems
• Retrofit and repair of legacy SEW panels

Oiltech Controls’s Insight

• Set the DIP termination only at bus ends.
• Keep RS-485 stubs short to reduce reflections.
• Lower baud rate extends SBus cable runs.
• Check 24VIO supply before long bus segments.
• Record node IDs before replacing a module.

Warranty, Handling and Shipping

• 12-month warranty on all products.
• Dispatch in 24-28 hours after order confirmation.
• Shipping by FedEx, UPS and DHL.
• Tracking sent after dispatch.

Why Buy From Oiltech Controls?

• Over 15 years of industrial automation spares know-how.
• Worldwide shipping and export support.
• Tested surplus and refurbished parts on offer.
• Every item backed by a 12-month warranty.
• Technical checks before every shipment.
• Support for obsolete and discontinued control systems.

Contact

Email: info@oiltechcontrols.com | WhatsApp: +86 158 8020 0923

FAQ

Does FSC11B work with all MOVITRAC B sizes?

It fits MOVITRAC B drive option slots. Check your drive variant and firmware first. Confirm the slot is free before ordering.

Which bus should I use, RS-485 or SBus?

Use RS-485 for simple PLC links. Choose SBus for multi-drive networks. SBus adds MOVILINK and CANopen support.

Why does my SBus network drop at 1000 kBaud?

Cable length is limited to 40 m at 1000 kBaud. Check termination and shield bonding. Lower the baud rate for longer runs.

When should the 120 Ω resistor be active?

Enable DIP termination only at the two bus ends. Leave middle nodes unterminated. Wrong termination causes reflections and errors.

Can I reuse my old parameter set after swapping modules?

Node ID and baud rate sit in drive parameters. Save them before removal. Reload and verify after the new card is fitted.
