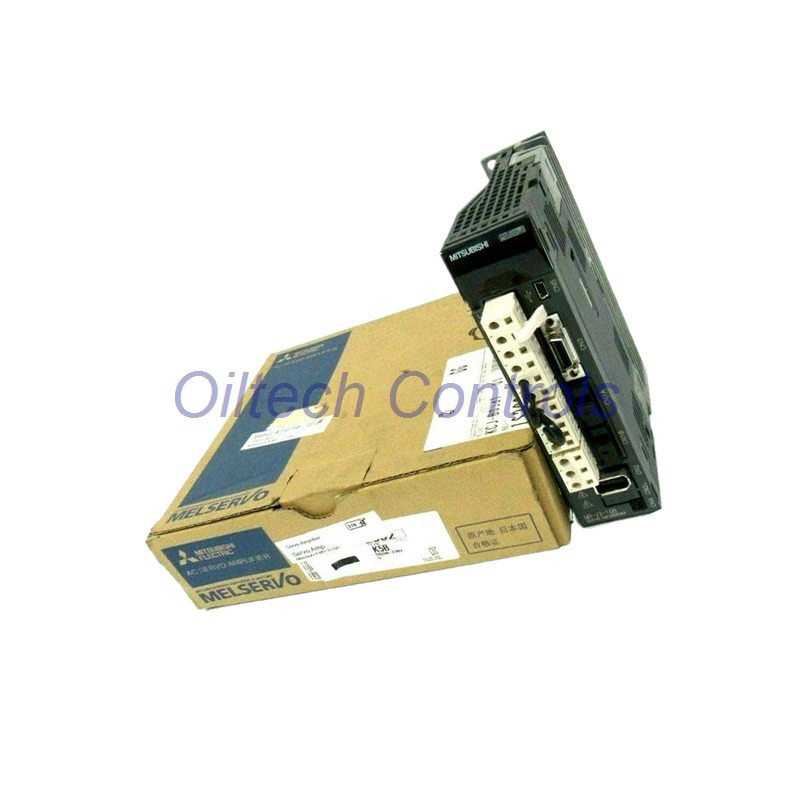

Intro to MR-J3-10BS Servo Amplifier
- MR-J3-10BS works as a compact AC servo amplifier for automation lines.
- It runs at 200-230V AC and supports 1-phase or 3-phase inputs.
- It sends fast signals through SSCNET optical communication.
- It resists noise, holds accuracy, and improves motion timing.
- It connects to a PC by USB for easy setup and testing.
Technical Data & Electrical Specs
- Brand: Mitsubishi Electric
- Model: MR-J3-10BS
- Series: MELSERVO MR-J3
- Output: 100W / 0.1kW
- Rated Current: 1.1A
- Input Voltage: 200-230V AC (170-253V tolerance)
- Frequency: 50/60Hz
- Wiring Range: Up to 50m cable distance
- Output Voltage: 24V DC (10% tolerance)
- Control System: Sine-wave PWM + current control
- Brake: Built-in safety brake
- Ambient Rating: 0°C to +55°C
Motor & Network Compatibility
- Supports HF-KP053 / HF-KP13 motors
- Supports HF-MP053 / HF-MP13 motors
- SSCNET network support for fast data sharing
- USB setup for parameter control and updates
- CN2 port for optimized motor connection
Key Selling Points
- 50m wiring range for large machines
- Torque limit system protects motor drive parts
- Optical signal improves speed and reduces interference
- Real-time tuning for stable motion tasks
- Compact size: approx. 6 × 4 × 7 inches
Warranty & Delivery Terms
- 12-month warranty standard
- Shipping available via FedEx, UPS, DHL
- Packed with anti-static material for transit safety
FAQ
- Can this run long-distance wiring?
Yes, up to 50m under standard network setup.
- Does the MR-J3-10BS support tuning on PC?
Yes, through USB and MR Configurator software.
- What motors can I connect to it?
HF-KP and HF-MP series motors from Mitsubishi.
- Does it handle voltage changes?
Yes, it works from 170V to 253V AC safely.
- Can it reduce motor noise?
Yes, the optical network improves noise resistance.
