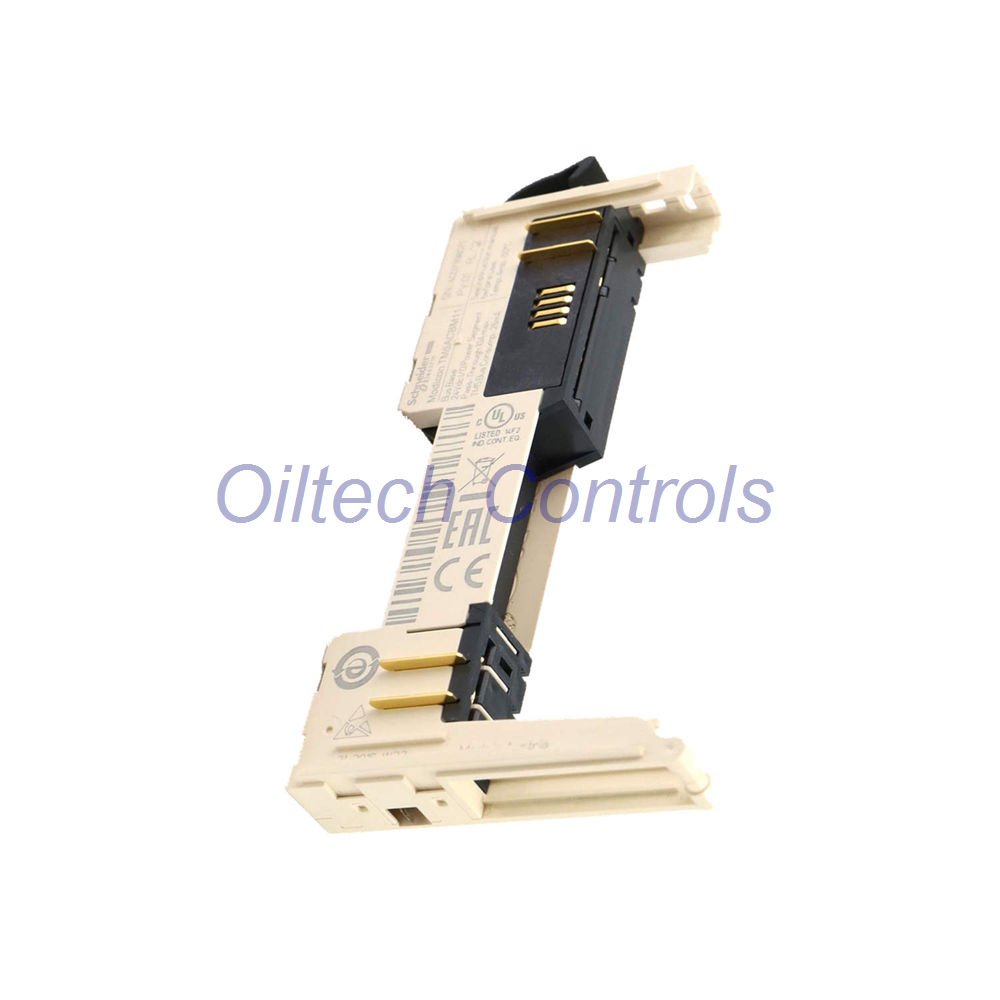

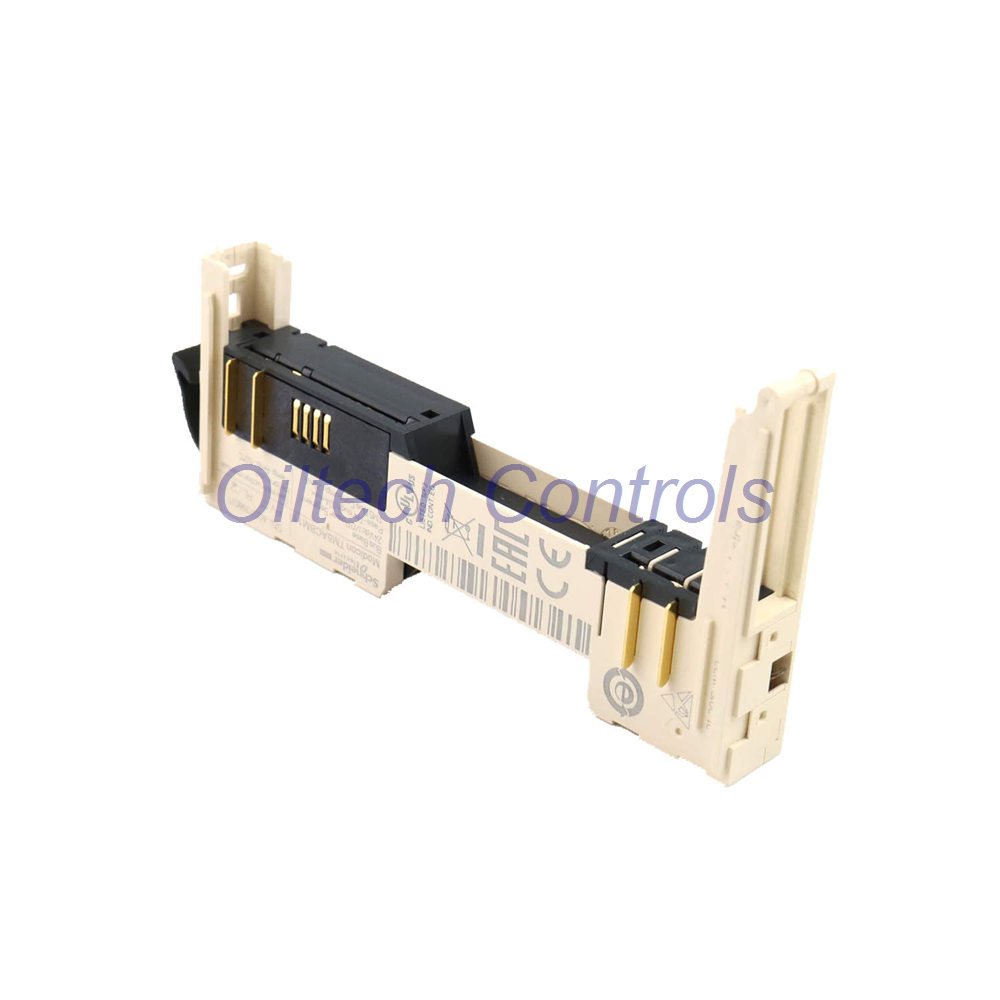

TM5ACBM11 Bus Base – Modicon TM5 Series
Product Overview
The TM5ACBM11 is a white bus base from the Modicon TM5 range. It operates at 24 V DC and serves as a communication accessory. This base supports remote transmitter modules, counter modules, 24 V DC discrete modules, common distribution modules, and analog modules. Furthermore, it is compatible with Modicon LMC058 and M258 controllers. The compact design (1.7 x 5.4 x 10.7 cm) weighs only 0.02 kg. Additionally, it ensures reliable signal distribution in industrial automation systems.
Key Technical Data
- Brand: Schneider Electric / Modicon
- Model: TM5ACBM11
- Series: Modicon TM5
- Rated Supply Voltage: 24 V DC
- Color: White
- Weight: 0.02 kg (27 g packed)
- Package Dimensions: 1.7 x 5.4 x 10.7 cm
- Ambient Temperature Range: 0 °C to +60 °C (operation)
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Class: IP20
- Dielectric Strength: 1500 V AC for 1 minute
- EMC Immunity: Industrial environment (IEC 61000-6-2)
Measurement & Performance
- Frequency Response: DC to 10 kHz (digital signals)
- Resolution: 16-bit for analog modules
- Linearity: ±0.1% of full scale
- Interference Rejection: Common mode > 60 dB at 50/60 Hz
- Diagnostic Capability: LED status indicators for bus power and communication
Installation Guide
Mount the bus base on a standard DIN rail. Use the supplied clip to secure it. Connect the 24 V DC power supply to the dedicated terminals. Insert modules from right to left. Ensure proper grounding for noise immunity. The base supports hot-swapping of I/O modules.
Commissioning & Maintenance
After wiring, power up the system. Check the green LED for bus power. Use the configuration software to assign addresses. Periodic inspection of connections is recommended. The base requires no regular calibration.
Compatibility
This bus base works with Modicon M258 and LMC058 controllers. It is compatible with all TM5 digital, analog, and counter slices. For obsolete systems, refer to Modicon Quantum series alternatives.
Certifications
CE, UL, cUL, and RoHS compliant. Designed for industrial control panels.
Typical Applications
Use in packaging machines, conveyor systems, and material handling. Ideal for distributed I/O in small to medium PLC systems. Supports remote transmitter and counter modules for positioning tasks.
Diagnostic & Troubleshooting
The bus base includes a power LED and a bus communication LED. If the bus LED is off, check the 24 V supply or the backplane connection. Overvoltage protection prevents damage to connected modules.
Package Contents
- 1 x TM5ACBM11 Bus Base
- 1 x mounting clip
- User manual (digital download)
Warranty & Shipping
12-month warranty against defects. We ship via FedEx, UPS, or DHL (express delivery). Worldwide tracking available.
Frequently Asked Questions (FAQ)
- Q: Can I use this base with Modicon M340?
A: No, it is designed for TM5 system with M258/LMC058. - Q: What is the maximum current on the bus?
A: 1.5 A total for all modules. - Q: Does it support digital and analog I/O?
A: Yes, all TM5 I/O slices are compatible. - Q: Is there a replacement for older Quantum bases?
A: See Modicon Quantum series for legacy systems.
