Executive Summary

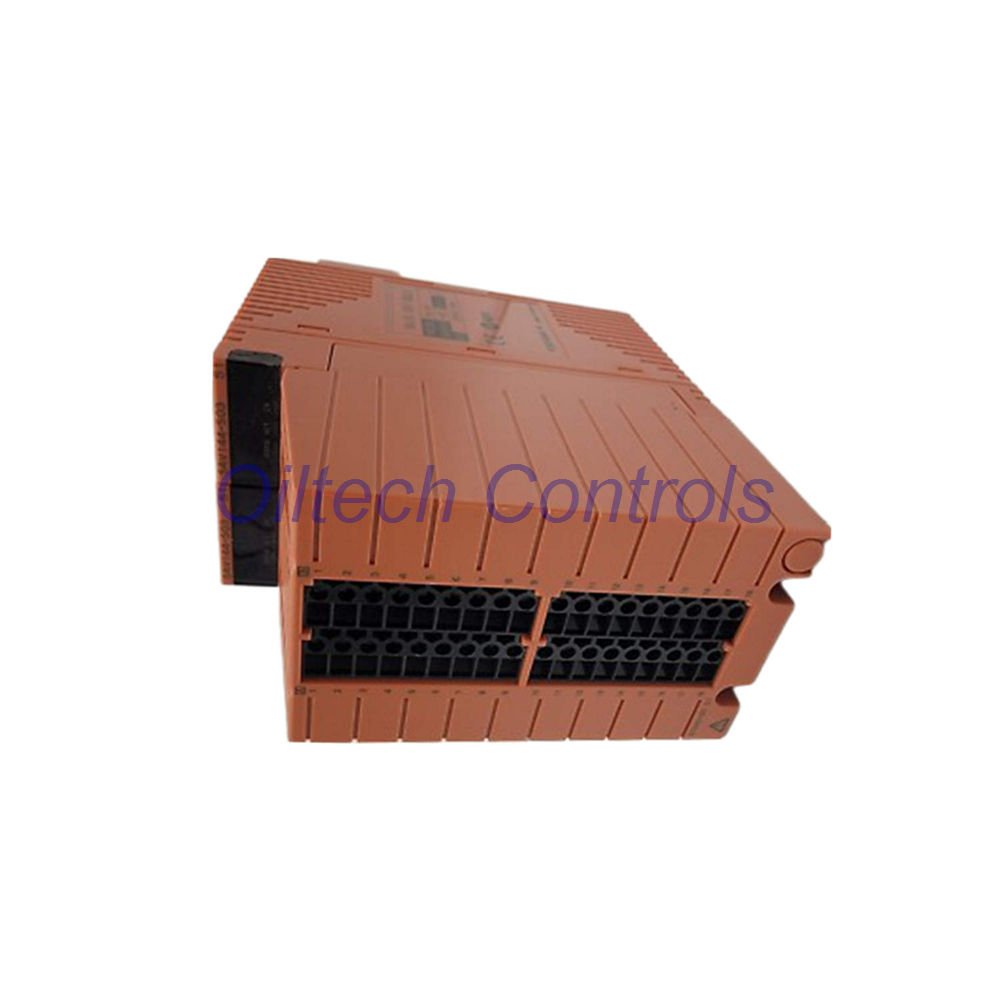

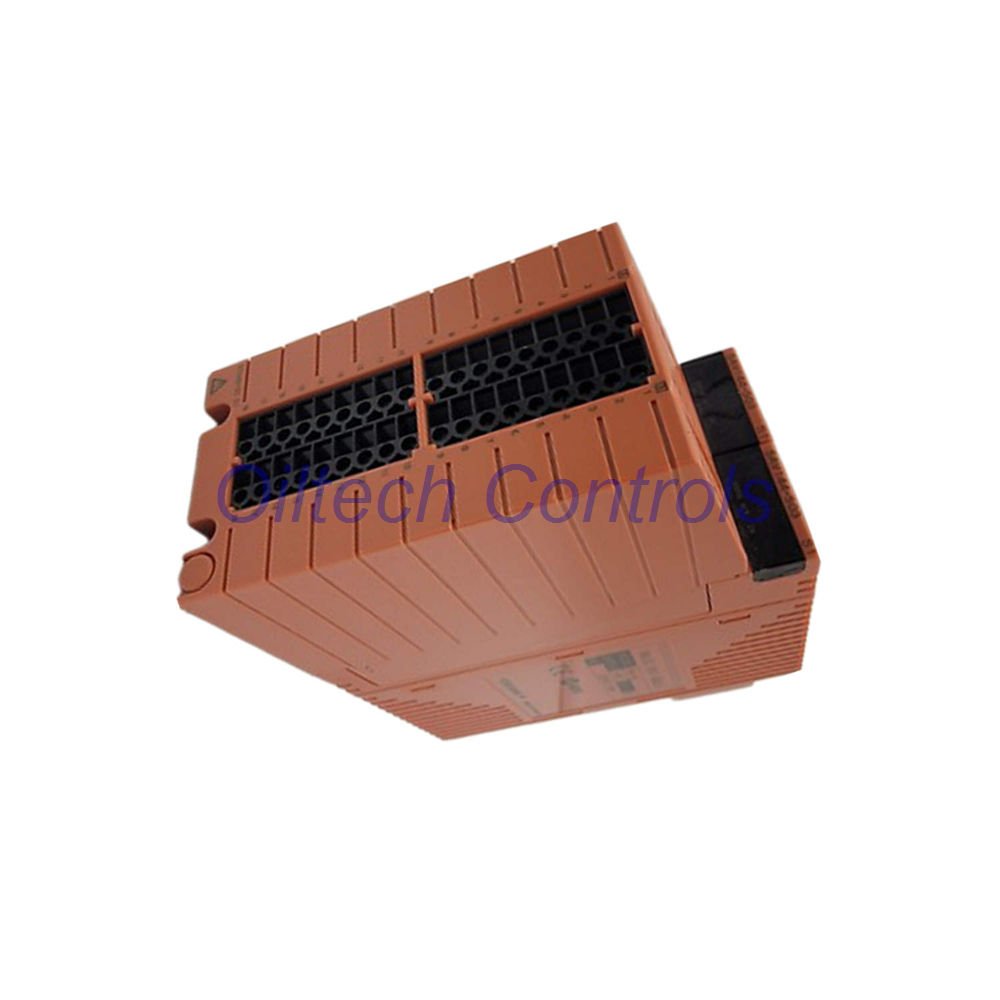

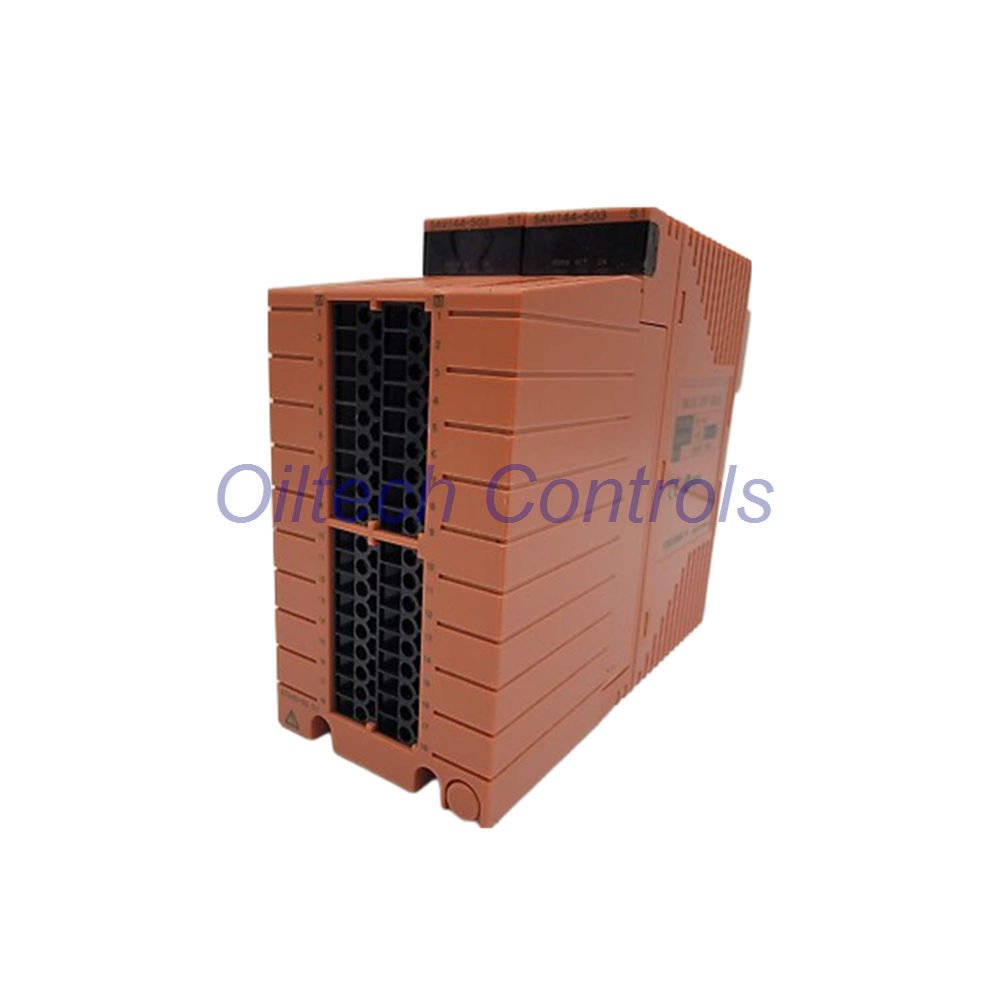

The Yokogawa SAV144-S03 is a high-density 16-channel analog voltage input module designed for process control architectures. Engineers integrate this card to capture 1-5 V and 1-10 V field signals with a fast 40 ms cycle time. Built to ISA Standard G3 specifications, it operates reliably in harsh, corrosive plant environments from -20 °C to 70 °C.
Technical Specifications & Parameters
- Brand & Model: Yokogawa SAV144-S03 (G3 Conformal Coated Type)
- Channel Count & Isolation: 16 input channels with module-level electrical isolation
- Signal Ranges: Configurable 1 to 5 V DC and 1 to 10 V DC inputs
- Permissible Input Limit: Up to ±30 V DC continuous overvoltage protection
- Measurement Accuracy: ±4 mV (1-5 V range) | ±9 mV (1-10 V range)
- Update Speed & Drift: 40 ms cycle time | ±4 mV/10 °C (1-5 V) / ±9 mV/10 °C (1-10 V)
- Input Impedance: 1 MΩ during Power-ON | 100 kΩ during Power-OFF
- Isolation Withstand Voltage: 1.5 kV AC between input circuitry and main system for 1 minute
- System Power Draw: 300 mA (5 V DC system) | 140 mA (24 V DC system)
- Physical Weight & Wiring Options: 0.24 kg to 0.29 kg | Pressure clamp block, MIL cable, or KS1 dedicated cable
Oiltech Controls Engineering Review & Target Systems
- Control System Integration: Fully compatible with Yokogawa CENTUM VP and CENTUM CS 3000 node units.
- Hardware Redundancy Support: Pair two modules in adjacent slots to establish full dual-redundant execution.
- Suitable Applications: Turbomachinery control, boiler instrumentation, gas processing units, and chemical reactors.
- Field Device Matching: Connects directly to process transmitters, analyzers, and active signal conditioners.
Order Fulfillment & Dispatch Details
- Rapid Dispatch Guarantee: Orders process and ship within 24 to 48 hours from inventory verification.
- Global Express Logistics: Shipped worldwide using trusted carriers FedEx, UPS, and DHL.
- Protective Handling: Packaged inside anti-static ESD bags with custom foam impact barriers.
- Comprehensive Coverage: Every module comes standard with a full 12-month replacement warranty.
Why Choose Oiltech Controls?
- Decade-Plus Field Expertise: Over 15 years providing reliable industrial automation and DCS spare parts globally.
- Worldwide Logistics Network: Fast cross-border delivery options covering industrial sites in over 80 countries.
- Rigorously Tested Stock: Available fully tested industrial surplus and factory-refurbished stock options.
- Guaranteed Quality Protection: Backed by our comprehensive 12-month engineering warranty on every delivery.
- Pre-Shipment Signal Testing: Technical verification and channel testing completed prior to packaging.
- Legacy System Support: Specialist sourcing for obsolete GE, Yokogawa, and ABB control hardware.
Support & Technical Manual Request
- Documentation Access: Readers should download the official technical manual below to verify field terminal wiring schematics prior to installation.
- Direct Engineering Contact: Email technical inquiries directly to info@oiltechcontrols.com.
- Mobile Technical Service: Instant technical messaging is available on WhatsApp at +86 158 8020 0923.
Frequently Asked Questions (FAQ)
- Q: What makes the SAV144-S03 different from standard SAV144 models?
A: The S03 suffix designates ISA Standard G3 conformal coating and an extended operating temperature range (-20 °C to 70 °C) for severe industrial environments. - Q: How do I select between 1-5 V and 1-10 V ranges during hardware setup?
A: Configure signal ranges via software parameters in the CENTUM engineering station during channel assignment. - Q: Can I replace an active SAV144-S03 module while the system is powered?
A: Yes, in a dual-redundant configuration, you can swap the faulty module online without interrupting control operations. - Q: What selection check is critical when upgrading older plant nodes with SAV144 modules?
A: Verify your backplane connector style (Pressure Clamp, MIL, or KS1 cable adapter) to ensure physical harness alignment. - Q: What maintenance step prevents early failure of analog input channels in harsh plants?
A: Periodically verify cabinet cooling fans and ensure field signal lines do not exceed the ±30 V permissible voltage threshold.
