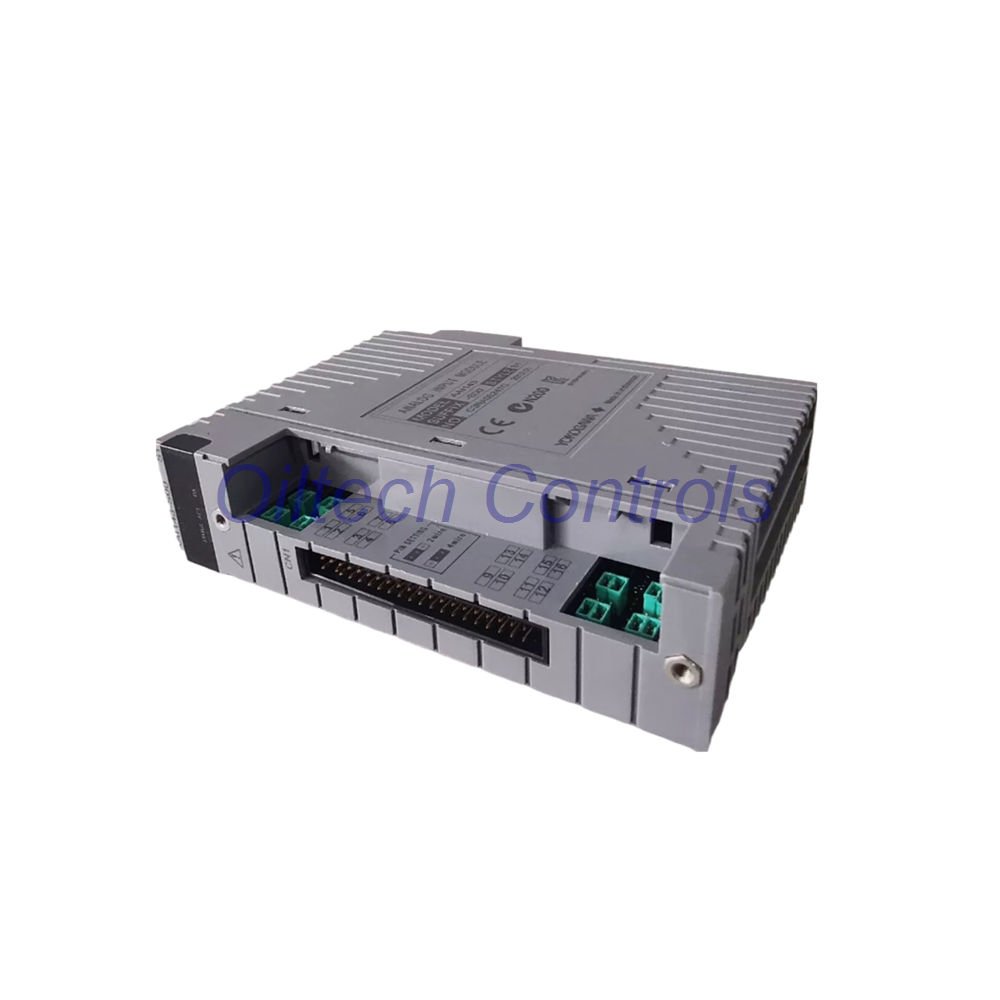

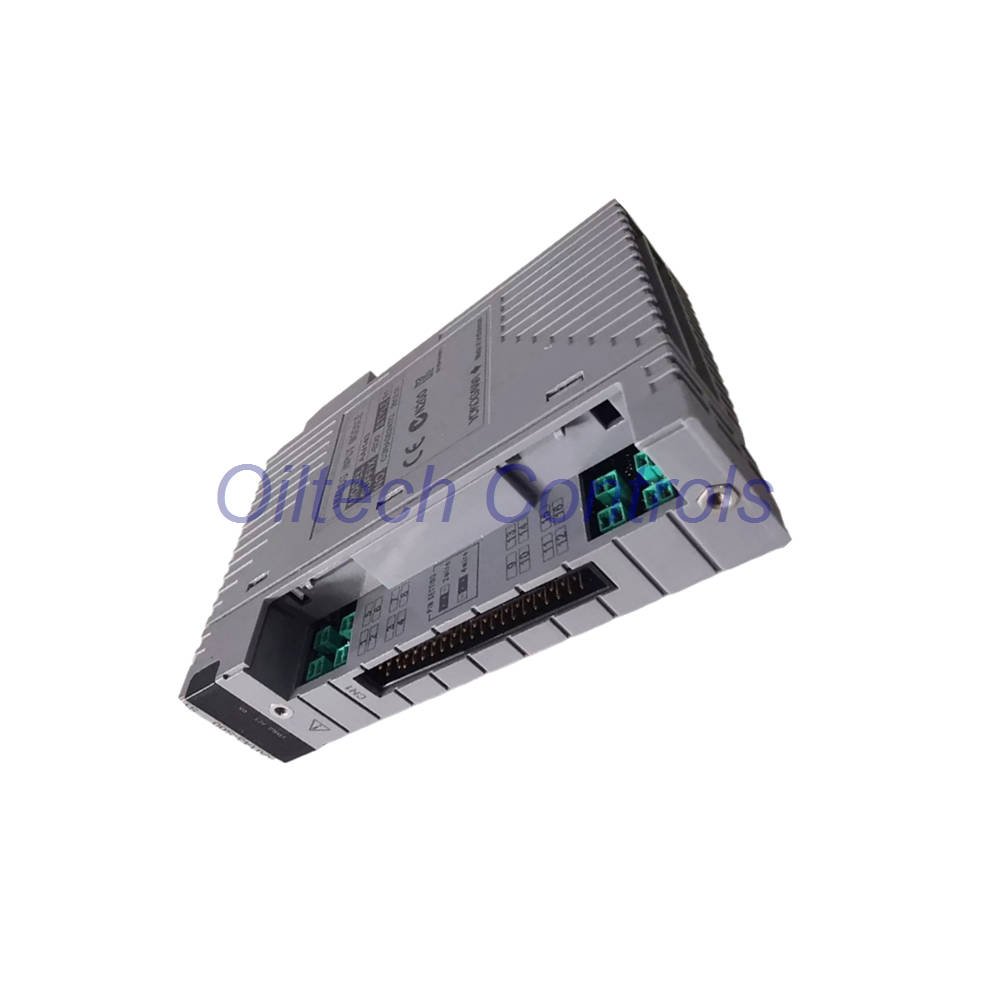

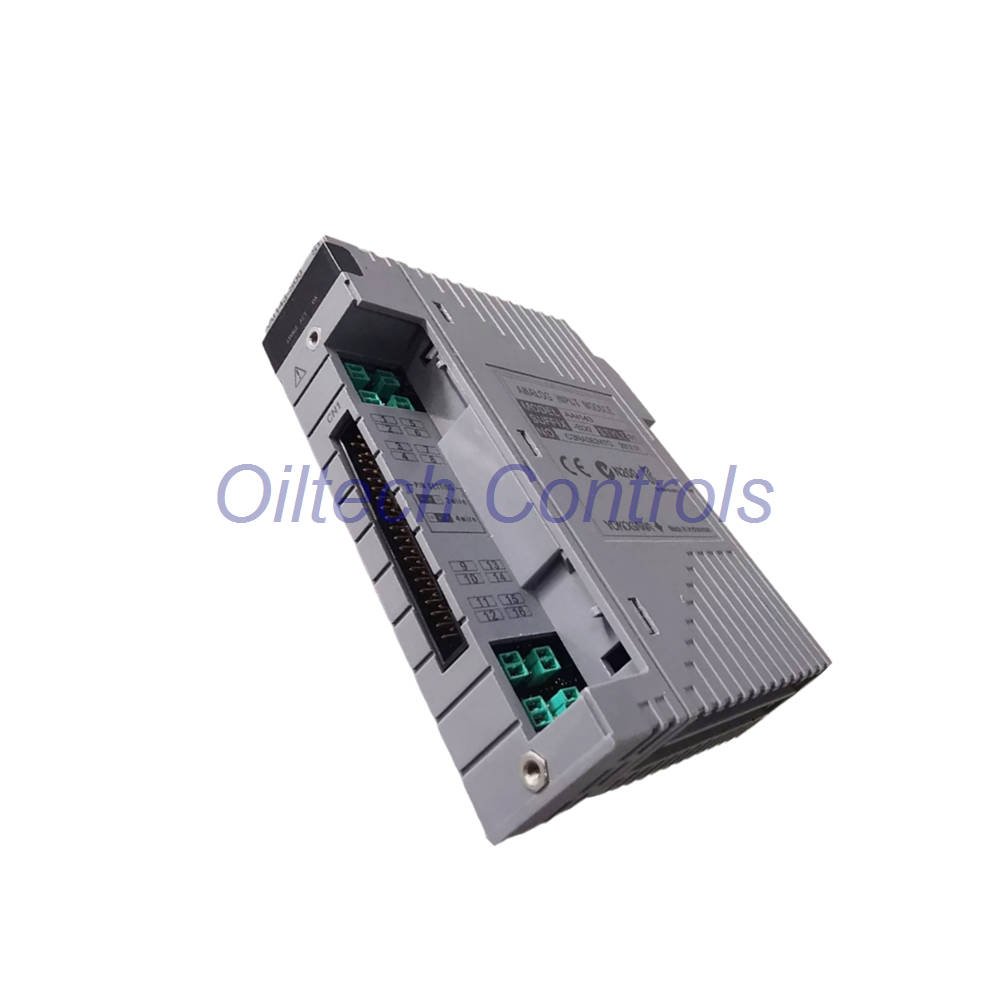

Yokogawa AAI143-S00 Analog Input Module | 16-Ch 4-20mA Centum VP

Introduction and Overview

The Yokogawa AAI143-S00 stands as a high-performance analog input module designed for modern industrial automation systems. This Centum VP series component interfaces seamlessly with field transmitters to deliver reliable data acquisition. Engineering teams rely on this module for critical control loops and precise process monitoring across diverse industrial environments.

Technical Specifications

• Brand: Yokogawa
• Model Number: AAI143-S00
• Product Type: Standard basic type analog input module
• Measurement Range: Processes standard 4 to 20 mA DC field input signals
• Input Channels: 16 fully isolated channels protect system logic circuitry
• Allowable Input Current: Handles up to 24 mA maximum current per channel
• Withstanding Voltage: Provides 1500 V AC isolation for 1 minute between input and system
• Power ON Resistance: Ranges from 270 Ω at 20 mA to 350 Ω at 4 mA
• Power OFF Resistance: Maintains a high impedance of 500 kΩ or larger
• Module Accuracy: Delivers precise measurement within a tight ±16 µA tolerance
• Data Update Period: Refreshes all channel data rapidly every 10 ms
• Transmitter Power Supply: Delivers 19.0 V or higher with a 25.5 V maximum open-circuit voltage
• Output Current Limit: Restricts loop current to 25 mA to shield field equipment
• Temperature Drift: Limits thermal variance to ±16 µA per 10 °C change
• Frequency Response: Optimized for low-frequency process control signals with internal filtering
• Linearity and Resolution: Monotonic signal conversion ensures consistent accuracy across the entire scale
• Environmental Tolerances: Operates reliably across standard industrial ambient temperature scales
• Ant-Interference Ability: Built-in noise rejection filters eliminate high-frequency electromagnetic interference
• Current Consumption: Consumes 230 mA from 5 V DC and 540 mA from 24 V DC
• Weight: Lightweight physical design weighs exactly 0.3 Kg

Equipment Compatibility

The Yokogawa AAI143-S00 integrates natively into specific control systems and field hardware setups.

• Integrates perfectly with Yokogawa Centum VP and Centum CS 3000 distributed control systems
• Fits into standard field control station node units and I/O expansion cabinets
• Accepts input from any standard 2-wire or 4-wire process control transmitters
• Connects via pressure clamp terminals, MIL connector cables, or dedicated KS1 cables

Typical Application Scenarios

• Monitors continuous temperature and pressure loops in oil and gas refineries
• Tracks flow rates and tank levels in chemical processing facilities
• Manages critical analytics signaling in large-scale power generation operations
• Controls water treatment parameters in municipal utilities and manufacturing plants

Procurement and Selection Guide

• Confirm your required channel count matches the 16-channel capacity of this unit
• Verify that your field devices utilize the standard 4-to-20 mA signaling protocol
• Choose the AAI143-S00 standard model for general environmental deployment needs
• Ensure your current baseplate accommodates the specific MIL or pressure clamp connection type

Shipping, Packaging, and Warranty

• Dispatch Time: Processes and ships within 24 to 48 hours from order confirmation
• Express Couriers: Ships worldwide via reliable express services including FedEx, UPS, and DHL
• Package Contents: Includes one brand new Yokogawa AAI143-S00 module and installation instructions
• Warranty Protection: Includes a comprehensive 12-month warranty covering any manufacturing defects

Frequently Asked Questions

Question: How do I change a channel from 2-wire to 4-wire transmitter configuration?

Answer: You must configure the physical setting pins located on the side of the module for each independent channel.

Question: What happens to the input resistance when the system loses power?

Answer: The input resistance shifts to 500 kΩ or larger to protect the field loop instrumentation.

Question: Can this module supply power directly to a field transmitter?

Answer: Yes, the built-in transmitter power supply provides 19.0 V or higher for 2-wire current loops.

Question: Does this module require specialized software configuration for basic operation?

Answer: You configure the module parameters within the standard Yokogawa system engineering environment tool.
