Product Overview

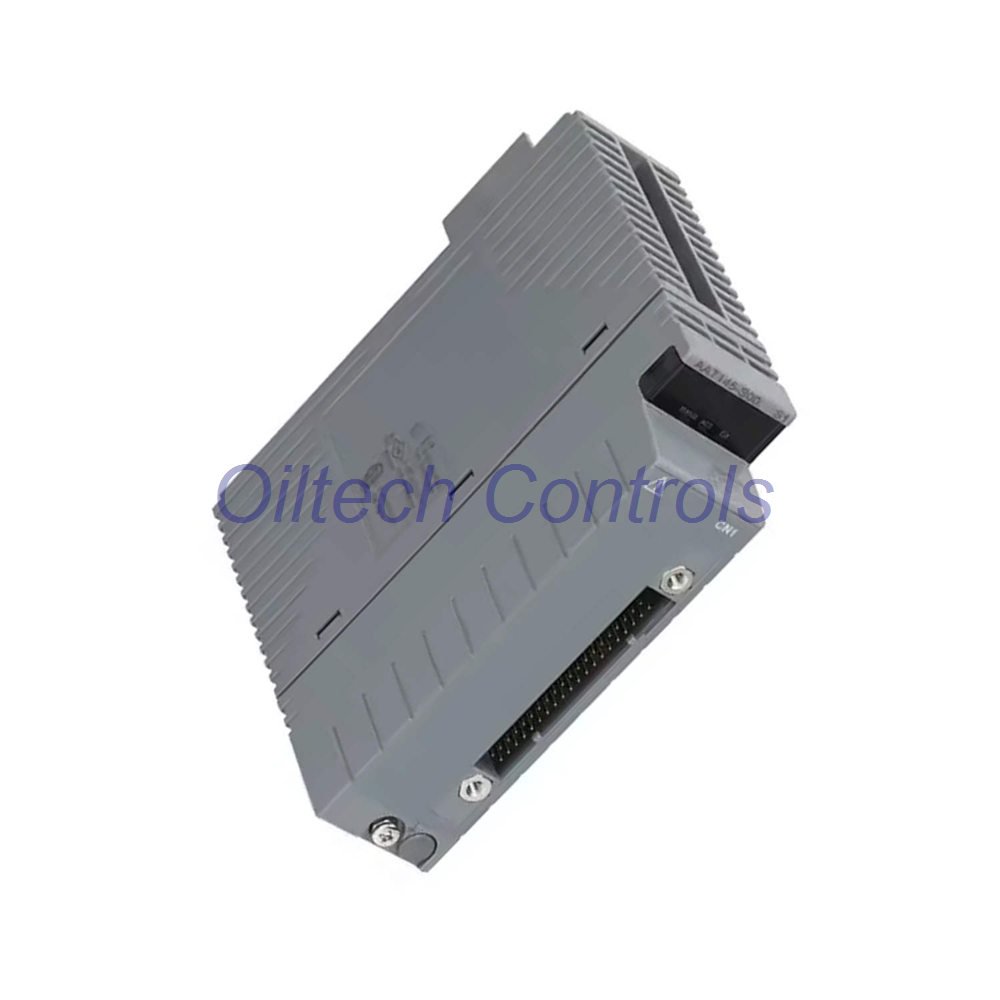

The Yokogawa AAV144-S50 is a high-performance analog input module designed for Centum VP control systems.
This module processes up to 16 voltage signals with complete channel-to-system electrical isolation.
It supports standard voltage ranges of -10 V to +10 V and 1 V to 5 V.
Engineers select the AAV144-S50 because it offers rapid data updates and high noise immunity in industrial environments.
The standard design does not feature explosion protection, making it ideal for safe-area control cabinets.
Technical Specifications
The table below lists the essential electrical and physical performance data.
| Parameter | Specification Details |
|---|---|
| Brand & Model | Yokogawa AAV144-S50 (Standard Type, Basic Type) |
| Input Channels | 16 fully isolated channels |
| Signal Ranges | -10 V to +10 V DC or 1 V to 5 V DC |
| Accuracy | ±4 mV (for 1 to 5 V range) / ±20 mV (for -10 to +10 V range) |
| Data Update Period | 10 ms |
| Input Resistance | 1 MΩ (Power ON) / 200 kΩ (Power OFF) |
| Withstanding Voltage | 1500 V AC between input and system for 1 minute |
| Allowable Overvoltage | ±30 V DC maximum |
| Temperature Drift | ±4 mV per 10 degrees C / ±20 mV per 10 degrees C |
| Current Consumption | 500 mA maximum at 5 V DC |
| Module Weight | 0.2 kg |
Key Features and System Capabilities
- High Noise Immunity: Channel isolation blocks ground loops and common-mode electrical noise.
- Flexible Configuration: Software settings apply input signal ranges globally to all 16 channels.
- Active Diagnostics: System detects module temperature faults, power loss, and signal over-range conditions.
- Fast Loop Execution: The 10 ms update rate supports demanding real-time process loops.
- Robust Input Protection: Overvoltage clamping prevents damage from field wiring faults up to 30 V.
Installation, Connection, and Compatibility
- You can hot-swap this module in compatible Centum VP node units.
- The module fits standard Yokogawa I/O nests and interface plates.
- Connect field signals using pressure clamp terminals or KS1 system cables.
- Ensure proper shield grounding at the marshalling panel to prevent signal distortion.
Typical Applications
- Gas turbine control systems requiring rapid loop responses.
- Chemical reactor temperature and pressure monitoring stations.
- Water treatment facility flow meter integration.
- Power plant steam parameter monitoring loops.
Shipping, Warranty, and Package Contents
- Warranty Protection: This product includes a 12-month warranty covering manufacturing defects.
- Worldwide Express Delivery: We ship orders globally using FedEx, UPS, and DHL.
- Package List: Standard package contains one brand-new Yokogawa AAV144-S50 module in factory packaging.
Frequently Asked Questions (FAQ)
- Can I mix different input ranges on this module? No, you must configure all 16 channels to the same range using the software.
- Does this unit support hazardous area installation? No, the AAV144-S50 lacks active intrinsic safety barriers.
- What cable option is recommended for standard installations? The dedicated KS1 cable ensures the most reliable connection to terminal boards.
For further assistance, reach out directly via email at info@oiltechcontrols.com or call us at +86 158 8020 0923.
