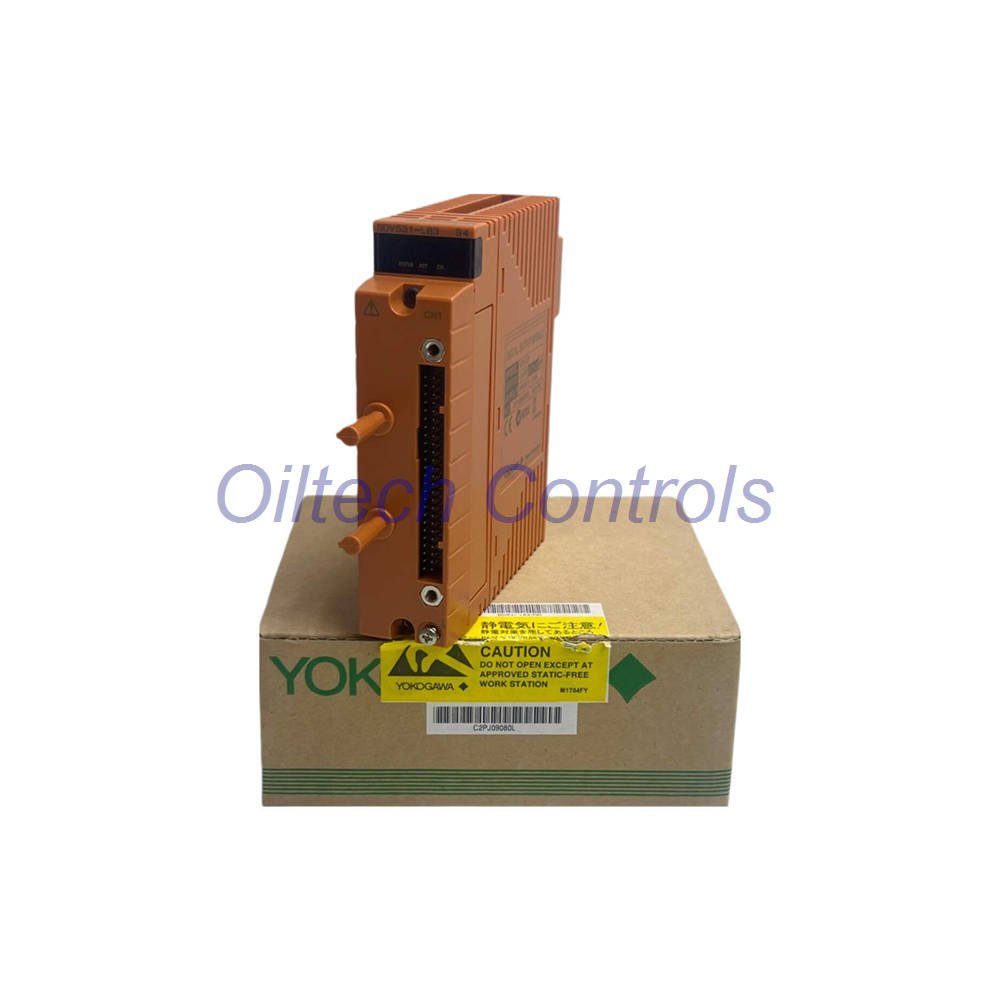

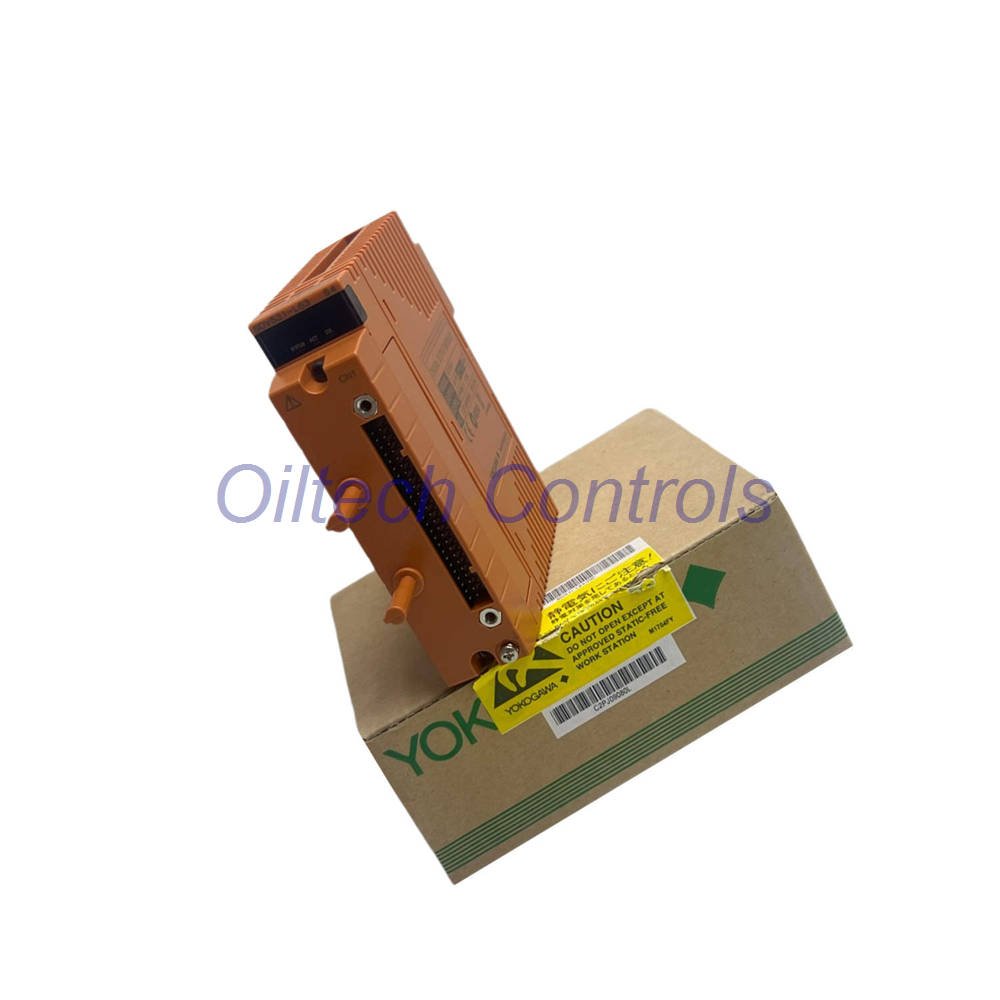

Welcome to Oiltech Controls. The Yokogawa SDV531-L63 digital output module delivers robust on/off status signals to field instruments with built-in field wiring diagnostics. Reach out to our technical team via email at info@oiltechcontrols.com or message us instantly on WhatsApp at +86 158 8020 0923 for personalized support and fast quotes.
Technical Specifications Overview
- Brand: Yokogawa
- Model: SDV531-L63
- Series: Centum VP / ProSafe-RS
- Module Type: 8-channel digital output module
- Output Voltage: 24 V DC
- Maximum Load Current: 0.6 A per line, 4.8 A total
- Output Response Time: 30 ms maximum
- Current Consumption: 280 mA max at 5 V DC, 140 mA max at 24 V DC
Configuration Breakdown & Suffix Codes
| Model | SDV531 | Digital output module (8-channel, 24 V DC, module isolation) |
| Suffix -L | Long Distance | Long distance transmission type for extended field architectures |
| Suffix -6 | Interface Adapter | Supplied with signal cable interface adapter, non-explosion protected |
| Suffix -3 | Environmental Spec | ISA Standard G3 corrosion resistant with temperature range -20 to 70 °C |
Oiltech Controls Limited Insight
- Engineering Assessment: The SDV531-L63 unit eliminates external wiring diagnosis elements through integrated onboard circuit checks, cutting down installation complexity.
- System Redundancy: Supports dual-redundant configurations seamlessly to guarantee high availability in continuous mission-critical process loops.
Equipment Compatibility & Application Scenarios
- Target Equipment: Yokogawa Centum VP distributed control systems and ProSafe-RS safety instrumented platforms.
- Application Scenarios: Petrochemical refineries, power generation turbine controls, oil and gas safety shutdown logic, and chemical batch processing plants.
Advanced Diagnostic Capabilities
- Field Wiring Checks: Continuous monitoring of line integrity without extra hardware components.
- Leakage and Drop Detection: Tracks maximum output off-status leakage current of 1.6 mA and voltage drop limitations.
Shipping Methods & Warranty Terms
- Carriers: Fast, reliable global dispatch via FedEx, UPS, and DHL.
- Warranty: Backed by a comprehensive 12-month quality warranty.
Professional Frequently Asked Questions
- Question: What is the main purpose of the long-distance design in the SDV531-L63 module?
- Answer: The long-distance suffix ensures reliable signal transmission over extended cabling runs without degradation in industrial environments.
- Question: Can this digital output card be configured in dual-redundant setups?
- Answer: Yes, the architecture supports full dual-redundancy to provide fault-tolerant performance for critical safety applications.
- Question: What selection advice should engineers keep in mind regarding load resistance?
- Answer: Ensure your connected field load resistance stays within the specified 40 to 685 Ω range to prevent operating faults.
- Question: How does the ISA Standard G3 rating help in corrosive chemical plants?
- Answer: It provides superior resistance against harsh chemical gases, extending the hardware lifespan in severe operational atmospheres.
- Question: What terminal options are compatible with this hardware version?
- Answer: It supports pressure clamp terminal blocks, MIL cables, or dedicated signal cable interfaces like AKB331 and AKB651.
