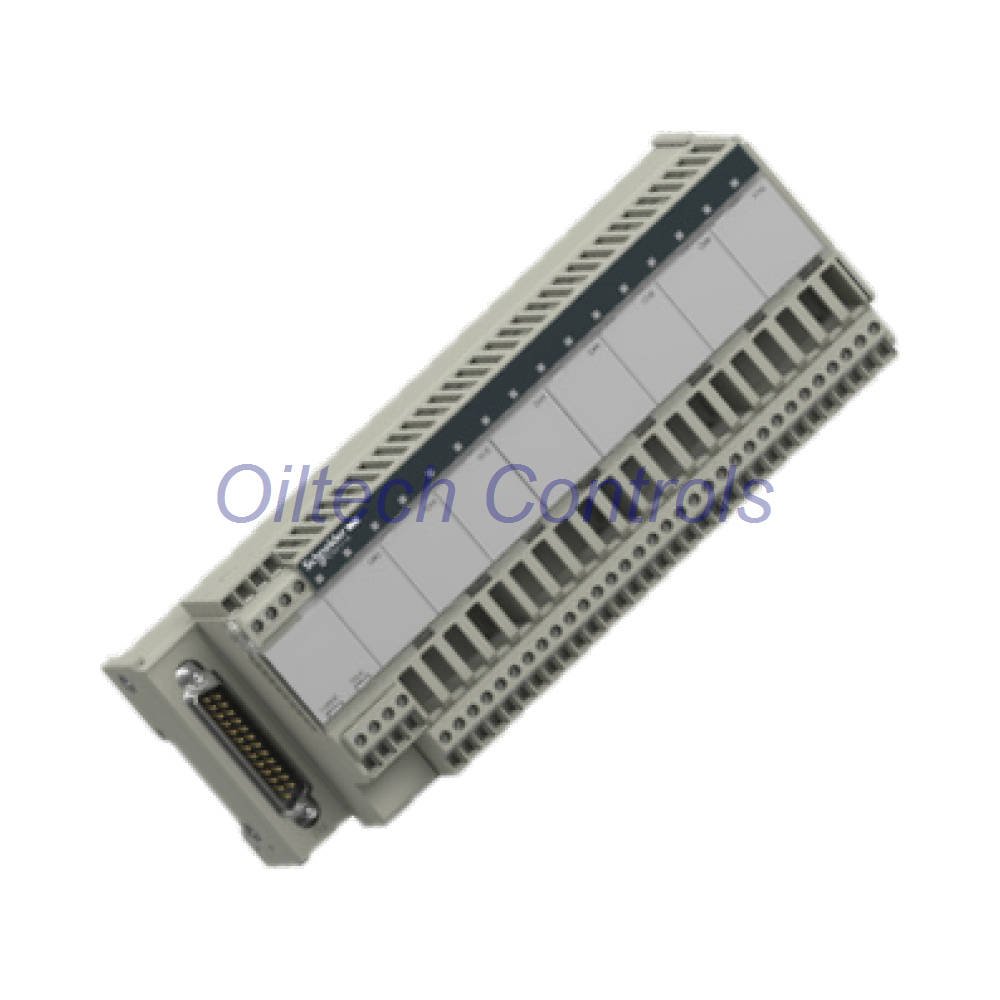

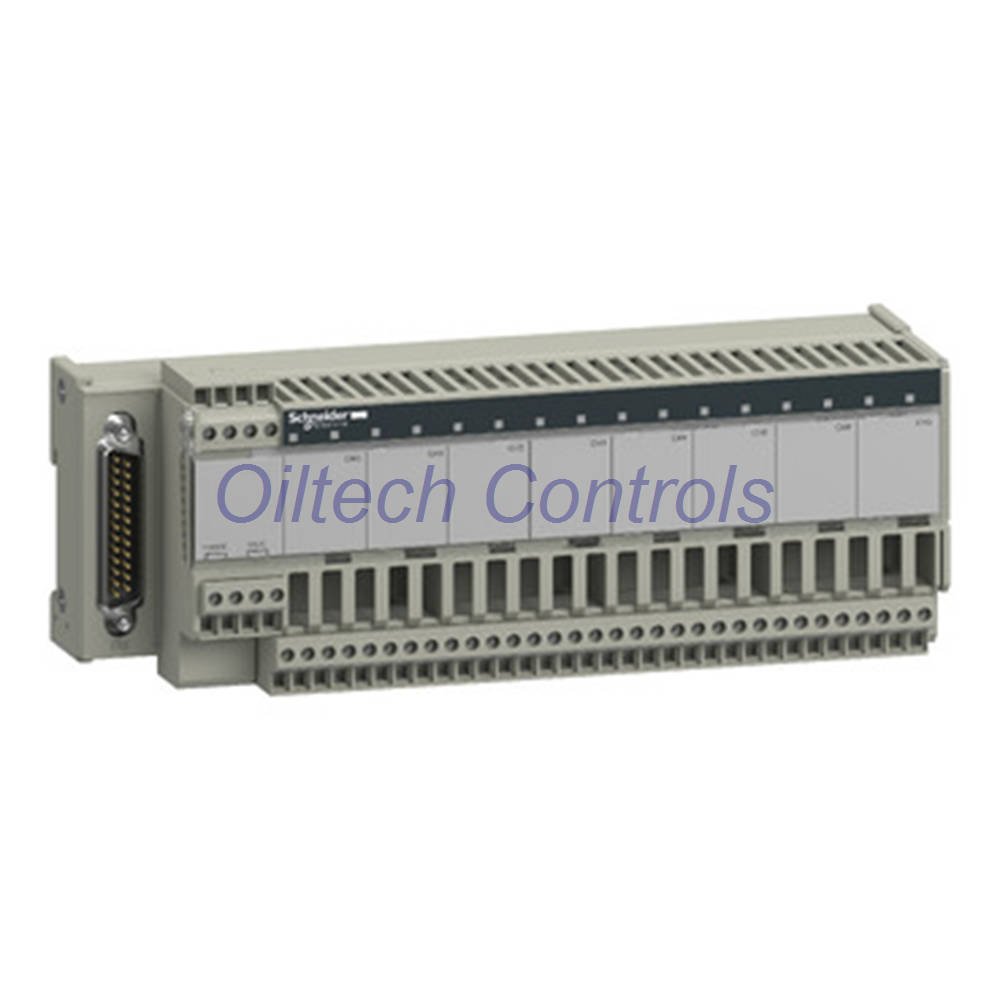

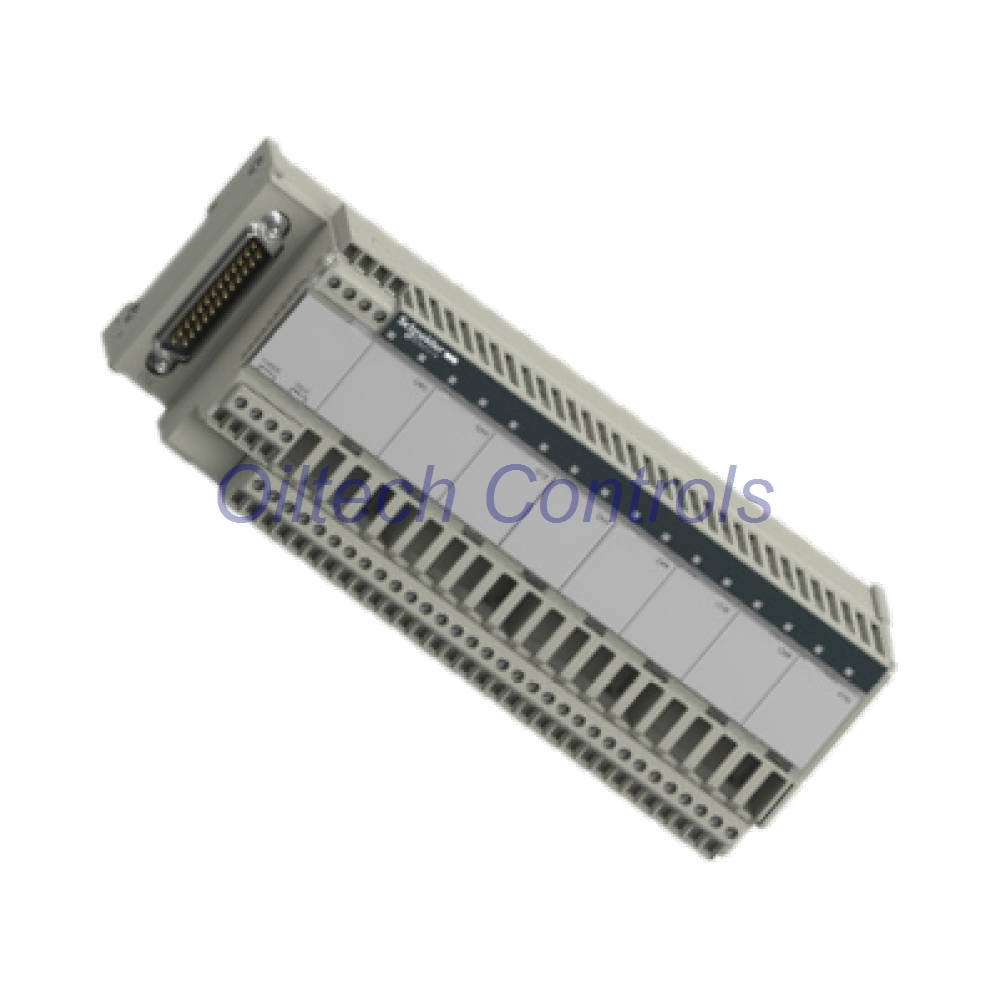

ABE7CPA31E Connection Sub-Base for Analog Input Channels
The Schneider Electric ABE7CPA31E is an 8-channel analog input sub-base from the Telefast ABE7 range. It links field sensors to Premium PLC analog cards. The unit uses a SUB-D 25 connector for fast wiring. It accepts 1/2/3/4-wire sensors. Each channel is isolated for noise immunity. LED status indicators show channel state. The 24V DC control voltage suits standard industrial panels. Spring terminals speed up installation. This sub-base is active in the Telefast ABE7 line.
Technical Specifications
- Brand: Schneider Electric
- Model: ABE7CPA31E
- Series: Telefast ABE7
- Module Type: Analog input connection sub-base
- Channels: 8 analog inputs
- Signal Type: Isolated analog input
- PLC Compatibility: Premium PLC
- Control Voltage: 24V DC
- Connector: SUB-D 25
- Sensor Wiring: 1/2/3/4-wire support
- Status Display: LED per channel
- Mounting: 35 mm DIN rail clips or screw
- Wire Cross-Section: 0.14-2.5 mm² solid, 0.09-1.5 mm² flexible
- Terminal Type: Spring terminals
- Lifecycle: Active, Telefast ABE7 range (verified 2026-09)
Oiltech Controls Review
- The ABE7CPA31E cuts wiring time on analog I/O.
- Spring terminals remove the need for screw drivers.
- The SUB-D 25 interface mates with standard PLC cables.
- Isolation per channel lowers cross-talk in mixed signal panels.
- Ideal for retrofits where original sub-bases are obsolete.
Oiltech Controls Insight: Suitable Equipment
- Schneider Premium PLC analog input racks
- Telefast ABE7 pre-wired connection systems
- Process control panels with 4-20 mA or 0-10V sensors
- Legacy machines needing drop-in sub-base replacement
- DIN rail cabinets with limited wiring space
Installation Notes
- Clip the sub-base to a 35 mm DIN rail or screw it down.
- Wire sensors to spring terminals with 0.14-2.5 mm² solid cable.
- Connect the SUB-D 25 cable to the PLC analog card.
- Apply 24V DC control voltage.
- Check LED status per channel after power-up.
Ordering and Delivery
- 12-month warranty on every unit.
- Ships in 24-28 hours after order confirmation.
- Carriers: FedEx, UPS, DHL.
- Tracking number sent by email.
FAQ
Q: Does the ABE7CPA31E work with non-Premium PLCs?
A: It targets Premium PLC analog cards. Other PLCs need a compatible SUB-D 25 pinout. Always check the card manual first.
Q: How do I pick between 1-wire and 4-wire sensors?
A: Use 1-wire for simple loops. Use 4-wire for high accuracy and long cable runs. The sub-base supports both.
Q: Can I replace an obsolete sub-base with this model?
A: Yes, in many cases. Compare channel count, connector type, and voltage. Our team verifies fit before shipment.
Q: What causes an LED to stay off?
A: Check sensor power, wiring polarity, and the 24V DC supply. A blown channel or loose spring terminal also causes this.
Q: Is refurbished stock reliable for production lines?
A: We test every refurbished unit. It carries the same 12-month warranty. Many customers use it for obsolete system support.
