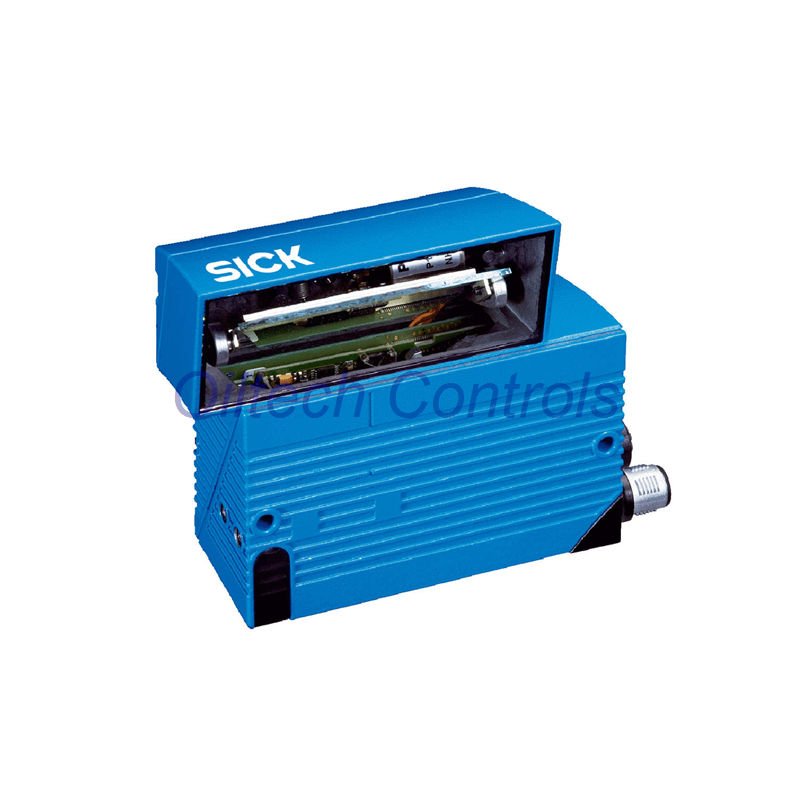

SICK CLV650-6120 Industrial Barcode Scanner
The SICK CLV650-6120 delivers reliable barcode reading. This fixed mount scanner works in industrial environments. It reads codes from 125mm to 1570mm away. The auto focus feature ensures clear scanning. Multiple interface options provide flexible connectivity for your system.
Core Technical Specifications
- Brand & Model: SICK CLV650-6120
- Product Type: Fixed Mount Barcode Scanner
- Reading Distance: 125mm to 1570mm (4.9″ to 61.8″)
- Scanning Frequency: 600Hz to 1000Hz high speed
- Code Resolution: 0.25mm to 1.0mm minimum element size
- Light Source: Red laser, 658nm wavelength
- Laser Class: Class 2 safe for industrial use
- Aperture Angle: Up to 50 degrees coverage
- Scanning Method: Oscillating mirror technology
- Auto Focus: Automatic focus adjustment included
- Oscillation Frequency: 0.5Hz to 6.25Hz adjustable
- Angle of Deflection: -20° to +20° range
- Power Supply: 18-30V DC industrial voltage
- Power Consumption: 9.5W maximum
- Enclosure Rating: IP65 for dust and water protection
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Weight: 250g without cable
- Dimensions: 95mm x 107mm x 41mm (LxWxH)
Advanced Features & Performance
- Auto Focus: Automatically adjusts for different distances.
- High Speed Scanning: Up to 1000Hz for fast moving objects.
- Multiple Interfaces: Ethernet, PROFINET, EtherNet/IP, EtherCAT.
- Wide Code Support: Reads all common 1D barcode types.
- Industrial Rugged: IP65 rating withstands harsh conditions.
- Flexible Mounting: Fixed position with adjustable settings.
- Multiple Reads: Can read 1 to 20 codes per scan.
- Configuration Options: SOPAS ET software for setup.
Connectivity & Integration
- Ethernet: TCP/IP with 10/100 MBit/s speed
- PROFINET: Single or dual port operation
- EtherNet/IP: Compatible with Allen-Bradley systems
- EtherCAT: Real-time industrial Ethernet
- Serial Interfaces: RS-232, RS-422, RS-485 options
- Fieldbus: PROFIBUS DP via external module
- CAN/CANopen: For sensor networking
- Digital I/O: 3 inputs and 2 outputs available
- Connection: 2x M12 connectors (12-pin and 4-pin)
Package & Service Information
- One SICK CLV650-6120 barcode scanner unit
- Mounting bracket and installation hardware
- Comprehensive user manual and datasheet
- Warranty: 12-month manufacturer warranty
- Shipping: Worldwide via FedEx, UPS, or DHL
- Technical support: info@oiltechcontrols.com
- Phone support: +86 158 8020 0923
Expert FAQ & Selection Guide
What is the main advantage of oscillating mirror technology?
- Oscillating mirrors create multiple scan lines automatically. This increases read reliability without mechanical movement of the entire scanner.
Can this scanner read barcodes on curved surfaces?
- Yes, the auto focus and wide aperture help with curved surfaces. For best results, position the scanner perpendicular to the barcode center.
How do I choose between Ethernet and PROFINET connection?
- Use Ethernet for simple TCP/IP communication. Choose PROFINET if your PLC system uses this protocol for integrated data exchange.
What is the typical installation height for this scanner?
- Install 300-800mm above the conveyor for standard packages. Adjust based on your barcode size and reading distance requirements.
Can I use this scanner in food processing areas?
- The IP65 rating protects against water jets. For food areas, ensure proper housing against cleaning chemicals and verify material compatibility.
