Product Overview

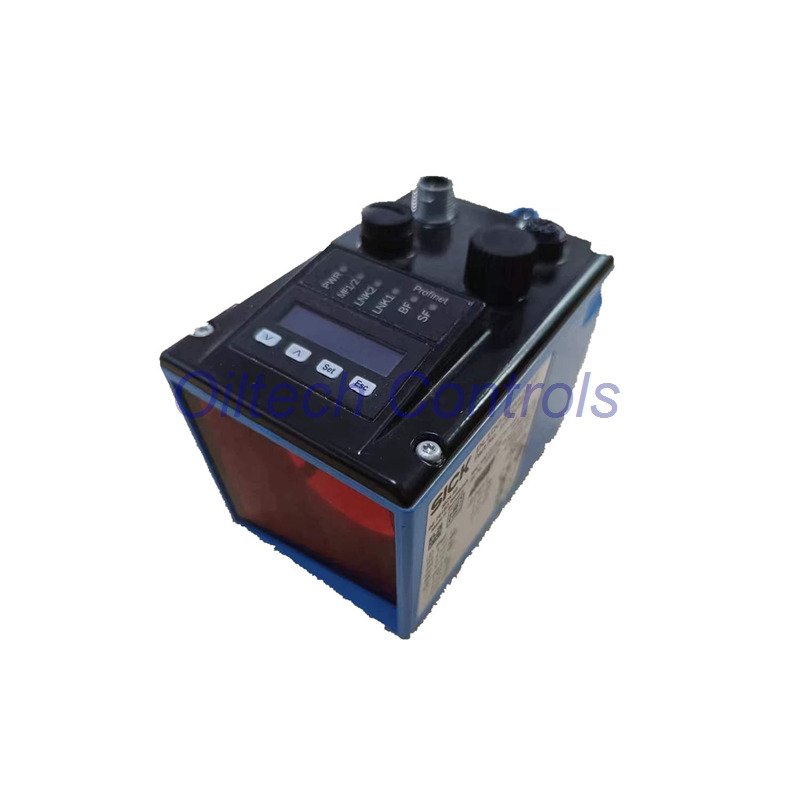

SICK DL100-22AA2112 is a Dx100 series time-of-flight distance sensor for precise industrial measurement.
The sensor delivers stable performance for indoor applications using reflector-based targets.
Author: Oiltech Controls
Key Measurement Capabilities
- Measuring range reaches 0.15 m to 200 m with diamond-grade reflective tape.
- Resolution adjusts freely from 0.1 mm to 100 mm.
- Accuracy stays within ±2.5 mm, with 1 mm repeatability.
Speed and Response
- Response time operates at 2 ms for fast control feedback.
- Measurement and output cycles both run at 1 ms.
- The sensor supports speeds up to 15 m/s.
Laser and Optical Design
- The device uses a visible red laser with Class 2 safety rating.
- Laser standards comply with IEC and EN 60825-1 requirements.
Interfaces and Signals
- **SICK DL100-22AA2112** integrates easily via PROFINET.
- Two digital push-pull outputs support distance and speed switching.
- A multifunction input enables preset, laser off, and diagnostic functions.
Electrical Specifications
- Operating voltage ranges from 18–30 V DC.
- Current consumption stays below 250 mA at 24 V DC.
Environmental and Mechanical Design
- Operating temperature covers –20 °C to +55 °C.
- The IP65 aluminum housing resists dust, moisture, and vibration.
- Compact dimensions support easy installation in limited spaces.
Installation Notes
- Mount the sensor firmly and align it directly toward the reflector.
- Use high-quality reflective tape for maximum measurement stability.
Packaging and Shipping
- The package includes one sensor and standard mounting bracket.
- Delivery options include FedEx, UPS, and DHL.
