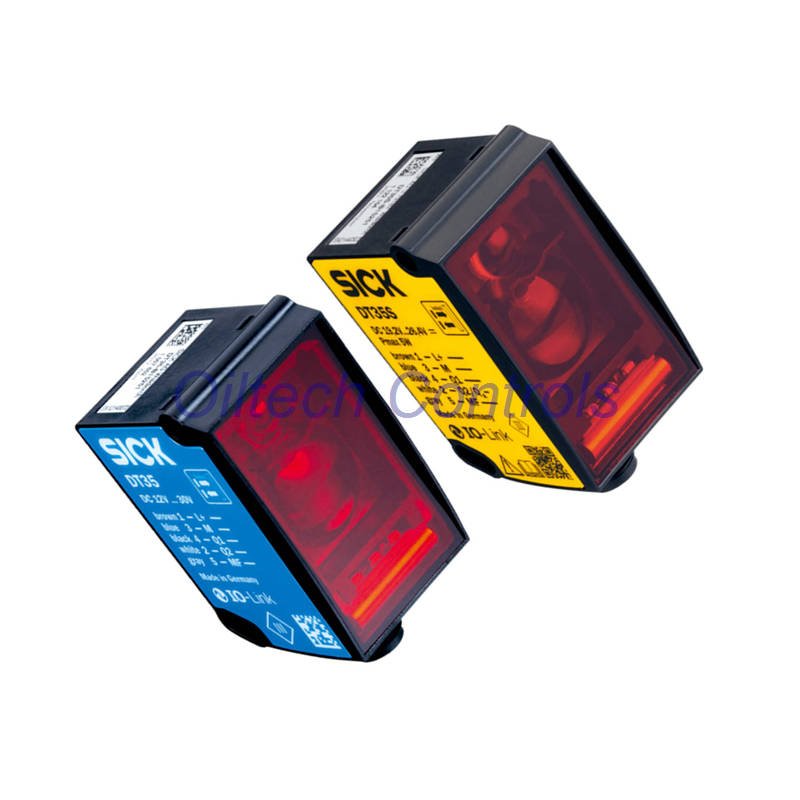

SICK DL35-B15552 Dx35 Mid Range Distance Sensor

• This sensor measures distance using reflective tape.
• It suits long travel systems and mobile equipment.
• The Dx35 series focuses on speed and stable output.

Why Choose This Sensor

• Up to 35 m measuring range supports cranes and shuttle systems.
• High switching speed improves control accuracy.
• IO-Link V1.1 simplifies setup and diagnostics.
• Laser Class 1 allows safe daily operation.
• Compact housing fits tight mounting spaces.

Product Identity

• Brand: SICK
• Model: DL35-B15552
• Series: Dx35
• Sensor Type: Reflective laser distance sensor
• Manufacturing Origin: Germany

Measurement Performance

• Measuring range: 200 mm to 35,000 mm on reflective tape.
• Resolution: 0.1 mm.
• Repeatability: ≥ 0.5 mm.
• Typical accuracy: ± 15 mm.
• Light spot size: 15 mm × 15 mm at 2 m.

Speed and Timing Control

• Response times: 2.5 ms to 96.5 ms selectable.
• Switching frequency: Up to 333 Hz.
• Output delay: 1 ms to 32 ms.
• Speed modes: Super Fast to Super Slow.

Electrical and Interface Data

• Supply voltage: 12 VDC to 30 VDC.
• Power use: ≤ 1.7 W.
• Maximum output current: 100 mA.
• Connector: M12, 5-pin, male.
• Communication: IO-Link V1.1 at 38.4 kbit/s.
• Analog output: 4–20 mA or 0–10 V.
• Digital output: Push-pull PNP/NPN.

Mechanical and Environmental Data

• Housing: ABS / PC plastic.
• Window: PMMA.
• Protection rating: IP65 and IP67.
• Operating temperature: –30 °C to +55 °C.
• Storage temperature: –40 °C to +75 °C.
• Weight: Approx. 65 g.

Functional Configuration Options

• Distance to reflective tape mode.
• Switching window control.
• Teach-in via IO-Link or external input.
• Analog and digital output inversion.
• Factory reset through interface.

Typical Applications

• Crane positioning systems.
• Warehouse shuttle tracking.
• Rail and gantry movement control.
• Automated storage systems.

Packaging and Warranty

• Includes original SICK DL35-B15552 sensor.
• Supplied with standard industrial packaging.
• Warranty: 12 months.

Shipping Options

• Worldwide delivery via FedEx.
• UPS and DHL express available.

Professional FAQ

• Does this sensor require reflective tape?
• Yes, it works best with diamond grade reflective tape.
• Can IO-Link store parameters?
• Yes, it supports parameter storage and cloning.
• Is this model suitable for outdoor use?
• Yes, IP67 protection supports outdoor environments.
• Does the sensor support fast motion tracking?
• Yes, high switching frequency supports moving targets.
• Is laser alignment easy during setup?
• Yes, visible red light simplifies alignment.
