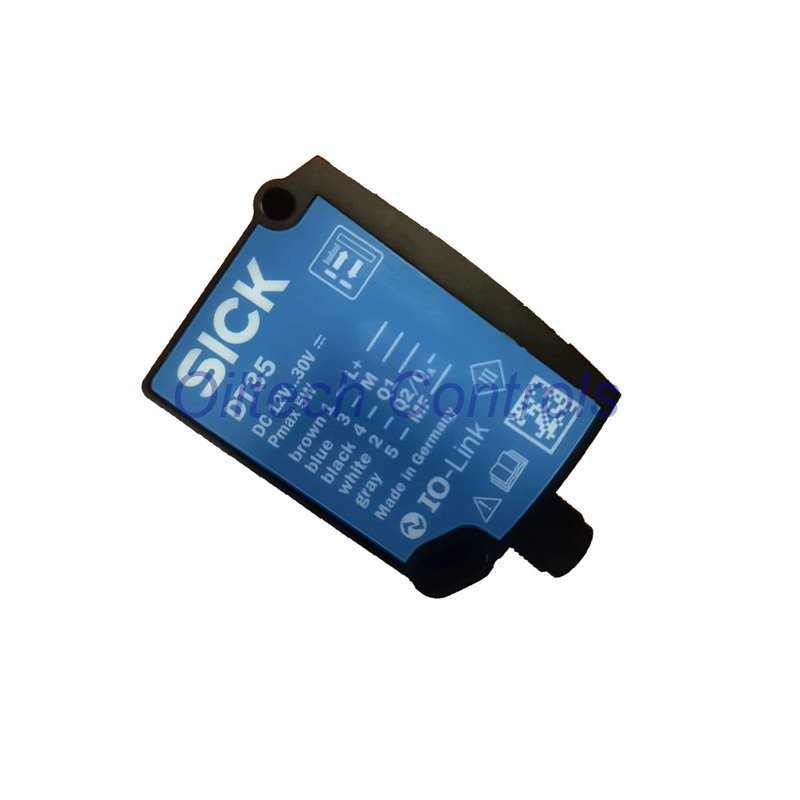

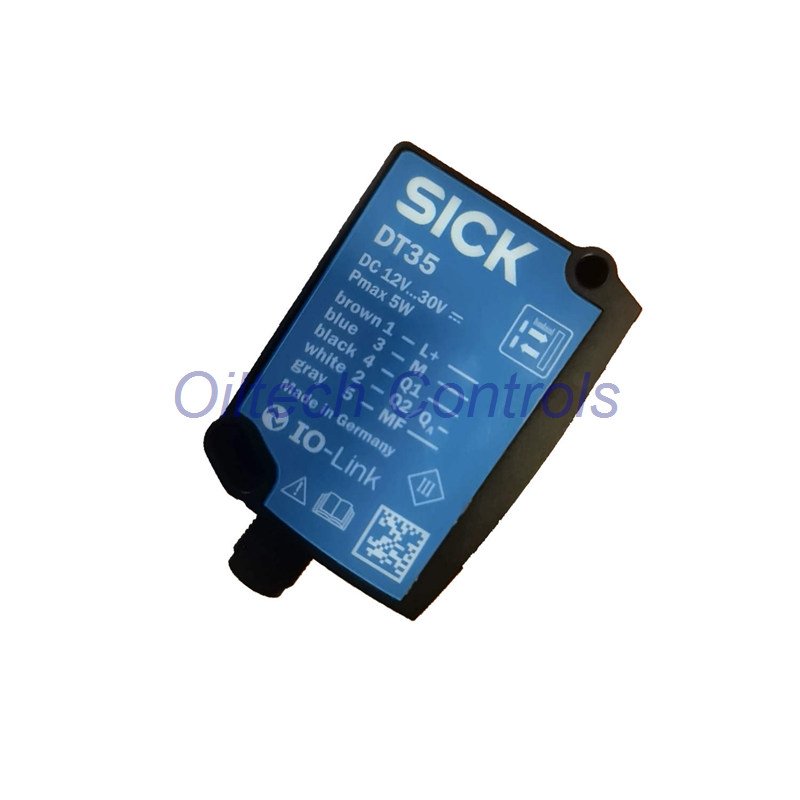

SICK DT35-B15251 Analog Laser Sensor 12m IO-Link Distance Sensor

Core Product Value

• The DT35-B15251 delivers reliable distance data for modern automation systems.
• The sensor supports long-range measurement up to 12 m.
• Fast signal processing improves machine reaction speed.

Distance Measurement Capability

• Measuring range starts at 50 mm for close detection.
• Natural targets reach 12,000 mm at 90% remission.
• Low-reflective objects measure down to 3,100 mm.
• Resolution reaches 0.1 mm for fine control.

Speed and Signal Control

• Response time adjusts from 2.5 ms to 96.5 ms.
• Switching frequency scales from 6 Hz to 333 Hz.
• Output delay sets between 1 ms and 32 ms.

Electrical and Interface Design

• Supply voltage supports 12–30 VDC operation.
• Analog output supports 4–20 mA and 0–10 V.
• Digital output supports PNP and NPN push-pull.
• IO-Link V1.1 enables remote setup and diagnostics.

Optical and Laser Structure

• Visible red laser improves alignment accuracy.
• Laser class 2 meets industrial safety standards.
• Light spot measures about 15 × 15 mm at 2 m.
• Laser service life reaches 100,000 hours.

Housing and Environmental Resistance

• ABS and PC housing reduces overall device weight.
• Protection rating reaches IP65 and IP67.
• Operating temperature ranges from –30°C to +55°C.
• Humidity tolerance reaches 95% without condensation.

Installation and Setup Benefits

• M12 5-pin male connector ensures fast wiring.
• Status LEDs provide clear visual feedback.
• Teach-in functions reduce setup complexity.
• Factory reset restores default parameters easily.

Warranty and Logistics

• The product includes a 12-month warranty.
• Packaging protects the sensor during transport.
• Shipping options include FedEx, UPS, and DHL.

Professional FAQ

• Does the DT35-B15251 support mixed output types?
• The sensor allows analog, digital, or combined output use.
• Can users limit the measurement window?
• The sensor supports adjustable switching windows.
• Is vibration resistance suitable for conveyors?
• The design meets EN vibration standards for moving systems.
• Can users disable the laser during downtime?
• The multifunction input supports laser off control.
• Does the sensor keep accuracy over temperature changes?
• The sensor maintains stable performance across its full temperature range.
