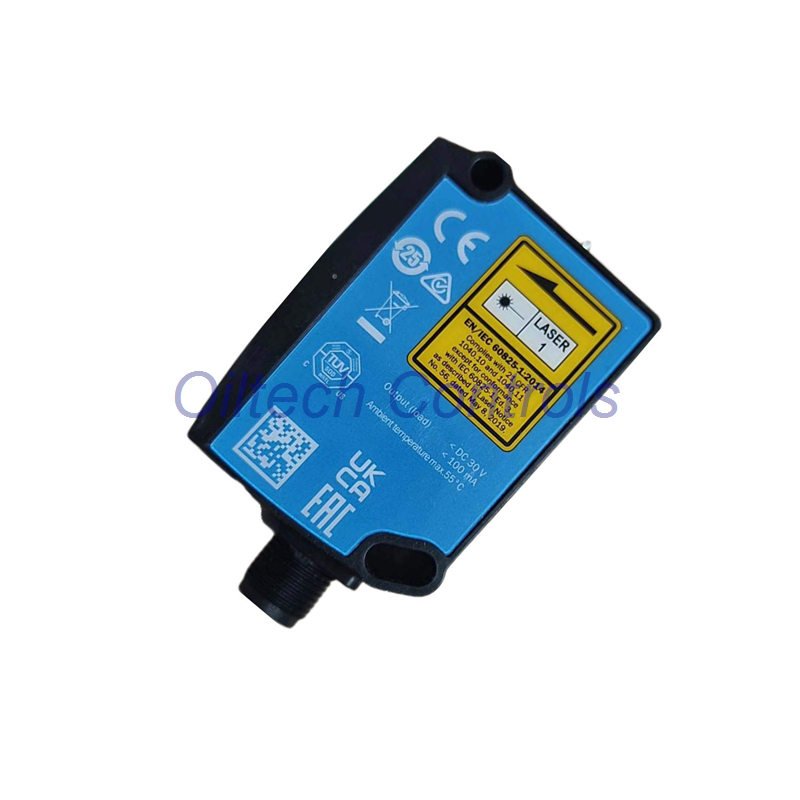

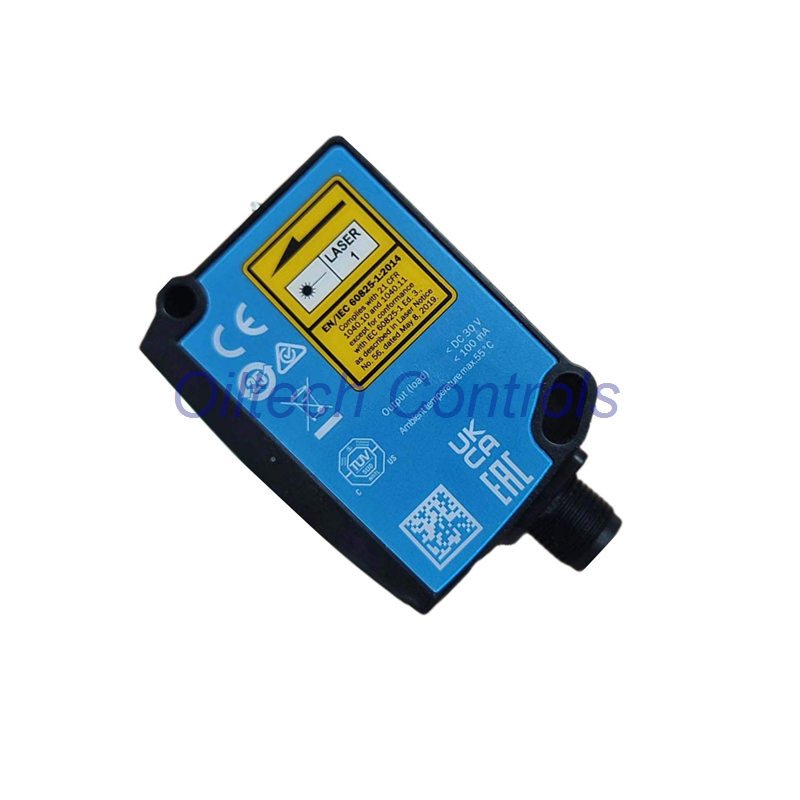

SICK DT35-B15551 Dx35 Time-of-Flight Distance Sensor
- This sensor measures distance with stable laser time-of-flight technology.
- It supports long ranges and high accuracy for automation tasks.
- The Dx35 series focuses on speed, clarity, and easy system integration.
Key Selling Points
- Measurement range up to 12 meters supports large machines and conveyor systems.
- IO-Link V1.1 interface enables fast setup and remote parameter control.
- Visible red laser Class 1 ensures safe and simple alignment.
- Fast response options fit both high-speed and stable applications.
- Compact ABS housing saves space in control cabinets.
Identification and General Data
- Brand: SICK
- Model: DT35-B15551
- Series: Dx35
- Sensor Type: Time-of-Flight Distance Sensor
- Country of Origin: Germany
Distance and Optical Performance
- Detection range: 50 mm to 12,000 mm at 90% remission.
- Range at low reflectivity: 3,100 mm at 6% remission.
- Resolution: 100 micrometers.
- Repeatability: ≥ 0.5 mm.
- Typical accuracy: ± 10 mm.
- Light source: Visible red laser.
- Laser lifetime: Up to 100,000 hours at 25 °C.
Speed and Signal Control
- Response times: 4.5 ms to 192.5 ms selectable.
- Switching frequency: Up to 166 Hz.
- Output delay: 2 ms to 64 ms.
- Speed modes: Super Fast to Super Slow.
Electrical and Interface Details
- Supply voltage: 12 VDC to 30 VDC.
- Maximum current: 100 mA.
- Power consumption: ≤ 1.7 W.
- Communication: IO-Link V1.1.
- Connector: M12 5-pin male connector.
- Analog output: 4–20 mA or 0–10 V.
- Digital output: PNP/NPN push-pull.
Mechanical and Environmental Data
- Housing material: ABS / PC plastic.
- Protection rating: IP65 and IP67.
- Operating temperature: –30 °C to +55 °C.
- Storage temperature: –40 °C to +75 °C.
- Weight: Approx. 65 g.
- Shock and vibration: Complies with EN 60068 standards.
Application Highlights
- Distance monitoring on conveyors and stackers.
- Position control in packaging machines.
- Level measurement for bulk materials.
- Object detection with mixed surface colors.
Packaging and Warranty
- Includes original SICK DT35-B15551 sensor.
- Delivered with standard industrial packaging.
- Warranty period: 12 months.
Shipping Methods
- Worldwide shipping via FedEx, UPS, or DHL.
- Secure packing for long-distance transport.
Professional FAQ
- Can this sensor handle dark or rough surfaces?
- Yes, it measures reliably even at low remission values.
- Does the sensor support both analog and digital outputs?
- Yes, output Q2 supports analog, voltage, or digital modes.
- Is IO-Link required for operation?
- No, IO-Link is optional and improves setup and diagnostics.
- Can users invert output signals?
- Yes, both analog and digital outputs support inversion.
- Is the laser safe for human exposure?
- Yes, the laser meets Class 1 safety standards.
